T493X226M025BM6210 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> T493X226M025BM6210

T493X226M025BM6210: DescriptionTantalum Capacitor, Polarized, Tantalum (dry/solid), 25V, 20% +Tol, 20% -Tol, 22uF, 2917; CategoryPassive components capacitor; File Size101KB，1 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com

Download Datasheet Parametric View All

T493X226M025BM6210 Overview

Tantalum Capacitor, Polarized, Tantalum (dry/solid), 25V, 20% +Tol, 20% -Tol, 22uF, 2917

T493X226M025BM6210 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	KEMET
package instruction	, 2917
Reach Compliance Code	_compli
ECCN code	EAR99
Other features	ESR IS MEASURED AT 100 KHZ
capacitance	22 µF
Capacitor type	TANTALUM CAPACITOR
dielectric materials	TANTALUM (DRY/SOLID)
ESR	700 mΩ
high	4 mm
JESD-609 code	e0
leakage current	0.0055 mA
length	7.3 mm
Installation features	SURFACE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	SMT
method of packing	TR, Embossed Plastic, 7 Inch
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	25 V
size code	2917
surface mount	YES
Delta tangent	0.04
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	J BEND
width	4.3 mm

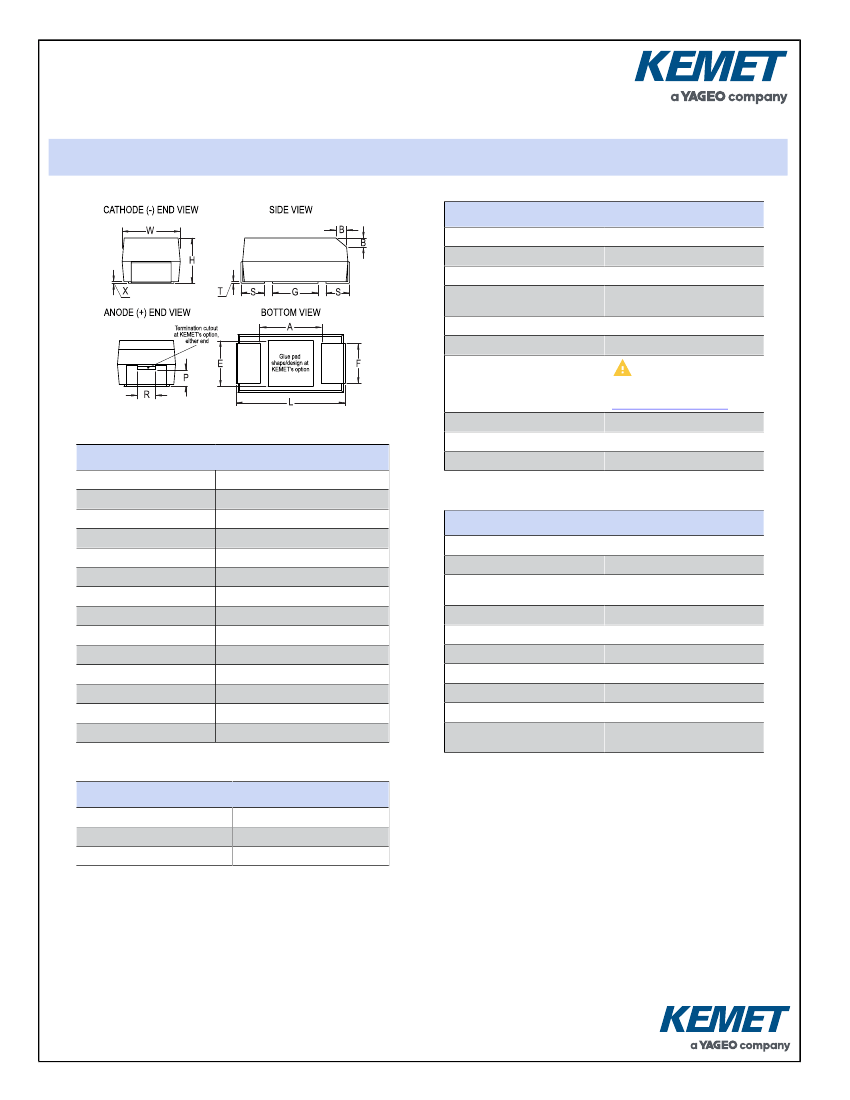

Preview

Download Datasheet

View All

KEMET Part Number: T493X226M025BM6210

T493 HRA, Tantalum, MnO2 Tantalum, HRA, 22 uF, 20%, 25 VDC, SMD, MnO2, Molded, High Reliability, B (0.1%/1000 Hrs), 700

mOhms, 7343, Height Max = 4.3mm

General Information

Series:

Dielectric:

Style:

Description:

Features:

RoHS:

Prop 65:

REACH:

T493 HRA

MnO2 Tantalum

SMD Chip

SMD, MnO2, Molded, High

Reliability

High Reliability

WARNING:

Cancer

and reproductive harm -

www.p65warnings.ca.gov.

SVHC (Pb – CAS 7439-92-1)

Non-Magnetic Lead (SnPb)

Dimensions

Footprint

7343

7.3mm +/-0.3mm

4.3mm +/-0.3mm

4mm +/-0.3mm

0.13mm REF

1.3mm +/-0.3mm

2.4mm +/-0.1mm

3.8mm MIN

0.5mm +/-0.15mm

3.5mm REF

1.7mm REF

1mm REF

0.1mm +/-0.1mm

Termination:

AEC-Q200:

Specifications

Capacitance:

Capacitance Tolerance:

Voltage DC:

Temperature Range:

Rated Temperature:

Dissipation Factor:

Failure Rate:

Resistance:

Leakage Current:

Testing and Reliability:

22 uF

20%

25 VDC (85C), 16.75 VDC

(125C)

-55/+125°C

85°C

4% 120Hz 25C

B (0.1%/1000 Hrs)

0.7 Ohms (100kHz 25C)

5.5 uA (5min 25°C)

10 Cycles Surge Current Testing

At +25C After Weibull

Packaging Specifications

Weight:

Packaging:

Packaging Quantity:

654.04 mg

T&R, 178mm

500

Statements of suitability for certain applications are based on our knowledge of typical operating conditions for such applications, but are not intended to constitute - and

we specifically disclaim - any warranty concerning suitability for a specific customer application or use. This Information is intended for use only by customers who have the

requisite experience and capability to determine the correct products for their application. Any technical advice inferred from this Information or otherwise provided by us

with reference to the use of our products is given gratis, and we assume no obligation or liability for the advice given or results obtained.

Generated 4/19/2021 - ad050261-2131-4680-8ed3-341cdcab3928
