T496C226K016CT611A datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> T496C226K016CT611A

T496C226K016CT611A: DescriptionTantalum Capacitor, Polarized, Tantalum (dry/solid), 16V, 10% +Tol, 10% -Tol, 22uF, Surface Mount, 2413, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size1MB，19 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com; Environmental Compliance

Download Datasheet Parametric View All

T496C226K016CT611A Overview

Tantalum Capacitor, Polarized, Tantalum (dry/solid), 16V, 10% +Tol, 10% -Tol, 22uF, Surface Mount, 2413, CHIP, ROHS COMPLIANT

T496C226K016CT611A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	KEMET
package instruction	, 2413
Reach Compliance Code	compli
ECCN code	EAR99
Other features	ESR IS MEASURED AT 100KHZ;MIL-PRF-55365;MIL-STD-1580
capacitance	22 µF
Capacitor type	TANTALUM CAPACITOR
dielectric materials	TANTALUM (DRY/SOLID)
ESR	1600 mΩ
high	2.5 mm
JESD-609 code	e3
leakage current	0.0036 mA
length	6 mm
Installation features	SURFACE MOUNT
multi-layer	N
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, EMBOSSED PLASTIC, 7 INCH
polarity	POLARIZED
positive tolerance	10%
Rated (DC) voltage (URdc)	16 V
size code	2413
surface mount	YES
Delta tangent	0.06
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrie
Terminal shape	J BEND
width	3.2 mm

T496C226K016CT611A Preview

Fused MnO

Tantalum Surface Mount Capacitors

T496 Series Fail-Safe Fused Space Grade

Overview

KEMET's Space Grade Series of capacitors are suitable for

use by military/aerospace customers in high reliability space

applications. This series meets the requirements of MIL–

PRF–55365 as well as MIL–STD–1580. These capacitors

incorporate an intensive testing and screening protocol which

is customizable depending on specific customer requirements.

The full part number allows for designation of Weibull grading

level (C=0.01%/k hours), surge current level (10 cycles -55°C and

+85°C before and/or after Weibull grading), performance testing

level (see chart for details on available options), ESR (low and

standard), and termination finish (see description in each series).

Fused versions are available for built-in circuit protection, as well

as multi-anode designs for very low ESR values.

Benefits

Internal fuse protects against damaging short circuit failure mode

Standard case sizes B, C, D, X per EIA 535BAAC

100% surge current test available

Optional gold-plated terminations

Operating temperature range of -55˚C to +125˚C

Fuse activation, 25˚C: within 1 second at fault currents of

4 amps and higher

• Continuous current capability: 0.75 amps

• Post actuation resistance, 25˚C: 10 MΩ, minimum

• Test tabs on side of case bypass the capacitor element to

allow direct testing of the fuse assembly

•

RoHS Compliant and lead-free terminations

Weibull Grading C (0.01%/1,000 hours)

Capacitance values of 0.15 μF to 470 μF

Voltage rating of 4 – 50 VDC

Environmental Compliance

RoHS Compliant (6/6) according to Directive 2002/95/EC when ordered with 100% Sn solder.

SPICE

For a detailed analysis of specific part numbers, please visit www.kemet.com for a free download of KEMET's SPICE software.

The KEMET SPICE program is freeware intended to aid design engineers in analyzing the performance of these capacitors over

frequency, temperature, ripple, and DC bias conditions.

One world. One KEMET

T2026_T496_SPACE • 7/19/2013

Tantalum Surface Mount Capacitors

Fused MnO

Tantalum Surface Mount Capacitors – T496 Series Fail-Safe Fused Space Grade

Ordering Information

Capacitor

Class

Tantalum

496

Series

Fail

Safe -

Space

Grade

Case Size

227

Capacitance

Code (pF)

Capacitance

Tolerance

K = ±10%

M = ±20%

010

Voltage

Failure Rate/

Design

Lead Material

T = 100% Matte

Tin (Sn) Plated

H = Standard

Solder Coated

(SnPb 5% Pb

minimum)

Surge

61 = None

62 = 10 Cycles

25°C

63 = 10 Cycles,

-55°C and 85°C

before Weibull

64 = 10 Cycles,

-55°C and 85°C

after Weibull

65 = Both

ESR

Testing

B, C, D, X First two digits

represent

significant

figures. Third

digit specifies

number of

zeros.

004 = 4 V

006 = 6.3 V 0.01%/1,000

010 = 10 V

hours

016 = 16 V

020 = 20 V

025 = 25 V

035 = 35 V

050 = 50 V

1 = ESR - A = Option A

Standard B = Option B

2 = ESR - C = Option C

Low

Applications

Typical applications include decoupling and filtering in computing and telecommunications end applications, such as high-end servers

requiring built-in fuse capability.

Performance Characteristics

Item

Operating Temperature

Rated Capacitance Range

Capacitance Tolerance

Rated Voltage Range

DF (120 Hz)

ESR (100 kHz)

Leakage Current

-55°C to 125°C

0.15 – 477 µF @ 120 Hz/25°C

K Tolerance (10%), M Tolerance (20%)

4 – 50 V

Refer to Part Number Electrical Specification Table

≤ 0.01 CV (µA) at rated voltage after 5 minutes

Performance Characteristics

T2026_T496_SPACE • 7/19/2013

Tantalum Surface Mount Capacitors

Fused MnO

Tantalum Surface Mount Capacitors – T496 Series Fail-Safe Fused Space Grade

Qualification

Test

Endurance

Condition

Δ C/C

85°C @ rated voltage, 2,000 hours

125°C @ 2/3 rated voltage, 2,000 hours

DCL

ESR

Δ C/C

DCL

ESR

Δ C/C

MIL–STD–202, Method 107, Condition B, mounted, -55C° to

125°C, 1,000 cycles

DCL

ESR

Extreme temperature exposure at a

succession of continuous steps at +25ºC,

-55ºC, +25ºC, +85ºC, +125ºC, +25ºC

+25°C

Δ C/C

DCL

IL*

Δ C/C

DCL

ESR

Δ C/C

DCL

Characteristics

Within ±10% of initial value

Within initial limits

Within 1.25 x initial limit

Within initial limits

Within ±10% of initial value

Within initial limits

Within 1.25 x initial limit

Within initial limits

Within ±5% of initial value

Within initial limits

Within 1.25 x initial limit

Within initial limits

-55°C

±10%

n/a

+85°C

±10%

1.5 x IL

10 x IL

+125°C

±20%

1.5 x IL

12 x IL

Storage Life

125°C @ 0 Volts, 2,000 hours

Thermal Shock

Temperature Stability

Within ±5% of initial value

Within initial limits

Within ±10% of initial value

Within initial limits

Surge Voltage

25°C and 85°C, 1.32 x rated voltage 1,000 cycles.

(125°C, 1.2 x rated voltage)

Mechanical Shock/Vibration

*IL = Initial Limit

MIL–STD–202, Method 213, Condition I, 100 G peak.

MIL–STD–202, Method 204, Condition D, 10 Hz to 2,000 Hz,

20 G peak

Certification

DSCC Drawing 04053

T2026_T496_SPACE • 7/19/2013

Tantalum Surface Mount Capacitors

Fused MnO

Tantalum Surface Mount Capacitors – T496 Series Fail-Safe Fused Space Grade

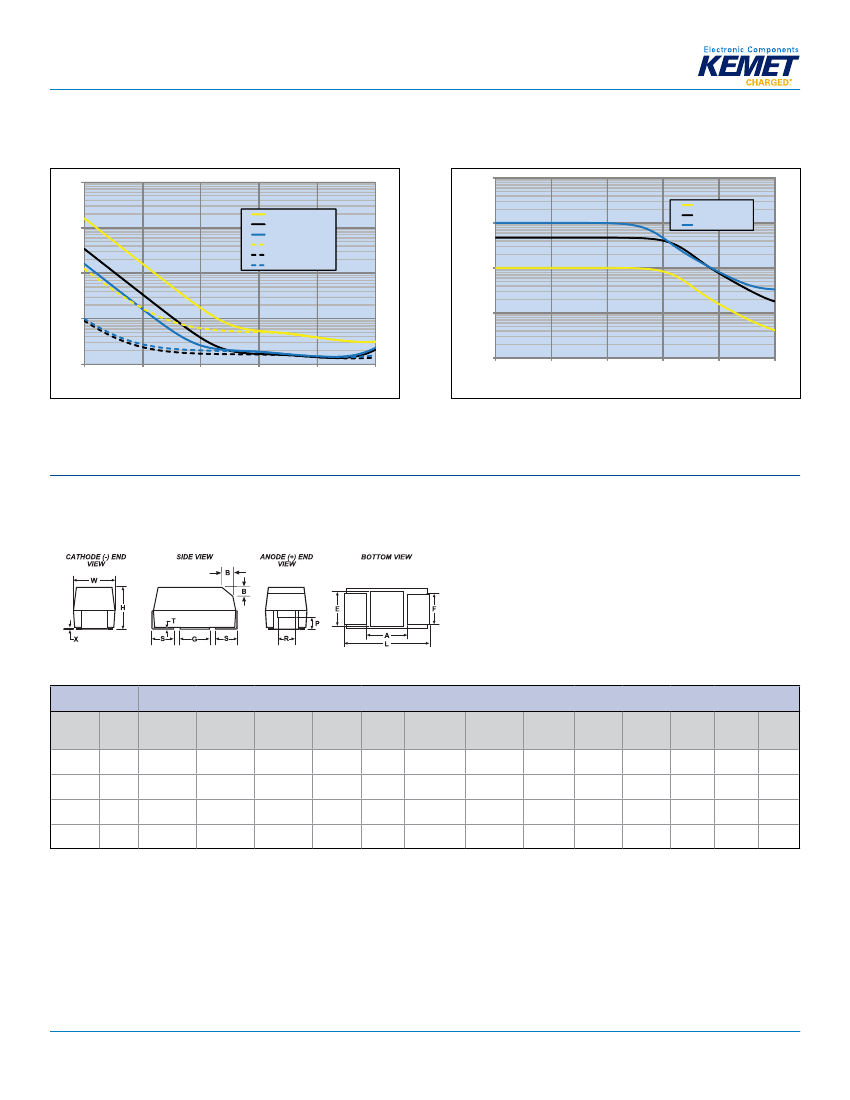

Electrical Characteristics

ESR vs. Frequency

1000

1,000

T496B106M016ATE3K5

Capacitance vs. Frequency

T496B106M016ATE3K5_IMP

Impedance, ESR (Ohms)

T496X107M016ATE700_IMP

T496B106M016ATE3K5_ESR

T496D476M016ATE400_ESR

Capacitance (µF)

100

T496D476M016ATE400_IMP

100

T496D476M016ATE400

T496X107M016ATE700

T496X107M016ATE700_ESR

0.1

100

1,000

10,000

Frequency (Hz)

100,000

1,000,000

10,000,000

100

1,000

10,000

Frequency (Hz)

100,000

1,000,000

10,000,000

Dimensions – Millimeters (Inches)

Metric will govern

Termination

cutout at

KEMET’s

option,

either end

Case Size

KEMET

EIA

3528–21

Component

2.8 ±0.2

(0.110 ±0.008)

3.2 ±0.3

(0.126 ±0.012)

4.3 ± 0.3

(0.169 ±0.012)

4.3 ±0.3

(0.169 ±0.012)

1.9 ±0.2

(0.075 ±0.008)

2.5 ±0.3

(0.098 ±0.012)

2.8 ± 0.3

(0.110 ±0.012)

4.0 ±0.3

(0.157 ±0.012)

F* ±0.1 S* ±0.3 B* ±0.15

±(.004) ±(.012) (Ref) ±.006

2.2 (.087)

2.4 (.094)

0.8 (.031)

1.3 (.051)

0.4 (.016)

0.5 (.020)

X (Ref)

0.10 ±0.10

(0.004 ±0.004)

0.10 ±0.10

(0.004 ±0.004)

0.10 ±0.10

(0.004 ±0.004)

0.10 ±0.10

(0.004 ±0.004)

P (Ref)

0.5 (0.020)

0.9 (0.035)

1.7 (0.067)

R (Ref)

T (Ref)

A (Min) G (Ref) E (Ref)

3.5 ±0.2

(0.138 ±0.008)

6.0 ±0.3

6032–28

(0.236 ±0.03)

7.3 ± 0.3

7343–31

(0.287 ±0.012)

7.3 ±0.3

7343–43

(0.287 ±0.012)

1.0 (0.039) 0.13 (0.005) 1.1 (.043) 1.8 (0.071) 2.2 (0.087)

1.0 (0.039) 0.13 (0.005) 2.5(.098) 2.8 (0.110) 2.4 (0.094)

1.0 (0.039) 0.13 (0.005) 3.8 (0.150) 3.5 (0.138) 3.5 (0.138)

Notes: (Ref) – Dimensions provided for reference only. No dimensions provided for B, P or R because low profile cases do not have a bevel or a notch.

* MIL–C–55365/8 specified dimensions

T2026_T496_SPACE • 7/19/2013
