Low ESR MnO
2
Tantalum & Aluminum Surface Mount Capacitors
T510 Multiple Anode Low ESR MnO
2
Series

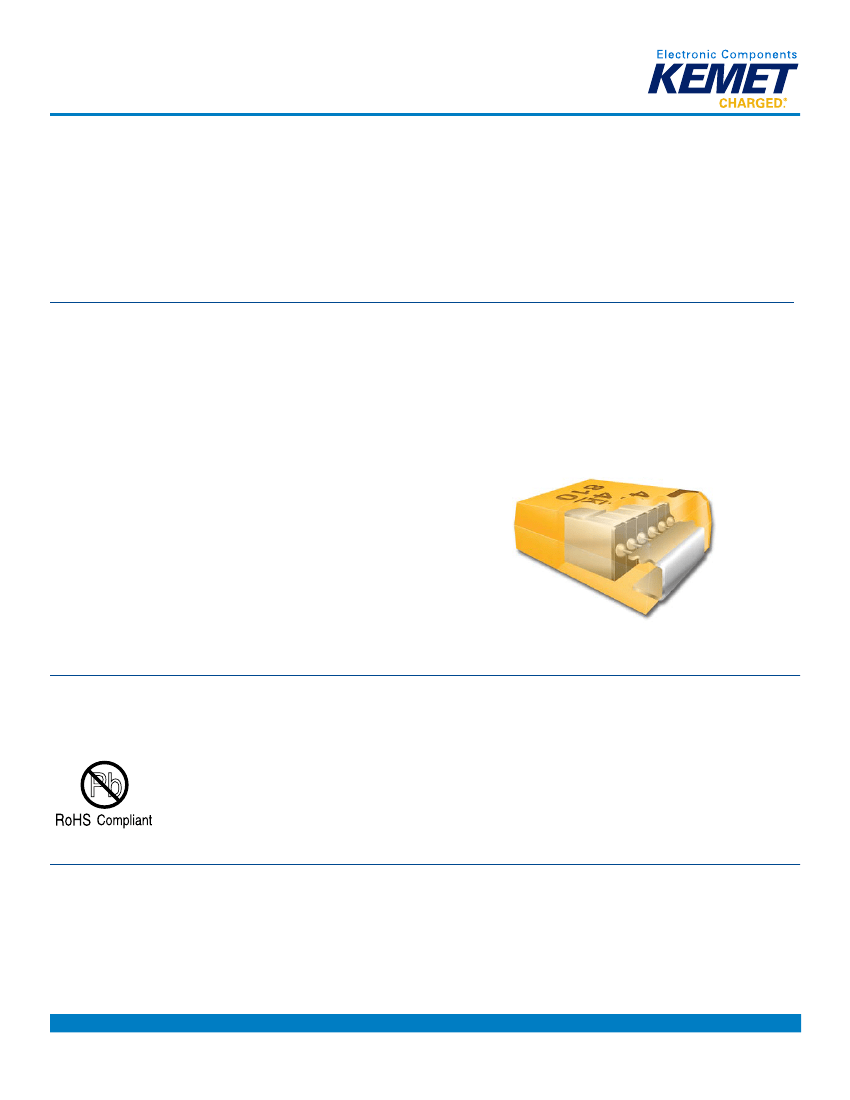

Overview
The low ESR, surge-robust T510 Series is designed for
demanding applications that require high surge current and
high ripple current capability. This series builds upon the proven
capabilities of our industrial grade tantalum chip capacitors to
offer several advantages such as low ESR, high ripple current
capability, excellent capacitance stability, and improved resistance
to high in-rush currents. These benefits are achieved though the
utilization of multiple anodes as well as high-stress, low impedance
electrical conditioning performed prior to screening.
Benefits
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Meets or exceeds EIA Standard 535BAAC
Taped and reeled per EIA 481–1
High surge current capability
Optional gold-plated terminations
High ripple current capability
100% surge current test
100% steady-state accelerated aging
Capacitance values of 10 μF to 1,000 μF
Tolerances of ±10% and ±20%
Voltage rating of 4 to 50 VDC
Case sizes E and X
ESR as low as 10 mΩ
RoHS Compliant and lead-free terminations
Operating temperature range of -55˚C to +125˚C
Applications
Typical applications include decoupling and filtering in industrial
and automotive end applications, such as DC/DC converters,
portable electronics, telecommunications, and control units
requiring high ripple current capability.
Environmental Compliance
RoHS Compliant (6/6) according to Directive 2002/95/EC when ordered with 100% Sn solder.
SPICE
For a detailed analysis of specific part numbers, please visit www.kemet.com for a free download of KEMET's SPICE software.
The KEMET SPICE program is freeware intended to aid design engineers in analyzing the performance of these capacitors over
frequency, temperature, ripple, and DC bias conditions.
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
T2014_T510 • 10/3/2013
1
Tantalum Surface Mount Capacitors
Low ESR MnO
2
Tantalum & Aluminum Surface Mount Capacitors – T510 Multiple Anode Low ESR MnO
2
Series
Ordering Information
T
Capacitor
Class
T=
Tantalum
510
Series
Multiple
Anode
Low ESR
X
Case Size
E, X
477
Capacitance
Code (pF)
M
Capacitance
Tolerance
006
Voltage
004 = 4 V
006 = 6.3 V
010 = 10 V
016 = 16 V
020 = 20 V
025 = 25 V
035 = 35 V
050 = 50 V
A
Failure Rate/
Design
A = N/A
Z = N/A
T
Lead Material
T = 100% Matte Tin
(Sn) Plated
H = Standard Solder
Coated (SnPb 5%
Pb minimum)
G = Gold Plated (A,
B, C, D, X only)
E800
ESR
Last three
digits specify
ESR in mΩ.
(800 = 800
mΩ)
Packaging
(C-Spec)
Blank = 7" Reel
7280 = 13" Reel
First two digits
K = ±10%
represent significant
M = ±20%
figures. Third digit
specifies number of
zeros.
Performance Characteristics
Item
Operating Temperature
Rated Capacitance Range
Capacitance Tolerance
Rated Voltage Range
DF (120 Hz)
ESR (100 kHz)
Leakage Current
-55°C to 125°C
10 – 1,000 µF @ 120 Hz/25°C
K Tolerance (10%), M Tolerance (20%)
4 – 50 V
Refer to Part Number Electrical Specification Table
Refer to Part Number Electrical Specification Table
≤ 0.01 CV (µA) at rated voltage after 5 minutes
Performance Characteristics
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
T2014_T510 • 10/3/2013
2
Tantalum Surface Mount Capacitors
Low ESR MnO
2
Tantalum & Aluminum Surface Mount Capacitors – T510 Multiple Anode Low ESR MnO
2
Series
Qualification
Test
Endurance
Condition
ΔC/C
85°C @ rated voltage, 2,000 hours
125°C @ 2/3 rated voltage, 2,000 hours
DF
DCL
ESR
ΔC/C
DF
DCL
ESR
ΔC/C
MIL–STD–202, Method 107, Condition B, mounted, -55C° to
125° C, 1,000 cycles
DF
DCL
ESR
Extreme temperature exposure at a
succession of continuous steps at +25ºC,
-55ºC, +25ºC, +85ºC, +125ºC, +25ºC
+25°C
ΔC/C
DF
DCL
IL*
IL
IL
ΔC/C
DF
DCL
ESR
ΔC/C
DF
DCL
Characteristics
Within ±10% of initial value
Within initial limits
Within 1.25 x initial limit
Within initial limits
Within ±10% of initial value
Within initial limits
Within 1.25 x initial limit
Within initial limits
Within ±5% of initial value
Within initial limits
Within 1.25 x initial limit
Within initial limits
-55°C
±10%
IL
n/a
+85°C
±10%
1.5 x IL
10 x IL
+125°C
±20%
1.5 x IL
12 x IL
Storage Life
125°C @ 0 volts, 2,000 hours
Thermal Shock
Temperature Stability
Within ±5% of initial value
Within initial limits
Within initial limits
Within initial limits
Within ±10% of initial value
Within initial limits
Within initial limits
Surge Voltage
25°C and 85°C, 1.32 x rated voltage 1,000 cycles
(125°C, 1.2 x rated voltage)
Mechanical Shock/Vibration
*IL = Initial limit
MIL–STD–202, Method 213, Condition I, 100 G peak
MIL–STD–202, Method 204, Condition D, 10 Hz to 2,000 Hz,
20 G peak
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
T2014_T510 • 10/3/2013
3
Tantalum Surface Mount Capacitors
Low ESR MnO
2
Tantalum & Aluminum Surface Mount Capacitors – T510 Multiple Anode Low ESR MnO
2
Series

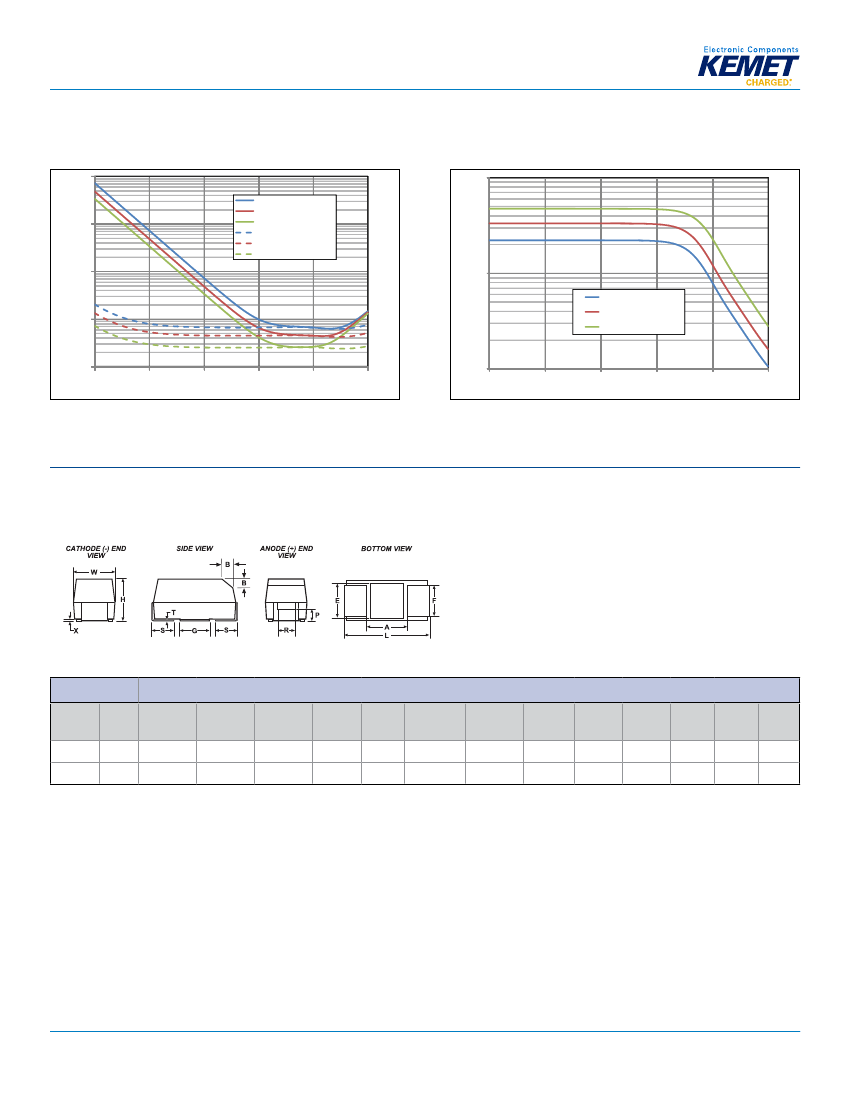

Electrical Characteristics
Impedance, ESR vs. Frequency
100
T510X226M035ATE100_IMP
Capacitance vs. Frequency
100
Impedance, ESR (Ohms)
T510X336M035ATE065_IMP
10
T510E476M035ATE050_IMP
T510X226M035ATE100_ESR
T510X336M035ATE065_ESR
T510E476M035ATE050_ESR
1
Capacitance (μF)
10
T510X226M035ATE100
T510X336M035ATE065
T510E476M035ATE050
0.1
0.01
100
1,000
10,000
Frequency (Hz)
100,000
1,000,000
10,000,000
1
100
1,000
10,000
Frequency (Hz)
100,000
1,000,000
10,000,000
Dimensions – Millimeters (Inches)
Metric will govern
Termination
cutout at
KEMET’s
option,
either end
Case Size
KEMET
X
E
EIA
7343–43
Component
L*
W*
H*
F* ±0.1
S* ±0.3 B* ±0.15
±(.004) ±(.012) (Ref) ±.006
1.3 (.051)
1.3 (.051)
0.5 (.020)
0.5 (.020)
X (Ref)
0.10 ± 0.10
(.004 ± .004)
0.10 ± 0.10
(.004 ± .004)
P (Ref)
1.7 (.067)
n/a
R (Ref)
1.0 (.039)
n/a
T (Ref)
0.13 (.005)
0.13 (.005)
A (Min) G (Ref) E (Ref)
3.8 (.150)
3.8 (.150)
3.5 (.138) 3.5 (.138)
3.5 (.138) 3.5 (.138)
7.3 ±0.3
4.3 ±0.3
4.0 ±0.3
2.4 (.094)
(0.287 ±0.012) (0.169 ±0.012) (0.157 ±0.012)
7.3 ±0.3
6.0±0.3
3.6 ±0.2
7360–38
4.1 (.161)
(0.287 ±0.012) (0.236 ±0.012) (0.142 ±0.008)
Notes: (Ref) – Dimensions provided for reference only. No dimensions are provided for B, P or R because low profile cases do not have a bevel or a notch.
* MIL–PRF–55365/8 specified dimensions
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
T2014_T510 • 10/3/2013
4
Tantalum Surface Mount Capacitors
Low ESR MnO
2
Tantalum & Aluminum Surface Mount Capacitors – T510 Multiple Anode Low ESR MnO
2
Series
Table 1 – Ratings & Part Number Reference
Rated Rated Case Code/
Voltage Cap
Case Size
VDC
4
4
4
4
4
6.3
6.3
6.3
6.3
6.3
10
16
16
16
16
20
20
20
25
25
35
35
35
35
35
35
35
35
50
50
50
VDC
µF
680
1000
1000
1000
1000
470
680
680
680
680
330
150
150
220
220
100
100
100
68
100
22
22
22
33
33
47
47
47
10
10
22
µF
KEMET/EIA
X/7343-43
X/7343-43
X/7343-43
E/7360-38
E/7360-38
X/7343-43
X/7343-43
X/7343-43
E/7360-38
E/7360-38
X/7343-43
X/7343-43
X/7343-43
X/7343-43
X/7343-43
X/7343-43
X/7343-43
X/7343-43
X/7343-43
E/7360-38
X/7343-43
X/7343-43
X/7343-43
X/7343-43
X/7343-43
X/7343-43
X/7343-43
E/7360-38
X/7343-43
X/7343-43
X/7343-43
KEMET/EIA
KEMET Part
Number
(See below for
part options)
T510X687(1)004A(2)E030
T510X108(1)004A(2)E018
T510X108(1)004A(2)E023
T510E108(1)004A(2)E018
T510E108(1)004A(2)E010
T510X477(1)006A(2)E030
T510X687(1)006A(2)E023
T510X687(1)006A(2)E045
T510E687(1)006A(2)E023
T510E687(1)006A(2)E012
T510X337(1)010A(2)E035
T510X157(1)016A(2)E030
T510X157(1)016A(2)E040
T510X227(1)016A(2)E040
T510X227(1)016A(2)E025
T510X107(1)020A(2)E035
T510X107(1)020A(2)E040
T510X107(1)020A(2)E045
T510X686(1)025A(2)E045
T510E107(1)025A(2)E050
T510X226(1)035A(2)E100
T510X226(1)035A(2)E080
T510X226(1)035A(2)E060
T510X336(1)035A(2)E065
T510X336(1)035A(2)E050
T510X476(1)035A(2)E055
T510X476(1)035A(2)E065
T510E476(1)035A(2)E050
T510X106(1)050A(2)E120
T510X106(1)050A(2)E090
T510X226(1)050A(2)E100
(See below for
part options)
DC
Leakage
µAmps +20ºC
Max/5 Min
27.2
40.0
40.0
40.0
40.0
29.6
42.8
42.8
42.8
42.8
33.0
24.0
24.0
35.2
35.2
20.0
20.0
20.0
17.0
25.0
7.7
7.7
7.7
11.6
11.6
16.5
16.5
16.5
5.0
5.0
11.0
µAmps +20ºC
Max/5 Min
DF
ESR
Maximum Allowable
Ripple Current
(mA) 100 kHz
+85ºC
2700
3486
3083
3581
4805
2700
3083
2204
3168
4386
2499
2700
2338
2338
2957
2499
2338
2204
2204
2148
1479
1653
1909
1834
2092
1994
1834
2148
1350
1559
1479
(mA) 100 kHz
+85ºC
(mA) 100 kHz
+125ºC
1200
1549
1370
1592
2136
1200
1370
980
1408
1949
1111
1200
1039
1039
1314
1111
1039
980
980
955
657
735
848
815
930
886
815
955
600
693
657
(mA) 100 kHz
+125ºC
Moisture
Sensitivity
Reflow Temp
≤ 260ºC
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Reflow Temp
≤ 260ºC
% @ +20ºC mΩ @ 20ºC (mA) 100 kHz
120 Hz Max 100 kHz Max
25ºC
6.0
30
3000
6.0
18
3873
6.0
23
3426
6.0
18
3979
6.0
10
5339
6.0
30
3000
6.0
23
3426
12.0
45
2449
6.0
23
3520
6.0
12
4873
6.0
35
2777
6.0
30
3000
6.0
40
2598
10.0
40
2598
10.0
25
3286
8.0
35
2777
6.0
40
2598
6.0
45
2449
8.0
45
2449
8.0
50
2387
6.0
100
1643
6.0
80
1837
6.0
60
2121
6.0
65
2038
6.0
50
2324
8.0
55
2216
8.0
65
2038
8.0
50
2387
8.0
120
1500
8.0
90
1732
8.0
100
1643
% @ +20ºC mΩ @ 20ºC (mA) 100 kHz
120 Hz Max 100 kHz Max
25ºC
Rated
Voltage
Rated
Cap
Case Code/
Case Size
KEMET Part
Number
DC
Leakage
DF
ESR
Maximum Allowable
Ripple Current
Moisture
Sensitivity
(1) To complete KEMET part number, insert M for ±20% or K for ±10%. Designates Capacitance tolerance.
(2) To complete KEMET part number, insert T = 100% Matte Tin (Sn) Plated, G = Gold Plated, H = Standard Solder coated (SnPb 5% Pb minimum).
Designates Termination Finish.
Refer to Ordering Information for additional detail.
Higher voltage ratings and tighter tolerance product including ESR may be substituted within the same size at KEMET's option. Voltage substitution will be marked
with the higher voltage rating. Substitutions can include better than series.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
T2014_T510 • 10/3/2013
5
Roll Over for
Order Info.
京公网安备 11010802033920号
EEWORLD
