CONDUCTIVE POLYMER CHIP CAPACITORS
T525 SERIES - High Temperature
FEATURES
Polymer Cathode Technology
125ºC Maximum Temperature Capability
High Frequency Capacitance Retention
Non-Ignition Failure Mode
Capacitance: 33 - 680µF
Voltage: 2.5 to 16 volts
Use up to 90% of Rated Voltage (10% Derating)
for part types ≤ 10 Volts
• Use up to 80% of Rated Voltage (20% Derating) for part
types >10 Volts
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Operating Temperature -55ºC to +125ºC
100% Accelerated Steady State Aging
100% Surge Current Testing
Self-Healing Mechanism
Volumetrically Efficient
Extremely Stable ESR at 125ºC
EIA Standard Case Size
RoHS Compliant / Leadfree Termination
(See www.kemet.com for lead transition)
OUTLINE DRAWING
CATHODE (-) END
VIEW
W
SIDE VIEW
ANODE (+) END
VIEW
BOTTOM VIEW
H
K
X
S
T
G
S
E
A
L
F
DIMENSIONS - MILLIMETERS
Case Size
KEMET
T
B
D
EIA
3528-12
3528-21
7343-31
L
3.5 ± 0.2
3.5 ± 0.2
7.3 ± 0.3
W
2.8 ± 0.2
2.8 ± 0.2
4.3 ± 0.3
H
1.2 max.
1.9 ± 0.1
2.8 ± 0.3
K ±0.20
0.3
0.9
1.5
F ±0.1
2.2
2.2
2.4
S ±0.3
0.8
0.8
1.3
X (Ref)
0.05
0.10 ± 0.10
0.10 ± 0.10
T (Ref)
0.13
0.13
0.13
A (Min)
2.1
2.1
3.8
G (Ref) E (Ref)
1.8
1.8
3.5
2.2
2.2
3.5
RECOMMENDED TEMPERATURE/VOLTAGE DERATING
T525 Temperature/Application
Recommended Voltage Derating
100%
100%
100%
100%
100%
Ω
T525 Rated Voltage with temperature derating
T525 Recommended
Application Voltage with temperature derating
(Vr<10VDC)
T525 Recommended
Application Voltage with temperature derating
(Vr>10VDC)
90%
% Rated Voltage
90%
90%
90%
90%
80%
80%
80%
80%
80%
70%
67%
60%
60%
53%
50%
-55
25
85
Temperature (˚ C)
105
125
COMPONENT MARKING
KEMET High
Temperature
Tantalum
Polymer (KT)
Rated
Voltage
KT
477
4K
504
504=4th week of 2005
Polarity
Indicator (+)
(Solid Stripe)
Picofarad Code
KEMET I.D. Symbol
PWC
©KEMET Electronics Corporation, P.O. Box 5928, Greenville, S.C. 29606, (864) 963-6300
53
Conductive Polymer Surface Mount
CONDUCTIVE POLYMER CHIP CAPACITORS
T525 SERIES - High Temperature
T525 RATINGS & PART NUMBER REFERENCE
Capaci-
tance µF
Case
Size
KEMET Part Number
DC
Leakage
µA @ 25°C
Max
DF%
@ 25°C
120 Hz
Max
ESR mΩ
@ 25°C
100 kHz
Max
Ripple Current
(Arms)
100 kHz Max
w/ΔT= 20°C
@ -55°C to
105°C
w/ΔT= 2°C
@ 125°C
100.0
330.0
470.0
680.0
100.0
150.0
330.0
470.0
680.0
68.0
68.0
100.0
220.0
330.0
470.0
470.0
33.0
47.0
47.0
68.0
150.0
220.0
330.0
330.0
33.0
22.0
33.0
33.0
100.0
100.0
150.0
150.0
220.0
47.0
47.0
T
D
D
D
B
B
D
D
D
T
B
B
D
D
D
D
B
T
B
B
D
D
D
D
T
B
T
B
D
D
D
D
D
D
D
2.5 Volt Rating at 105°C (1.7 Volt Rating at 125°C)
T525T107M2R5A(1)E080
25
8.0
T525D337M2R5A(1)E025
83
10.0
T525D477M2R5A(1)E025
118
10.0
T525D687M2R5A(1)E025
170
10.0
3 Volt Rating at 105°C (2 Volt Rating at 125°C)
T525B107M003A(1)E080
30
8.0
T525B157M003A(1)E080
45
8.0
T525D337M003A(1)E025
99
10.0
T525D477M003A(1)E025
141
10.0
T525D687M003A(1)E025
204
10.0
4 Volt Rating at 105°C (2.7 Volt Rating at 125°C)
T525T686M004A(1)E080
27
8.0
T525B686M004A(1)E080
28
8.0
T525B107M004A(1)E080
40
8.0
T525D227M004A(1)E025
88
10.0
T525D337M004A(1)E025
132
10.0
T525D477M004A(1)E025
188
10.0
T525D477M004A(1)E040
188
10.0
6.3 Volt Rating at 105°C (4.2 Volt Rating at 125°C)
T525B336M006A(1)E080
21
8.0
T525T476M006A(1)E080
30
8.0
T525B476M006A(1)E080
30
8.0
T525B686M006A(1)E080
43
8.0
T525D157M006A(1)E025
95
10.0
T525D227M006A(1)E025
139
10.0
T525D337M006A(1)E025
208
10.0
T525D337M006A(1)E040
208
10.0
8 Volt Rating at 105°C (5.3 Volt Rating at 125°C)
T525T336M008A(1)E080
26
8.0
10 Volt Rating at 105°C (6.6 Volt Rating at 125°C)
T525B226M010A(1)E080
8.0
22
T525T336M010A(1)E080
33
8.0
T525B336M010A(1)E080
33
8.0
T525D107M010A(1)E025
100
10.0
T525D107M010A(1)E055
100
10.0
T525D157M010A(1)E025
150
10.0
T525D157M010A(1)E055
150
10.0
T525D227M010A(1)E025
220
10.0
16 Volt Rating at 105°C (10.6 Volt Rating at 125°C)
T525D476M016A(1)E035
76
10.0
T525D476M016A(1)E065
76
10.0
80
25
25
25
80
80
25
25
25
80
80
80
25
25
25
40
80
80
80
80
25
25
25
40
80
80
80
80
25
55
25
55
25
35
65
0.9
2.4
2.4
2.4
1.0
1.0
2.4
2.4
2.4
0.9
1.0
1.0
2.4
2.4
2.4
1.9
1.0
0.9
1.0
1.0
2.4
2.4
2.4
1.9
0.9
1.0
0.9
1.0
2.4
1.7
2.4
1.7
2.4
2.1
1.5
0.3
0.8
0.8
0.8
0.3
0.3
0.8
0.8
0.8
0.3
0.3
0.3
0.8
0.8
0.8
0.6
0.3
0.3
0.3
0.3
0.8
0.8
0.8
0.6
0.3
0.3
0.3
0.3
0.8
0.5
0.8
0.5
0.8
0.7
0.5
(1) To complete KEMET Part Number, insert lead material designation for ordering information below. Higher voltage ratings and tighter tolerance
product may be substituted within the same size at KEMET’S option. Voltage substitutions will be marked with the higher voltage rating.
T525 ORDERING INFORMATION
T 525 D 337 M 006 A T E040
Tantalum
Series
T525 - High Temperature
Tantalum Polymer (KT)
Expressed in milliohms
T - 100% Tin
H - Tin/Lead (SnPb
5% Pb minimum)
ESR
Lead Material
Failure Rate
Case Size
B, D, T
Capacitance Picofarad Code
First two digits represent significant figures.
Third digit specifies number of zeros to follow.
A - Not Applicable
Voltage
Note: 006 - 6.3
Capacitance Tolerance
M = ± 20%
54
©KEMET Electronics Corporation, P.O. Box 5928, Greenville, S.C. 29606, (864) 963-6300
TANTALUM AND ALUMINUM CHIP CAPACITORS

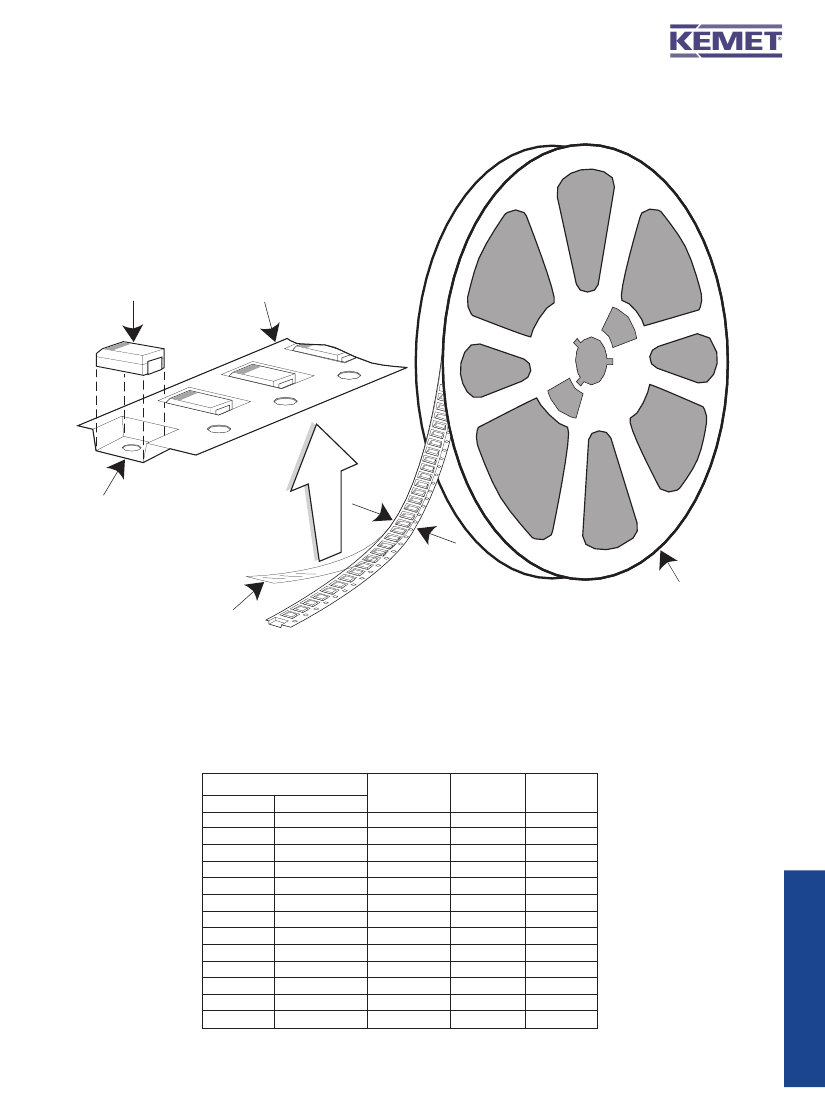

Packaging Information
Tape & Reel Packaging
KEMET’s Molded Tantalum and Aluminum Chip
Capacitor families are packaged in 8 mm and 12 mm plastic
tape on 7" and 13" reels, in accordance with EIA Standard
481-1: Taping of Surface Mount Components for Automatic
Handling. This packaging system is compatible with all tape
fed automatic pick and place systems.
Right Hand
Orientation
Only
Embossed Carrier
(+)
(–)
Embossment
Top Tape Thickness
.10mm (.004") Max Thickness
8mm
±.30
8mm (0.315")
(.315
±.012")
or
or
12mm (0.472")
12mm
±.30
(.472
±.012")
178mm (7.00")
180mm (7.0")
or
or
330mm (13.00")
330mm (13.0")
Labeling:
Bar code labeling (standard or custom) shall be on the side of the reel opposite the sprocket holes.
Refer to EIA-556.
QUANTITIES PACKAGED PER REEL
Case Code
KEMET
EIA
R
2012-12
S
3216-12
T
3528-12
U
6032-15
W
7343-15
V
7343-20
A
3216-18
B
3528-21
C
6032-28
D
7343-31
Y
7343-40
X
7343-43
E
7260-38
Tape
Width-mm
8
8
8
12
12
12
8
8
12
12
12
12
12
7" Reel*
2,500
2,500
2,500
1,000
1,000
1,000
2,000
2,000
500
500
500
500
500
13" Reel*
10,000
10,000
10,000
5,000
3,000
3,000
9,000
8,000
3,000
2,500
2,000
2,000
2,000
* No c-spec required for 7" reel packaging. C-7280 required for 13" reel packaging.
©KEMET Electronics Corporation, P.O. Box 5928, Greenville, S.C. 29606, (864) 963-6300
91
Packaging
TANTALUM, CERAMIC AND
ALUMINUM CHIP CAPACITORS
Packaging Information
Performance Notes
1. Cover Tape Break Force:
1.0 Kg Minimum.
2. Cover Tape Peel Strength:
The total peel strength of the cover tape from the carrier tape shall be:
Tape Width
Peel Strength
8 mm
0.1 Newton to 1.0 Newton (10g to 100g)
12 mm
0.1 Newton to 1.3 Newton (10g to 130g)
The direction of the pull shall be opposite the direction of the carrier tape travel. The pull angle of the carrier
tape shall be 165 to 180 from the plane of the carrier tape. During peeling, the carrier and/or cover tape
shall be pulled at a velocity of 300 ±10 mm/minute.
3. Reel Sizes:
Molded tantalum capacitors are available on either 180 mm (7") reels (standard) or 330 mm (13")
reels (with C-7280). Note that 13” reels are preferred.
4. Labeling:
Bar code labeling (standard or custom) shall be on the side of the reel opposite the sprocket holes.
Refer to EIA-556.

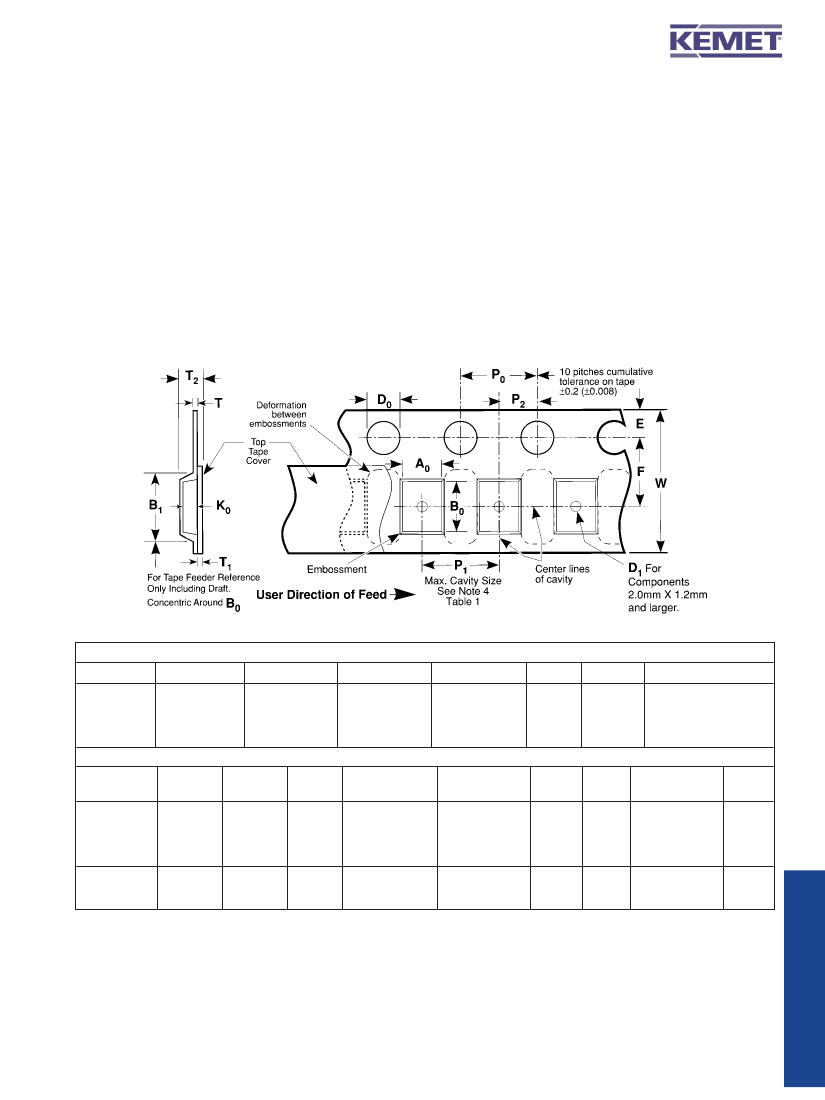

Embossed Carrier Tape Configuration:
Figure 1
Table 1 — EMBOSSED TAPE DIMENSIONS
(Metric will govern)
Constant Dimensions — Millimeters (Inches)
Tape Size
8 mm
and
12 mm
D
0
E
P
0
4.0 ±0.10
(0.157 ±0.004)
P
2
2.0 ±0.05
(0.079 ±0.002)
T Max
0.600
(0.024)
T
1
Max
0.100
(0.004)
1.5
1.75 ±0.10
+0.10 -0.0
(0.059
(0.069 ±0.004)
+0.004, -0.0)
Pitch
Single
(4 mm)
B
1
Max.
Note 1
4.4
(0.173)
12 mm
Double
(8 mm)
8.2
(0.323)
D
1
Min.
Note 2
1.0
Variable Dimensions — Millimeters (Inches)
Tape Size
8 mm
F
3.5 ±0.05
P
1
4.0 ±0.10
R Min.
Note 3
25.0
T
2
Max
2.5
(0.098)
W
8.0 ±0.30
(.315 ±0.012)
A
0
B
0
K
0
Note 4
(0.039) (0.138 ±0.002)
1.5
5.5 ±0.05
(0.059) (0.217 ±0.002)
(0.157 ±0.004) (0.984)
8.0 ±0.10
30.0
(0.315 ±0.004) (1.181)
4.6
12.0 ±0.30
(0.181) (0.472 ±0.012)
NOTES
1. B1 dimension is a reference dimension for tape feeder clearance only.
2. The embossment hole location shall be measured from the sprocket hole controlling the location of the embossment. Dimensions of
embossment location and hole location shall be applied independent of each other.
3. Tape with components shall pass around radius “R” without damage (see sketch A). The minimum trailer length (Fig. 2) may require
additional length to provide R min. for 12 mm embossed tape for reels with hub diameters approaching N min. (Table 2)
4. The cavity defined by A
0
,
B
0
,
and K
0
shall be configured to surround the part with sufficient clearance such that the chip does not pro-
trude beyond the sealing plane of the cover tape, the chip can be removed from the cavity in a vertical direction without mechanical
restriction, rotation of the chip is limited to 20 degrees maximum in all 3 planes, and lateral movement of the chip is restricted to 0.5 mm
maximum in the pocket (not applicable to vertical clearance.)
©KEMET Electronics Corporation, P.O. Box 5928, Greenville, S.C. 29606, (864) 963-6300
93
Packaging
TANTALUM, CERAMIC AND
ALUMINUM CHIP CAPACITORS
Packaging Information

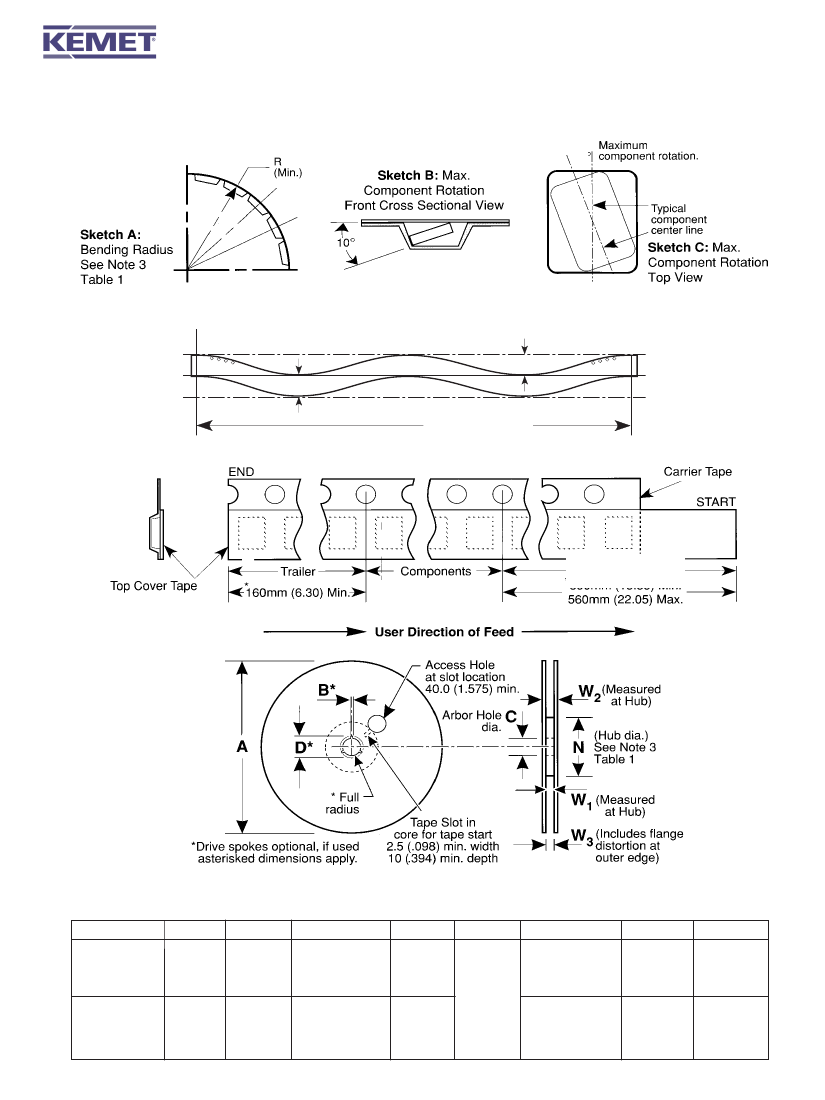

Embossed Carrier Tape Configuration (cont.)
20°
Sketch D:
Tape Camber (Top View)
1mm (0.039) Max.
1mm (0.039) Max.
250mm (9.843)
Allowable camber to be 1 mm/250 mm.
400mm (15.75) Min.
Figure 2:
Tape Leader
& Trailer
Dimensions
(Metric
Dimensions
Will Govern)
Figure 3:
Reel Dimensions (Metric Dimensions will govern)
Table 2 – REEL DIMENSIONS (Metric will govern)
Tape Size
8 mm
A Max
330.0
(12.992)
B* Min
1.5
(0.059)
C
13.0 ± 0.20
(0.512 ± 0.008)
D* Min
20.2
(0.795)
N Min
50.0
(1.969)
See
Note 3
Table 1
W
1
8.4
+1.5, -0.0
(0.331
+0.059, -0.0)
12.4
+2.0, -0.0
(0.488
+0.078, -0.0)
W
2
Max
14.4
(0.567)
W
3
7.9 Min
(0.311)
10.9 Max
(0.429)
11.9 Min
(0.469)
15.4 Max
(0.606)
12 mm
330.0
(12.992)
1.5
(0.059)
13.0 ± 0.20
(0.512 ± 0.008)
20.2
(0.795)
18.4
(0.724)
94
©KEMET Electronics Corporation, P.O. Box 5928, Greenville, S.C. 29606, (864) 963-6300
京公网安备 11010802033920号
EEWORLD
