3.2mmx1.6mm SMD CHIP LED LAMP
Part Number: KPT-3216QBC-G
Blue
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
DISCHARGE
SENSITIVE
DEVICES
Features
3.2mmx1.6mm SMT LED, 0.75mm thickness.
Low power consumption.
Wide viewing angle.
Ideal for backlight and indicator.
Various colors and lens types available.

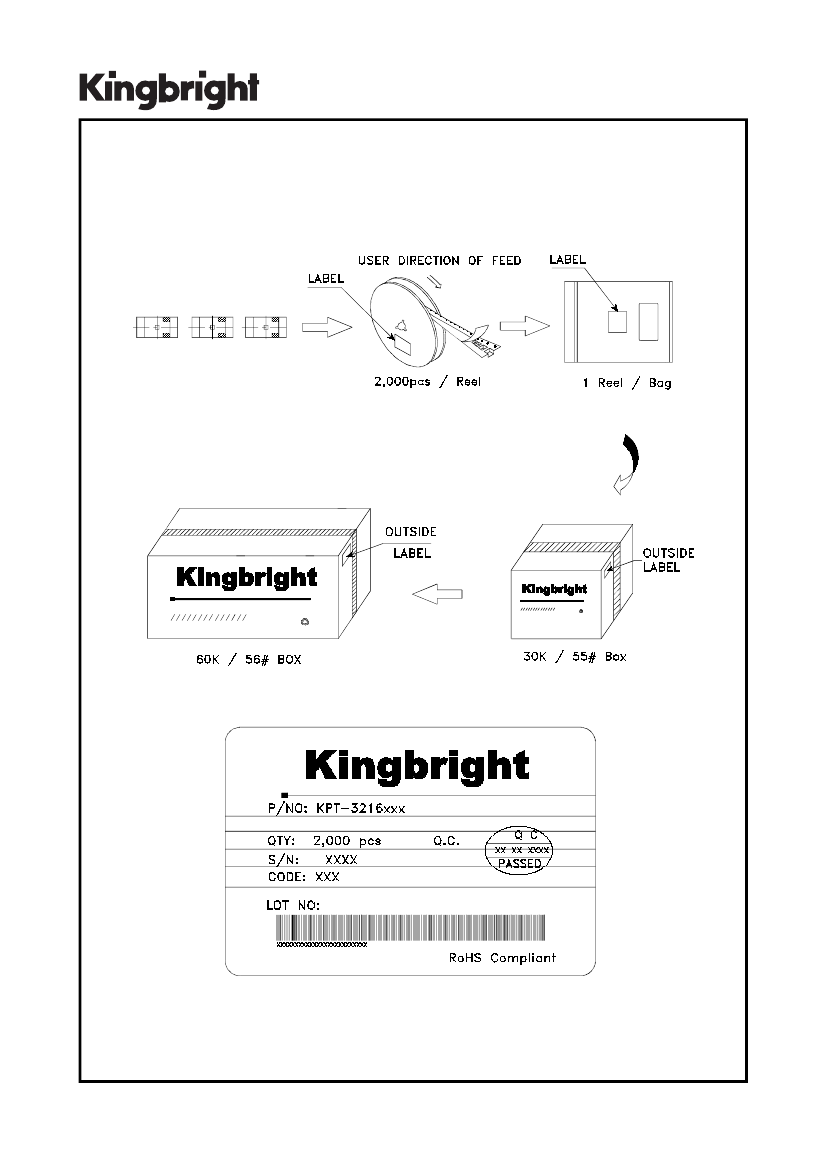

Package : 2000pcs / reel.
Moisture sensitivity level : level 3.
RoHS compliant.
Description
The Blue source color devices are made with InGaN Light
Emitting Diode.
Static electricity and surge damage the LEDS.
It is recommended to use a wrist band or anti-electrostatic
glove when handling the LEDs.
All devices, equipment and machinery must be electrically
grounded.

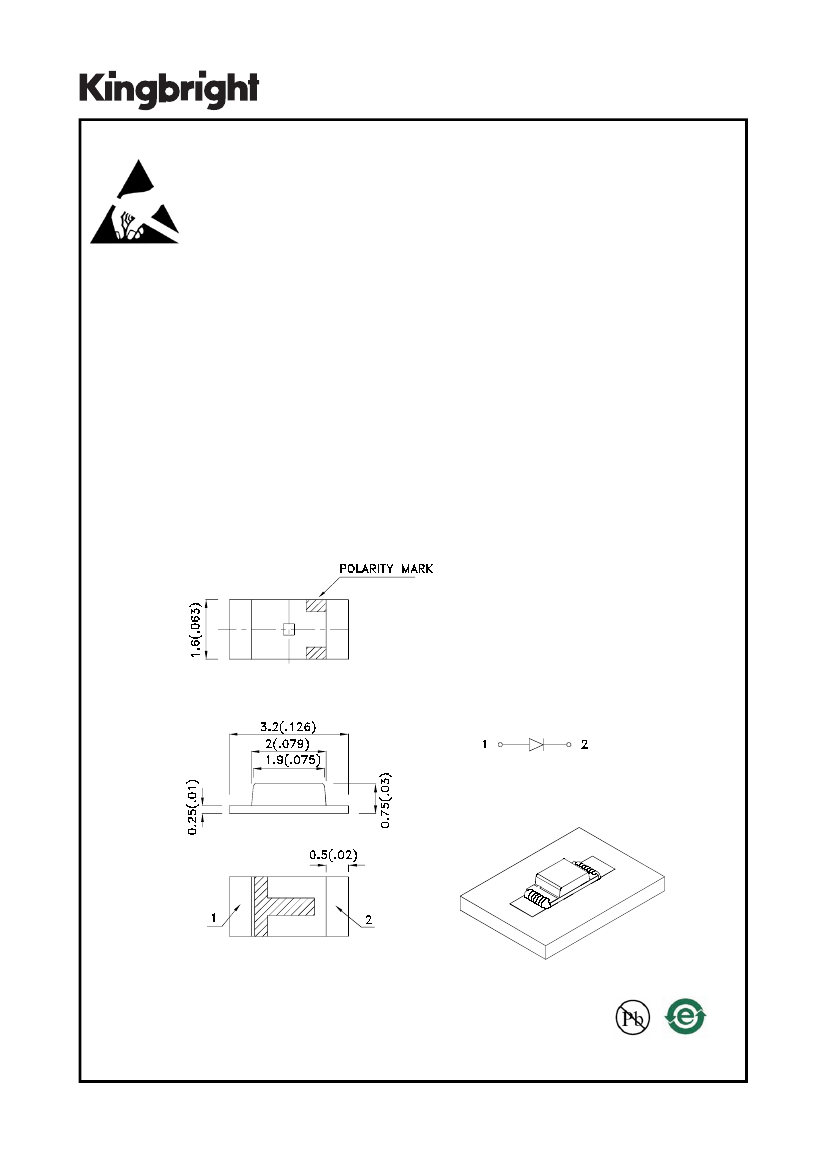

Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.2(0.008") unless otherwise noted.
3. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.
4. The device has a single mounting surface. The device must be mounted according to the specifications.
SPEC NO: DSAH6644
APPROVED: WYNEC
REV NO: V.3
CHECKED: Allen Liu
DATE: APR/30/2010
DRAWN: XULINA
PAGE: 1 OF 5
ERP: 1203007063
Selection Guide
Part No.
Dice
Lens Type
Iv (mcd) [2]
@ 20mA
Min.
KPT-3216QBC-G
Blue (InGaN)
WATER CLEAR
70
Typ.
180
Viewing
Angle [1]
2θ1/2
120
°
Notes:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 of the optical peak value.
2. Luminous intensity/ luminous Flux: +/-15%.
Electrical / Optical Characteristics at TA=25°C
Symbol
λpeak
λD
[1]
Δλ1/2
C
V
F
[2]
I
R
Parameter
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
Device
Blue
Blue
Blue
Blue
Blue
Blue
Typ.
461
465
25
100
3.3
4
50
Max.
Units
nm
nm
nm
pF
V
uA
Test Conditions
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
=5V
Notes:
1.Wavelength: +/-1nm.
2. Forward Voltage: +/-0.1V.
Absolute Maximum Ratings at TA=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating Temperature
Storage Temperature
Note:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
Blue
120
30
150
5
-40°C To +85°C
-40°C To +85°C
Units
mW
mA
mA
V
SPEC NO: DSAH6644
APPROVED: WYNEC
REV NO: V.3
CHECKED: Allen Liu
DATE: APR/30/2010
DRAWN: XULINA
PAGE: 2 OF 5
ERP: 1203007063
KPT-3216QBC-G

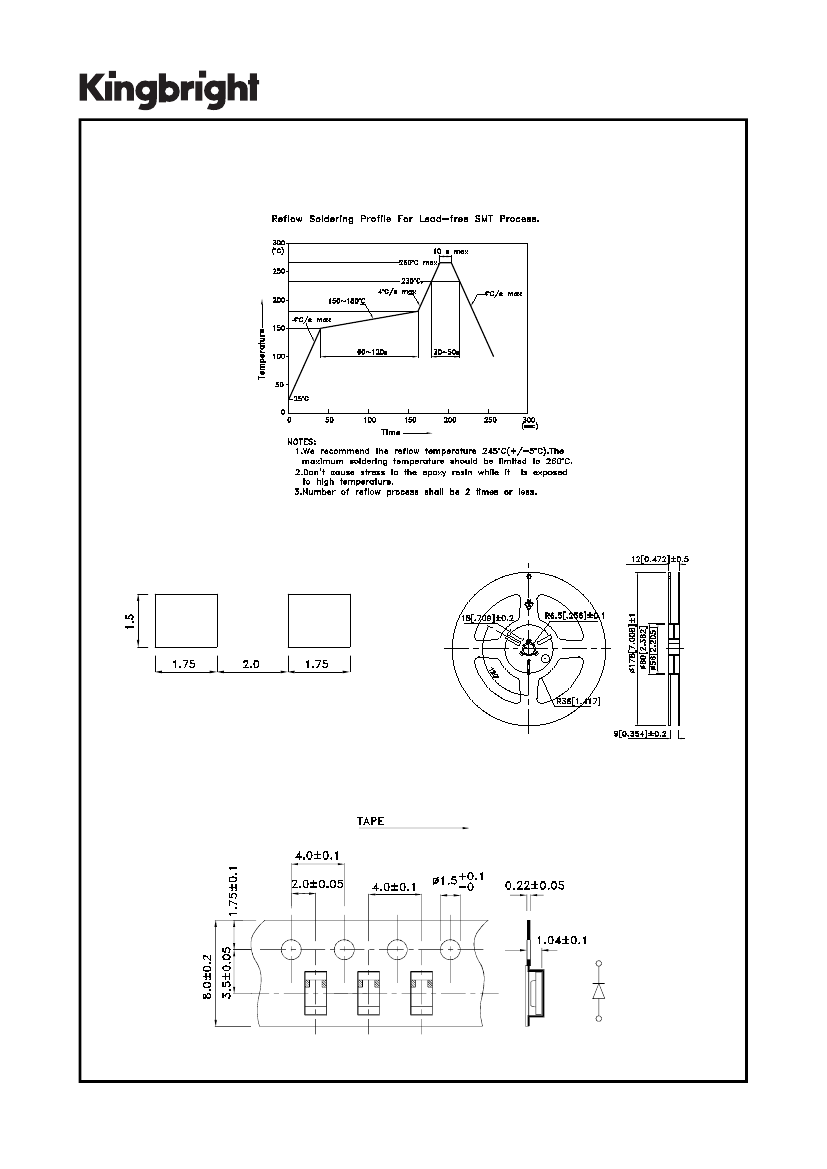

Reflow soldering is recommended and the soldering profile is shown below.
Other soldering methods are not recommended as they might cause damage to the product.
Recommended Soldering Pattern
(Units : mm; Tolerance: ± 0.1)
Reel Dimension
Tape Dimensions
(Units : mm)
SPEC NO: DSAH6644
APPROVED: WYNEC
REV NO: V.3
CHECKED: Allen Liu
DATE: APR/30/2010
DRAWN: XULINA
PAGE: 4 OF 5
ERP: 1203007063
