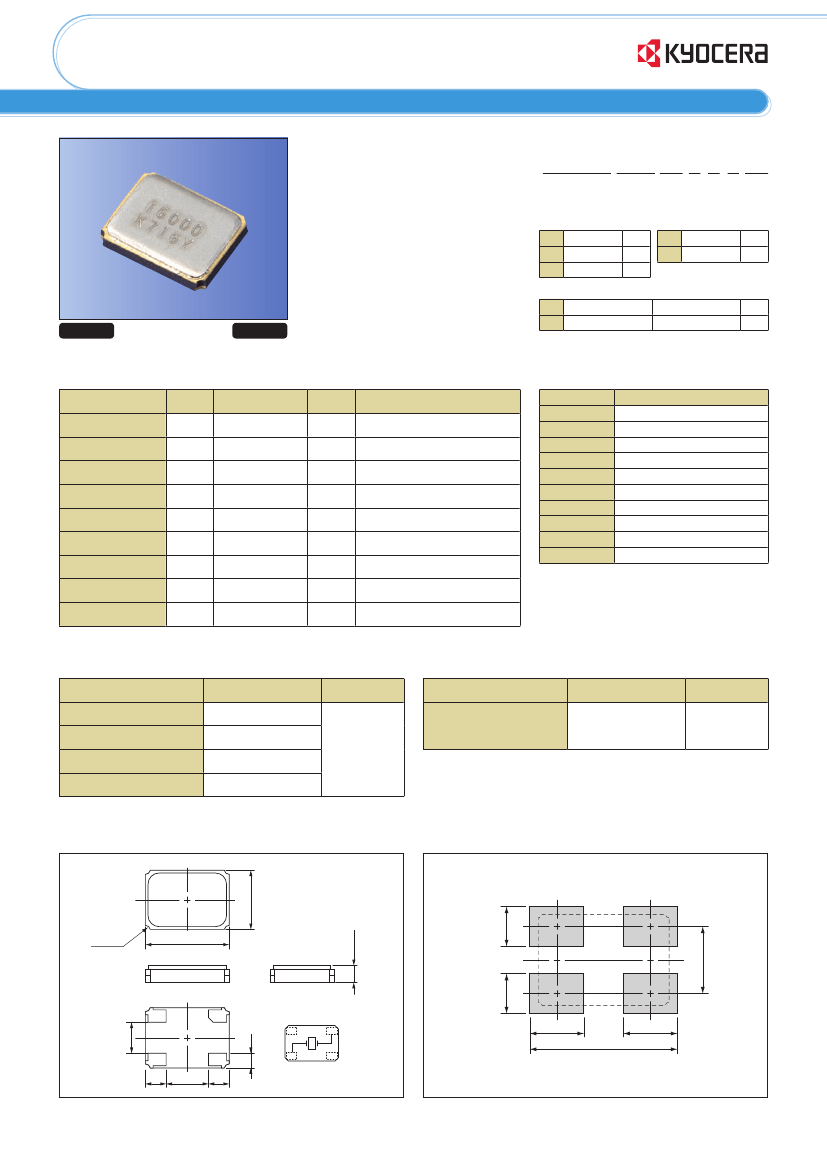

Crystal Units

Surface Mount Type CX3225SB (CX-101F)

3.2×2.5mm for Mobile Communications

Features

• Reference frequency for

telecommunication systems

• Reﬂow compatible

• Using ceramic package resulting in high

reliability

• Small and low proﬁle

How to Order

CX3225SB 26000

□□ □ □ □ □□

①

②

③ ④⑤⑥ ⑦

①

Series

③

Load Capacitance

6 pF

8 pF

10 pF

—

Std.

—

②

Frequency

④

Frequency Stability

±10×10

−6

±15×10

−6

Std.

—

Applications

• Mobile Communications, Bluetooth,

Wireless LAN

⑤

Operating Temp. Range

⑥

Frequency Temp. Stability

−20

+70°C

−30

+85°C

±10×10

−6

±15×10

−6

—

Std.

Pb Free

RoHS Compliant

⑦

Individual Speciﬁcation... Std.Spec. as “ZZ”

Typical Frequencies and Part Numbers

Speciﬁcations

Item

Frequency Range

Overtone Order

Load Capacitance

Frequency Stability

Motional Series Resistance

Drive Level

Operating Temp. Range

Storage Temp. Range

Frequency Temp. Characteristics

Symbol

_nom

_tol

_use

_stg

_tem

Speciﬁcation

12000 to 54000

Fundamental

±10

Table 1

Table 2

−30

+85

−40

+85

±15

Units

kHz

―

×10

−6

ohm

µW

°C

×10

−6

ref.@ 25°C over operating temperature range

@ 25°C

Remarks

Frequency (kHz)

12000.000

13000.000

13560.000

16000.000

19200.000

20000.000

26000.000

32000.000

38400.000

40000.000

Standard Part Number

CX3225SB12000D0FLJZZ

CX3225SB13000D0FLJZZ

CX3225SB13560D0FLJZZ

CX3225SB16000D0FLJZZ

CX3225SB19200D0FLJZZ

CX3225SB20000D0FLJZZ

CX3225SB26000D0FLJZZ

CX3225SB32000D0FLJZZ

CX3225SB38400D0FLJZZ

CX3225SB40000D0FLJZZ

∗

Please contact us for other specifications.

Table1 Motional Series Resistance

Frequency Range

12000 to 13999kHz

14000 to 15999kHz

16000 to 26999kHz

27000 to 54000kHz

Motional Series Resistance

300 max.

200 max.

100 max.

50 max.

ohm

Units

Table2 Level of Drive

Frequency Range

12000 to 54000kHz

Drive Level

10 (100 max.)

Units

µW

Dimensions

½½

½½½½½½½

(Unit: mm)

Recommended Land Pattern

(Unit: mm)

½½½½½½

½½

½½½½½½½

½½

½½½½½½½½½

1.05

½½

½½½½½½½½½½

½½ ½½½½½½½½½½ ½½

½½½

½½½½

1.05

1.3

3.6

1.3

½½½

½½

½½½

½½

½½½

1.85
