BAS28

Description
0.2 A, 80 V, 2 ELEMENT, SILICON, SIGNAL DIODE
CategoryDiscrete semiconductor    diode
File Size102KB,4 Pages
ManufacturerSIEMENS
Websitehttp://www.infineon.com/
Download Datasheet Parametric Compare View All

BAS28 Overview

0.2 A, 80 V, 2 ELEMENT, SILICON, SIGNAL DIODE

BAS28 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
package instructionR-PDSO-G4
Reach Compliance Codeunknow
ECCN codeEAR99
ConfigurationSEPARATE, 2 ELEMENTS
Diode component materialsSILICON
Diode typeRECTIFIER DIODE

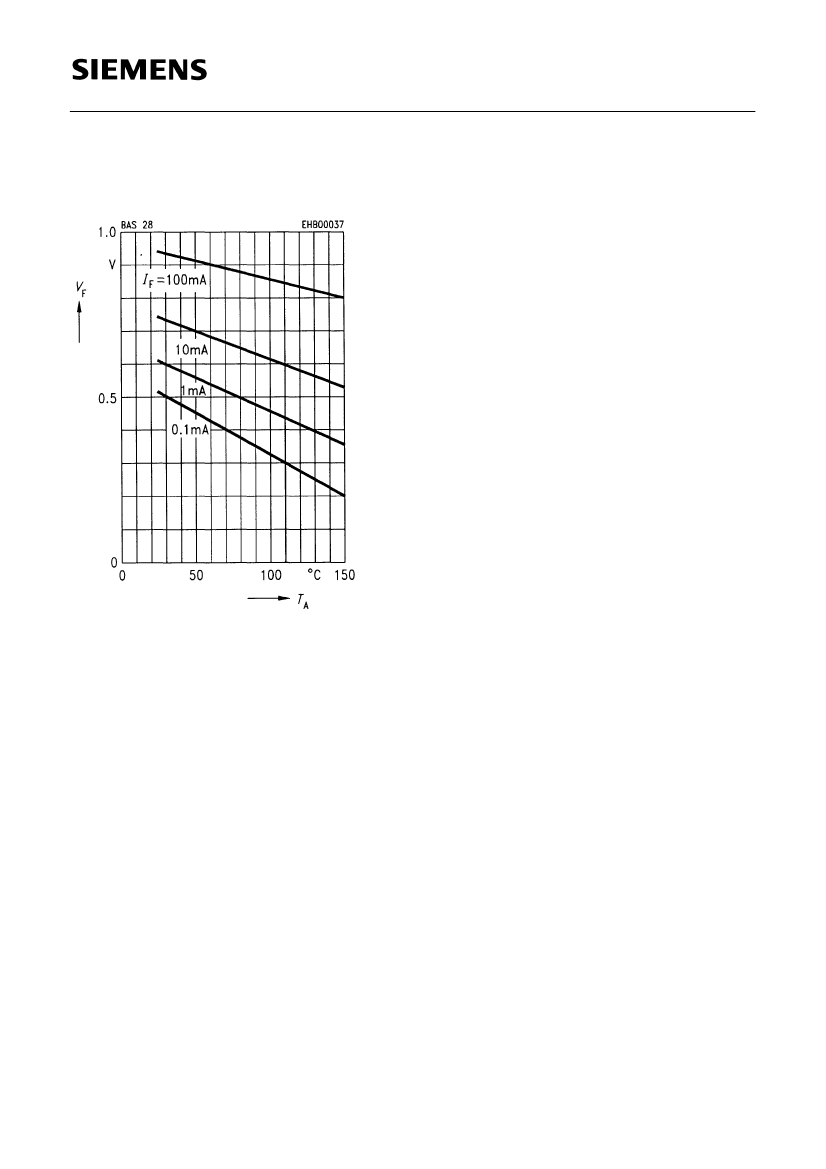

Maximum forward voltage (VF)1.25 V
JESD-30 codeR-PDSO-G4
JESD-609 codee0
Number of components2
Number of terminals4
Maximum operating temperature150 °C
Maximum output current0.25 A
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Maximum power dissipation0.33 W
Certification statusNot Qualified
Maximum repetitive peak reverse voltage85 V
Maximum reverse current1 µA
Maximum reverse recovery time0.006 µs
Reverse test voltage75 V
surface mountYES
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formGULL WING
Terminal locationDUAL
Base Number Matches1
Silicon Switching Diode Array
q
For high-speed switching
q
Electrically insulated diodes
BAS 28
Type
BAS 28
Marking
JTs
Ordering Code
(tape and reel)
Q62702-A77
Pin Configuration
Package
1)
SOT-143

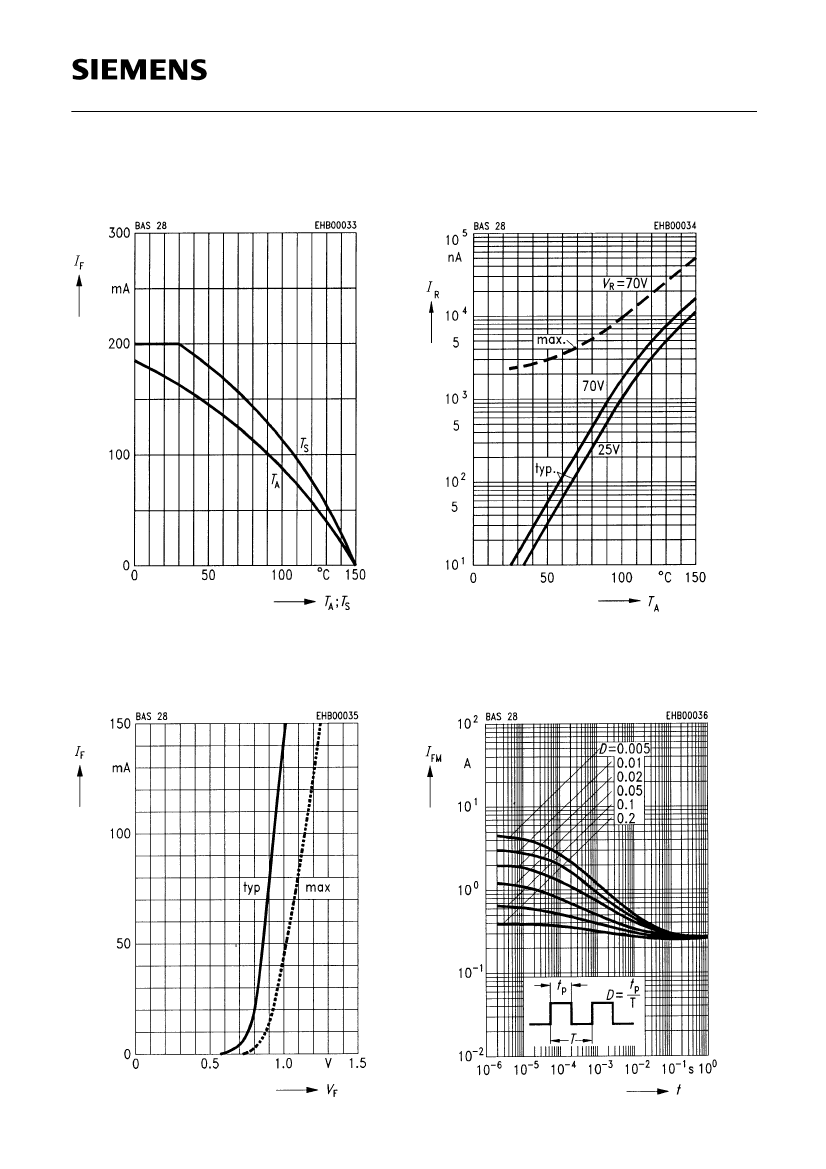

Maximum Ratings
Parameter
Reverse voltage
Peak reverse voltage
Forward current
Surge forward current,
t
= 1
µ
s
Total power dissipation,
T
S
= 31 ˚C
Junction temperature
Storage temperature range
Thermal Resistance
Junction - ambient
2)
Junction - soldering point
R
th JA
R
th JS
500
360
Symbol
V
R
V
RM
I
F
I
FS
P
tot
T
j
T
stg
Values
75
85
200
4.5
330
150
– 65 … + 150
Unit
V
mA
A
mW
˚C
K/W
1)
2)
For detailed information see chapter Package Outlines.
Package mounted on epoxy pcb 40 mm
×
40 mm
×
1.5 mm/6 cm
2
Cu.
Semiconductor Group
1
5.91
