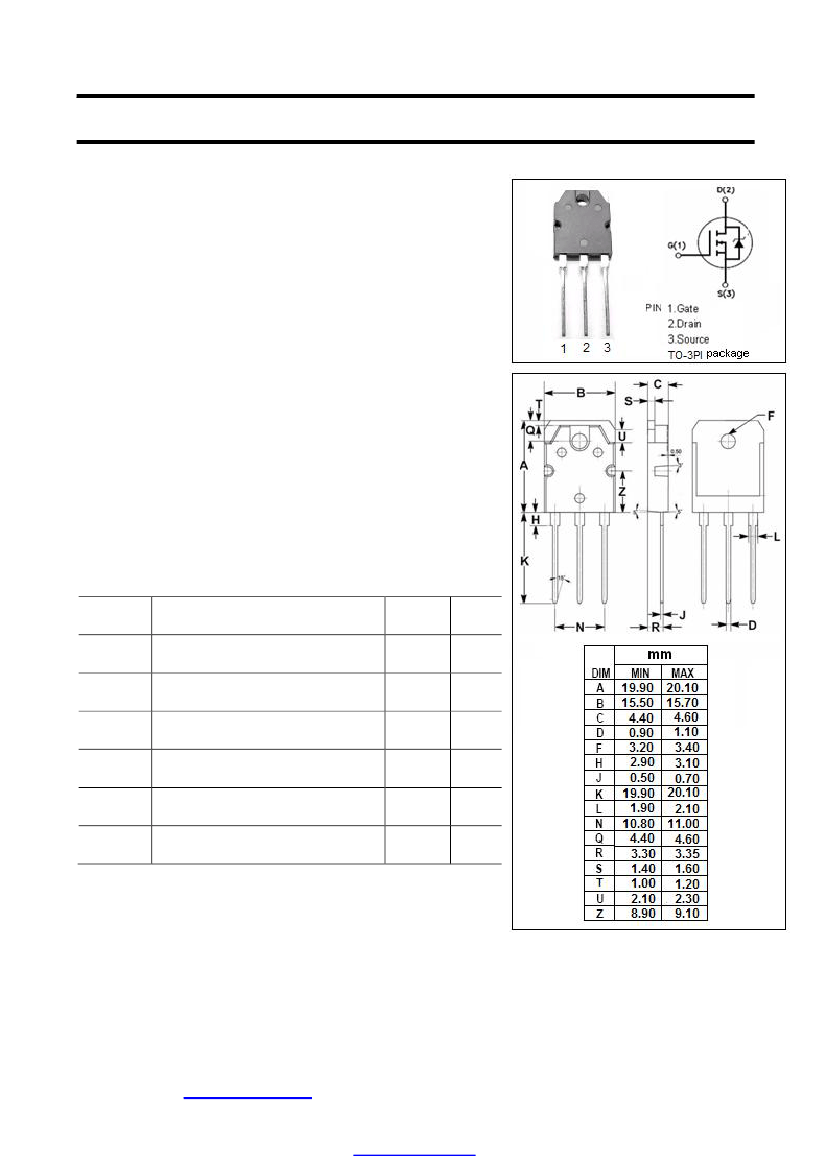

isc N-Channel MOSFET Transistor
2SK402
DESCRIPTION
·Drain
Current
–I
D
=8A@ T
C
=25℃
·Drain
Source Voltage-
: V
DSS
= 400V(Min)
·Fast
Switching Speed
APPLICATIONS
·High
speed switching.
·High
Cutoff frequency.
·No
secondary breakdown.
·Suitable
for switching regulator，DC-DC converter,
RF amplifiers，and ultrasonic power oscillators.
ABSOLUTE MAXIMUM RATINGS(T
a
=25℃)
SYMBOL
V
DSS
V
GS
I
D
P
tot
T
j
T
stg
ARAMETER
Drain-Source Voltage (V
GS
=0)
Gate-Source Voltage
Drain Current-continuous@ TC=25℃
Total Dissipation@TC=25℃
Max. Operating Junction Temperature
Storage Temperature Range
VALUE
400
±20
8
100
150
-55~150
UNIT
V
V
A
W
℃
℃
isc website：www.iscsemi.cn
1
isc & iscsemi is registered trademark
PDF pdfFactory Pro
www.fineprint.cn
INCHANGE Semiconductor
isc
Product Specification
isc N-Channel Mosfet Transistor
·ELECTRICAL
CHARACTERISTICS (T
C
=25℃)
SYMBOL
V
(BR)DSS
V
GS(TH)
R
DS(ON)
V
SD
I
GSS
I
DSS
tr
ton
tf
toff
PARAMETER
Drain-Source Breakdown Voltage
Gate Threshold Voltage
Drain-Source On-stage Resistance
Diode Forward Voltage
Gate Source Leakage Current
Zero Gate Voltage Drain Current
Rise time
Turn-on time
V
GS
=15V;I
D
=2A;R
L
=15Ω
Fall time
Turn-off time
35
120
CONDITIONS
V
GS
=0; I
D
= 10mA
V
DS
= 10V; I
D
= 1mA
V
GS
= 15V; I
D
= 4A
I
F
= 4A; V
GS
= 0
V
GS
=
±20V;
V
DS
= 0
V
DS
=320V; V
GS
= 0
35
50
MIN
TYP.
2SK402
MAX
UNIT
V
400
2.0
1.10
0.85
±1
1
5.0
1.75
V
Ω
V
uA
mA
ns
ns
ns
ns
isc website：www.iscsemi.cn
2
isc & iscsemi is registered trademark
PDF pdfFactory Pro
www.fineprint.cn
