BAS40 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BAS40

BAS40: Description0.2 A, 40 V, SILICON, SIGNAL DIODE; CategoryDiscrete semiconductor diode; File Size107KB，5 Pages; ManufacturerSIEMENS; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

BAS40 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BAS40	-	-	View	Buy Now

BAS40 Overview

0.2 A, 40 V, SILICON, SIGNAL DIODE

BAS40 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SIEMENS
package instruction	R-PDSO-G3
Reach Compliance Code	unknow
ECCN code	EAR99
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V
JESD-30 code	R-PDSO-G3
JESD-609 code	e0
Maximum non-repetitive peak forward current	0.2 A
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Maximum output current	0.04 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum power dissipation	0.25 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	40 V
Maximum reverse current	1 µA
surface mount	YES
technology	SCHOTTKY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal location	DUAL

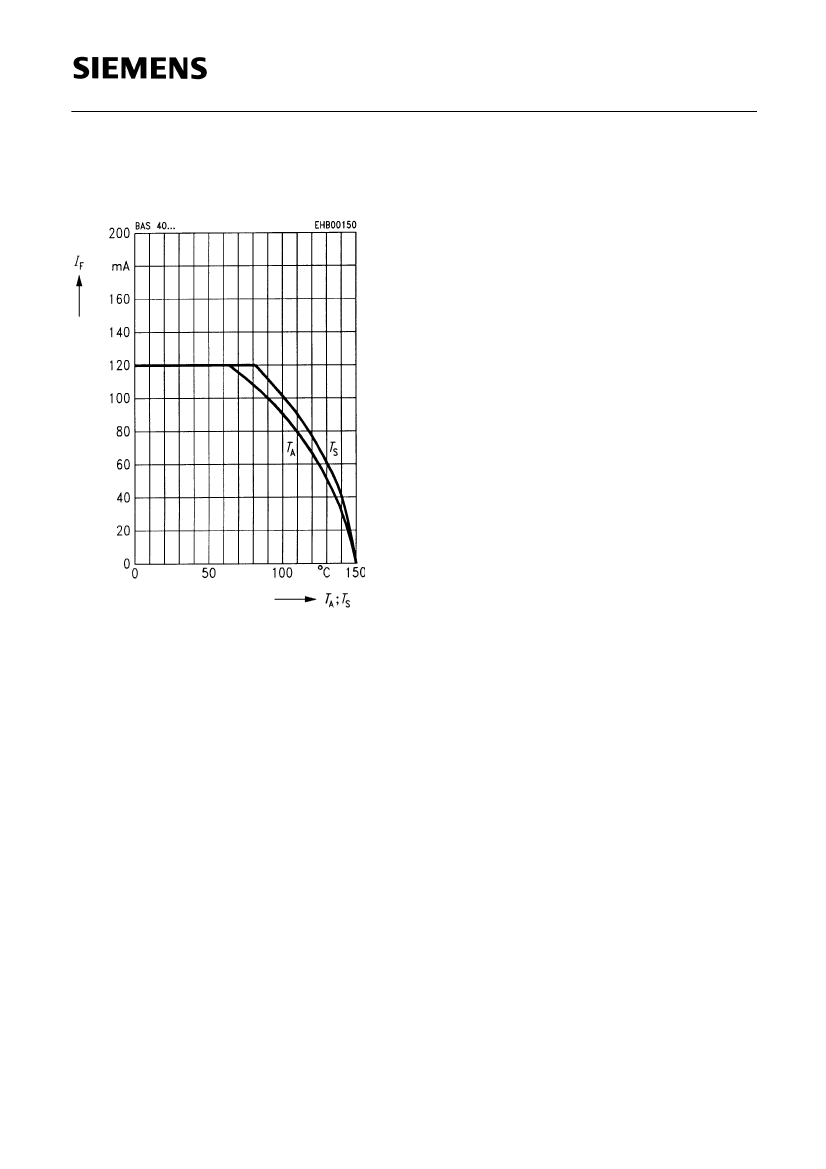

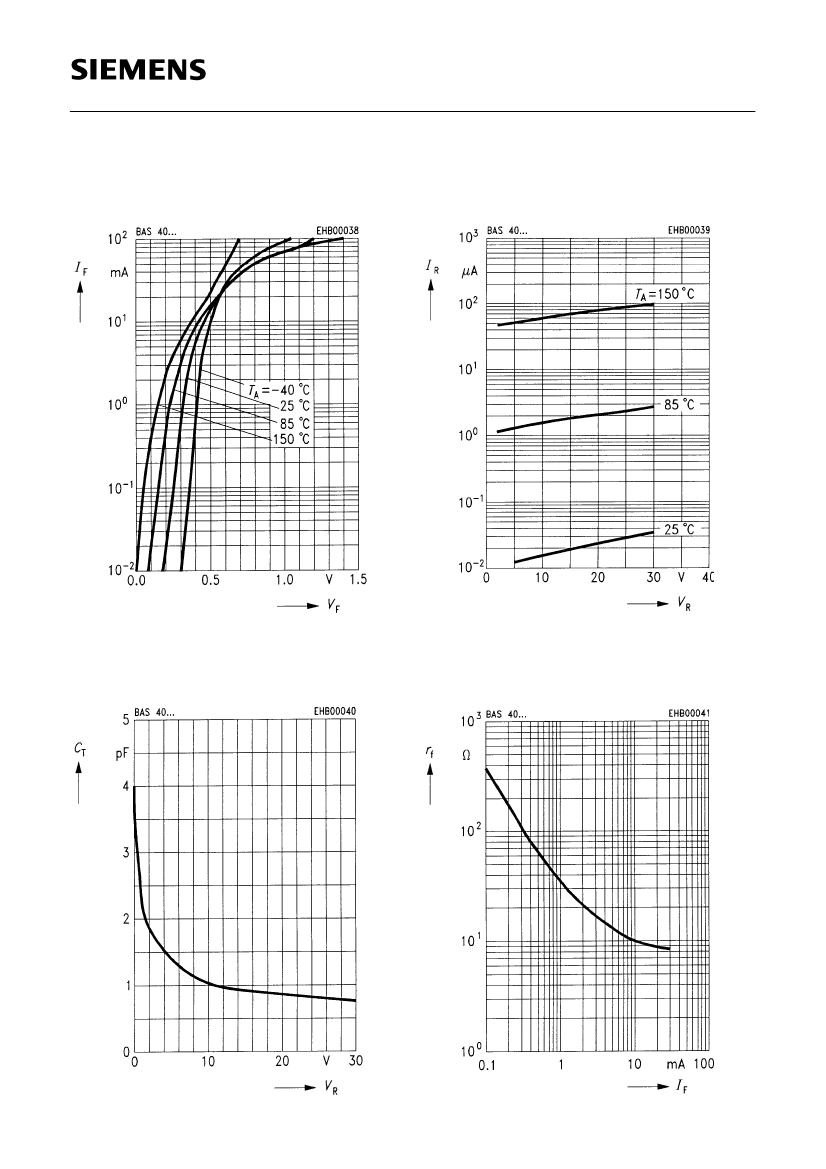

Preview

Download Datasheet

View All

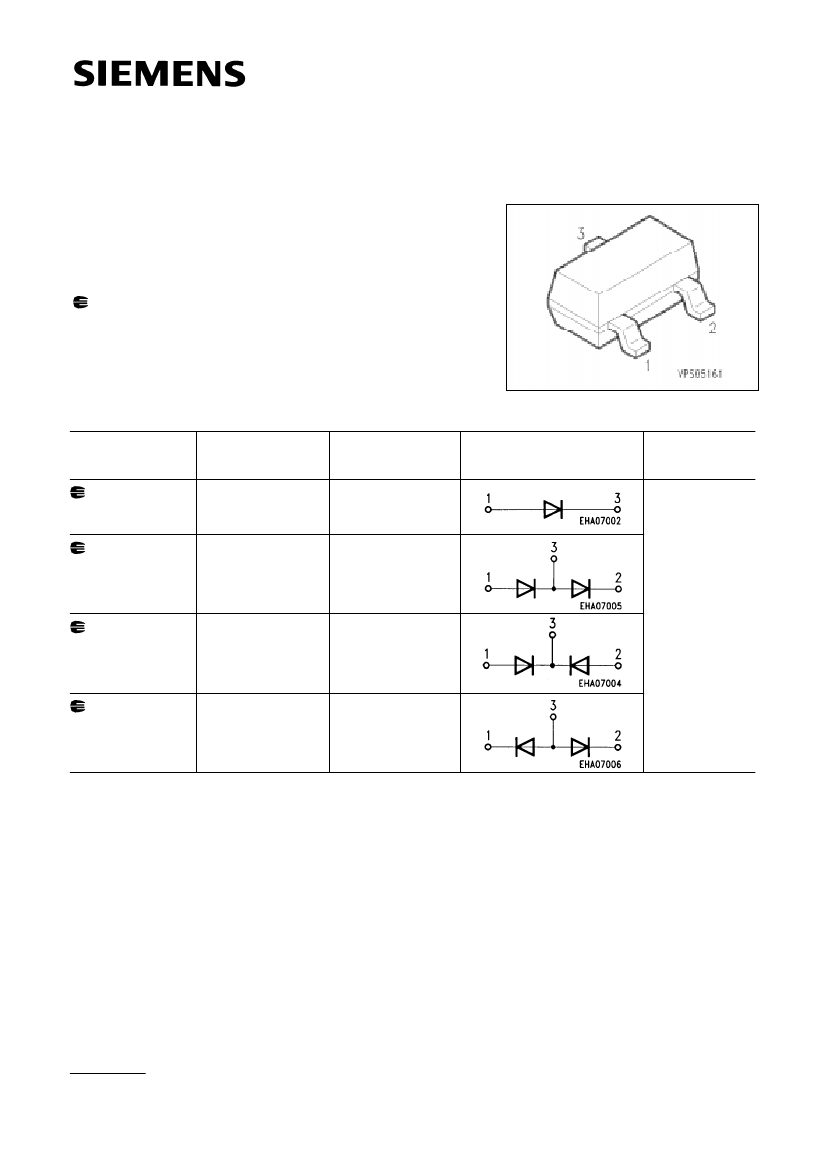

Silicon Schottky Diodes

General-purpose diodes for high-speed switching

Circuit protection

Voltage clamping

High-level detecting and mixing

BAS 40 …

Available with CECC quality assessment

ESD: Electrostatic discharge

sensitive device, observe handling precautions!

Type

BAS 40

BAS 40-04

Marking

43s

44s

Ordering Code Pin Configuration

(tape and reel)

Q62702-D339

Q62702-D980

Package

SOT-23

BAS 40-05

45s

Q62702-D979

BAS 40-06

46s

Q62702-D978

For detailed information see chapter Package Outlines.

Semiconductor Group

5.91

BAS40 Related Products

	BAS40	BAS40-	BAS40-04	BAS40-05	BAS40-06	Q62702-D980	Q62702-D979	Q62702-D978	Q62702-D339
Description	0.2 A, 40 V, SILICON, SIGNAL DIODE	0.2 A, 40 V, SILICON, SIGNAL DIODE	0.2 A, 40 V, 2 ELEMENT, SILICON, SIGNAL DIODE	0.2 A, 40 V, 2 ELEMENT, SILICON, SIGNAL DIODE	0.12 A, 40 V, 2 ELEMENT, SILICON, SIGNAL DIODE, TO-236AB	0.2 A, 40 V, SILICON, SIGNAL DIODE	0.2 A, 40 V, SILICON, SIGNAL DIODE	0.2 A, 40 V, SILICON, SIGNAL DIODE	0.2 A, 40 V, SILICON, SIGNAL DIODE
Diode component materials	SILICON	silicon	SILICON	SILICON	SILICON	silicon	silicon	silicon	silicon
Diode type	RECTIFIER DIODE	Signal diode	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	Signal diode	Signal diode	Signal diode	Signal diode
Number of components	1	1	2	2	2	1	1	1	1
Number of terminals	3	3	3	3	3	3	3	3	3
Maximum repetitive peak reverse voltage	40 V	40 V	40 V	40 V	40 V	40 V	40 V	40 V	40 V
surface mount	YES	Yes	YES	YES	YES	Yes	Yes	Yes	Yes
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	pair	DUAL	DUAL	DUAL	pair	pair	pair	pair
Processing package description	-	GREEN, PLASTIC PACKAGE-3	-	-	-	GREEN, PLASTIC PACKAGE-3	GREEN, PLASTIC PACKAGE-3	GREEN, PLASTIC PACKAGE-3	GREEN, PLASTIC PACKAGE-3
state	-	DISCONTINUED	-	-	-	DISCONTINUED	DISCONTINUED	DISCONTINUED	DISCONTINUED
packaging shape	-	Rectangle	-	-	-	Rectangle	Rectangle	Rectangle	Rectangle
Package Size	-	SMALL OUTLINE	-	-	-	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Packaging Materials	-	Plastic/Epoxy	-	-	-	Plastic/Epoxy	Plastic/Epoxy	Plastic/Epoxy	Plastic/Epoxy
Craftsmanship	-	SCHOTTKY	-	-	-	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
structure	-	single	-	-	-	single	single	single	single
Maximum power consumption limit	-	0.2000 W	-	-	-	0.2000 W	0.2000 W	0.2000 W	0.2000 W
Maximum reverse recovery time	-	0.0050 us	-	-	-	0.0050 us	0.0050 us	0.0050 us	0.0050 us
Maximum average forward current	-	0.2000 A	-	-	-	0.2000 A	0.2000 A	0.2000 A	0.2000 A
