CN2A4TTDD1541F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> CN2A4TTDD1541F

CN2A4TTDD1541F: DescriptionArray/Network Resistor, Isolated, 100V, 1% +/-Tol, 200ppm/Cel, Surface Mount, 0820, CHIP, ROHS COMPLIANT; CategoryPassive components The resistor; File Size110KB，2 Pages; ManufacturerKOA Speer; Websitehttp://www.koaspeer.com/; Environmental Compliance

Download Datasheet Parametric View All

CN2A4TTDD1541F Overview

Array/Network Resistor, Isolated, 100V, 1% +/-Tol, 200ppm/Cel, Surface Mount, 0820, CHIP, ROHS COMPLIANT

CN2A4TTDD1541F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	KOA Speer
package instruction	CHIP, ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Component power consumption	0.1 W
The first element resistor	1540 Ω
JESD-609 code	e3
Manufacturer's serial number	CN
Installation features	SURFACE MOUNT
Network Type	ISOLATED
Number of components	1
Number of functions	4
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR, PAPER, 10 INCH
Rated temperature	70 °C
Resistor type	ARRAY/NETWORK RESISTOR
size code	0820
surface mount	YES
Temperature Coefficient	200 ppm/°C
Terminal surface	Tin (Sn)
Terminal shape	WRAPAROUND
Tolerance	1%
Operating Voltage	100 V

Preview

Download Datasheet

View All

resistors

Protective

Coating

Electrode

Resistive

Film

Inner

Electrode

Ceramic

Substrate

concave termination with square corners

resistor array

features

•

Manufactured to type RK73 standards

Less board space than individual chips

Isolated resistor elements

Marking: Marked with resistance value

Products with lead-free terminations meet EU RoHS

requirements. Pb located in glass material, electrode

and resistor element is exempt per Annex 1, exemption

5 of EU directive 2005/95/EC

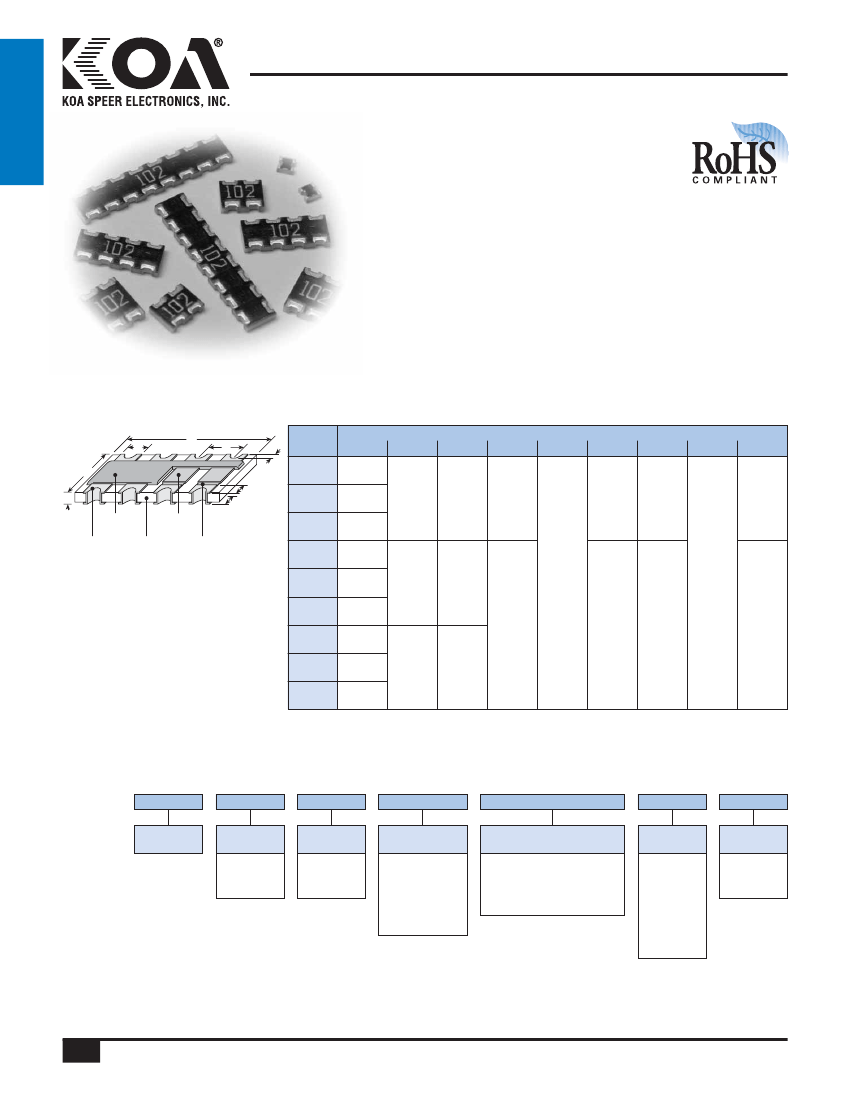

dimensions and construction

Size

Code

1J2

1J4

1J8

2A2

2A4

2A8

2B2

2B4

2B8

.063±.006

(1.6±0.15)

.126±.008 .063±.006 .012±.006 .016±.006

(3.2±0.2) (1.6±0.15) (0.3±0.15) (0.4±0.15)

.252±.008

(6.4±0.2)

0.1±.008

(2.54±0.2)

0.2±.008 .079±.008 .016±.008

(5.08±0.2) (2.0±0.2) (0.4±0.2)

0.4±.008

(10.16±0.2)

0.1±.008

(2.54±0.2)

0.2±.008 .126±.008 .020±.012

(5.08±0.2) (3.2±0.2) (0.5±0.3)

0.4±.008

(10.16±0.2)

.022±.006

(0.55±0.15)

.024±.004

(0.6±0.1)

.031

(0.8)

.030±.006

(0.75±0.15)

.006

(0.15)

.050

(1.27)

.020±.006 .016±.006

(0.5±0.15) (0.4±0.15)

.031

(0.8)

Dimensions

inches

(mm)

a (top)

a (bot.)

p (ref.)

ordering information

New Part #

Type

Size

Elements

Termination

Material

T: Sn

(Other termination

styles may be

available, please

contact factory

for options)

Packaging

TE: 7" embossed plastic

TD: 7" paper tape

TED: 10" embossed plastic

TDD: 10" paper tape

101

Nominal

Resistance

2 significant

figures + 1

multiplier for

±2 & ±5%

3 significant

figures + 1

multiplier

for ±1%

Tolerance

F: ±1%

G: ±2%

J: ±5%

For further information on packaging,

please refer to Appendix A.

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.

2/11/08

KOA Speer Electronics, Inc.

• Bolivar Drive • P Box 547 • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com
