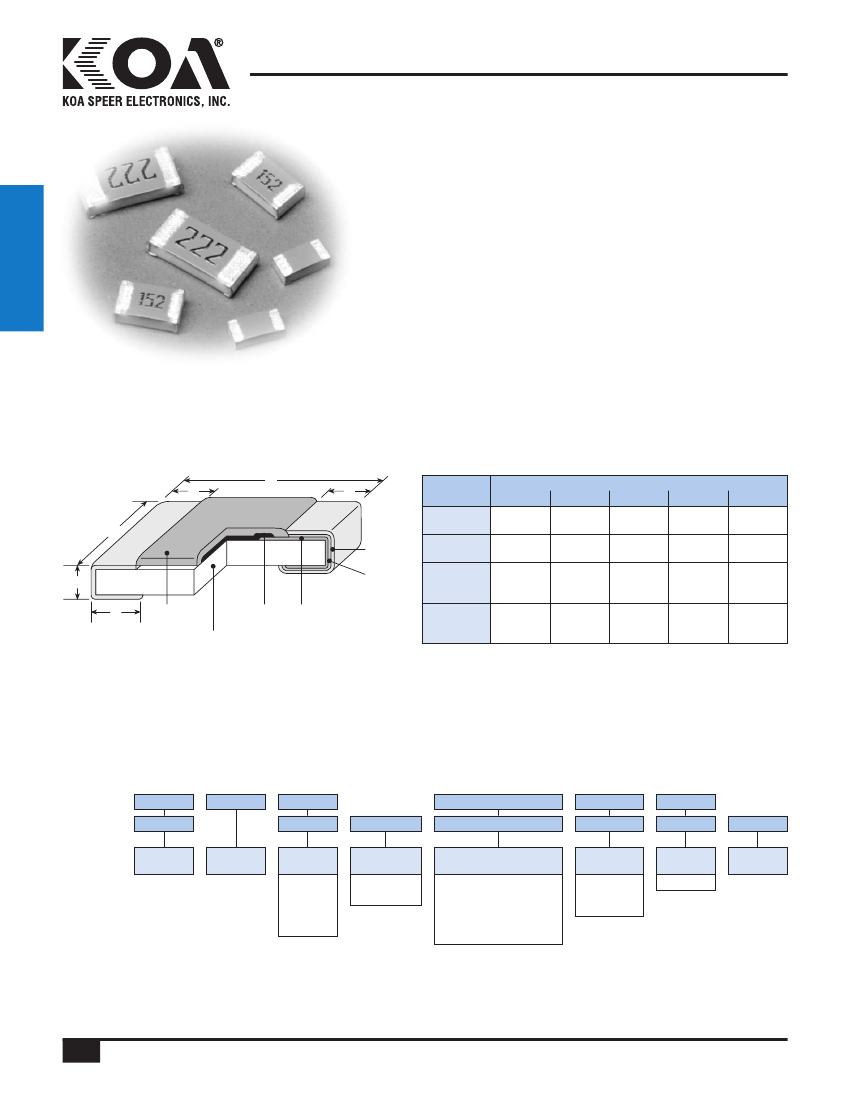

LA73
thick film linear positive tempco thermistor
features
•
•
•
•
Anti-leaching nickel barrier terminations
90/10 solder plated terminations, standard
Twenty-five specifiable temperature characteristics
Marking: Black three-digit on orange body color
circuit
protection
dimensions and construction
c
L
c
Type
(Inch Size Code)
L
Dimensions
inches
(mm)
W
c
d
t
W
Solder
Plating
t
d
Protective
Coating
Resistive Inner
Film
Electrode
Ni
Plating
1E
(0402)
1J
(0603)
2A
(0805)
2B
(1206)
.039±.004 .012±.004 .008±.004 .01±.004 .014±.004
(0.5±0.1)
(1.0±0.1)
(0.2±0.1) (0.25±0.1) (0.35±0.1)
.063±.008 .031±.004 .012±.004 .012±.004
(1.6±0.2)
(0.8±0.1)
(0.3±0.1)
(0.3±0.1)
.079±.008 .049±.004 .016±.008
(2.0±0.2) (1.25±0.1) (0.4±0.2)
.126±.008 .063±.008
(3.2±0.2)
(1.6±0.2)
.02±.008
(0.5±0.3)
.012
(0.3
.016
(0.4
+.008
-.004
+0.2
-0.1
)
+.008
-.004
+0.2
-0.1
)
.02±.004
(0.5±0.1)
.02±.004
(0.5±0.1)
.024±.004
(0.6±0.1)
Ceramic
Substrate
ordering information
Old Part #
New Part #
LA73
LA73
Type
T.C.R.
3300
1J
1J
Size
Code
1E: 0402
1J: 0603
2A: 0805
2B: 1206
L
Termination
Material
L: SnPb
T: Sn
T
TD
Packaging
TP: 7" embossed plastic
2mm pitch
(1E only: 10,000 pcs/reel)
TD: 7" paper
(5,000 pieces/reel)
101
101
Resistance
Value
2 significant
figures + 1
multiplier
J
J
Tolerance
J: ±5%
3300
T.C.R.
For further information on packaging,
please refer to Appendix A.
Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.
11/24/03
142
KOA Speer Electronics, Inc.
• Bolivar Drive • P Box 547 • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com
.O.
LA73
thick film linear positive tempco thermistor
applications and ratings
Thermal
Rated Operating
Part
Dissipation
Ambient
Temp.
Designation Constant
Temp.
Range
(mW/°C)
LA731E
6.8
Resistance Range
E-12
LA731E
1.2KΩ - 2.2KΩ
1.2KΩ - 2.2KΩ
—
—
—
—
—
—
—
—
—
—
—
—
—
LA731J
—
—
1KΩ - 10KΩ
680Ω - 6.8KΩ
470Ω - 4.7KΩ
470Ω - 3.9KΩ
330Ω - 2.7KΩ
330Ω - 2.7KΩ
220Ω - 1.8KΩ
100Ω - 1.2KΩ
100Ω - 1.2KΩ
100Ω - 390Ω
68Ω - 220Ω
33Ω - 120Ω
22Ω - 82Ω
LA732A
—
—
1KΩ - 10KΩ
680Ω - 6.8KΩ
470Ω - 4.7KΩ
470Ω - 3.9KΩ
330Ω - 2.7KΩ
330Ω - 2.7KΩ
220Ω - 1.8KΩ
100Ω - 1.2KΩ
100Ω - 1.2KΩ
100Ω - 390Ω
68Ω - 220Ω
33Ω - 120Ω
22Ω - 82Ω
LA732B
—
—
1KΩ - 10KΩ
680Ω - 6.8KΩ
470Ω - 4.7KΩ
470Ω - 3.9KΩ
330Ω - 2.7KΩ
330Ω - 2.7KΩ
220Ω - 1.8KΩ
100Ω - 1.2KΩ
100Ω - 1.2KΩ
100Ω - 390Ω
68Ω - 220Ω
33Ω - 120Ω
22Ω - 82Ω
T.C.R.
Resistance
T.C.R.
(ppm/°C)
Tolerance
Tolerance
Max.
600
800
1000
1200
1400
1600
1800
2000
2200
2400
2600
2800
3000
3300
3600
±100ppm/°C
LA731J
7.6
+70°C
-55°C
to
+125°C
J: ±5%
LA732A
8.2
±5%
LA732B
9.0
environmental applications
Derating Curve
100
80
% Rated Power
60
40
20
0
-60 -40
-55
Temperature Characteristics
Resistance Changing Rate (∆R)
40
30
20
10
0
-10
-20
-30
-40
-75
-50
-25
0
25
50
75
100
125
3600ppm/°C
3000ppm/°C
2000ppm/°C
1000ppm/°C
-20
0
20
40
60
80
70
Ambient Temperature
(°C)
100 120
140
125
Ambient Temperature
(°C)
Performance Characteristics
Parameter
Resistance
T.C.R.
Short Time Overload
Resistance to Solder Heat
Solderability
Bending Test
Temperature Cycling
Moisture Resistance
Load Life
Requirement
∆
R
Within regulated tolerance
Within specified T.C.R.
±(1.0% + 0.1Ω): 1J, 2A, 2B
±(3.0% + 0.1Ω): 1E
95% coverage minimum
±(1.0% + 0.1Ω): 1J, 2A, 2B
±(3.0% + 0.1Ω): 1E
±(3.0% + 0.1Ω): 1J, 2A, 2B
±(5.0% + 0.1Ω): 1E
Test Method
25°C
+25°C/+75°C
Rated voltage x 2.5 or max. working voltage x 2 for 5 seconds, whichever is less
260°C ± 5°C, 10 seconds ± 1 second
235°C ± 5°C, 2 seconds ± 0.5 seconds
Width of holding point 90mm, bending 3mm, 1 time
-55°C (30 minutes), +125°C (30 minutes), 100 cycles
40°C ± 2°C, 90 - 95% RH, 1000 hours, rated voltage load
70°C ± 3°C, 1000 hours, rated voltage load
11/01/03
