MF1/4LLVTPA224G datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> MF1/4LLVTPA224G

MF1/4LLVTPA224G: DescriptionFixed Resistor, Metal Film, 0.25W, 220000ohm, 250V, 2% +/-Tol, 200ppm/Cel, Through Hole Mount, AXIAL LEADED; CategoryPassive components The resistor; File Size92KB，2 Pages; ManufacturerKOA Speer; Websitehttp://www.koaspeer.com/

Download Datasheet Parametric View All

MF1/4LLVTPA224G Overview

Fixed Resistor, Metal Film, 0.25W, 220000ohm, 250V, 2% +/-Tol, 200ppm/Cel, Through Hole Mount, AXIAL LEADED

MF1/4LLVTPA224G Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	KOA Speer
package instruction	AXIAL LEADED
Reach Compliance Code	compli
ECCN code	EAR99
Other features	SEMI PRECISION, STANDARD: MIL-R-22684
JESD-609 code	e0
Manufacturer's serial number	MF
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package shape	TUBULAR PACKAGE
method of packing	AMMO PACK
Rated power dissipation(P)	0.25 W
Rated temperature	70 °C
resistance	220000 Ω
Resistor type	FIXED RESISTOR
surface mount	NO
technology	METAL FILM
Temperature Coefficient	200 ppm/°C
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	WIRE
Tolerance	2%
Operating Voltage	250 V

Preview

Download Datasheet

View All

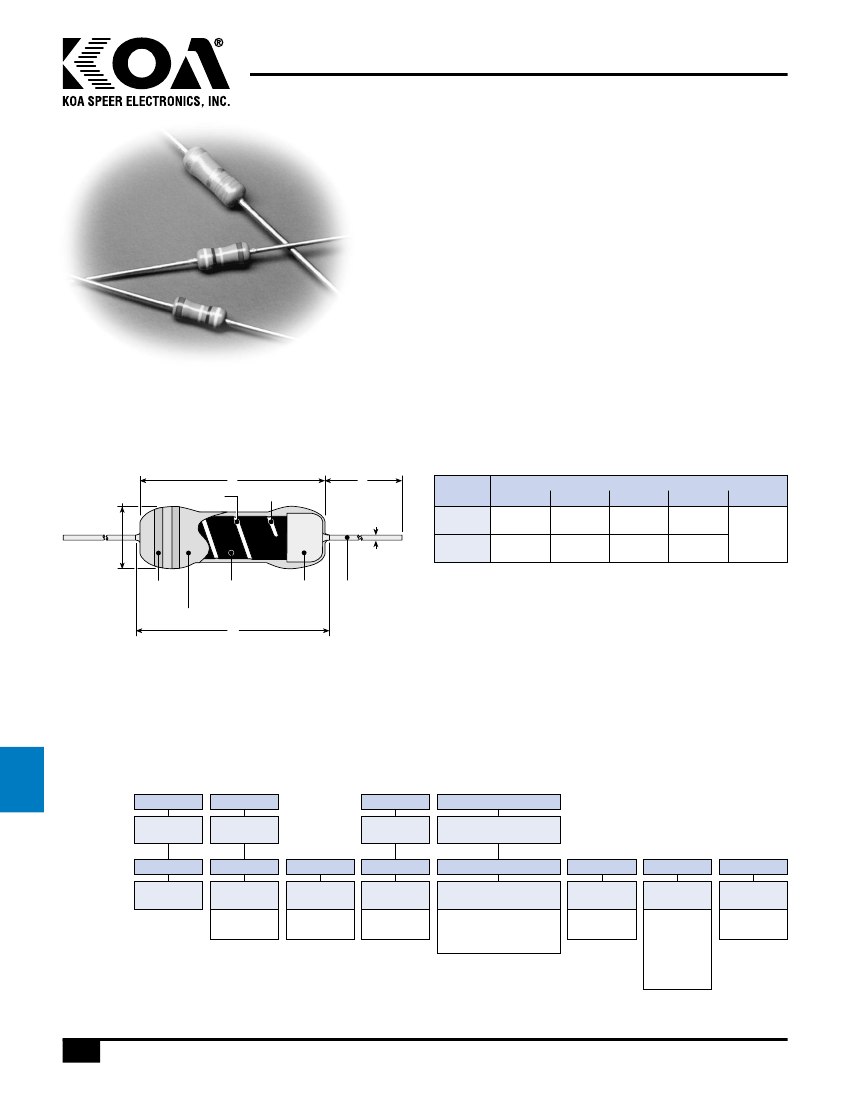

general purpose metal film leaded resistor

features

•

Semi-precision metal film resistors

Meets requirements of MIL-R-22684

Suitable for automatic machine insertion

Marking: Blue-gray body color with color-coded bands

dimensions and construction

Trimming Line

Ceramic Core

Type

MF1/4

MF1/2

L (ref.)

.248

(6.3)

.374

(9.5)

Dimensions

inches

(mm)

C (max.)

.280

(7.1)

.437

(11.1)

.091±.012 .024±.002

(2.3±0.3) (0.6±0.05)

1.18±.118

.138±.016 .031±.002

(30.0±3.0)

(3.5±0.4) (0.8±0.05)

Marking

Resistive

Film

End

Cap

Lead

Wire

Insulation Coating

leaded

resistors

ordering information

Old Part #

ML07, ML20

Type

New Part #

Type

R20

Resistance

1/4

Power

Rating

1/4: 250mW

1/2: 500mW

T.C.R.

L: 200

ppm/C°

Tolerance

Termination

Material

L: SnPb

C: SnCu

T52

Packaging

T52

Taping and Forming

1/4: T26, T52, VT, VTP,

VTE, M Forming

1/2: T52, M Forming

Packaging

A: Ammo

R: Reel

R20

Nominal

Resistance

2 significant

figures + 1

multiplier

“R” indicates

decimal on

value <10Ω

Tolerance

G: ±2%

J: ±5%

For further information on packaging,

please refer to Appendix C.

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.

178

KOA Speer Electronics, Inc.

• Bolivar Drive • P Box 547 • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com

.O.
