RK73B2ALTDB155J datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> RK73B2ALTDB155J

RK73B2ALTDB155J: DescriptionFixed Resistor, Metal Glaze/thick Film, 0.125W, 1500000ohm, 150V, 5% +/-Tol, 400ppm/Cel, Surface Mount, 0805, CHIP; CategoryPassive components The resistor; File Size181KB，2 Pages; ManufacturerKOA Speer; Websitehttp://www.koaspeer.com/

Download Datasheet Parametric View All

RK73B2ALTDB155J Overview

Fixed Resistor, Metal Glaze/thick Film, 0.125W, 1500000ohm, 150V, 5% +/-Tol, 400ppm/Cel, Surface Mount, 0805, CHIP

RK73B2ALTDB155J Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	KOA Speer
package instruction	CHIP
Reach Compliance Code	_compli
ECCN code	EAR99
structure	Chi
JESD-609 code	e0
Manufacturer's serial number	RK73B
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package height	0.5 mm
Package length	2 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	1.25 mm
method of packing	TR, PUNCHED PAPER, 13 INCH
Rated power dissipation(P)	0.125 W
Rated temperature	70 °C
Guideline	AEC-Q200
resistance	1500000 Ω
Resistor type	FIXED RESISTOR
series	RK73B
size code	0805
surface mount	YES
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	400 ppm/°C
Terminal surface	Tin/Lead (Sn90Pb10) - with Nickel (Ni) barrie
Terminal shape	WRAPAROUND
Tolerance	5%
Operating Voltage	150 V

Preview

Download Datasheet

View All

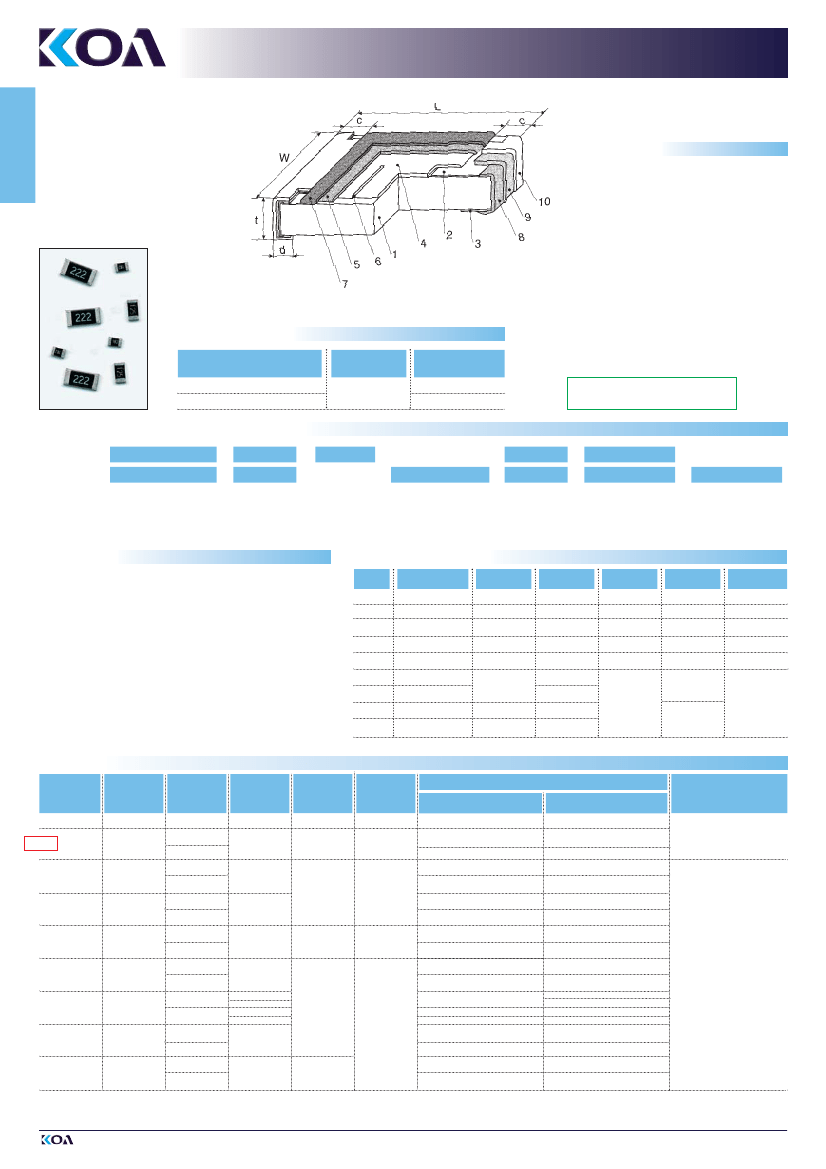

RESISTORS

TECHNOLOGY OF TOMORROW

RESISTORS

FLAT CHIP

THICK FILM (5% • 2%)

GENERAL PURPOSE

RK73 B

STRUCTURE

Ceramic substrate

Top termination (Ag Pd)

Bottom termination (Ag Pd)

Resistive layer

Glass layer

Trimming cut

Protective layer

End termination

Diffusion barrier (Ni)

Solder plating

~ 11

~ 25

~ 0.05

3 ~ 12

µm

IDENTIFICATION

TYPE

RK73B 1F … RK73B 1E

RK73B 1J ... RK73B 3A

COATING

COLOR

Black

MARKING

None

White, 3 digits

Products with Pb-free terminations

meet RoHS requirements

TYPE DESIGNATION (HOW TO ORDER)

Old Part No.

New Part No.

(Pb-free)

RK73K

RK73B

PRODUCT CODE

STYLE

1F…3A

TOLERANCE

TERMINATION

SURFACE MATERIAL

T: Sn L: Sn/Pb

(G: Au)

TAPING*

*Please see “PACKAGING”

10K

103

NOMINAL

RESISTANCE

3 digits

TOLERANCE

J: ±5%

G: ±2%

FEATURES

■

RuO

thick film resistor element

■

Anti-leaching nickel barrier terminations

■

Excellent heat resistance and moisture resistance are

ensured by the use of metal glaze thick film

■

Also available with expoxy bondable, silver-palladium

inner terminations in 1J, 2A and 2B sizes (see RK73X series)

■

Also available with gold plated electrodes in size 1E, 1J and

2A (10Ω…1MΩ)

■

Rated ambient temperature: +70° C

■

Taping according to IEC-60 286-3

■

Meets or exceeds IEC 60 115, CECC 40 401-802, EIAJ RC-2134A

■

Suitable for reflow and wave soldering

■

Lab Kit available

DIMENSIONS (mm)

SIZE

01005

0201

0402

0603

0805

1206

1210

2010

2512

TYPE

RK73

1F**

0.4

0.6

1.0

1.6

2.0

± 0.02

± 0.03

+ 0.1

– 0.05

0.2 ±

0.3 ±

0.5 ±

0.8 ±

1.25 ±

1.6 ±

2.6 ±

2.5 ±

3.1 ±

0.02

0.03

0.05

0.1

0.2

0.1 ±

0.2 ±

0.3 ±

0.4 ±

0.03

0.05

0.1

0.2

0.1 ± 0.03

0.15 ± 0.05

0.25

+ 0.05

– 0.1

0.3 ± 0.1

0.3

+ 0.2

– 0.1

0.4

+ 0.2

– 0.1

0.12 ± 0.02

0.23 ± 0.03

0.35 ± 0.05

0.45 ± 0.1

0.5 ± 0.1

± 0.2

3.2 ± 0.2

5.0 ± 0.2

6.3 ± 0.2

0.5 ± 0.3

0.4

+ 0.2

– 0.1

0.6 ± 0.1

(0.65 ± 0.15)*

* Time of change to (0.65 ± 0.15) will be announced by PCN.

RATING

SIZE

01005

TYPE

RK73B 1F**

RK73B 1H

RK73B 1E

RK73B 1J

RK73B 2A

RK73B 2B

RK73B 2E

RK73B 2H

RK73B 3A

T.C.R.

(ppm/K)

± 400

± 200

± 400

± 200

± 400

± 200

± 400

± 200

± 400

± 200

± 400

± 200

± 400

± 200

± 400

± 200

POWER*

RATING

MAX.

WORKING

VOLTAGE

15 V

25 V

MAX.

OVERLOAD

VOLTAGE

30 V

50 V

RESISTANCE RANGE (E24)

G (± 2%)

Ω

… 1MΩ

–

Ω

… 10 MΩ

–

Ω

… 10 MΩ

Ω

. . . 9.1

Ω

… 10 MΩ

150 V

200 V

Ω

. . . 9.1

Ω

1.1 MΩ . . . 10 MΩ

U N D

250

0.03

D E V E L O P M E N T

0.05 W

0.063 W

50 V

0.1 W

0.125 W

0.25 W

0.5 W

0.33 W

0.5 W

0.33 W

NEW

0201

0402

0603

0805

1206

1210

2010

2512

J (± 5%)

Ω

… 1 MΩ

Ω

… 9.1

Ω

… 10 MΩ

Ω

. . . 9.1

Ω

… 10 MΩ

Ω

. . . 9.1

Ω

11 MΩ . . . 22 MΩ

OPERATING

TEMPERATURE

RANGE

- 55° C … + 125° C*

100 V

Ω…

10 MΩ

Ω

. . . 9.1

Ω

1.1 MΩ . . . 10 MΩ

Ω

… 1 MΩ

Ω

. . . 9.1

Ω

6.2 MΩ . . . 10 MΩ

Ω

… 1 MΩ

Ω

. . . 9.1

Ω

6.2 MΩ . . . 22 MΩ

- 55° C . . . +155° C*

200 V

400 V

Ω

… 5.6 MΩ

—

Ω

. . . 1 kΩ

1.1 kΩ . . . 5.6 MΩ

Ω

… 5.6 MΩ

Ω

. . . 9.1

Ω

6.2 MΩ . . . 10 MΩ

Ω

. . . 1 kΩ

1.1 kΩ . . . 5.6 MΩ

Ω

. . . 9.1

Ω

6.2 MΩ . . . 22 MΩ

Ω

. . . 9.1

Ω

6.2 MΩ . . . 22 MΩ

0.75 W

200 V

(500 V)**

—

Ω

… 5.6 MΩ

—

Ω

… 5.6 MΩ

Ω

… 5.6 MΩ

Ω

… 5.6 MΩ

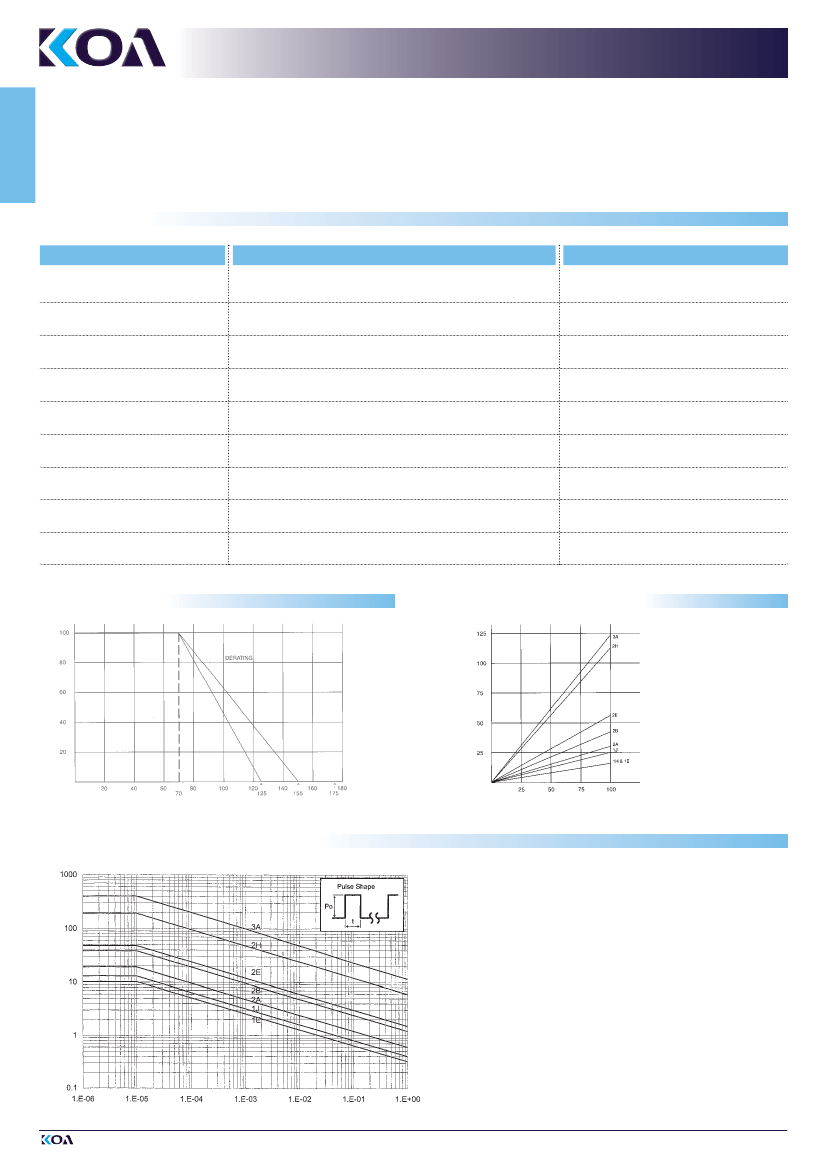

* Please note derating diagram

** Under development

Care should be taken that RK73B1F may be damaged when static electricity

occours and is applied in the equipment assembly process

EUROPE GmbH • Kaddenbusch 6 • D-25578 Dägeling / ITZEHOE • PHONE: +49 (0) 48 21 / 89 89-0 • FAX: +49 (0) 48 21/ 89 89 89 • Internet: www.koaeurope.de

Revision: 5. Nov. 2004

Specifications given herein may be changed at any time without prior notice.

Please confirm technical specifications before you order and/or use.
