BAS40W /-04 /-05 /-06
SURFACE MOUNT SCHOTTKY BARRIER DIODE
Features
•
•
•
•
•
•
Low Forward Voltage Drop
Fast Switching
Ultra-Small Surface Mount Package
PN Junction Guard Ring for Transient and ESD Protection
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Mechanical Data
•
•
•
•
•
•
•
Case: SOT323
Case Material: Molded Plastic, "Green" Molding Compound,
Note 4. UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020D
Terminals: Solderable per MIL-STD-202, Method 208
e3
Lead Free Plating (Matte Tin Finish annealed over Alloy 42
leadframe).
Polarity: See Diagrams Below
Weight: 0.006 grams (approximate)
Top View
BAS40W
BAS40W-04
BAS40W-05
BAS40W-06
Ordering Information
Part Number
BAS40W-7-F
BAS40W-13-F
BAS40W-04-7-F
BAS40W-05-7-F
BAS40W-06-7-F
Notes:
(Notes 4 & 5)
Case
SOT323
SOT323
SOT323
SOT323
SOT323
Packaging
3000/Tape & Reel
10000/Tape & Reel
3000/Tape & Reel
3000/Tape & Reel
3000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Product manufactured with Date Code 0627 (week 27, 2006) and newer are built with Green Molding Compound. Product manufactured prior to Date
Code 0627 are built with Non-Green Molding Compound and may contain Halogens or Sb2O3 Fire Retardants.
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
xxx = Product Type Marking Code
K43 = BAS40W
K44 = BAS40W-04
K45 = BAS40W-05
K46 = BAS40W-06
YM = Date Code Marking
Y = Year (ex: B = 2014)
M = Month (ex: 9 = September)
2012
Z
2013
A
Jun
6
2014
B
Jul
7
2015
C
2016
D
2017
E
Sep
9
2018
F
Oct
O
2019
G
2020
H
2021
I
Dec
D
xxx
Date Code Key
Year
Code
Month
Code
2006
T
Jan
1
2007
U
2008
V
2009
W
Mar
3
2010
X
Apr
4
2011
Y
Feb
2
YM
May
5
Aug
8
Nov
N
BAS40W /-04 /-05 /-06
Document number: DS30114 Rev. 15 - 2
1 of 4
www.diodes.com
February 2014
© Diodes Incorporated
BAS40W /-04 /-05 /-06
Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
FM
@ t = 1.0s
I
FSM
Value
40
28
200
600
Unit
V
V
mA
mA
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Forward Continuous Current (Note 6)
Non-Repetitive Peak Forward Surge Current
Thermal Characteristics
Characteristic
Power Dissipation (Note 6)
Thermal Resistance Junction to Ambient Air (Note 6)
Operating Temperature Range
Storage Temperature Range
Symbol
P
D
R
θJA
T
J
T
STG
Value
200
625
-55 to +125
-65 to +150
Unit
mW
°C/W
°C
°C
Electrical Characteristics
Characteristic
Reverse Breakdown Voltage (Note 7)
Forward Voltage
Leakage Current (Note 7)
Total Capacitance
Reverse Recovery Time
Notes:
(@T
A
= +25°C, unless otherwise specified.)
Symbol
V
(BR)R
V
F
I
R
C
T
t
rr
Min
40
⎯
⎯
⎯
⎯
Max
⎯
380
1000
200
5.0
5.0
Unit
V
mV
mV
nA
pF
ns
Test Condition
I
R
= 10μA
I
F
= 1.0mA, t
p
< 300μs
I
F
= 40mA, t
p
< 300μs
V
R
= 30V
V
R
= 0, f = 1.0MHz
I
F
= I
R
= 10mA,
I
rr
= 0.1 x I
R
, R
L
= 100Ω
6. Device mounted on FR4 PC board with recommended pad layout, per http://www.diodes.com
7. Short duration pulse test used to minimize self-heating effect.
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
I
R
, INSTANTANEOUS REVERSE CURRENT (nA)
1
10,000
1,000
0.1
100
0.01
10
0.001
1
0.0001
0
0.2
0.4
0.6
0.8
1.0
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)

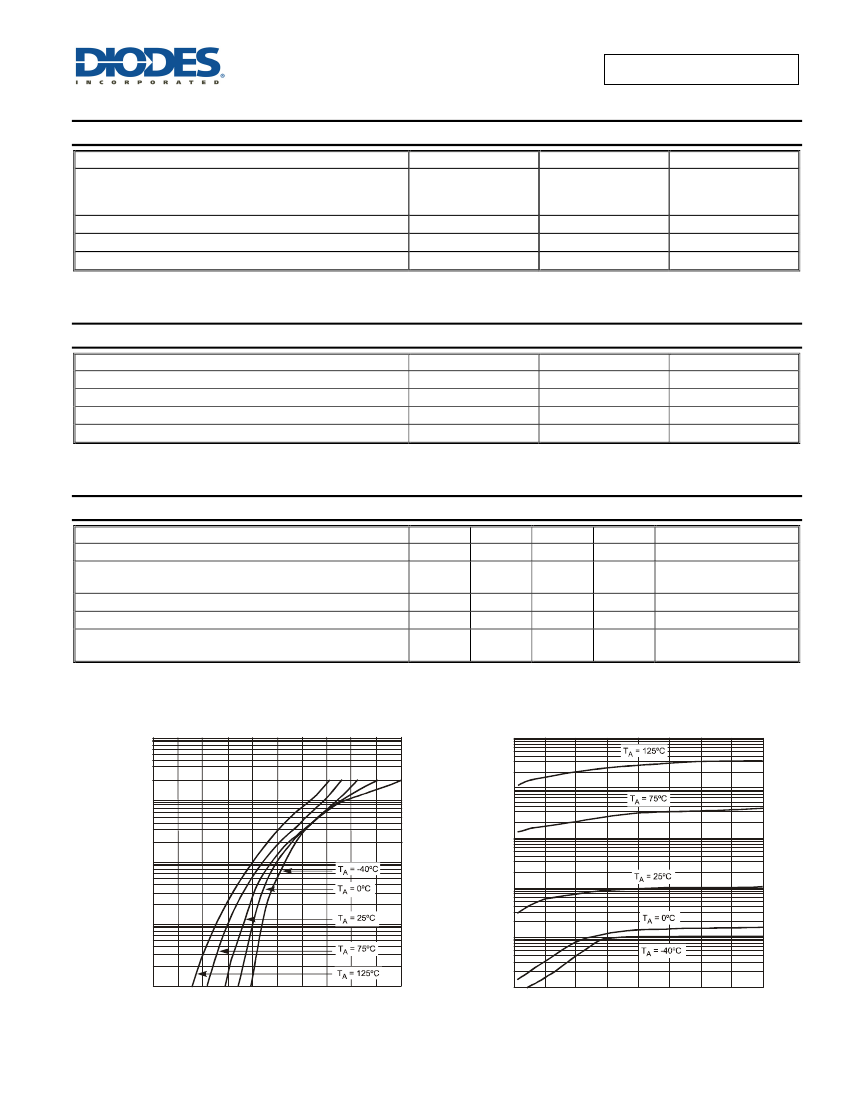

Fig. 1 Typical Forward Characteristics
0.1
0
30
40
10
20
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)
Fig. 2 Typical Reverse Characteristics
BAS40W /-04 /-05 /-06
Document number: DS30114 Rev. 15 - 2
2 of 4
www.diodes.com
February 2014
© Diodes Incorporated
BAS40W /-04 /-05 /-06
250
3
P
D
, POWER DISSIPATION (mW)
C
T
, TOTAL CAPACITANCE (pF)
200
2
150
100
1
50
0
0
10
30
40
20
V
R
, DC REVERSE VOLTAGE (V)

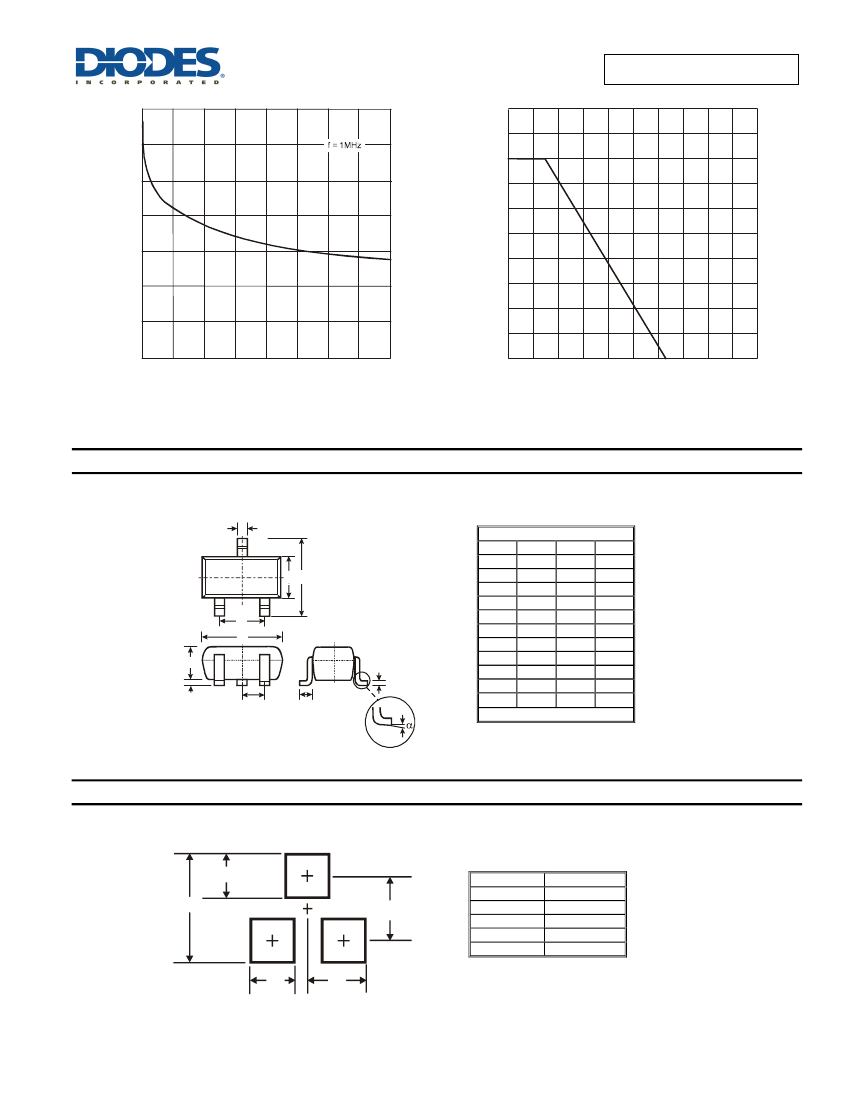

Fig. 3 Total Capacitance vs. Reverse Voltage
0
0
40
120
80
160
200
T
A
, AMBIENT TEMPERATURE (
°
C)
Fig. 4 Power Derating Curve, Total Package
Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
A
B C
G
H
K
M
J
D
L
SOT323
Dim
Min
Max
Typ
A
0.25
0.40
0.30
B
1.15
1.35
1.30
C
2.00
2.20
2.10
D
-
-
0.65
G
1.20
1.40
1.30
H
1.80
2.20
2.15
J
0.0
0.10
0.05
K
0.90
1.00
1.00
L
0.25
0.40
0.30
M
0.10
0.18
0.11
0°
8°
-
α
All Dimensions in mm
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
Y
Z
C
Dimensions Value (in mm)
Z
2.8
X
0.7
Y
0.9
C
1.9
E
1.0
X
E
BAS40W /-04 /-05 /-06
Document number: DS30114 Rev. 15 - 2
3 of 4
www.diodes.com
February 2014
© Diodes Incorporated
BAS40W /-04 /-05 /-06
