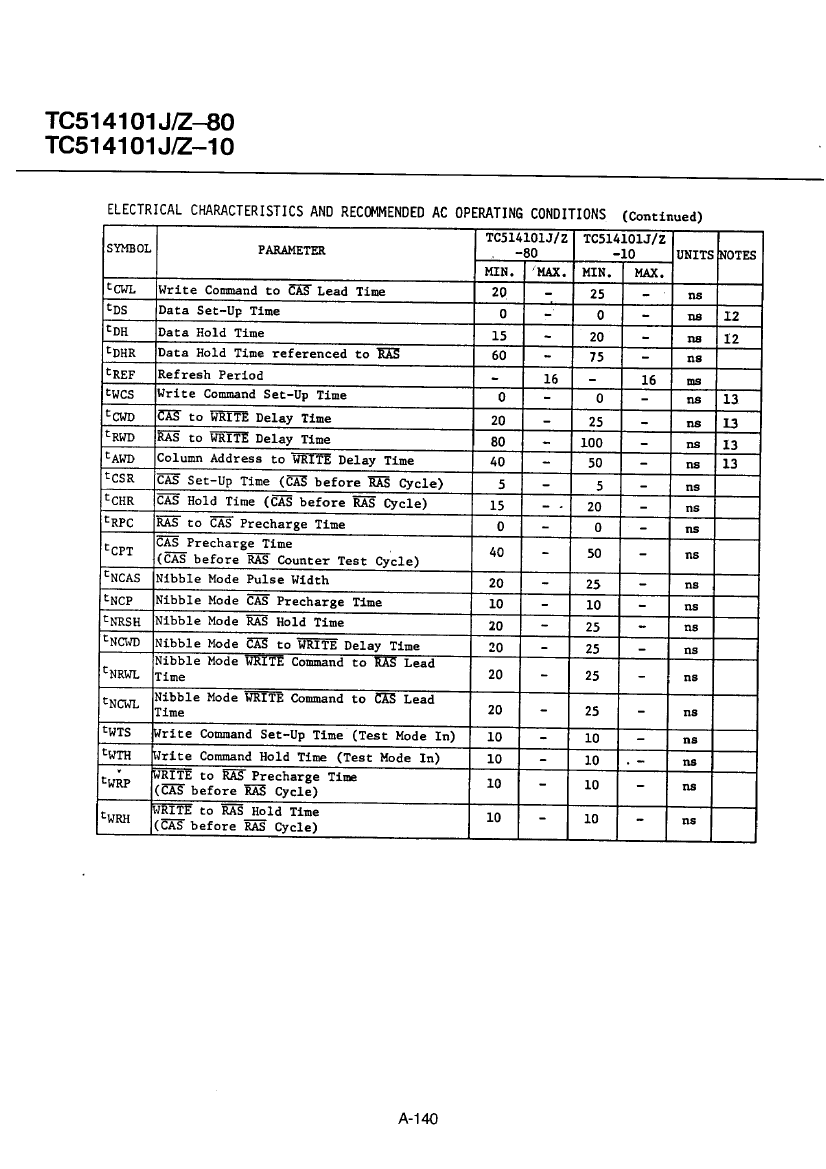

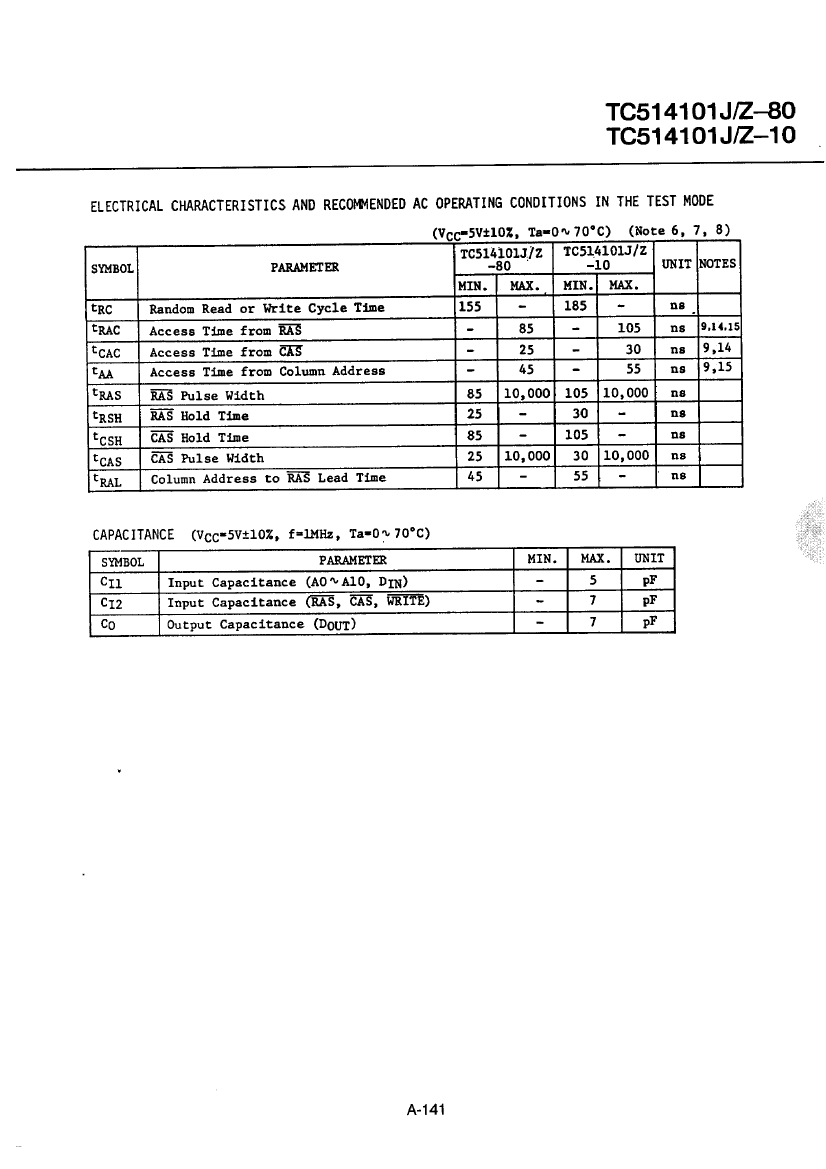

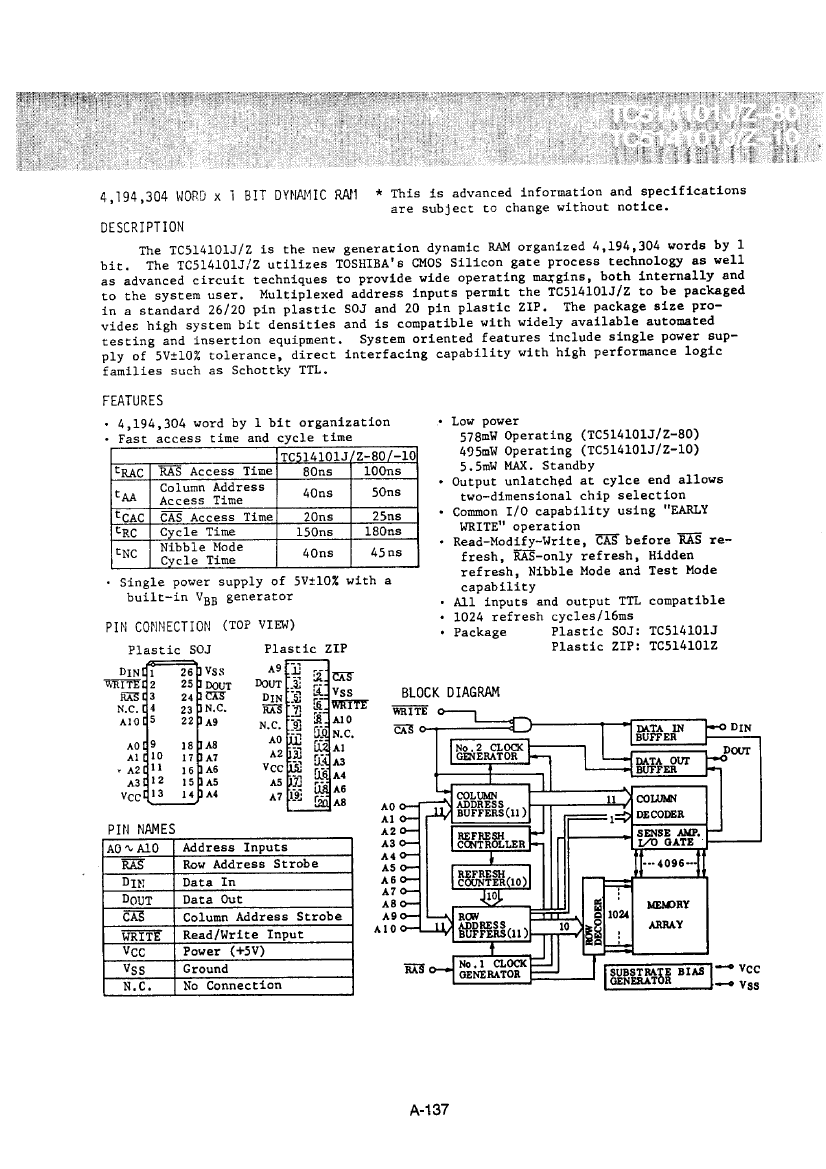

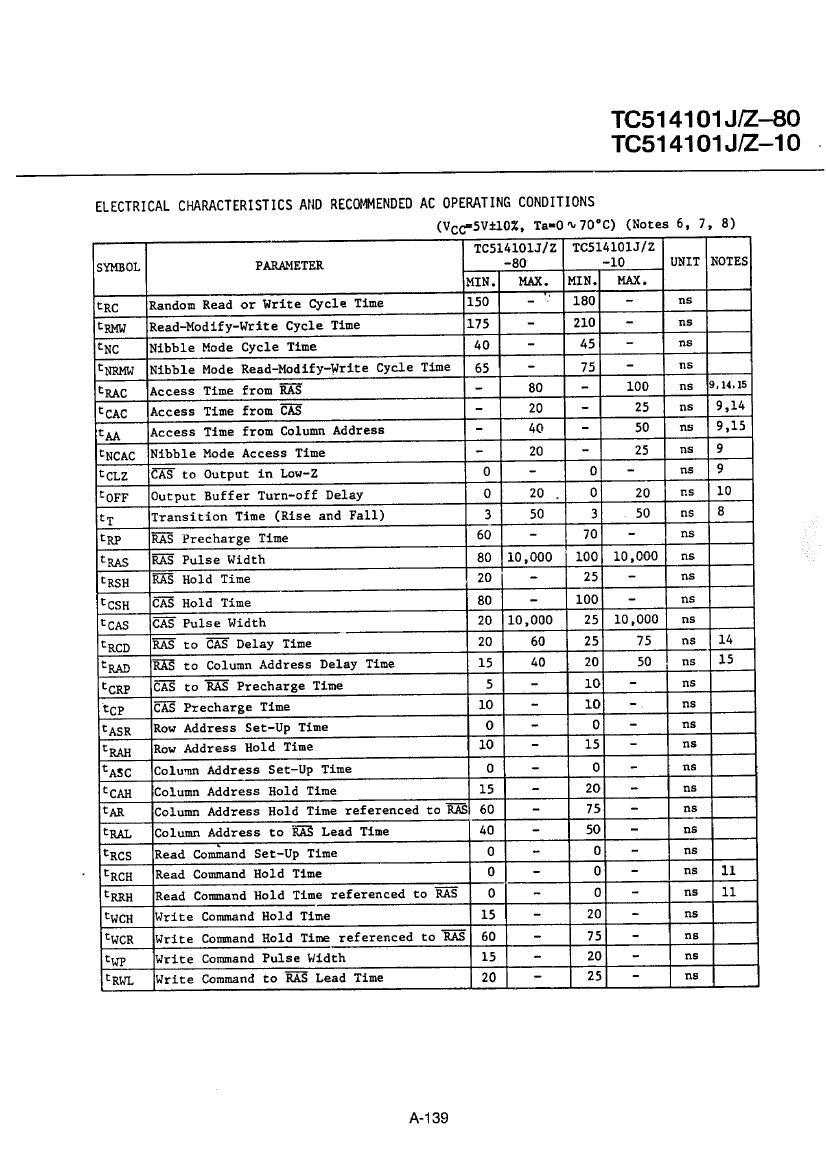

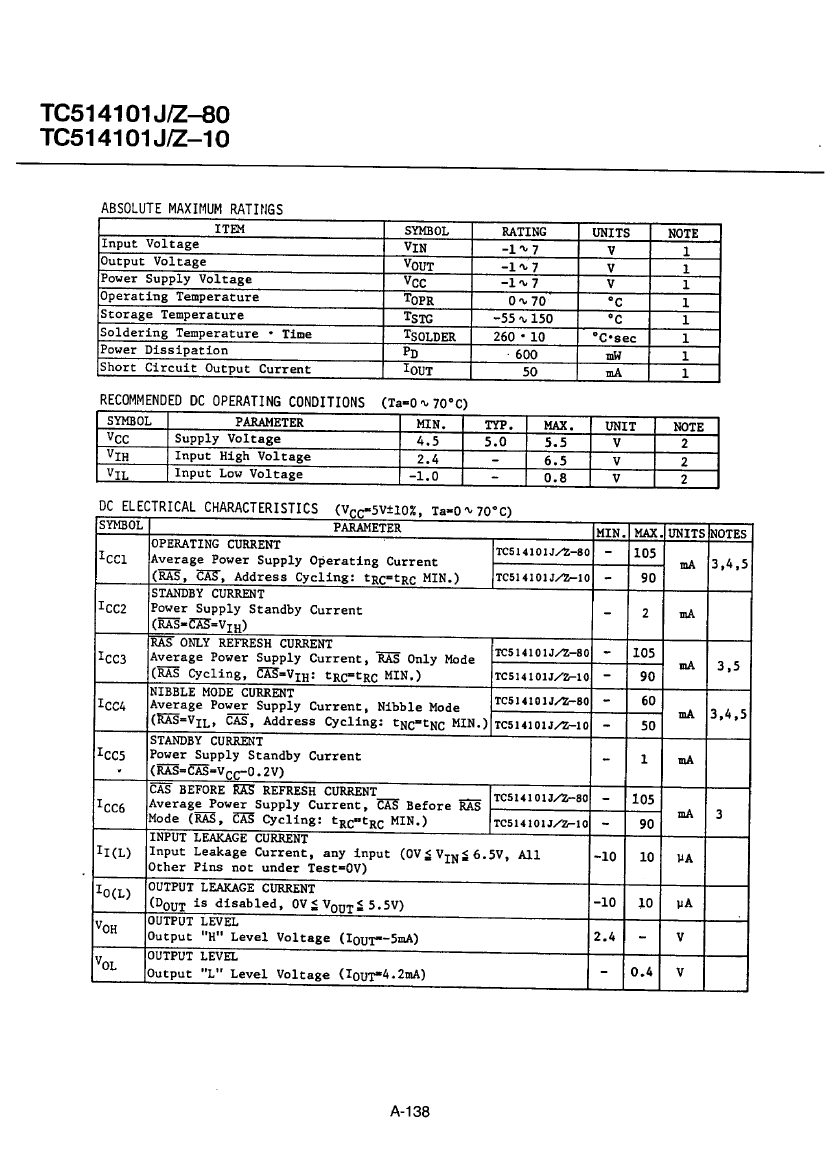

TC514101J: Description4,194,304 x 1 BIT DYNAMIC RAM; File Size684KB，23 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Compare View All

TC514101J Overview

4,194,304 x 1 BIT DYNAMIC RAM

Preview

Download Datasheet

View All

TC514101J Related Products

	TC514101J	TC514101Z-10	TC514101J-10	TC514101Z-80	TC514101J-80
Description	4,194,304 x 1 BIT DYNAMIC RAM	4,194,304 x 1 BIT DYNAMIC RAM	4,194,304 x 1 BIT DYNAMIC RAM	4,194,304 x 1 BIT DYNAMIC RAM	4,194,304 x 1 BIT DYNAMIC RAM
Is it lead-free?	-	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	-	incompatible	incompatible	incompatible	incompatible
Maker	-	Toshiba Semiconductor	-	Toshiba Semiconductor	Toshiba Semiconductor
Parts packaging code	-	ZIP	SOJ	ZIP	SOJ
package instruction	-	ZIP,	SOJ,	ZIP,	SOJ,
Contacts	-	20	20	20	20
Reach Compliance Code	-	unknow	unknow	unknow	unknow
ECCN code	-	EAR99	EAR99	EAR99	EAR99
access mode	-	NIBBLE	NIBBLE	NIBBLE	NIBBLE
Maximum access time	-	100 ns	100 ns	80 ns	80 ns
Other features	-	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
JESD-30 code	-	R-PZIP-T20	R-PDSO-J20	R-PZIP-T20	R-PDSO-J20
JESD-609 code	-	e0	e0	e0	e0
length	-	25.8 mm	17.15 mm	25.8 mm	17.15 mm
memory density	-	4194304 bi	4194304 bi	4194304 bi	4194304 bi
Memory IC Type	-	NIBBLE MODE DRAM	NIBBLE MODE DRAM	NIBBLE MODE DRAM	NIBBLE MODE DRAM
memory width	-	1	1	1	1
Number of functions	-	1	1	1	1
Number of ports	-	1	1	1	1
Number of terminals	-	20	20	20	20
word count	-	4194304 words	4194304 words	4194304 words	4194304 words
character code	-	4000000	4000000	4000000	4000000
Operating mode	-	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	-	70 °C	70 °C	70 °C	70 °C
organize	-	4MX1	4MX1	4MX1	4MX1
Output characteristics	-	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	-	ZIP	SOJ	ZIP	SOJ
Package shape	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	-	IN-LINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	-	1024	1024	1024	1024
Maximum seat height	-	10.16 mm	3.75 mm	10.16 mm	3.75 mm
Maximum supply voltage (Vsup)	-	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	-	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	-	5 V	5 V	5 V	5 V
surface mount	-	NO	YES	NO	YES
technology	-	CMOS	CMOS	CMOS	CMOS
Temperature level	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	-	THROUGH-HOLE	J BEND	THROUGH-HOLE	J BEND
Terminal pitch	-	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	-	ZIG-ZAG	DUAL	ZIG-ZAG	DUAL
Maximum time at peak reflow temperature	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
