PRODUCT INFORMATION
GOF Connector
Accessories for glass optical fibre cable, connector types LC, SC, ST and FC
Connectors for Fibre Optical Cables (ST, LC, SC,….) for single-mode and multimode fibres
Benefits
Ideal for assembling
For assembly process: cable preparation/
glueing/crimping/polishing
Assembly instructions can be found
in the GOF assembly toolbox
(not included in Lapp product range)
Trained optical installers should be used
in all connector assembly
Application range
For connector assemblies in production or laboratory environment
Product features
Connector sets include all needed parts for assembly
Norm references / Approvals
LC comply with IEC standard 61754-20
SC comply with IEC standard 61754-4
ST comply with IEC standard 61754-2
Product Make-up
Ferrule diameter:
LC: 1.25mm (zirconia)
SC, ST: 2.5mm (zirconia)
Can be assembled with cables of
1.7mm-2.1mm diameter

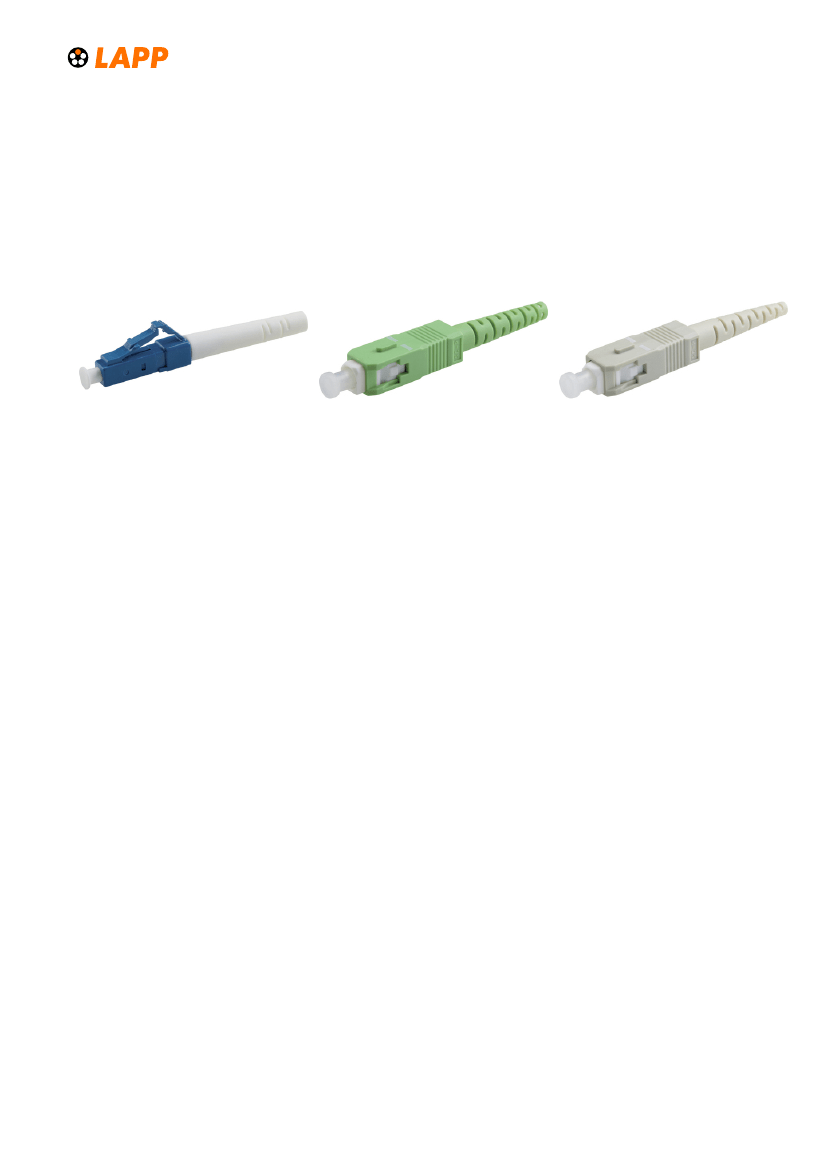

LC and SC connector sets available in green (single-mode APC), blue (single-mode PC) and grey (multimode)
Technical Data
Classification ETIM 5:
Classification ETIM 6:
ETIM 5.0 Class-ID: EC001122
ETIM 5.0 Class-Description: Fibre optic connector
ETIM 6.0 Class-ID: EC001122
Last Update (24.05.2019)
©2019 Lapp Group - Technical changes reserved
Product Management www.lappkabel.de
You can find the current technical data in the corresponding data sheet.
PN 0456 / 02_03.16
PRODUCT INFORMATION
GOF Connector
ETIM 6.0 Class-Description: Fibre optic connector
Permissible tensile force:
Tensile load 70N
Tensile strength after assembly
> 100N
Operating
LC: -40°C to 75°C
SC: -40°C to 75°C
ST: -40°C to 85°C
Humidity 95%
Flammability UL 94 V-0
Temperature range:
Note
Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Prices are net prices without VAT and surcharges. Sale to business customers only.
Last Update (24.05.2019)
©2019 Lapp Group - Technical changes reserved
Product Management www.lappkabel.de
You can find the current technical data in the corresponding data sheet.
PN 0456 / 02_03.16
Powered by TCPDF (www.tcpdf.org)
GOF Connector
Article number
Singlemode
29110999
29110998
29110989
29110988
29130999
29130998
29130989
29130988
29120999
29120998
29140999
Multimode
29110199
29110198
29130199
29130198
29120199
29120198
29140199
Article designation
GOF Connector SC Single-mode Blue /4PC
GOF Connector SC Single-mode Blue /50PC
GOF Connector SC Single-mode APC Green/ 4PC
GOF Connector SC Single-mode APC Green/ 50PC
GOF Connector LC Single-mode Blue /4PC
GOF Connector LC Single-mode Blue /50PC
GOF Connector LC Single-mode APC GR /4PC
GOF Connector LC Single-mode APC GR/50PC
GOF Connector ST Single-mode /4PC
GOF Connector ST Single-mode /50PC
GOF Connector FC Single-mode /4PC
GOF Connector SC Multimode Beige /4PC
GOF Connector SC Multimode Beige /50PC
GOF Connector LC Multimode Beige /4PC
GOF Connector LC Multimode Beige /50PC
GOF Connector ST Multimode /4PC
GOF Connector ST Multimode /50PC
GOF Connector FC Multimode /4PC
Last Update (24.05.2019)
©2019 Lapp Group - Technical changes reserved
Product Management www.lappkabel.de
You can find the current technical data in the corresponding data sheet.
PN 0456 / 02_03.16

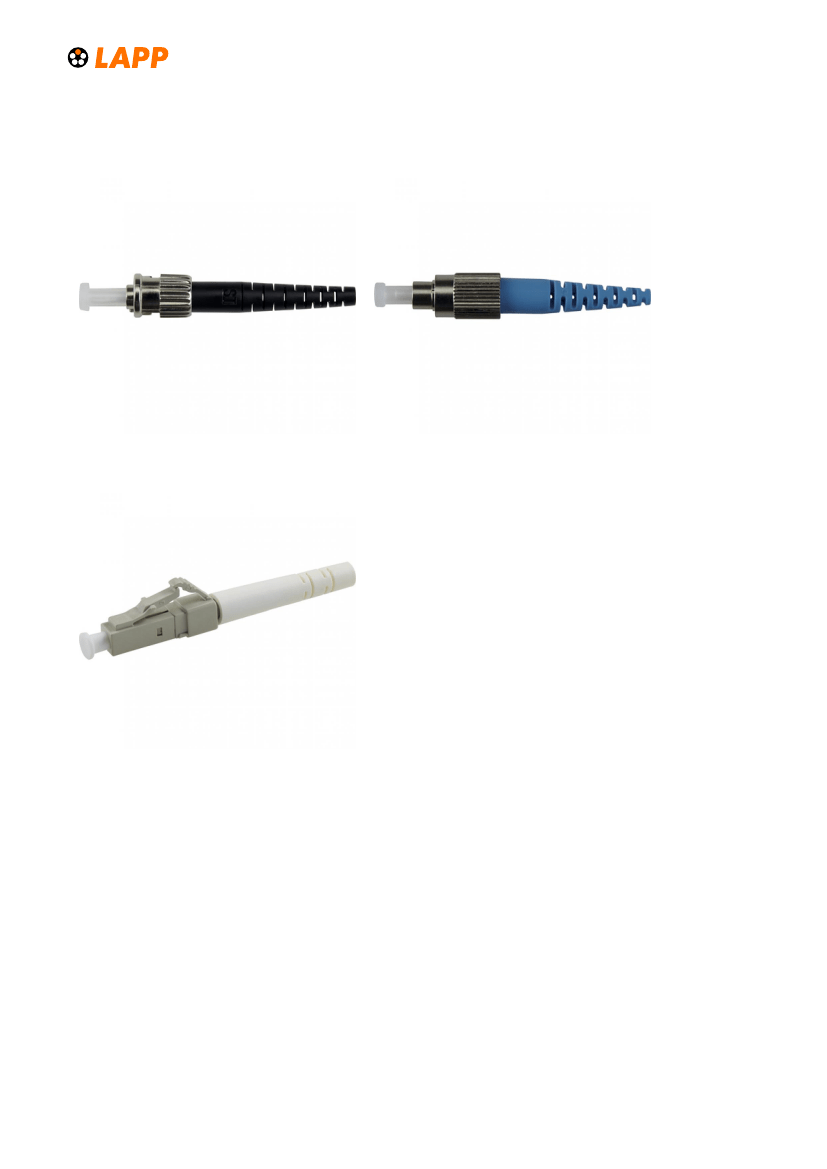

PRODUCT INFORMATION
PRODUCT INFORMATION
GOF Connector
Last Update (24.05.2019)
©2019 Lapp Group - Technical changes reserved
Product Management www.lappkabel.de
You can find the current technical data in the corresponding data sheet.
PN 0456 / 02_03.16
