LTC2295CUP#TR

Description
LTC2295 - Dual 14-Bit, 10Msps Low Power 3V ADC; Package: QFN; Pins: 64; Temperature Range: 0°C to 70°C
CategoryAnalog mixed-signal IC    converter
File Size645KB,24 Pages
ManufacturerLinear ( ADI )
Websitehttp://www.analog.com/cn/index.html
Download Datasheet Parametric Compare View All

LTC2295CUP#TR Overview

LTC2295 - Dual 14-Bit, 10Msps Low Power 3V ADC; Package: QFN; Pins: 64; Temperature Range: 0°C to 70°C

LTC2295CUP#TR Parametric

Parameter NameAttribute value
Brand NameLinear Technology
Is it Rohs certified?incompatible
MakerLinear ( ADI )
Parts packaging codeQFN
package instructionHVQCCN, LCC64,.35SQ,20
Contacts64
Manufacturer packaging codeUP
Reach Compliance Code_compli
ECCN code3A991.C.3
Maximum analog input voltage1 V
Minimum analog input voltage-0.5 V
Converter typeADC, PROPRIETARY METHOD
JESD-30 codeS-PQCC-N64
JESD-609 codee0
length9 mm
Maximum linear error (EL)0.0305%
Humidity sensitivity level1
Number of analog input channels2
Number of digits14
Number of functions1
Number of terminals64
Maximum operating temperature70 °C
Minimum operating temperature
Output bit codeOFFSET BINARY, 2\'S COMPLEMENT BINARY
Output formatPARALLEL, WORD
Package body materialPLASTIC/EPOXY
encapsulated codeHVQCCN
Encapsulate equivalent codeLCC64,.35SQ,20
Package shapeSQUARE
Package formCHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Celsius)235
power supply3 V
Certification statusNot Qualified
Sampling rate10 MHz
Sample and hold/Track and holdSAMPLE
Maximum seat height0.8 mm
Nominal supply voltage3 V
surface mountYES
technologyCMOS
Temperature levelCOMMERCIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formNO LEAD
Terminal pitch0.5 mm
Terminal locationQUAD
Maximum time at peak reflow temperature20
width9 mm

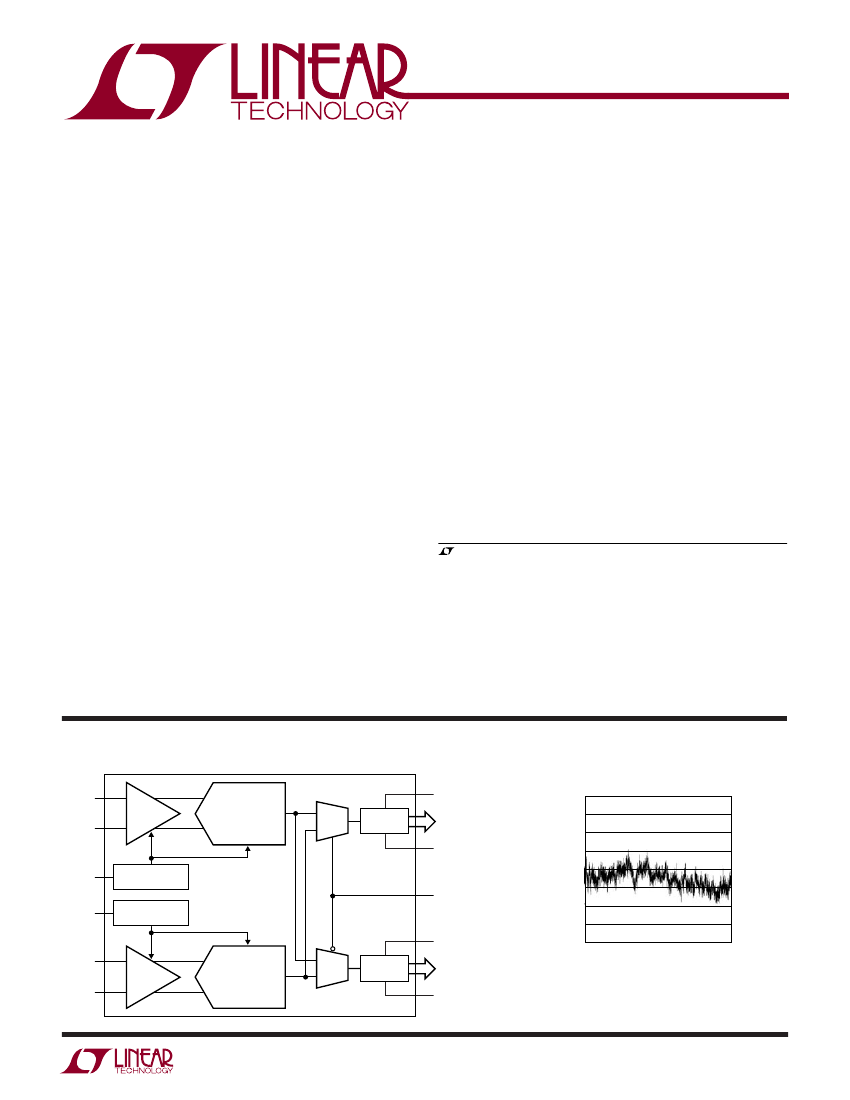

LTC2295
Dual 14-Bit, 10Msps
Low Power 3V ADC
FEATURES
DESCRIPTIO
Integrated Dual 14-Bit ADCs
Sample Rate: 10Msps
Single 3V Supply (2.7V to 3.4V)
Low Power: 120mW
74.4dB SNR
90dB SFDR
110dB Channel Isolation
Multiplexed or Separate Data Bus
Flexible Input: 1V
P-P
to 2V
P-P
Range
575MHz Full Power Bandwidth S/H
Clock Duty Cycle Stabilizer
Shutdown and Nap Modes
Pin Compatible Family
105Msps: LTC2282 (12-Bit), LTC2284 (14-Bit)
80Msps: LTC2294 (12-Bit), LTC2299 (14-Bit)
65Msps: LTC2293 (12-Bit), LTC2298 (14-Bit)
40Msps: LTC2292 (12-Bit), LTC2297 (14-Bit)
25Msps: LTC2291 (12-Bit), LTC2296 (14-Bit)
10Msps: LTC2290 (12-Bit), LTC2295 (14-Bit)
64-Pin (9mm
×
9mm) QFN Package
The LTC
®
2295 is a 14-bit 10Msps, low power dual 3V
A/D converter designed for digitizing high frequency, wide
dynamic range signals. The LTC2295 is perfect for
demanding imaging and communications applications
with AC performance that includes 74.4dB SNR and 90dB
SFDR for signals well beyond the Nyquist frequency.
DC specs include
±1.2LSB
INL (typ),
±0.5LSB
DNL (typ)
and no missing codes over temperature. The transition
noise is a low 1LSB
RMS
.
A single 3V supply allows low power operation. A separate
output supply allows the outputs to drive 0.5V to 3.6V
logic. An optional multiplexer allows both channels to
share a digital output bus.
A single-ended CLK input controls converter operation. An
optional clock duty cycle stabilizer allows high perfor-
mance at full speed for a wide range of clock duty cycles.
, LTC and LT are registered trademarks of Linear Technology Corporation.
All other trademarks are the property of their respective owners.
APPLICATIO S
Wireless and Wired Broadband Communication
Imaging Systems
Spectral Analysis
Portable Instrumentation
TYPICAL APPLICATIO
+
ANALOG
INPUT A
INPUT
S/H
14-BIT
PIPELINED
ADC CORE
OV
DD
OUTPUT
DRIVERS
D13A
D0A
OGND
INL ERROR (LSB)
CLK A
CLOCK/DUTY CYCLE
CONTROL
MUX
CLOCK/DUTY CYCLE
CONTROL
OV
DD
CLK B
+
ANALOG
INPUT B
INPUT
S/H
14-BIT
PIPELINED
ADC CORE
OUTPUT
DRIVERS
D13B
D0B
OGND
2295 TA01
U
Typical INL, 2V Range
2.0
1.5
1.0
0.5
0
–0.5
–1.0
–1.5
–2.0
0
4096
8192
CODE
12288
16384
2295 G02
U
U
2295fa
1

LTC2295CUP#TR Related Products

LTC2295CUP#TR LTC2295IUP#TR
Description LTC2295 - Dual 14-Bit, 10Msps Low Power 3V ADC; Package: QFN; Pins: 64; Temperature Range: 0°C to 70°C LTC2295 - Dual 14-Bit, 10Msps Low Power 3V ADC; Package: QFN; Pins: 64; Temperature Range: -40°C to 85°C
Brand Name Linear Technology Linear Technology
Is it Rohs certified? incompatible incompatible
Maker Linear ( ADI ) Linear ( ADI )
Parts packaging code QFN QFN
package instruction HVQCCN, LCC64,.35SQ,20 HVQCCN, LCC64,.35SQ,20
Contacts 64 64
Manufacturer packaging code UP UP
Reach Compliance Code _compli _compli
ECCN code 3A991.C.3 3A991.C.3
Maximum analog input voltage 1 V 1 V
Minimum analog input voltage -0.5 V -0.5 V
Converter type ADC, PROPRIETARY METHOD ADC, PROPRIETARY METHOD
JESD-30 code S-PQCC-N64 S-PQCC-N64
JESD-609 code e0 e0
length 9 mm 9 mm
Maximum linear error (EL) 0.0305% 0.0305%
Humidity sensitivity level 1 1
Number of analog input channels 2 2
Number of digits 14 14
Number of functions 1 1
Number of terminals 64 64
Maximum operating temperature 70 °C 85 °C
Output bit code OFFSET BINARY, 2\'S COMPLEMENT BINARY OFFSET BINARY, 2\'S COMPLEMENT BINARY
Output format PARALLEL, WORD PARALLEL, WORD
Package body material PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code HVQCCN HVQCCN
Encapsulate equivalent code LCC64,.35SQ,20 LCC64,.35SQ,20
Package shape SQUARE SQUARE
Package form CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Celsius) 235 235
power supply 3 V 3 V
Certification status Not Qualified Not Qualified
Sampling rate 10 MHz 10 MHz
Sample and hold/Track and hold SAMPLE SAMPLE
Maximum seat height 0.8 mm 0.8 mm
Nominal supply voltage 3 V 3 V
surface mount YES YES
technology CMOS CMOS
Temperature level COMMERCIAL INDUSTRIAL
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form NO LEAD NO LEAD
Terminal pitch 0.5 mm 0.5 mm
Terminal location QUAD QUAD
Maximum time at peak reflow temperature 20 20
width 9 mm 9 mm
