LTC6253CDC#PBF

Description
LTC6253 - Dual 720MHz, 3.5mA Power Efficient Rail-to-Rail I/O Op Amps; Package: DFN; Pins: 8; Temperature Range: 0°C to 70°C
CategoryAnalog mixed-signal IC    Amplifier circuit
File Size932KB,26 Pages
ManufacturerLinear ( ADI )
Websitehttp://www.analog.com/cn/index.html
Environmental Compliance
Download Datasheet Parametric Compare View All

LTC6253CDC#PBF Overview

LTC6253 - Dual 720MHz, 3.5mA Power Efficient Rail-to-Rail I/O Op Amps; Package: DFN; Pins: 8; Temperature Range: 0°C to 70°C

LTC6253CDC#PBF Parametric

Parameter NameAttribute value
Brand NameLinear Technology
Is it Rohs certified?conform to
MakerLinear ( ADI )
Parts packaging codeDFN
package instructionHVSON, SOLCC8,.08,18
Contacts8
Manufacturer packaging codeDC8
Reach Compliance Codecompli
ECCN codeEAR99
Amplifier typeOPERATIONAL AMPLIFIER
ArchitectureVOLTAGE-FEEDBACK
Maximum average bias current (IIB)3.5 µA
Maximum bias current (IIB) at 25C2.5 µA
Nominal Common Mode Rejection Ratio105 dB
frequency compensationYES
Maximum input offset voltage3400 µV
JESD-30 codeS-PDSO-N8
JESD-609 codee3
length2 mm
low-biasNO
low-dissonanceNO
micropowerNO
Humidity sensitivity level1
Number of functions2
Number of terminals8
Maximum operating temperature70 °C
Minimum operating temperature
Package body materialPLASTIC/EPOXY
encapsulated codeHVSON
Encapsulate equivalent codeSOLCC8,.08,18
Package shapeSQUARE
Package formSMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Celsius)225
powerNO
power supply2.7/5 V
Programmable powerNO
Certification statusNot Qualified
Maximum seat height0.8 mm
Nominal slew rate170 V/us
Maximum slew rate11.8 mA
Supply voltage upper limit5.5 V
Nominal supply voltage (Vsup)2.7 V
surface mountYES
technologyCMOS
Temperature levelCOMMERCIAL
Terminal surfaceMatte Tin (Sn)
Terminal formNO LEAD
Terminal pitch0.45 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Nominal Uniform Gain Bandwidth630000 kHz
Minimum voltage gain1800
broadbandYES
width2 mm
FEATURES
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
LTC6252/LTC6253/LTC6254
720MHz, 3.5mA Power
Efficient Rail-to-Rail
I/O Op Amps
DESCRIPTION
The LTC
®
6252/LTC6253/LTC6254 are single/dual/quad low
power, high speed unity gain stable rail-to-rail input/output
operational amplifiers. On only 3.5mA of supply current
they feature a 720MHz gain-bandwidth product, 280V/µs
slew rate and a low 2.75nV/√Hz of input-referred noise.
The combination of high bandwidth, high slew rate, low
power consumption and low broadband noise makes the
LTC6252 family unique among rail-to-rail input/output op
amps with similar supply currents. They are ideal for lower
supply voltage high speed signal conditioning systems.
The LTC6252 family maintains high efficiency performance
from supply voltage levels of 2.5V to 5.25V and is fully
specified at supplies of 2.7V and 5.0V.
For applications that require power-down, the LTC6252 and
the LTC6253 in MS10 offer a shutdown pin which disables
the amplifier and reduces current consumption to 42µA.
The LTC6252 family can be used as a plug-in replacement
for many commercially available op amps to reduce power
or to improve input/output range and performance.
L,
LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks of Linear
Technology Corporation. All other trademarks are the property of their respective owners.
Gain Bandwidth Product: 720MHz
–3dB Frequency (A
V
= 1): 400MHz
Low Quiescent Current: 3.5mA Max
High Slew Rate: 280V/µs
Input Common Mode Range Includes Both Rails
Output Swings Rail-to-Rail
Low Broadband Voltage Noise: 2.75nV/√Hz
Power-Down Mode: 42μA
Fast Output Recovery
Supply Voltage Range: 2.5V to 5.25V
Input Offset Voltage: 350µV Max
Large Output Current: 90mA
CMRR: 105dB
Open Loop Gain: 60V/mV
Operating Temperature Range: –40°C to 125°C
Single in 6-Pin TSOT-23
Dual in MS8, 2mm
×
2mm DFN, 8-Pin TS0T-23, MS10
Quad in MS16
APPLICATIONS
n
n
n
n
n
Low Voltage, High Frequency Signal Processing
Driving A/D Converters
Rail-to-Rail Buffer Amplifiers
Active Filters
Battery Powered Equipment

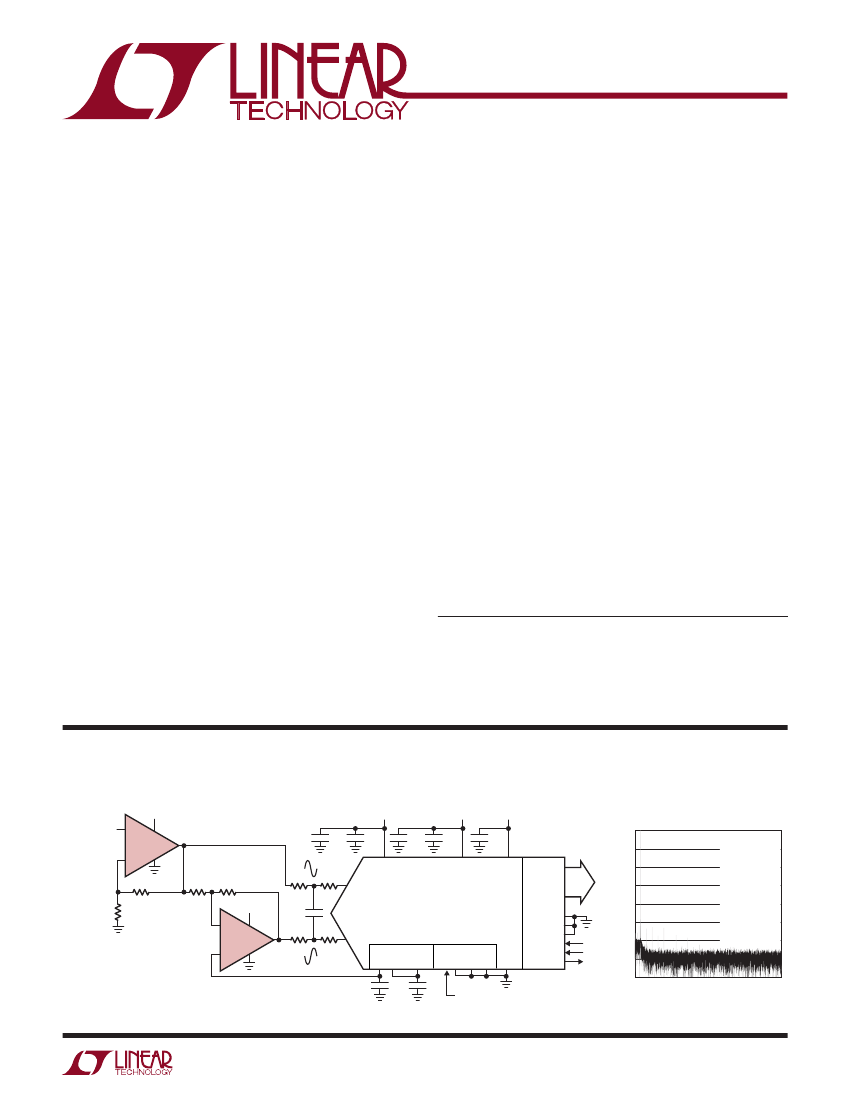

TYPICAL APPLICATION
5V Single-Supply 16-Bit ADC Driver
5V
V
IN
27.4mV TO
(3.5V + 27.4mV)
5V
10µF
0.1µF
AVP
2.5k
2.5k
5V
249
100
IN
+
LTC2393-16
100
IN
REFIN
CNVST
RESET
REFOUT
PD
GND OGND
VCM
10µF
1µF
10µF
5V
0.1µF
DVP
1.8V TO 5V
4.7µF
OVP
0
–20
PARALLEL
OR
16 BIT
SERIAL
INTERFACE
SER/PAR
BYTESWAP
OB/2C
CS
RD
BUSY
625234 TA01
LTC6253 Driving LTC2393-16
16-Bit ADC 5V Single-Supply
Performance
f
S
= 1Msps
F1 = 20.111kHz
F1 AMPLITUDE
= –1.032dBFS
SNR = 93.28dB
THD = –100.50dB
SINAD = 92.53dB
SFDR = 104.7dB
F2 = –106.39dBc
F3 = –104.70dBc
F4 = –114.13dBc
F5 = –105.48dBc
+
½ LTC6253
143Ω
–40
AMPLITUDE (dBFS)
–60
–80
–100
–120
–140
–160
0
100
845Ω
3900pF
249
~2.08V
+
½ LTC6253
SAMPLE CLOCK
200
300
FREQUENCY (kHz)
400
500
624678 TA01b
625234fc
1

LTC6253CDC#PBF Related Products

LTC6253CDC#PBF LTC6253CTS8#PBF LTC6253HTS8#PBF LTC6253IDC#PBF LTC6253ITS8#PBF
Description LTC6253 - Dual 720MHz, 3.5mA Power Efficient Rail-to-Rail I/O Op Amps; Package: DFN; Pins: 8; Temperature Range: 0°C to 70°C LTC6253 - Dual 720MHz, 3.5mA Power Efficient Rail-to-Rail I/O Op Amps; Package: SOT; Pins: 8; Temperature Range: 0°C to 70°C LTC6253 - Dual 720MHz, 3.5mA Power Efficient Rail-to-Rail I/O Op Amps; Package: SOT; Pins: 8; Temperature Range: -40°C to 125°C LTC6253 - Dual 720MHz, 3.5mA Power Efficient Rail-to-Rail I/O Op Amps; Package: DFN; Pins: 8; Temperature Range: -40°C to 85°C LTC6253 - Dual 720MHz, 3.5mA Power Efficient Rail-to-Rail I/O Op Amps; Package: SOT; Pins: 8; Temperature Range: -40°C to 85°C
Brand Name Linear Technology Linear Technology Linear Technology Linear Technology Linear Technology
Is it Rohs certified? conform to conform to conform to conform to conform to
Maker Linear ( ADI ) Linear ( ADI ) Linear ( ADI ) Linear ( ADI ) Linear ( ADI )
Parts packaging code DFN SOT SOT DFN SOT
package instruction HVSON, SOLCC8,.08,18 VSSOP, TSSOP8,.1 VSSOP, TSSOP8,.1 HVSON, SOLCC8,.08,18 VSSOP, TSSOP8,.1
Contacts 8 8 8 8 8
Manufacturer packaging code DC8 TS8 TS8 DC8 TS8
Reach Compliance Code compli compli compli compli compli
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99
Amplifier type OPERATIONAL AMPLIFIER OPERATIONAL AMPLIFIER OPERATIONAL AMPLIFIER OPERATIONAL AMPLIFIER OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK VOLTAGE-FEEDBACK VOLTAGE-FEEDBACK VOLTAGE-FEEDBACK VOLTAGE-FEEDBACK
Maximum average bias current (IIB) 3.5 µA 3.5 µA 3.5 µA 3.5 µA 3.5 µA
Maximum bias current (IIB) at 25C 2.5 µA 2.5 µA 2.5 µA 2.5 µA 2.5 µA
Nominal Common Mode Rejection Ratio 105 dB 105 dB 105 dB 105 dB 105 dB
frequency compensation YES YES YES YES YES
Maximum input offset voltage 3400 µV 3400 µV 3400 µV 3400 µV 3400 µV
JESD-30 code S-PDSO-N8 R-PDSO-G8 R-PDSO-G8 S-PDSO-N8 R-PDSO-G8
JESD-609 code e3 e3 e3 e3 e3
length 2 mm 2.9 mm 2.9 mm 2 mm 2.9 mm
low-bias NO NO NO NO NO
low-dissonance NO NO NO NO NO
micropower NO NO NO NO NO
Humidity sensitivity level 1 1 1 1 1
Number of functions 2 2 2 2 2
Number of terminals 8 8 8 8 8
Maximum operating temperature 70 °C 70 °C 125 °C 85 °C 85 °C
Minimum operating temperature - - -40 °C -40 °C -40 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code HVSON VSSOP VSSOP HVSON VSSOP
Encapsulate equivalent code SOLCC8,.08,18 TSSOP8,.1 TSSOP8,.1 SOLCC8,.08,18 TSSOP8,.1
Package shape SQUARE RECTANGULAR RECTANGULAR SQUARE RECTANGULAR
Package form SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius) 225 225 225 NOT SPECIFIED 225
power NO NO NO NO NO
power supply 2.7/5 V 2.7/5 V 2.7/5 V 2.7/5 V 2.7/5 V
Programmable power NO NO NO NO NO
Certification status Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified
Maximum seat height 0.8 mm 1 mm 1 mm 0.8 mm 1 mm
Nominal slew rate 170 V/us 170 V/us 170 V/us 170 V/us 170 V/us
Maximum slew rate 11.8 mA 11.8 mA 11.8 mA 11.8 mA 11.8 mA
Supply voltage upper limit 5.5 V 5.5 V 5.5 V 5.5 V 5.5 V
Nominal supply voltage (Vsup) 2.7 V 2.7 V 2.7 V 2.7 V 2.7 V
surface mount YES YES YES YES YES
technology CMOS CMOS CMOS CMOS CMOS
Temperature level COMMERCIAL COMMERCIAL AUTOMOTIVE INDUSTRIAL INDUSTRIAL
Terminal surface Matte Tin (Sn) Matte Tin (Sn) Matte Tin (Sn) Matte Tin (Sn) Matte Tin (Sn)
Terminal form NO LEAD GULL WING GULL WING NO LEAD GULL WING
Terminal pitch 0.45 mm 0.65 mm 0.65 mm 0.45 mm 0.65 mm
Terminal location DUAL DUAL DUAL DUAL DUAL
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Nominal Uniform Gain Bandwidth 630000 kHz 630000 kHz 630000 kHz 630000 kHz 630000 kHz
Minimum voltage gain 1800 1800 1800 1800 1800
broadband YES YES YES YES YES
width 2 mm 1.625 mm 1.625 mm 2 mm 1.625 mm
