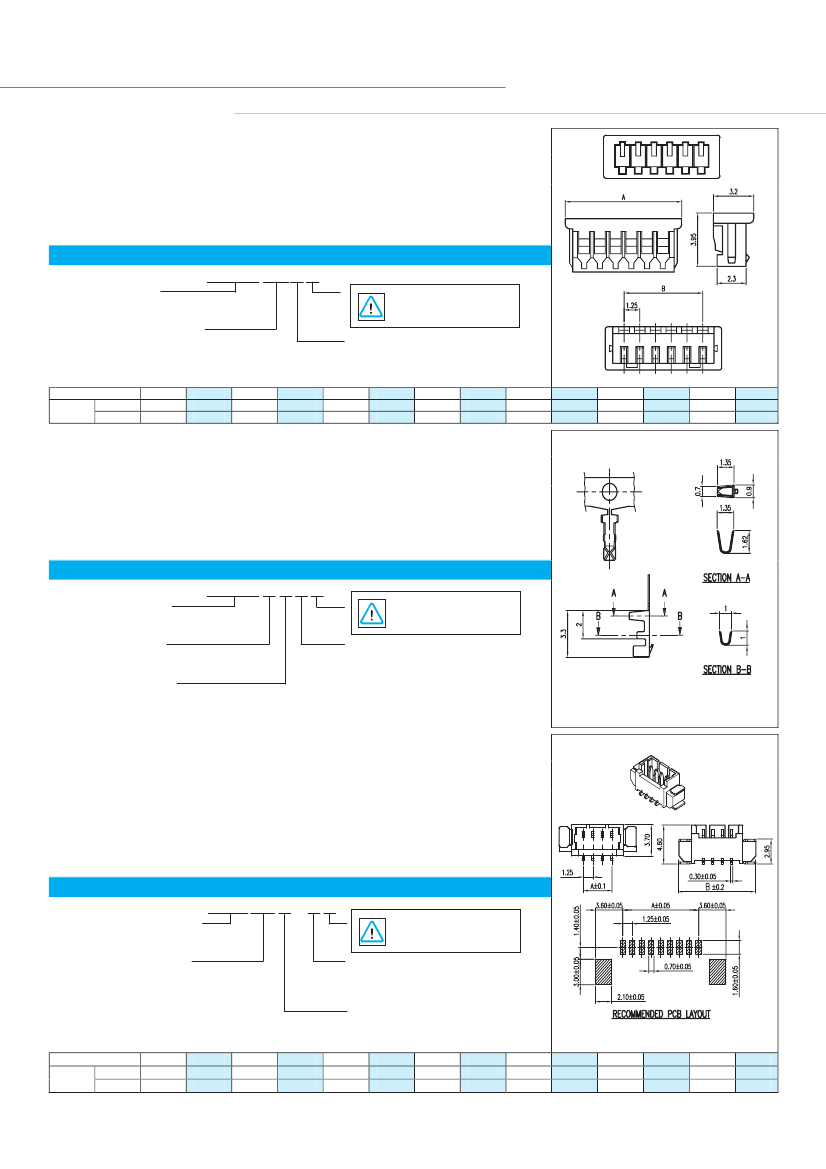

Miniature Box Interconnects
G884H
Materials
Housing
– 94V-0 thermoplastic
– G880 See below
1.25mm Crimp Socket Housing
Circuit sizes
2 to 15 circuits
Compact economical Board to Wire connector system.
Mating Half
Pin Headers
Related Information
Socket contact
– G884C See below
Part Number System:
G884H XX X X
1.25mm Housing
Crimp Socket type
NUMBER OF POSITIONS
02: 2 Position
03: 3 Position
:
15: 15 Position
No. of Positions
A
Dim.
B
2
4.25
1.25
3
5.50
2.50
4
6.75
3.75
5
8.00
5.00
6
9.25
6.25
Suffix may be added to Part Number.
This Suffix is for Internal use mainly.
Additional Suffix ‘EU’ or ‘LF’ may be
added for RoHS compliant product.
Dimensions in mm
COLOUR OF INSULATOR
1: White
2: Black
PNS-8840 Rev. C/PHD-G880XX101D-15 Rev. A
7
10.50
7.50
8
11.75
8.75
9
13.00
10.00
10
14.25
11.25
11
15.50
12.50
12
16.75
13.75
13
18.00
15.00
14
19.25
16.25
15
20.50
17.50
G884C
Crimp Socket Contact for G884H
High reliability Phosphor Bronze contact for stranded wire gauge 28~32 AWG.
Materials
Contacts
– P/B with 50µ” Ni
– 1A
– 125V
Durability
100µ” Tin/lead
Auto-termination
– 40 cycles
– Consult representative
Electrical
Current
Voltage
Related Information
Part Number System:
G884C X X X X
SOCKET CONTACT
Crimp type
CONTACT FINISH
0: Tin/Lead 100µ”
PACKAGING STYLE
1: Right hand feed
2: Left hand feed
Suffix may be added to Part Number.
This Suffix is for Internal use mainly.
Additional Suffix ‘EU’ or ‘LF’ may be
added for RoHS compliant product.
PACKAGING OPTION
1: Reel of 100
2: Reel of 1 000
3: Reel of 5000
4: Reel of 15000
Dimensions in mm
PNS-8840 Rev. C/PHD-G880XX101D-15 Rev. A
G880
1.25mm Box Headers for G884
G880 headers are shrouded and polarized.
Materials
Housing
Contacts
Plating
– 94V-0 Nylon
– P/B with 50µ” Ni
– 120µ” Tin/Lead
– 1A
Voltage
– 125V
Dimensions in mm
Durability
100µ” Tin/lead
Mating Half
– 40 cycles
– G884H See above
Electrical
Current
Related Information
Part Number System:
G880 XX X 0 X X
1.25mm Shrouded Header
SMT
NUMBER OF POSITIONS
02: 2 Position
03: 3 Position
:
15: 15 Position
Suffix may be added to Part Number.
This Suffix is for Internal use mainly.
Additional Suffix ‘EU’ or ‘LF’ may be
added for RoHS compliant product.
PACKING STYLE
1: Tape & Reel
2: Tube
CONNECTOR STYLE
1: Straight
2: Right Angle
PNS-880 Rev. A/SKT-G884HCXX-16 Rev. A
Positions
A
Dim
B
AMTA
2
1.25
7.15
3
2.50
8.40
4
3.75
9.65
5
5.00
10.90
6
6.25
12.15
7
7.50
13.40
8
8.75
14.65
9
10.00
15.90
10
11.25
17.15
11
12.50
13.90
12
13.75
19.65
13
15.00
20.90
14
16.25
22.15
15
17.50
23.40
