HM2P09PD5310E9LF: DescriptionBoard Connector, 30 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE; CategoryThe connector The connector; File Size194KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

HM2P09PD5310E9LF Overview

Board Connector, 30 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE

HM2P09PD5310E9LF Parametric

Parameter Name	Attribute value
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compli
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	MATTE TIN
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	HM2
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	5
Options	GENERAL PURPOSE
Terminal pitch	4 mm
Termination type	PRESS FIT
Total number of contacts	30
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

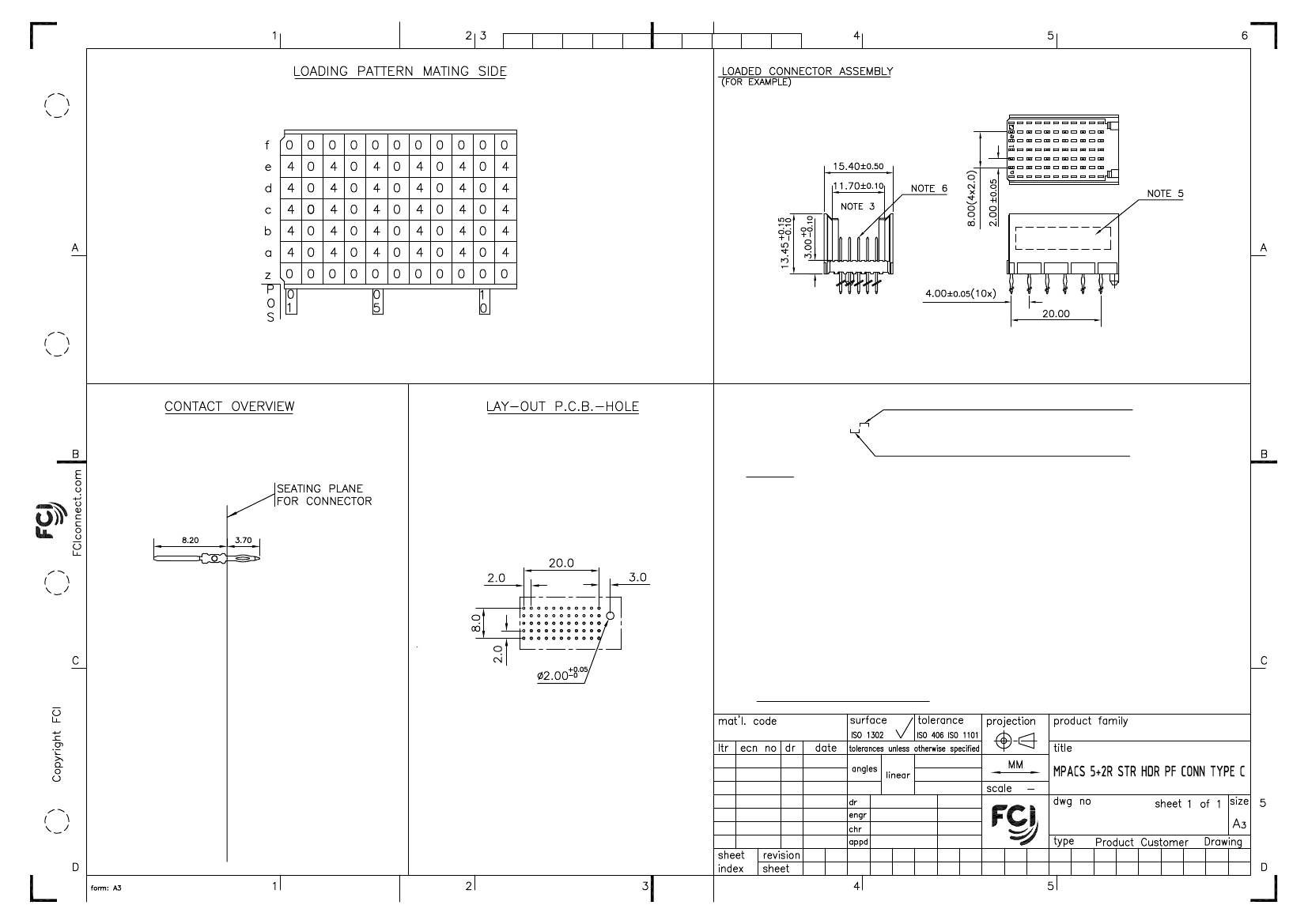

HM2P09PD5310----

NOTES

LEAD FREE INDICATOR : LF = LEAD FREE

(DIGIT 15 & 16)

PLATING CODE (DIGIT 13 AND 14)

(REF DRW NO. BS,C , 201844 , 003)

1. THIS PRODUCT IS CSA APPROVED.

2. THIS PRODUCT IS UL RECOGNIZED.

3. MEASURED AT THE BOTTOM.

4. MATERIAL CONTACT: PHOSPHORBRONZE

HOUSING: CREAM WHITE GLASS FILLED POLYESTER UL-94V0

5. CONNECTOR PRINTED WITH P/N AND DATE CODE.

6. FOR ACTUAL CONTACT LOADINGS, SEE LOADING PATTERN MATING SIDE.

7. SHAPE OF CONNECTOR HOUSING CAN ALTER DEPENDING ON

PRODUCTION LOCATION

8. THE PRODUCT (LF) MEETS EUROPEAN UNION DIRECTIVES AND OTHER COUNTRY

REGULATIONS AS DESCRIBED IN GS-22-008

9. FOR RECOMMENDED PTH DIMENSIONS REFER DRAWING : BS, A , 201572 , 001

4

CATALOG NO: HM2P09PD5310----

SEE NOTE 4

A

B

I05-0247

I06-0132

MINI 2005-12-07

MINI 2006-07-31

0°±1°

MINI K VANDANATH 2005-12-07

BIJU K PAUL

B

1

2005-12-07

2006-07-31

.0±0.2

.00±0.1

MILLIPACS

BS, C ,203028,530

6

PDM: Rev:B

STATUS:

Released

Printed: Dec 04, 2007

.

HM2P09PD5310E9LF Related Products

	HM2P09PD5310E9LF	HM2P09PD5310E9	HM2P09PD5310Z1	HM2P09PD5310Z1LF
Description	Board Connector, 30 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 30 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 30 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 30 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE
Maker	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compli	compliant	compliant	compli
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	MATTE TIN	TIN LEAD	TIN LEAD	MATTE TIN
Contact point gender	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
JESD-609 code	e3	e0	e0	e3
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	HM2	HM2	HM2	HM2
Mixed contacts	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	5	5	5	5
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	4 mm	4 mm	4 mm	4 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	30	30	30	30
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
