L3230030001: DescriptionInterconnection Device; CategoryThe connector The connector; File Size193KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

L3230030001 Overview

Interconnection Device

L3230030001 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compli
ECCN code	EAR99
Other features	STII/STII, SINGLE MODE, 3M
Connector type	INTERCONNECTION DEVICE

Preview

Download Datasheet

View All

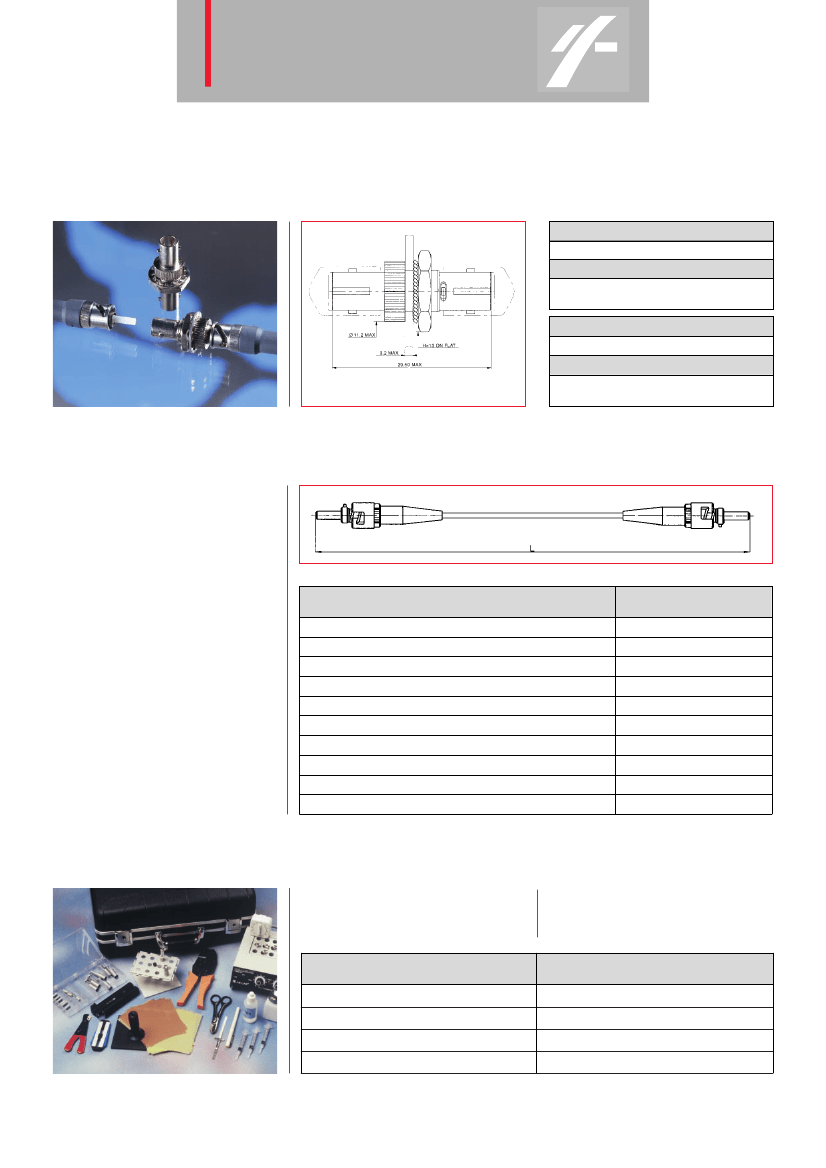

ST

®

II

Compatible

ST

®

II - Compatible - Multimode Adaptor

Part Number

J801122Z01D

Description

ST

®

II Compatible adaptor, Multimode,

Phosphor Bronze sleeve

Part Number

J801122Y01D

Description

ST

®

II Compatible adaptor, Single Mode,

Zirconia sleeve

ST

®

II - Jumper Cable Assemblies

• FCI’s cable assemblies are available in

several standard lengths as full assemblies

or pigtails.

• FCI’s cable assemblies are factory

mounted and tested according to most

stringent quality requirements.

Fibres

- Multimode types 50/126 µm and

62.5/126 µm, graded index.

Cable

- Coloured outer jacket, Ø 2.4 or 3.0 mm.

- Traction reinforced by the use of aramide

fibres.

- Attenuations multimode cable:

3.2 dB/km at 850 nm / 1.0 dB/km at 1300 nm.

For other cable lenghts and mixed connector

ends, consult FCI.

Specific cable requirements and cable

harnesses on request.

Description

ST

®

II/ST

®

II

ST

®

II/ST

®

II

ST

®

II/ST

®

II

Pigtails ST

®

II

Pigtails ST

®

II

ST

®

II/ST

®

II

ST

®

II/ST

®

II

ST

®

II/ST

®

II

Pigtails ST

®

II

Pigtails ST

®

II

1 meter

3 meter

10 meter

1 meter

3 meter

1 meter

3 meter

10 meter

1 meter

3 meter

Multimode

Single Mode

Part Numbers

L30 30 0100 01

L30 30 0300 01

L30 30 1000 01

L31 30 0100 01

L31 30 0300 01

L32 30 0100 01

L32 30 0300 01

L32 30 1000 01

L33 30 0100 01

L33 30 0300 01

Termination Tool Kits

FCI’s termination tool kit guarantees an

optimum connector termination in

combination with FCI’s polishing procedure.

The termination tool kit is built in a modular

way and is standard suitable for FCI’s ST

®

II -

compatible product family.

An extension kit is available for termination of

FCI’s SC product family.

Description

Toolkit for ST connector

Kit of consumables

Extension kit SC

Microscope (200x)

Part Numbers

STY263

SCY255 A11

STY263A30

SCY255A30

FCI reserves the right to make any engineering refinements, alterations or improvements deemed necessary on its products. The dimensions

appearing in this catalogue are subject to change without notice. When dimensions are critical detailed drawings should be requested.
