MSATA-001-0006-2-1: DescriptionTelecom and Datacom Connector, 16 Contact(s), Male, Right Angle, Surface Mount Terminal, Plug, ROHS COMPLIANT; CategoryThe connector The connector; File Size72KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

MSATA-001-0006-2-1 Overview

Telecom and Datacom Connector, 16 Contact(s), Male, Right Angle, Surface Mount Terminal, Plug, ROHS COMPLIANT

MSATA-001-0006-2-1 Parametric

Parameter Name	Attribute value
Maker	Amphenol
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknow
Body/casing type	PLUG
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	GOLD FLASH OVER NICKEL (50)
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	GLASS FILLED POLYETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	MSATA-001-0006
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	POLYETHYLENE
Termination type	SURFACE MOUNT
Total number of contacts	16
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

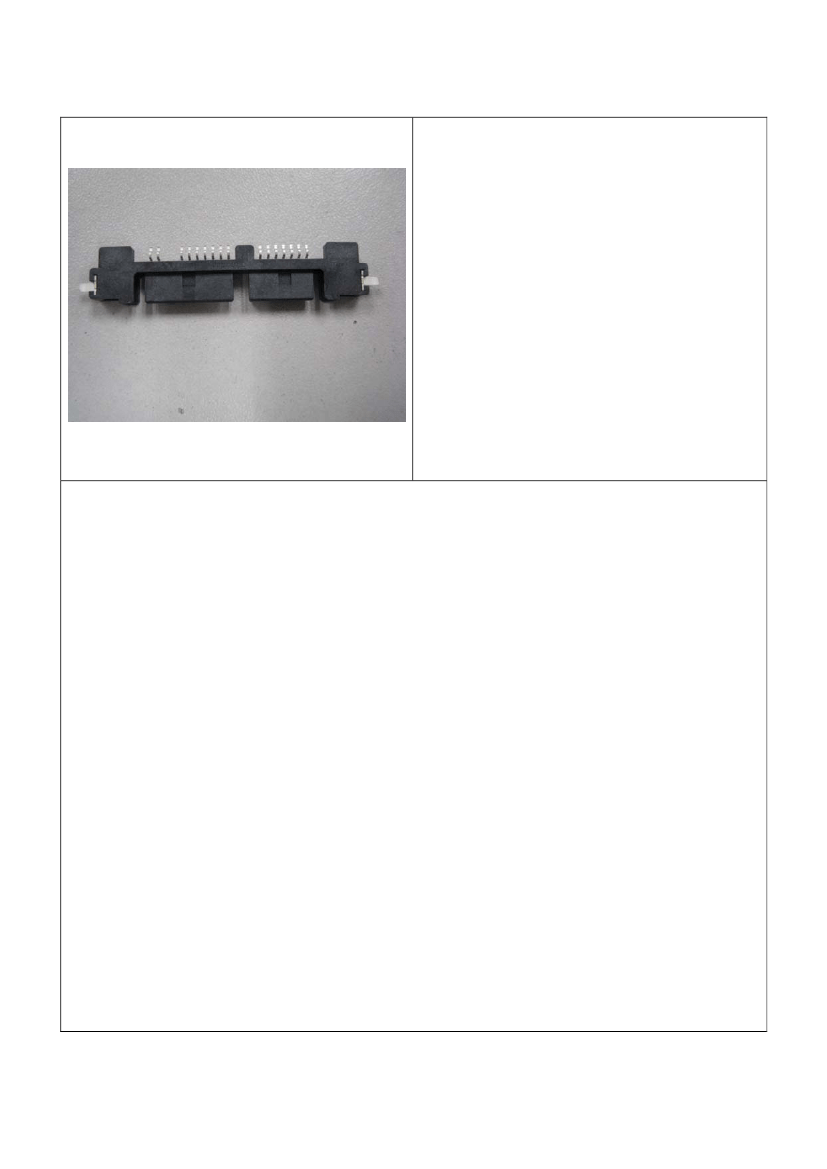

MSATA

Amphenol

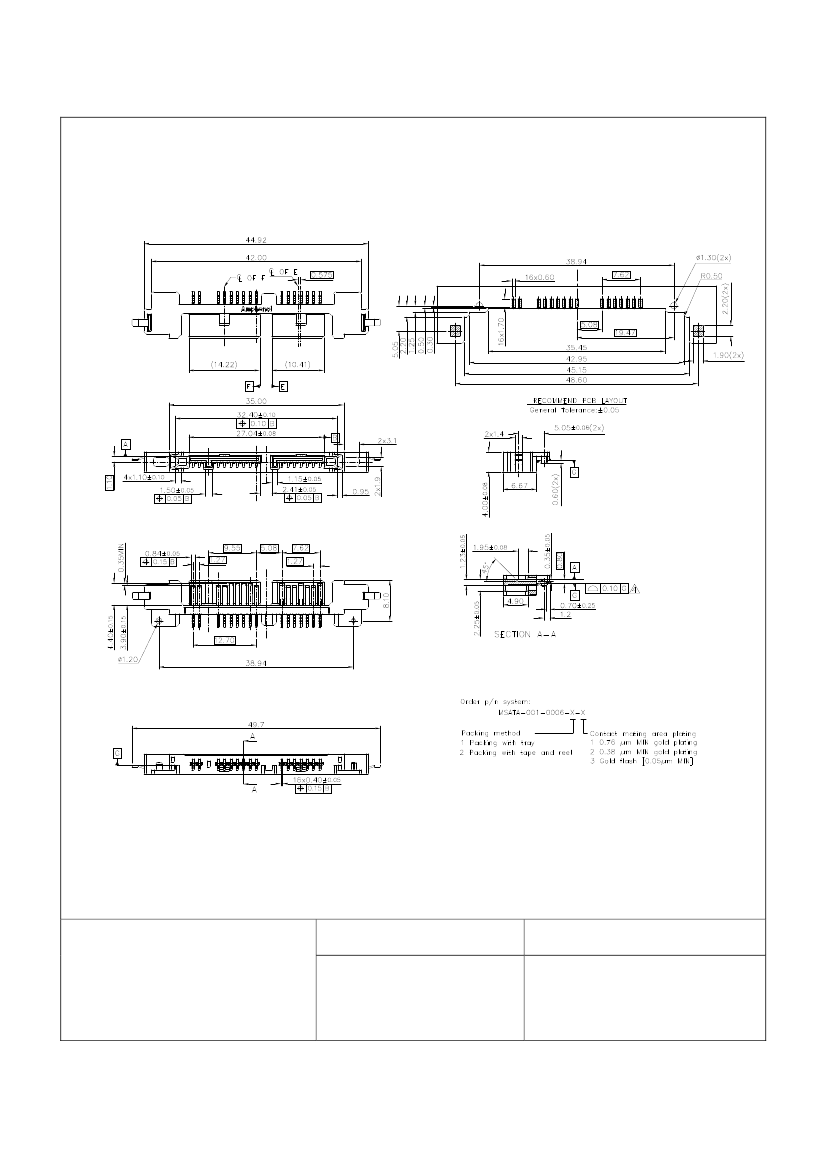

Part Number: MSATA-001-0006-X-X

Micro SATA,7Pin+9Pin, Reverse

THIN R/A SMT TYPE Plug

- Comply to Small Form Factor

Specification.

- SMT compatible

- Various Gold Thicknesses Available.

- High Reliability.

- RoHS Compliance

1. Material:

A. Pins: Copper Alloy.

B. Board lock: Copper Alloy.

C. Insulator: Glass-filled high temperature thermoplastic, black, UL 94V-0.

2. Finish :

All Pins :

Gold (Refer to the P/N System on page 2 for Gold plating thickness) plated

at the mating area,

Gold flash plated at solder tail area and 50 micro-inch Min (1.27 um Min)

Nickel under plated.

Board lock:

2.54 micron min Matte Tin plating over Nickel under plating.

3. Electrical specifications:

Current rating: 1.5A min.

Contact Resistance: 30 milliohms max.

Insulation Resistance: 1000 M-ohms min.

Dielectric Withstanding Voltage: 1000V for 1 minute.

Temperature: -40° to +105°C.

4. Mechanical specifications:

Durability: 500 cycles min for MSATA-001-0006-X-1.

250 cycles min for MSATA-001-0006-X-2.

50 cycles min for MSATA-001-0006-X-3.

5. Packaging:

Parts to be packed in Tape and Reel or Tray, All packaging materials to be

approved by Amphenol engineering.

Website: http://www.amphenol.com.cn

Revision: A

Release Date: Oct 30 09

MSATA-001-0006-2-1 Related Products

	MSATA-001-0006-2-1	MSATA-001-0006-1-1	MSATA-001-0006-1-3	MSATA-001-0006-1-2	MSATA-001-0006-2-2	MSATA-001-0006-2-3
Description	Telecom and Datacom Connector, 16 Contact(s), Male, Right Angle, Surface Mount Terminal, Plug, ROHS COMPLIANT	Telecom and Datacom Connector, 16 Contact(s), Male, Right Angle, Surface Mount Terminal, Plug, ROHS COMPLIANT	Telecom and Datacom Connector, 16 Contact(s), Male, Right Angle, Surface Mount Terminal, Plug, ROHS COMPLIANT	Telecom and Datacom Connector, 16 Contact(s), Male, Right Angle, Surface Mount Terminal, Plug, ROHS COMPLIANT	Telecom and Datacom Connector, 16 Contact(s), Male, Right Angle, Surface Mount Terminal, Plug, ROHS COMPLIANT	Telecom and Datacom Connector, 16 Contact(s), Male, Right Angle, Surface Mount Terminal, Plug, ROHS COMPLIANT
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknow	unknown	unknown	unknow	unknow	unknow
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (30)	GOLD (30)	GOLD FLASH (2)	GOLD (15)	NOT SPECIFIED	GOLD FLASH (2)
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
insulator material	GLASS FILLED POLYETHYLENE	GLASS FILLED POLYETHYLENE	GLASS FILLED POLYETHYLENE	GLASS FILLED POLYETHYLENE	GLASS FILLED POLYETHYLENE	GLASS FILLED POLYETHYLENE
MIL compliance	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	16	16	16	16	16	16
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Contact completed and terminated	GOLD FLASH OVER NICKEL (50)	GOLD FLASH OVER NICKEL (50)	GOLD FLASH OVER NICKEL (50)	GOLD FLASH OVER NICKEL (50)	-	GOLD FLASH OVER NICKEL (50)
JESD-609 code	e4	e4	e4	e4	-	e4
Manufacturer's serial number	MSATA-001-0006	MSATA-001-0006	MSATA-001-0006	MSATA-001-0006	-	MSATA-001-0006
