MASTER KEYWAY
11/16-24 UNEF THREAD
7/8-20 UNEF THREAD
TITLE:
Ø19.0
31.75

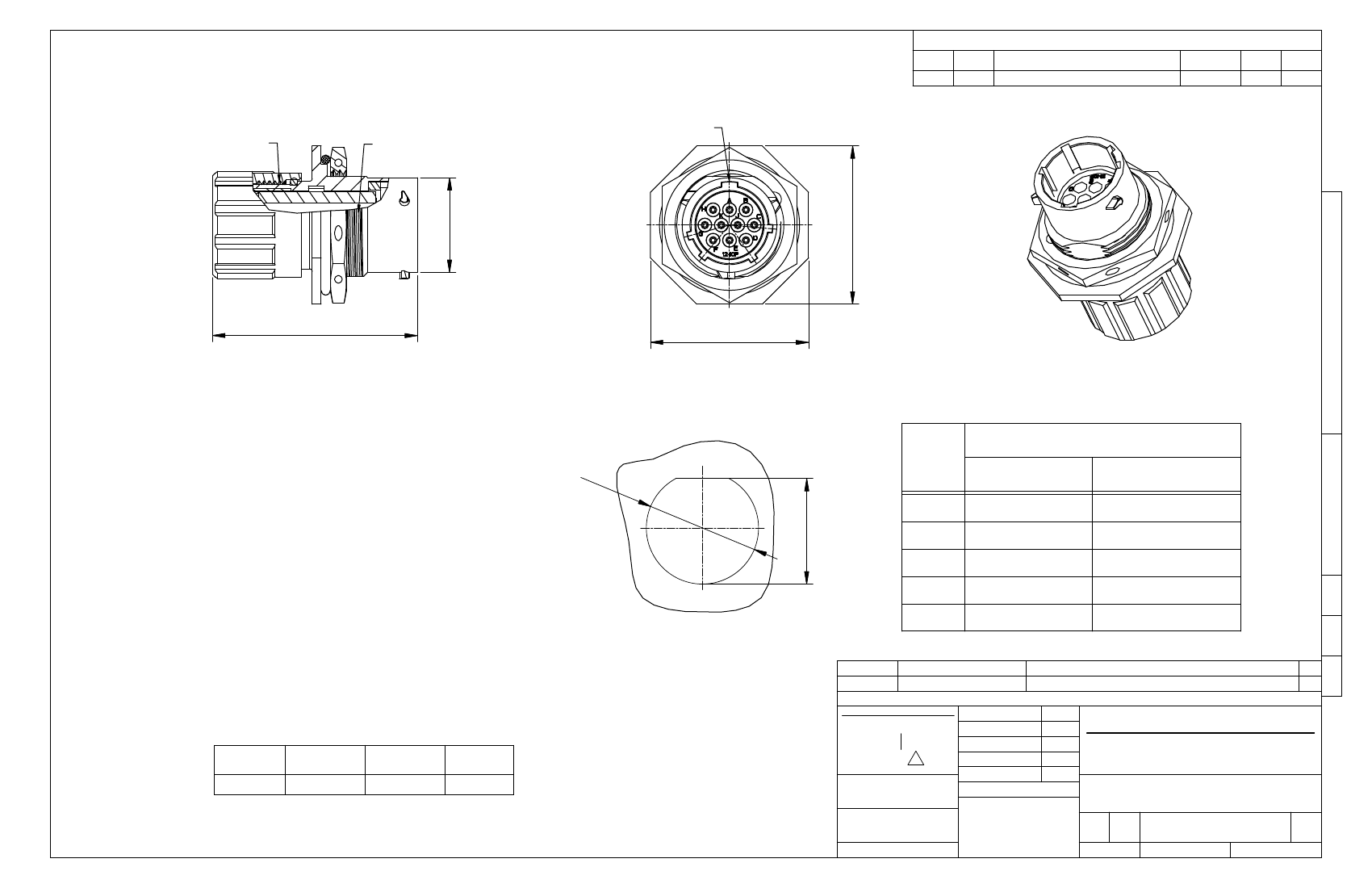

ECO-MATE,RECEPTACLE, SIZE 12,10POS,PIN,END CAP.
41.1 Ref
31.75
NOTES：(UNLESS OTHERWISE SPECIFIED)
1. MATERIAL：
SHELL：ZINC ALLOY，NICKEL PLATED.
INSERT：THERMOPLASTIC，UL94 V-0.
END CAP：THERMOPLASTIC，UL94 V-0.
JAM NUT : Al ALLOY，NICKEL PLATED.
O-RING：NBR/SILICONE RUBBER.
SEAL GASKET：NBR/SILICONE RUBBER.
WIRE SEAL：SILICONE RUBBER.
PLASTIC BUSHING：THERMOPLASTIC，UL94 V-0.
2. SPECIFICATIONS：
2.1 RATED CURRENT：
2.1.1 STAMPED CONTACT 5A (MAX).
2.1.2 MACHINED CONTACT 7.5A(MAX).
2.2 RATED VOLTAGE：150V（AC/DC）.
2.3 OPERATING TEMPERATURE：SEE CHART.
2.4 DIELECTRIC WITHSTANDING VOLTAGE：LESS THAN
2 MILLIAMPS CURRENT LEAKAGE@1500 VOLTS AC.
2.5 INSULATION RESISTANCE：5000 MEGOHMS MIN.
2.6 IP--CLASS：IP67.
2.7 MATING CYCLES DURABILITY：500 CYCLES(MIN).
2.8 ROHS COMPLIANT.
3. SUITABLE CONTACTS ：20# CONTACTS.
4. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY.
5. CONTACT SIZE AND REAR SEAL WIRE RANGE：
PART NUMBER
KEY POS
ø22
.
5
0+0.2
DWG NO:
-40°C ~ 105°C
21.16
+0.2
0
-40°C ~ 125°C
RT0W71210P*HEC*
N
W
X
Y
Z
RT0W71210PNHEC
RT0W71210PWHEC
RT0W71210PXHEC
RT0W71210PYHEC
RT0W71210PZHEC
RT0W71210PNHEC03
RT0W71210PWHEC03
RT0W71210PXHEC03
RT0W71210PYHEC03
RT0W71210PZHEC03
REV:
B1
SH:
PANEL CUT OUT REFERENCE
1
QUANTITY
SEE PART NUMBER
CHART
DESCRIPTION
PART NUMBER
MATERIALS LIST
SIGNATURES
DRAWN:
CHECKED:
ENGINEER:
APPROVAL:
OF:
ITEM
1
UNLESS OTHERWISE SPECIFIED
1)
2)
1
2
3
All dimensions are in metric(mm).
Tolerances are as follows:
PL DEC ±0.30
Fractions ±1/64
PL DEC ±0.15
Angles ±1°
PL DEC ±0.08
X
DATE
BEN
SEP-04-2014
Amphenol
Sine Systems - www.amphenol-sine.com
44724 Morley Drive
Clinton Township, MI 48036
CONTACT SIZE MIN. INSUL O.D. MAX. INSUL O.D. WIRE RANGE
20#
Ø1.6mm
Ø2.6mm
20 - 30AWG
3) Note reference =
MATERIAL SPECIFICATIONS:
CUSTOMER:
PROCESS SPECIFICATIONS:
NEXT ASS'Y:
THIS DRAWING IS SUPPLIED FOR
INFORMATION ONLY. DESIGN FEATURES,
SPECIFICATIONS AND PERFORMANCE DATA SIZE
SHOWN HEREON ARE THE PROPERTY OF
THE AMPHENOL CORPORATION. NO RIGHTS
OF REPRODUCTION ARE IMPLIED. ALL
DIMENSIONS ARE SUBJECT TO NORMAL
SCALE:
MANUFACTURING VARIATIONS.
ECO-MATE,RECEPTACLE,
SIZE 12,10POS,PIN,END CAP.
TYPE
DWG NO:
REVISION
B
C-
RT0W71210P*HEC* B1
SHEET
NONE
1
OF
1
