Amphenol
Miniature Box Interconnects
SBB

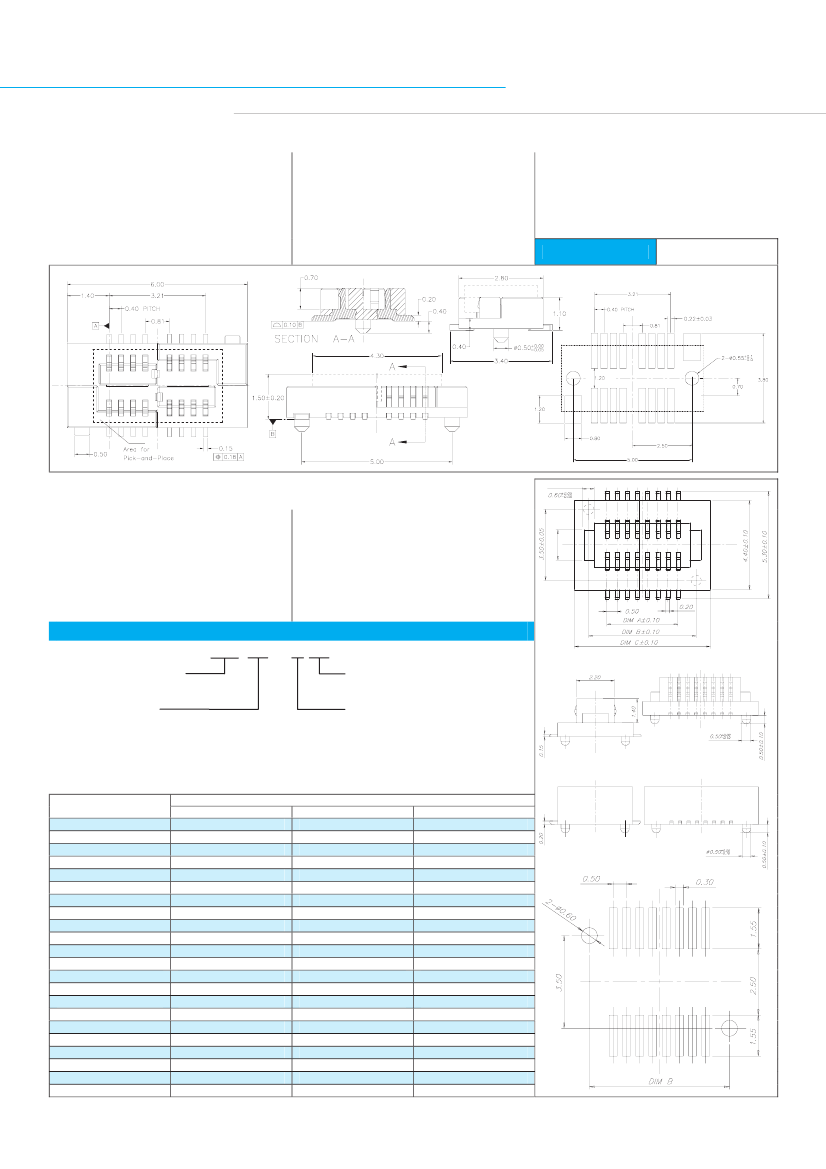

0.4mm Pitch 16 Position SMT 2 Piece Hermaphroditic B2B Connector
The Amphenol SBB series of fine pitch
connectors are an economical solution
offering space saving.
This 0.4mm fine pitch connector offers a stack
height of 1.5mm. It is a HERMAPHRODITIC
connector but polarized eliminating the need
for 2 part numbers or the worry of mis-mating.
Materials
Housing
Colour
Contacts
Contact Plating
– 94V-0 thermoplastic
– Black
– Beryllium Copper
– Gold Flash over Nickel
Electrical
Current
– 0.5A
Voltage
– 50 VAC
Contact Resistance – 60mΩ
Insulation
Environmental
Mating Cycles
– 30 cycles
Temperature Range – -55°C to 85°C
Packaging
Part Number:
– Tape and Reel
SBB-1504-1610-SA
SBB
0.5mm Pitch SMT 2 Piece B2B Connector
The Amphenol SBB series of fine pitch
connectors are an economical solution
offering space saving and is polarized.
Electrical
Materials
Current
– 0.5A
Voltage
– 50 VAC
Contact Resistance – 60mΩ
X
Housing
Colour
Contacts
Contact Plating
– 94V-0 thermoplastic
– Black
– Copper Alloy
– Gold Flash over Nickel
Environmental
Mating Cycles
– 30 cycles
Temperature Range – -55°C to 85°C
Dim X
Plug: 1.50mm
Rec.: 1.60mm
Part Number System
SBB XX05 X XX 1-SA
0.5mm Board to Board
Surface Mount
STACK HEIGHT
25: 2.5mm
30: 3mm
35: 3.5mm
40: 4mm
45: 4.5mm
50: 5mm
No. of Positions
A
NUMBER OF POSITIONS
See Table Below
CONNECTOR STYLE
1: Plug
2: Receptacle
PACKAGING
Tape & Reel
Dimensions (mm)
B
C
Plug
APSO
08
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
1.50
2.00
2.50
3.00
3.50
4.00
4.50
5.00
5.50
6.00
6.50
7.00
7.50
8.00
8.50
9.00
9.50
10.00
10.50
11.00
11.50
12.00
3.30
3.80
4.30
4.80
5.30
5.80
6.30
6.80
7.30
7.80
8.30
8.80
9.30
9.80
10.30
10.80
11.30
11.80
12.30
12.80
13.30
13.80
4.70
5.20
5.70
6.20
6.70
7.20
7.70
8.20
8.70
9.20
9.70
10.20
10.70
11.20
11.70
12.20
12.70
13.20
13.70
14.20
14.70
15.20
Receptacle
