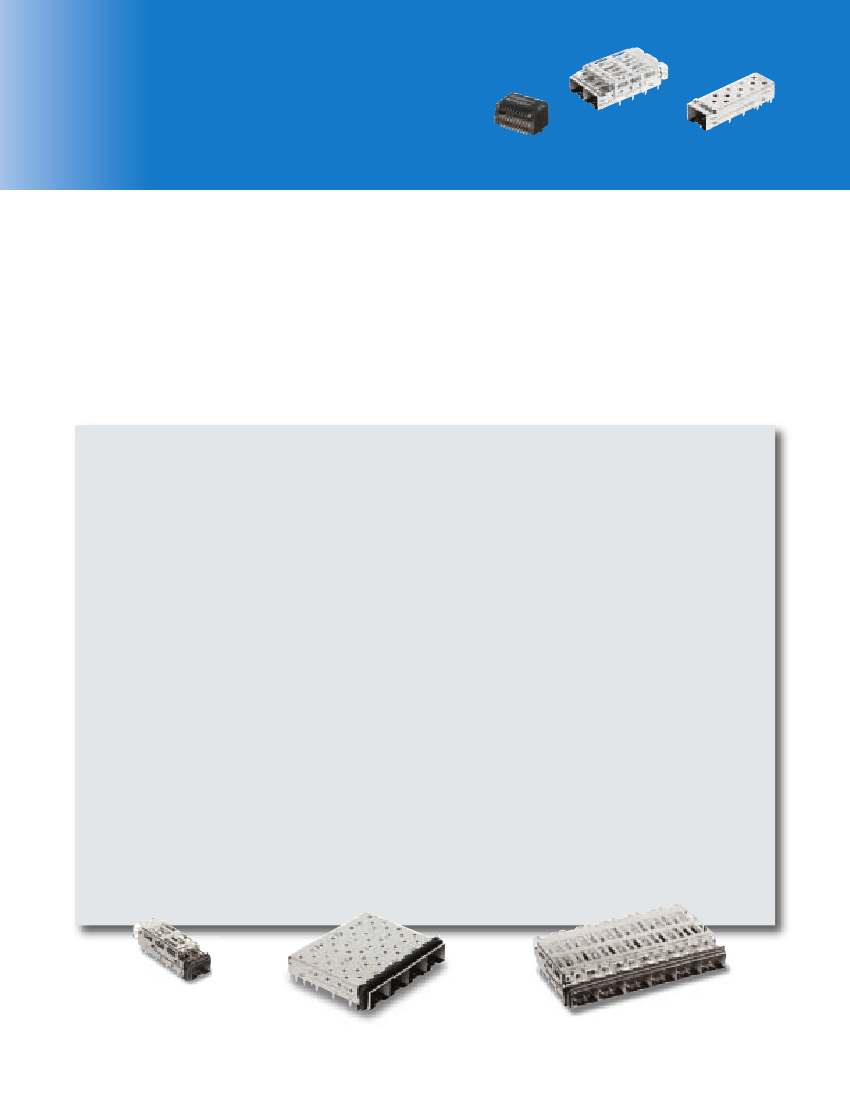

ExpressPort™ SFP+ 1xN
Cage & Connector
U77-C261M-2081
UE76-A20-2001T
U77-A1318-2001
Amphenol’s ExpressPort™ SFP+ 1xN Connector, when combined with the ExpressPort™ SFP+ Cages, provides
data transfers speeds of up to 14 Gbps. The design of the ExpressPort™ SFP+ Connector minimizes impedance
discontinuities and reflections at high data rates, and provides a 10 to 20 dB improvement in Near-End Crosstalk.
Amphenol’s unique ExpressPort™ SFP+ cage construction features EMI shielding available in the form of metal
spring fingers, or elastomeric gaskets. These cages also eliminate ventilation holes near the front of the cage to
prevent potential catch points for the mating module EMI springs. Additional features include light pipes, which can
be purchased with cages or separately, heat sinks, and other custom features.
Specification Highlights
The interconnect system is comprised of a cage assembly which is used with 20-position
SFP+ connectors complying with SFF-8083. Cages comply with industry standard SFF-8433.
General Characteristics
• RoHS compliant
• Industry standard footprint
• Industry standard EIA-364
Mechanical Characteristics
• Accepts multiple transceivers per INF-8074i and SFF-8431
• Compliant press-fit pins or solder tails (1x1 cages)
• Durability: 250 mating cycles minimum
Electrical Characteristics
• Hot swappable
• Operating voltage: 3.3 V
• Operating current: 0.5 A
• Differential impedance: 100
Ω+/-10 Ω
• DWV: 300 V AC
• Insulation resistance: 1000 MΩ min
• Contact resistance: 70 mΩ max
Options
• EMI shielding
• Metal spring fingers
• Conductive elastomeric gasket
• Round light pipe
• Heat sink
• Dust cover
Materials
• Cage
• Base material: copper alloy
• Plating: nickel or tin
• Light pipe: optical grade polycarbonate
• Heat sink: aluminum alloy
• Heat sink clip: stainless steel
• Dust cover: thermoplastic
• Connector
• Contact base material: copper alloy
• Contact plating: gold on mating area;
gold or matte tin on termination
• Housings: glass reinforced, lead-free solder reflow process
compatible thermoplastic, UL94V-0 rated
Temperature Rating
• Operating temperature: -55 °C to +85 °C
• Storage temperature: -55 °C to +105 °C
Configurations
(Rows x Ports per row)
• 1x1 • 1x2 • 1x4 • 1x6
Packaging
• Tape and reel packaging: connector or 1x1 cage
• Tray packaging: cage of all sizes
• Bulk packaging: dust cover
1x1 SFP+ Cage with Light Pipes
and Elastomeric Gasket
U77-C1419-2001
1x4 SFP+ Cage
with Elastomeric Gasket
U77-A441M-2081
1x6 SFP+ Cage
with Light Pipes and Elastomeric Gasket
U77-C641M-2081
2
HIGH SPEED
I/O PRODUCTS

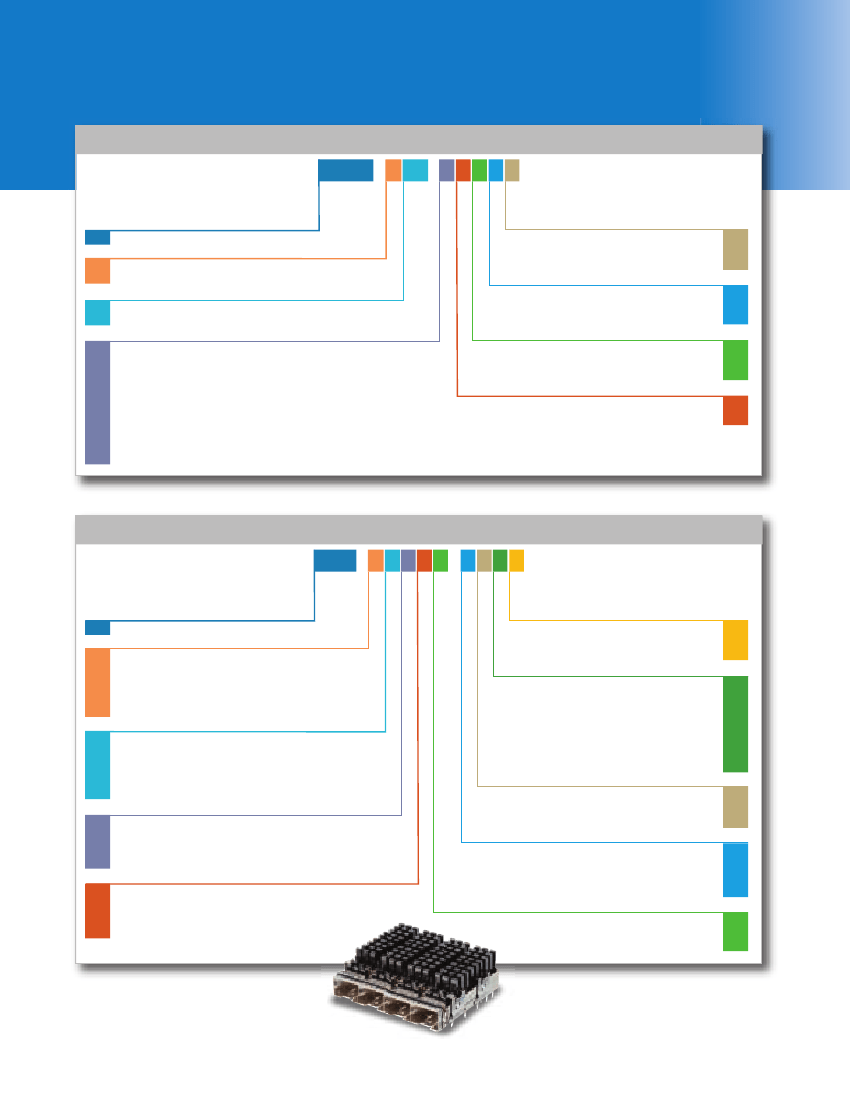

Ordering Information
Contact Amphenol for additional options
ExpressPort
TM
SFP+
Connector
UE76
SERIES DESIGNATION (RoHS)
A
STYLE
A
- R/A Single Surface Mount Connector
NUMBER OF POSITIONS
20-
20 Positions
CONTACT PLATING
2
- 30µ" Gold Plating on Mating Area
Gold Flash on Termination
3
- 30µ" Gold Plating on Mating Area
Matte Tin Plating on Termination
5
- 15µ" Gold Plating on Mating Area
Gold Flash on Termination
6
- 15µ"Gold Plating on Mating Area
Matte Tin Plating on Termination
UE76 - A 20 - X X X X X
PACKAGING
J
- Tape and Reel Packaging 480/Reel
T
- Tape and Reel Packaging 500/Reel
LUBRICANT OPTION
0
- Non Lubricated
1
- Lubricant Added
OPTION 2
0
- Standard
1
- Resonance Cancelation Features
OPTION 1
0
- Standard (Black)
X
X
20
X
X
X
Ordering Information
Contact Amphenol for additional options
ExpressPort
TM
SFP+
Cage
U77
X
SERIES DESIGNATION (RoHS)
STYLE
A
- One Row
C
- One Row Cage + Light Pipe Combo (on Top)
E
- One Row Cage + Heat Sink Combo
F
- One Row Cage 1 degree Angle
NUMBER OF PORT IN ROW
1
- Single in Row
2
- Inline 1x2
4
- Inline 1x4
6
- Inline 1x6
U77 - X X X X X - X X X X
PACKAGING
1
- Tray Packaging (ACC Re-Packed)
T
- Tape and Reel Packaging (For 1x1 only)
OPTION 1
0
- Standard
7
- Cage with Extra Bottom Spring Fingers,
No Bottom Mid G-pins
8
- Cage with Half Moon Mid G-pins
9
- Cage with Extra Bottom Spring Fingers
and Half Moon Mid G-pins
OPTIONAL DUST COVER
0
- Without Dust Cover
D
- With Dust Cover (Ship Loose)
PLATING
1
- Bright Tin (for Wave Solder)
2
- Nickel
3
- Matte Tin (for Reflow 245 degree)
PCB MOUNTING OPTIONS
Various options available
Consult sales or website for details
X
X
X
X
X
CHASSIS GROUNDING OPTIONS
3
- Metal Spring Fingers (No Bottom Latch Cover)
4
- Elastomeric Gasket
6
- Metal Spring Fingers (1 Piece Design Bottom Latch Cover)
HEAT SINK/LIGHT PIPE OPTION
1
- No Heat Sink/Light Pipe Option
2
- Heat Sink Option
3
- Light Pipe Option (for 1xN Cage Only)
X
X
X
1X4 SFP+ Cage with Heat Sink
U77-E462M-2081
