SMD Zener Diode
CZRU2V4B-HF Thru CZRU39VB-HF
Voltage 2.4 to 39 Volts
Power 150 mWatts
RoHS Device
Halogen Free
Features
-150mW Power Dissipation.
-High Voltages from 2.4 ~ 39 V.
-Designed for mounting on small surface.
-Extremely thin/leadless package.
-Constant voltage control.
-Pb free product.
0.014(0.35) Typ.
0.033(0.85)
0.027(0.70)
0.039(1.00)
0.031(0.80)
0603/SOD-523F
0.071(1.80)
0.063(1.60)
Mechanical data
-Case: 0603/SOD-523F Standard package
Molded plastic.
-Terminals: Gold plated, solderable per
MIL-STD-750,method 2026.
-Polarity: Indicated by cathode band.
-Weight: 0.003 gram(approx.).
0.028(0.70) Typ.
0.012 (0.30) Typ.
Dimensions in inches and (millimeter)
Maximum Rating AND Electrical Characteristics
Parameter
Maximum Forward Voltage Drop at I
F
= 10 mA
Maximum Power Dissipation at 25 C
O
Symbol
V
F
P
D
Value
0.9
150
Unit
V
mW
Forward current , surge peak
8.3 ms single half sine-wave superimposed
on rate load( JEDEC method )
Peak ESD voltage capability (IEC 61000-4-2)
Operating Junction and Storage Temperature Range
I
FSM
2.0
A
V
PV
T
J
8
-55 to +125
kV
O
C
REV:A
QW-G2007
Page 1
Comchip Technology CO., LTD.
SMD Zener Diode
RATING AND CHARACTERISTIC CURVES (CZRU2V4B-HF Thru CZRU39VB-HF)
100m
5. 1
5.6
6.2
6. 8
7.5
8.2
9. 1
10
12
13
11
15
16
18
20
22
27
24
30
33
10m
3.9
1m
ZENER CU RRENT:I
Z
(A)
100μ
10μ
1μ
100n
10n
0
5
10
15
20
25
30
35
40
4.3
4. 7
3 .6
ZENER VOLTAGE:V
Z
(V )

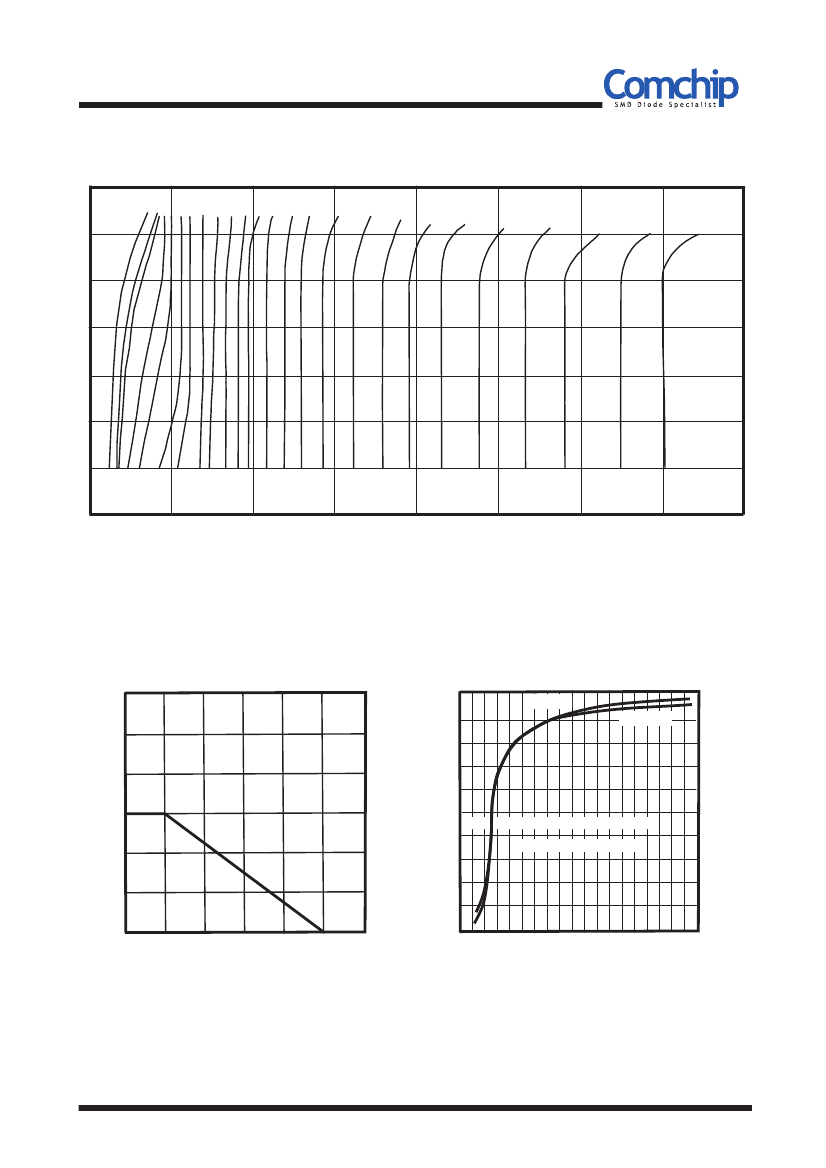

Fig.1 Zener voltage characteristics
O
TE MP CO EF FICI ENT CHA RA CT ERI STICS (%/ C)
300
0.10
I
Z
=5mA
0.08
0.06
0.04
0.02
0.00
2
-0.02
ZENER VOLTAGE:V
Z
(V)
-0.04
-0.06
-0.06
-0.08
10
20
30
I
Z
=500μA
POWER DISSIPATION:Pd(mW)
200
100
0
0
25
50
75
100
O
125
C)
150
AMBIENT TEMPERATURE:Ta(
Fig.2 Derating curve
Fig.3 Zener voltage-temp.
Coefficient characteristics
36
REV:A
QW-G2007
Page 3

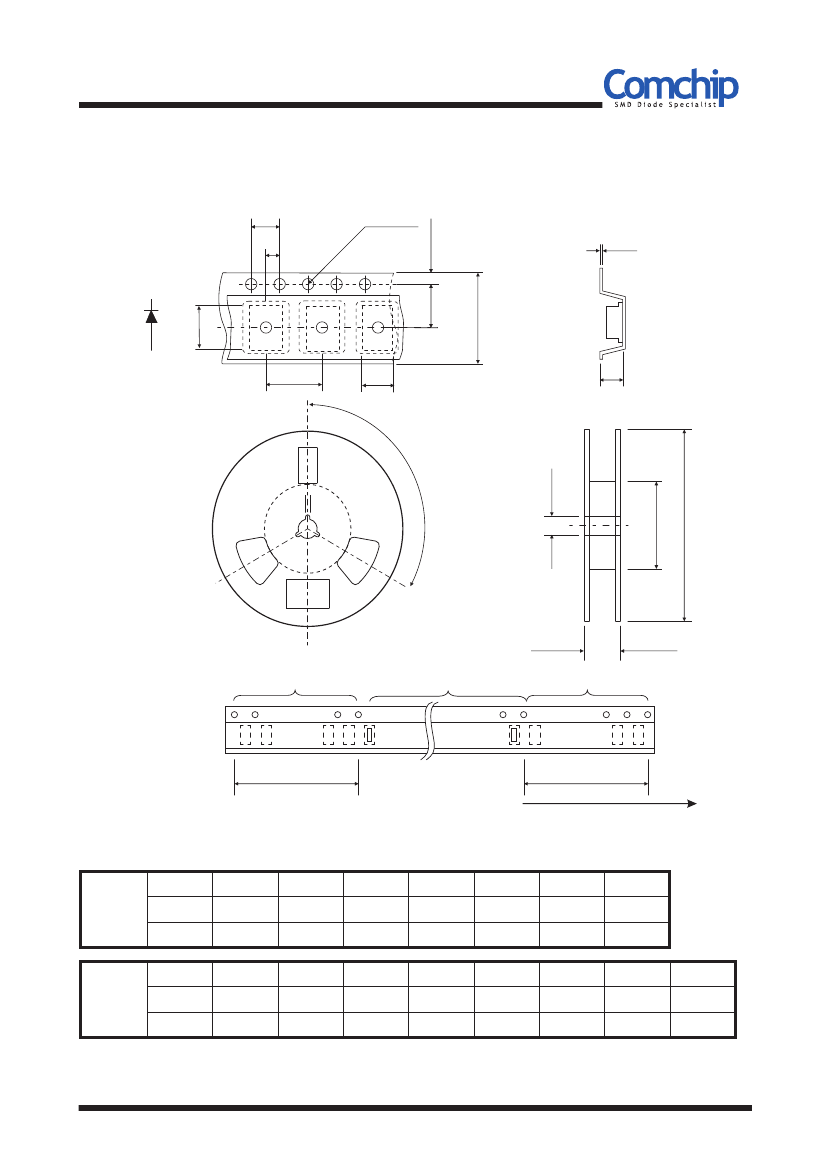

Comchip Technology CO., LTD.
