DCR1478SY46 datasheet, PDF - EEWORLD Datasheet

DCR1478SY46: DescriptionSilicon Controlled Rectifier, 1600000mA I(T), 4600V V(DRM),; CategoryAnalog mixed-signal IC Trigger device; File Size327KB，8 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

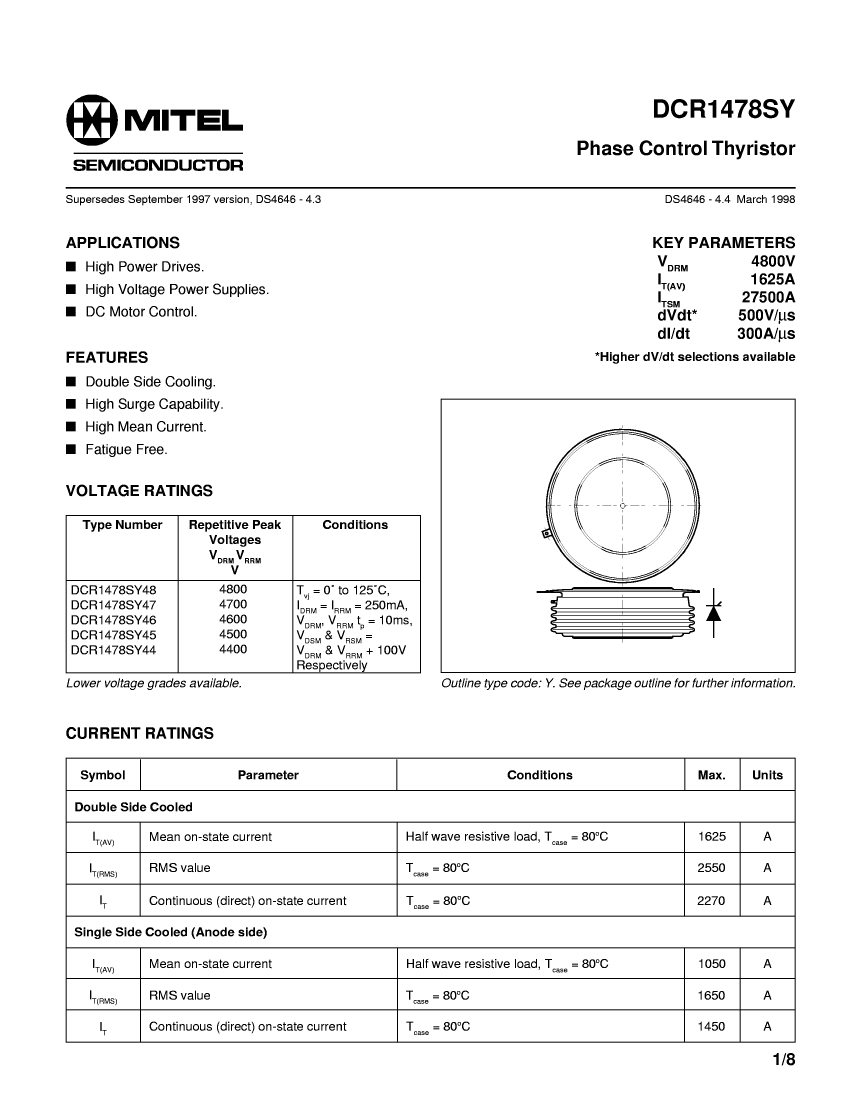

DCR1478SY46 Overview

Silicon Controlled Rectifier, 1600000mA I(T), 4600V V(DRM),

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Microsemi
Reach Compliance Code	unknow
ECCN code	EAR99

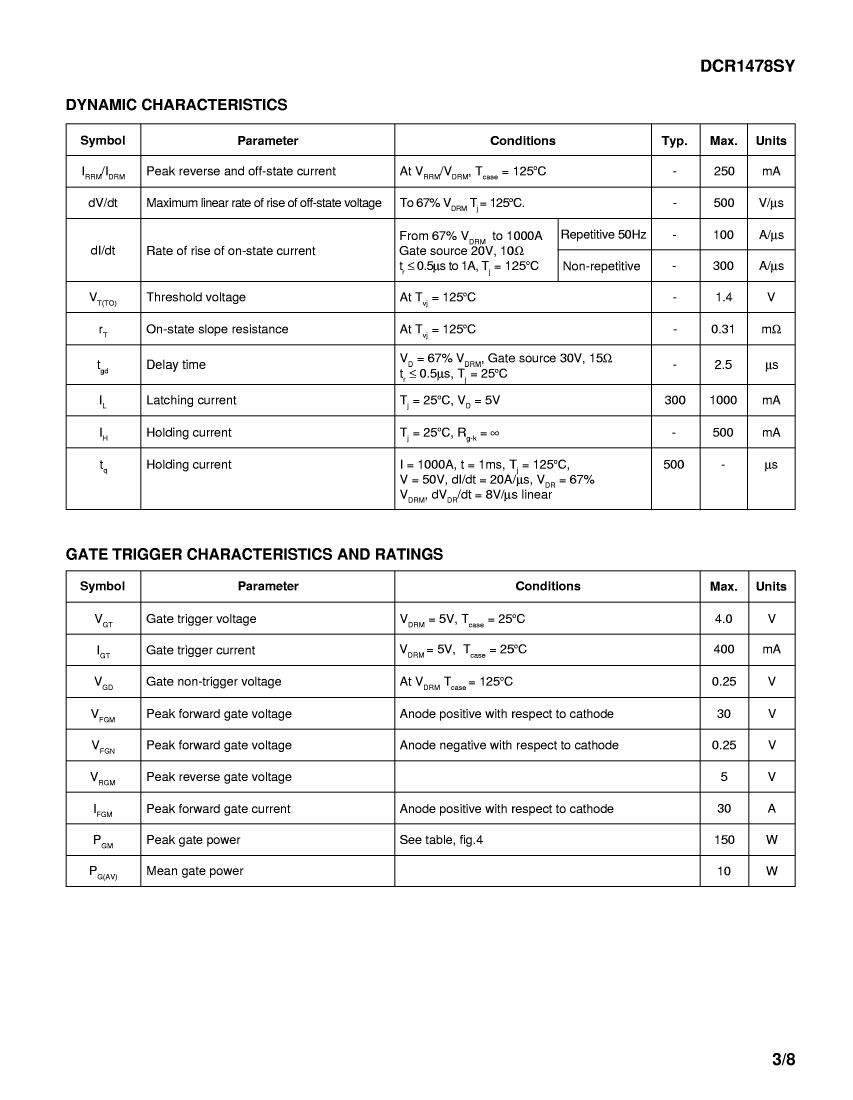

Nominal circuit commutation break time	500 µs
Critical rise rate of minimum off-state voltage	500 V/us
Maximum DC gate trigger current	400 mA
Maximum DC gate trigger voltage	4 V
Maximum holding current	500 mA
Maximum leakage current	250 mA

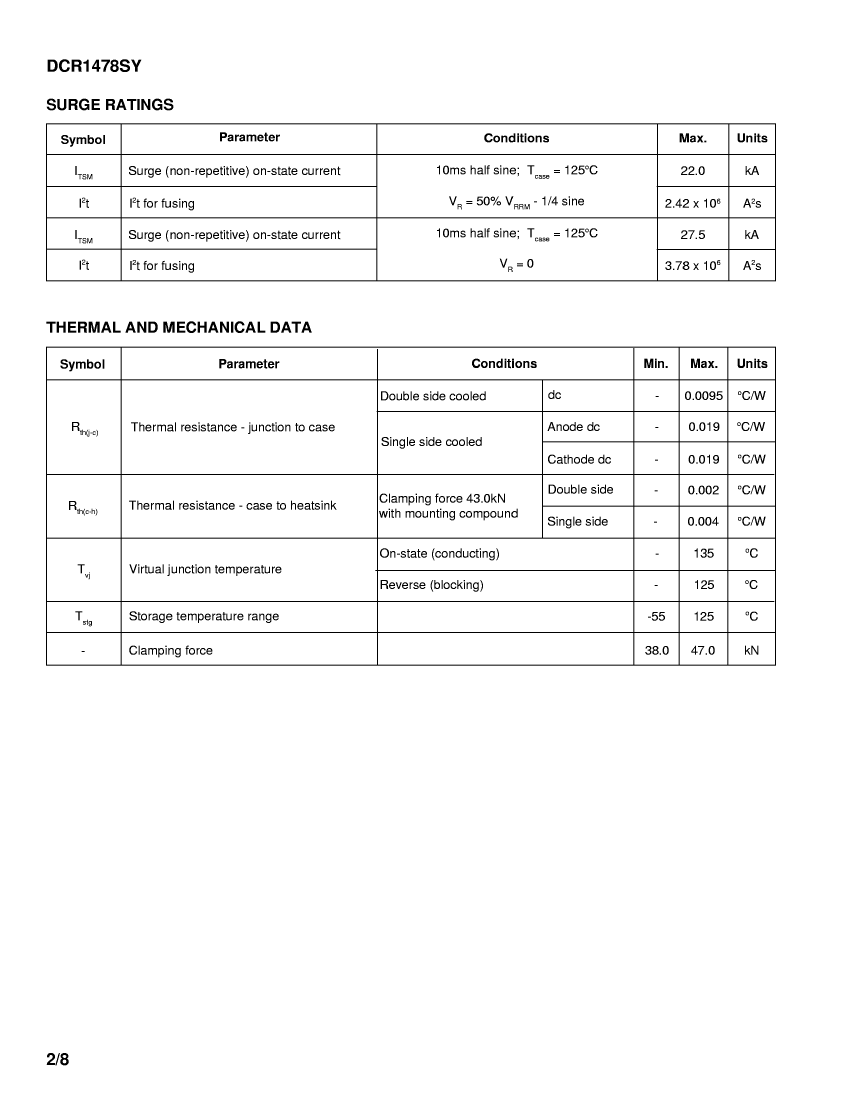

On-state non-repetitive peak current	22000 A

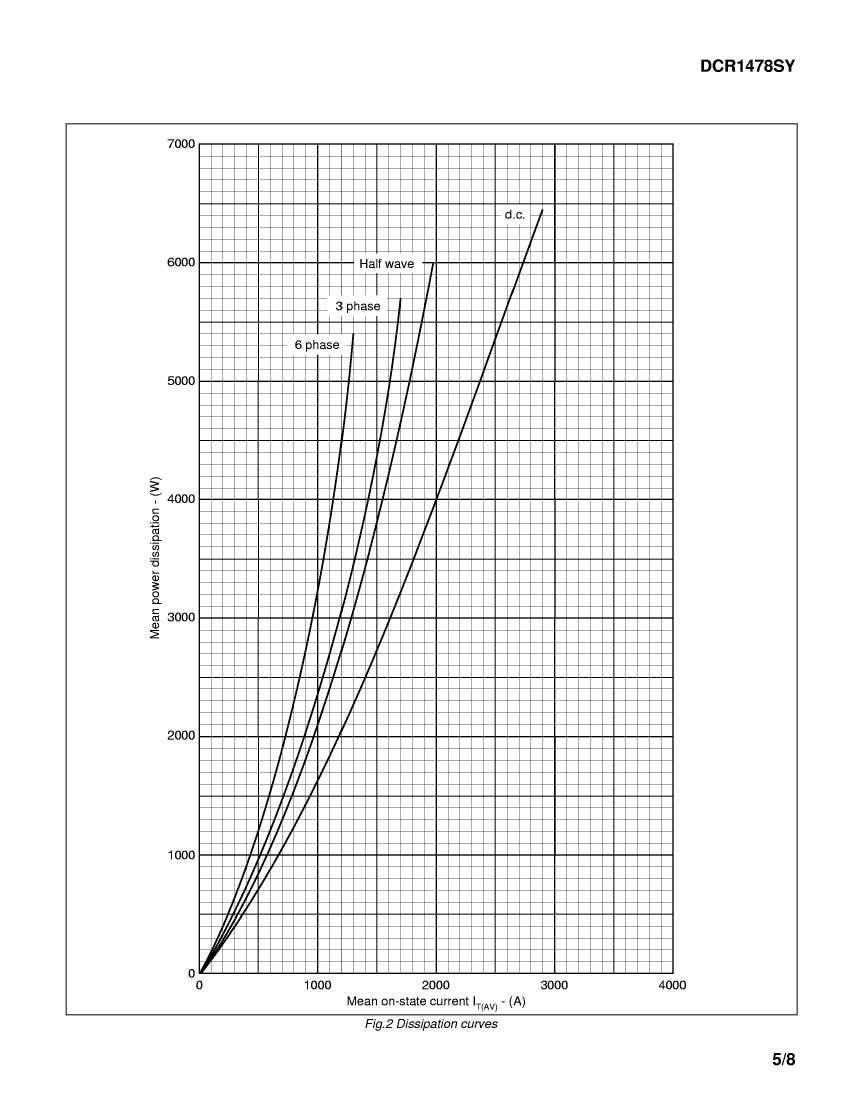

Maximum on-state current	1600000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Off-state repetitive peak voltage	4600 V
surface mount	NO
Trigger device type	SCR

	DCR1478SY46	LTST-C170FKT	DCR1478SY47	DCR1478SY48	DCR1478SY45
Description	Silicon Controlled Rectifier, 1600000mA I(T), 4600V V(DRM),	Package in 8mm tape on 7 diameter reels	Silicon Controlled Rectifier, 1600000mA I(T), 4700V V(DRM),	Silicon Controlled Rectifier, 1600000mA I(T), 4800V V(DRM),	Silicon Controlled Rectifier, 1600000mA I(T), 4500V V(DRM),
Is it Rohs certified?	incompatible	-	incompatible	incompatible	incompatible
Maker	Microsemi	-	Microsemi	Microsemi	Microsemi
Reach Compliance Code	unknow	-	unknown	unknown	unknown
ECCN code	EAR99	-	EAR99	EAR99	EAR99
Nominal circuit commutation break time	500 µs	-	500 µs	500 µs	500 µs
Critical rise rate of minimum off-state voltage	500 V/us	-	500 V/us	500 V/us	500 V/us
Maximum DC gate trigger current	400 mA	-	400 mA	400 mA	400 mA
Maximum DC gate trigger voltage	4 V	-	4 V	4 V	4 V
Maximum holding current	500 mA	-	500 mA	500 mA	500 mA
Maximum leakage current	250 mA	-	250 mA	250 mA	250 mA
On-state non-repetitive peak current	22000 A	-	22000 A	22000 A	22000 A
Maximum on-state current	1600000 A	-	1600000 A	1600000 A	1600000 A
Maximum operating temperature	125 °C	-	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-	-55 °C	-55 °C	-55 °C
Off-state repetitive peak voltage	4600 V	-	4700 V	4800 V	4500 V
surface mount	NO	-	NO	NO	NO
Trigger device type	SCR	-	SCR	SCR	SCR
