DIODE NETWORKS D SERIES
Single-In-Line
Conformal Coated
RoHS Compliant
FEATURES
•
•
•
4 to 14 Leads
Multiple circuit configurations
Space saving design
SPCIFICATION
Reverse Voltage, V
R
Reverse Current, I
R
Forward Current, I
F
Forward Voltage, V
F
Package Power, P
PKG
Reverse Recovery Time, t
rr
Capacitance, C
Storage Temperature Range
Operating Temperature Range
Specifications subject to change without notice.
80V
1.0
µ
A (V
R
= 70V)
100mA Average, 300mA Surge (1
µ
S
Max.)
1.2V @ I
F
= 100mA
200mW @ 25
o
C
4ns (V
R
=
6V, I
F
=
5mA, R
L
=
50Ω)
5.5pF (V
R
=
6V, f
=
1MHz)
- 55
o
C to 125
o
C
- 25
o
C to 80
o
C
Model D Series
ORDERING INFORMATION
D 8 - 3 C
(1)
(1)
(2)
(3)
Model Series: D
Number of pins: 4 to 14
Circuit type:
1 = Bussed with pin 1 in common.
2 = Bussed with centered common.
3 = Isolated.
5 = Dual termination.

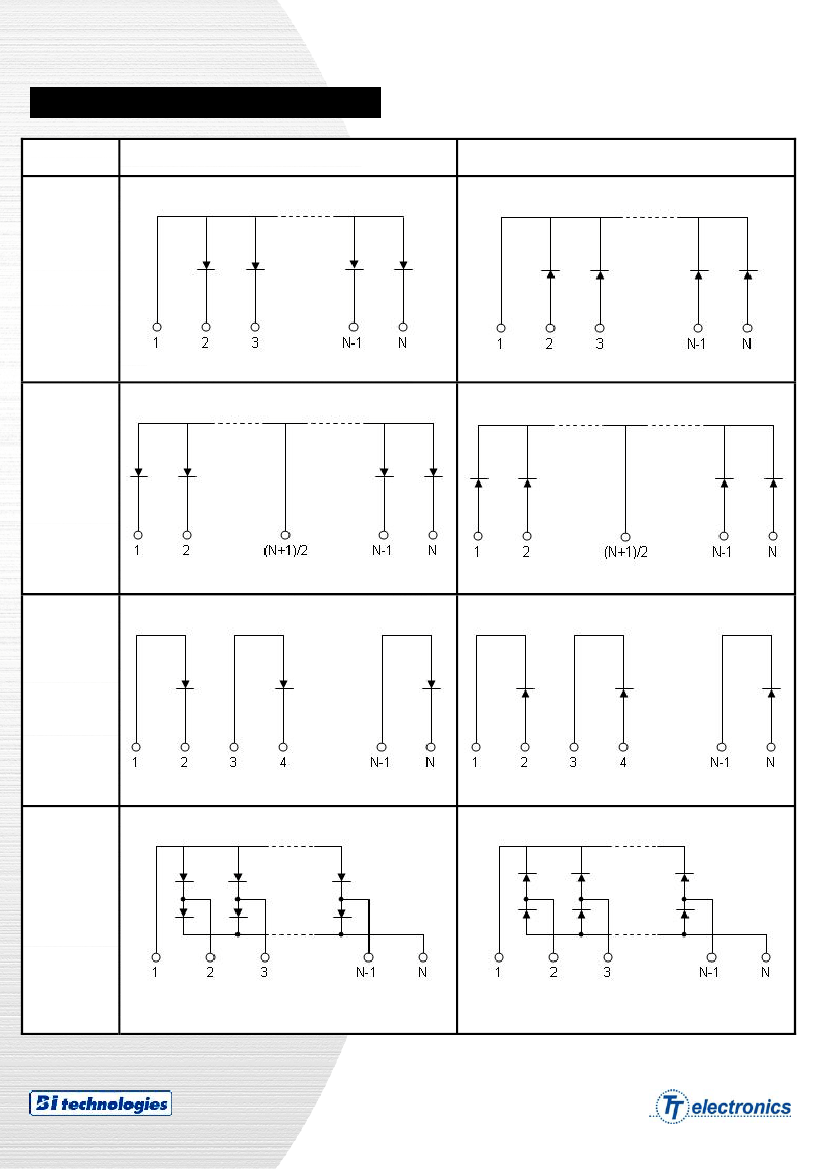

Polartity (see schematic)
A = Common Anode ( circuit 1, circuit 2)
Annode is at pin number 1 (circuit 3, circuit 5)
C = Common Cathode (circuit 1, circuit 2)
Cathode is at pin number 1 (circuit 3, circuit 5)
(2)
(3)
(4)
(4)
MATERIAL
Part
Substrate
Diode
Termination
Lead Pins
Junction and Lead Pin finish
Conformal Coat
Material
Alumina ceramic
Small mold package silicon expitaxial planner diode array
100% Ag
100% Sn Plated steel
96%Sn, 3.5%Ag, 0.5%Cu
Expoxy resin, UL-94 V-0 rated
PACKAGING
Number of pins
3 to 6
7 to 12
13 to 14
Qty. per plastic bag
100
100
50
Qty. per box
1000
500
250
Model D Series
