D1021455H3PC Overview

3M Mini D Ribbon (MDR) Connectors

Preview

Download Datasheet

View All

™

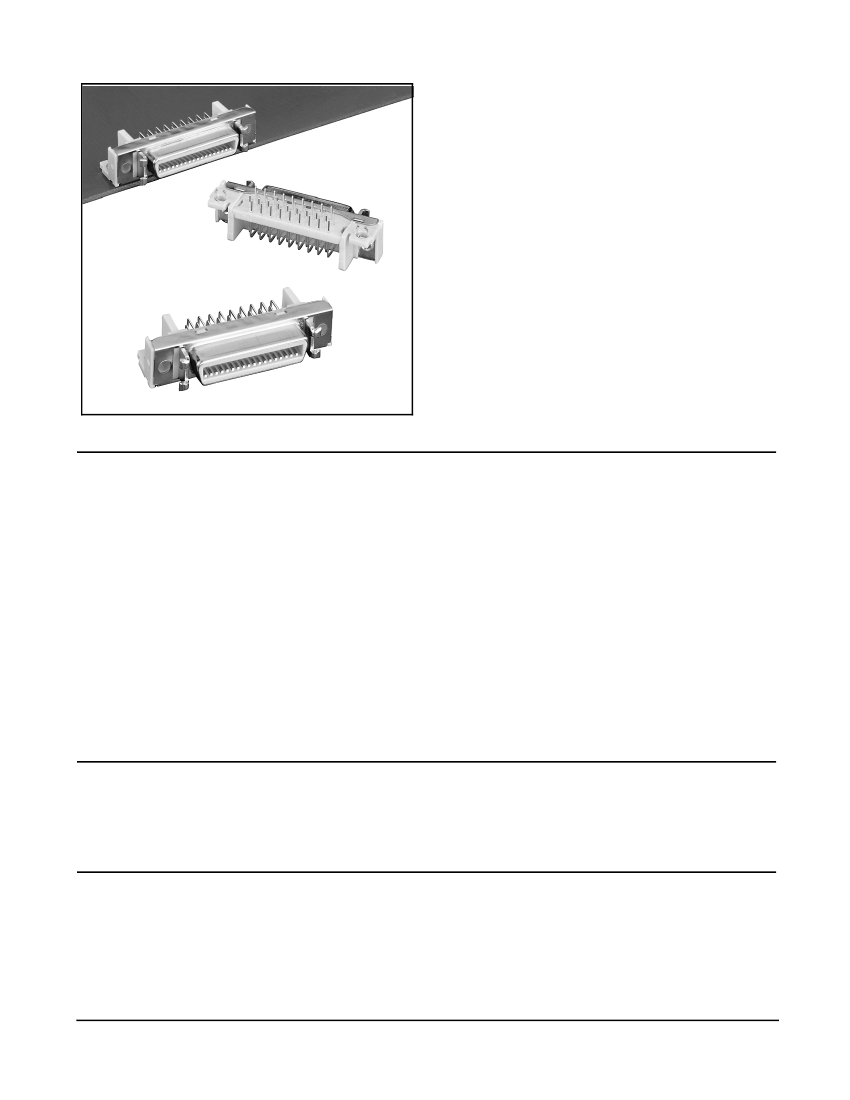

Mini D Ribbon (MDR) Connectors

.050″ Boardmount Through-Hole Right Angle Receptacle - Shielded

102 Series

• Wiper-on-wiper contact for reliable repetitive

plugging

• Surface mount compatible PCT insulator

material

• Ground lock PCB retention

• Interface latch design for connection stability

• MDR digital LCD interface as a 20 or 26

contact connector

• Contacts: 14, 20, 26, 36, 40, 50 and 68

• See Regulatory Information Appendix (RIA)

for chemical compliance information.

Date Modified: November 15, 2007

TS-0621-C

Sheet 1 of 3

Physical

Insulation

Material: Glass Reinforced Polyester (PCT)

Flammability: UL 94V-0

Color: See ordering information

Contact Material:

Copper Alloy

Plating

Underplating: See ordering information

Wiping Area: See ordering information

Solder Tail Plating: Gold Flash over Nickel (RIA E1 & C1 apply)

Shroud and Latch Hook

Material:

Plating:

Ground Lock

Material:

Plating:

Steel

Nickel

Copper Alloy

Tin in combination with gold flash plated tail

Marking:

3M Logo and Part Number

Electrical

Current Rating:

1 A

Insulation Resistance:

> 5

at 500 V

Withstanding Voltage:

500

RMS

for 1 Minute

Environmental

Temperature Rating:

-55°C to +105°C

Process Rating:

260°C (profile per J-STD-020C)

UL File No.: E68080

Interconnect Solutions

http://www.3M.com/interconnects/

3M is a trademark of 3M Company.

For technical, sales or ordering information call

800-225-5373

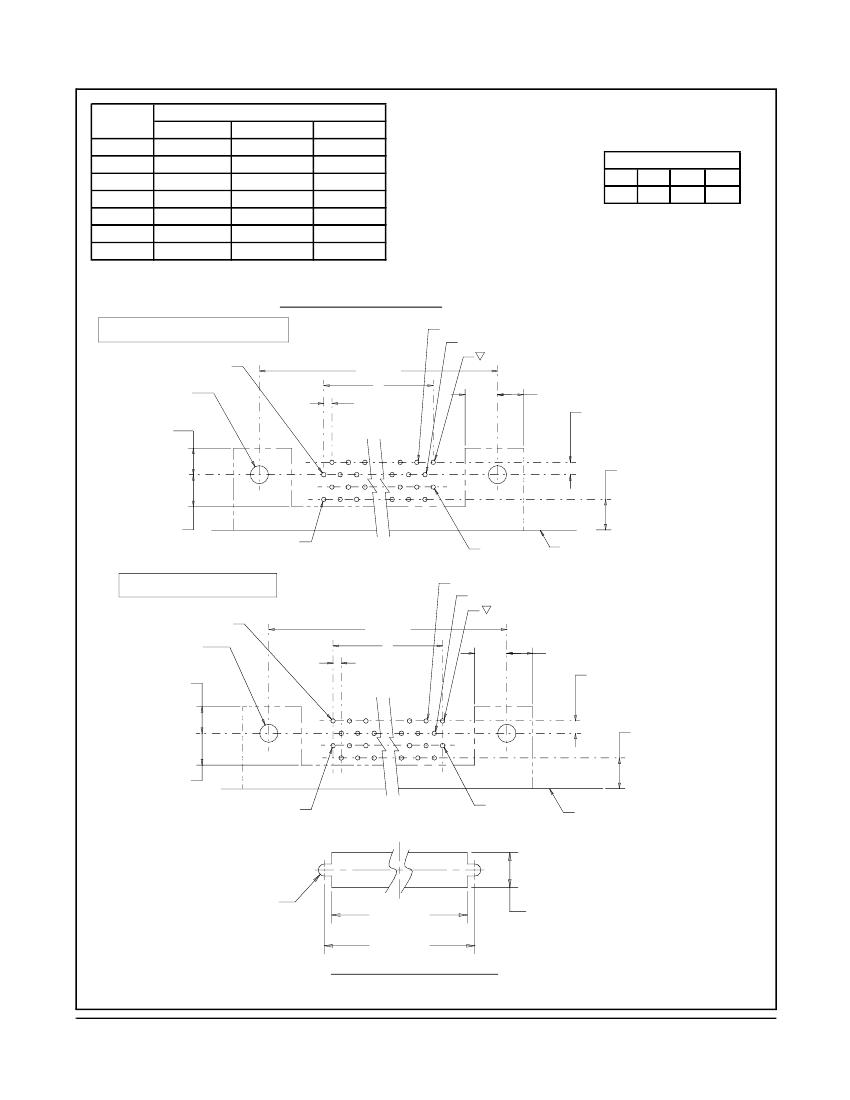

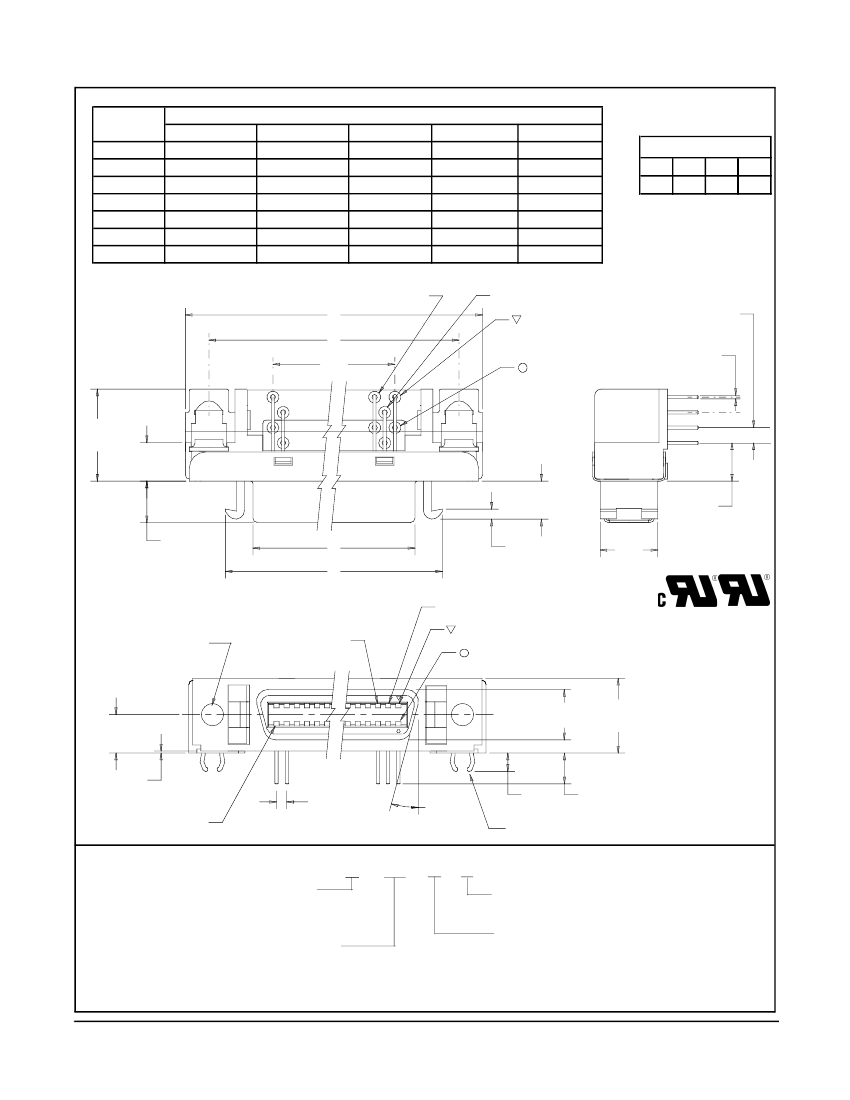

Regulatory Information Appendix

3M Electronic Solutions Division/Interconnect

EUROPE

Appendix E1: European Union RoHS

Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as

amended by EU Commission Decision 2005/618/EC.

This product is RoHS Compliant 2005/95/EC.

“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in excess of

the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/EC, unless

the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this information

represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.

In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and

Buyer’s exclusive remedy will be in accordance with the Warranty stated below.

Appendix E2: European Union RoHS

Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as

amended by EU Commission Decision 2005/618/EC.

This product contains lead in the compliant pin area in excess of the maximum concentration value allowed but is

compliant by exemption under EU Commission Decision 2005/747/EC.

“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in excess of

the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/EC, unless

the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this information

represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.

In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and

Buyer’s exclusive remedy will be in accordance with the Warranty stated below.

Appendix E3: European Union RoHS

Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment as

amended by Commission Decision 2005/618/EC.

This product contains lead in the solder tail area in excess of the maximum concentration value allowed.

Unless otherwise stated by 3M in writing, this information represents 3M’s best knowledge and belief based upon information

provided by third party suppliers to 3M.

In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and

Buyer’s exclusive remedy will be in accordance with the Warranty stated below.

Appendix E4: European Union RoHS

Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as

amended by EU Commission Decision 2005/618/EC.

This product contains decaBDE in the insulating material in excess of the maximum concentration value allowed but is

compliant by exemption under EU Commission Decision 2005/717/EC.

“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in excess of

the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/EC, unless

the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this information

represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.

In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and

Buyer’s exclusive remedy will be in accordance with the Warranty stated below.

RIA-2217B-c

Appendix E5: European Union RoHS

Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment, as

amended by EU Commission Decision 2005/618/EC.

This product contains lead in excess of the maximum concentration value allowed but is compliant by exemption under

Item 6 of the Annex to the Directive.

“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in excess of

the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/EC, unless

the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this information

represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.

In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and

Buyer’s exclusive remedy will be in accordance with the Warranty stated below.

CHINA

Appendix C1: China RoHS

Electronic Industry Standard of the People’s Republic of China, SJ/T11363-2006, Requirements for Concentration Limits for

Certain Hazardous Substances in Electronic Information Products.

This symbol, per Marking for the Control of Pollution Caused by Electronic Information Products, SJ/T11364-2006, means

that the product or part

does not

contain any of the following substances in excess of the following maximum concentration

values in any homogeneous material: (a) 0.1% (by weight) for lead, mercury, hexavalent chromium, polybrominated biphenyls

or polybrominated diphenyl ethers; or (b) 0.01% (by weight) for cadmium. Unless otherwise stated by 3M in writing, this

information represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.

In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and

Buyer’s exclusive remedy will be in accordance with the Warranty stated below.

Appendix C2: China RoHS

Electronic Industry Standard of the People’s Republic of China, SJ/T11363-2006, Requirements for Concentration Limits for

Certain Hazardous Substances in Electronic Information Products.

This symbol, per Marking for the Control of Pollution Caused by Electronic Information Products, SJ/T11364-2006, means that

the product or part

does

contain a substance, as detailed in the chart below, in excess of the following maximum concentration

values in any homogeneous material: (a) 0.1% (by weight) for lead, mercury, hexavalent chromium, polybrominated biphenyls

or polybrominated diphenyl ethers; or (b) 0.01% (by weight) for cadmium. Unless otherwise stated by 3M in writing, this

information represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.

The numerical reference in the symbol above should not be construed as a representation regarding the product’s life or an

extension of a product warranty. The product warranty is stated below. In the event any product is proven not to conform with

3M’s Regulatory Information Appendix, then 3M’s entire liability and Buyer’s exclusive remedy will be in accordance with the

product Warranty stated below.

RIA-2217B-c
