1N6620 thru 1N6625
VOIDLESS-HERMETICALLY SEALED
ULTRA FAST RECOVERY GLASS
RECTIFIERS
SCOTTSDALE DIVISION
DESCRIPTION
This “Ultrafast Recovery” rectifier diode series is military qualified to MIL-PRF-
19500/585 and is ideal for high-reliability applications where a failure cannot be
tolerated. These industry-recognized 1.5 to 2.0 Amp rated rectifiers for working
peak reverse voltages from 200 to 1000 volts are hermetically sealed with voidless-
glass construction using an internal “Category I” metallurgical bond. These devices
are also available in surface mount MELF package configurations by adding a “US”
suffix (see separate data sheet for 1N6620US thru 1N6625US). Microsemi also
offers numerous other rectifier products to meet higher and lower current ratings
with various recovery time speed requirements including standard, fast and ultrafast
device types in both through-hole and surface mount packages.
APPEARANCE
WWW .
Microsemi
.C
OM
IMPORTANT:
For the most current data, consult
MICROSEMI’s
website:
http://www.microsemi.com
Package “A”
Axial
FEATURES
•
•
•
•
•
•
•
Popular JEDEC registered 1N6620 to 1N6625 series
Voidless hermetically sealed glass package
Extremely robust construction
Triple-layer passivation
Internal “Category
I”
Metallurgical bonds
JAN, JANTX, and JANTXV available per MIL-PRF-
19500/585
Further options for screening in accordance with
MIL-PRF-19500 for JANS by using a “SP” prefix, e.g.
SP6620, SP6624, etc.
Surface mount equivalents also available in a square
end-cap MELF configuration with “US” suffix (see
separate data sheet for 1N6620US thru 1N6625US)
•
•
•
•
•
•
•
APPLICATIONS / BENEFITS
Ultrafast recovery rectifier series 200 to 1000 V
Military and other high-reliability applications
Switching power supplies or other applications
requiring extremely fast switching & low forward
loss
High forward surge current capability
Low thermal resistance
Controlled avalanche with peak reverse power
capability
Inherently radiation hard
as described in Microsemi
MicroNote 050
•
MAXIMUM RATINGS
•
•
•
Junction Temperature: -65
o
C to +150
o
C
Storage Temperature: -65
o
C to +175
o
C
Peak Forward Surge Current @ 25
o
C: 20 Amps
(except 1N6625 which is 15 Amps)
Note: Test pulse = 8.3 ms, half-sine wave.
Average Rectified Forward Current (I
O
) at T
L
= +55
o
C
(L=.375 inch from body):
1N6620 thru 1N6622: 2.0 Amps
1N6623 thru 1N6625: 1.5 Amps
(Derate linearly at 0.833%/
o
C for T
L
> +55
o
C)
Average Rectified Forward Current (I
O
) at T
A
=25
o
C:
1N6620 thru 1N6622: 1.2 Amps
1N6623 thru 1N6625: 1.0 Amp
(Derate linearly at 0.67%/
o
C for T
A
>+25
o
C. This I
O
rating is typical for PC boards where thermal
resistance from mounting point to ambient is
sufficiently controlled where T
J(max)
is not exceeded.)
Thermal Resistance L= 0.375 inch (R
θ
JL
): 38
o
C/W
Capacitance at V
R
= 10 V: 10 pF
o
Solder temperature: 260 C for 10 s (maximum)
•
•
•
•
•
•
•
MECHANICAL AND PACKAGING
CASE: Hermetically sealed voidless hard glass
with Tungsten slugs
TERMINATIONS: Axial-leads are Copper with
Tin/Lead (Sn/Pb) finish
MARKING: Body painted and part number, etc.
POLARITY: Cathode indicated by band
Tape & Reel option: Standard per EIA-296
Weight: 340 mg

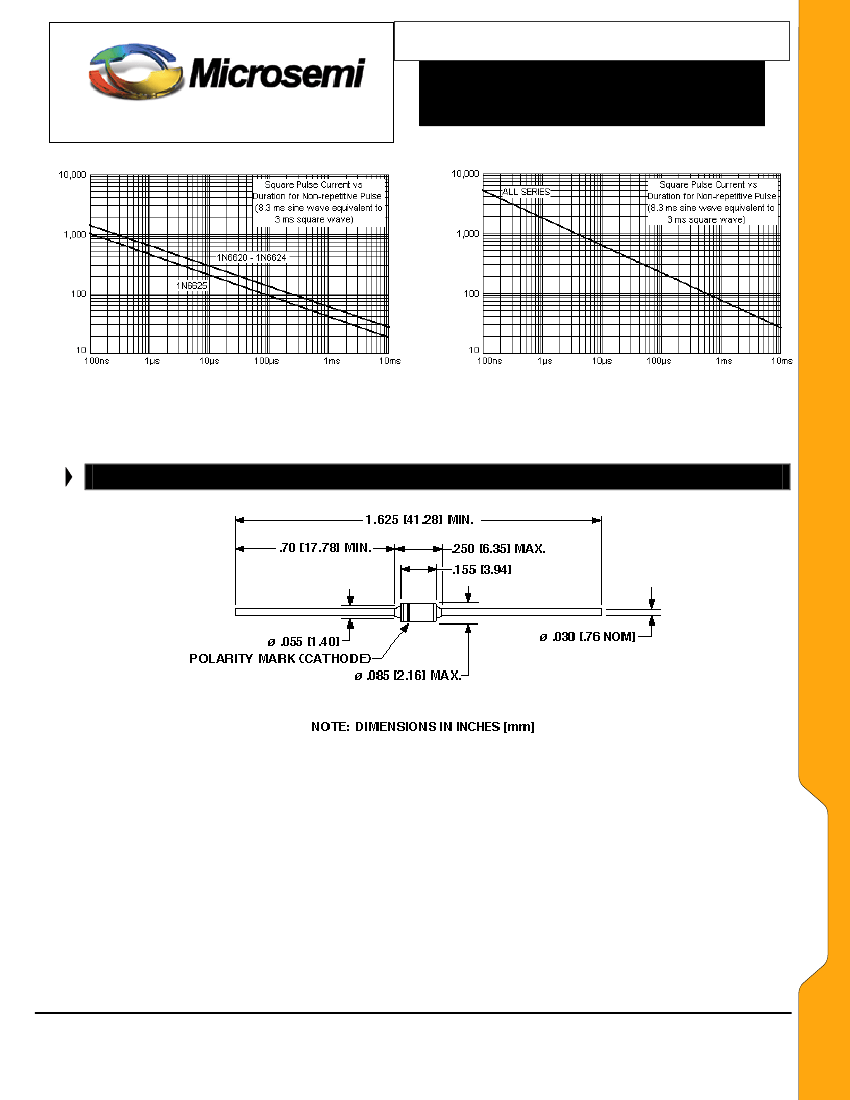

See package dimensions on last page
•
1N6620 thru 1N6625
•
•
•
•
Copyright
©
2009
10-06-2009 REV C; SA7-55.pdf
Microsemi
Page 1
Scottsdale Division
8700 E. Thomas Rd. PO Box 1390, Scottsdale, AZ 85252 USA, (480) 941-6300, Fax: (480) 947-1503
1N6620 thru 1N6625
VOIDLESS-HERMETICALLY SEALED
ULTRA FAST RECOVERY GLASS
RECTIFIERS
SCOTTSDALE DIVISION
ELECTRICAL CHARACTERISTICS @ 25
o
C
TYPE
NUMBER
WWW .
Microsemi
.C
OM
MINIMUM
BREAK-
DOWN
VOLTAGE
V
R
I
R
= 50μA
MAXIMUM
FORWARD
VOLTAGE
V
F
@ I
F
WORKING
PEAK
REVERSE
VOLTAGE
V
RWM
MAXIMUM
REVERSE
CURRENT I
R
@
V
RWM
I
R
T
A
=25
o
C T
A
=150
o
C
MAXIMUM
REVERSE
RECOVERY
TIME (LOW
CURRENT)
MAXIMUM
REVERSE
RECOVERY
TIME (HIGH
CURRENT)
t
rr
Note 1
t
rr
Note 2
PEAK
RECOVERY
CURRENT
I
RM
(rec)
I
F
= 2A,
100A/μs
Note 2
FORWARD
RECOVERY
VOLTAGE
V
FRM
Max
I
F
= 0.5A
t
fr
=12ns
1N6620
1N6621
1N6622
1N6623
1N6624
1N6625
V
220
440
660
880
990
1100
V@A
1.40V @ 1.2A
1.40V @ 1.2A
1.40V @ 1.2A
1.55V @ 1.0A
1.55V @ 1.0A
1.75V @ 1.0A
V@A
1.60V @ 2.0A
1.60V @ 2.0A
1.60V @ 2.0A
1.80V @ 1.5A
1.80V @ 1.5A
1.95V @ 1.5A
V
200
400
600
800
900
1000
μA
0.5
0.5
0.5
0.5
0.5
1.0
μA
150
150
150
150
150
200
ns
30
30
30
50
50
60
ns
45
45
45
60
60
80
A
3.5
3.5
3.5
4.2
4.2
5.0
V
12
12
12
18
18
30
NOTE 1: Low Current Reverse Recovery Time Test Conditions: I
F
=0.5A, I
RM
=1.0A, I
R(REC)
= 0.25A per MIL-STD-750,
Method 4031, Condition B.
NOTE 2: High Current Reverse Recovery Time Test Conditions: I
F
= 2 A, di/dt=100 A/μs MIL-STD-750, Method 4031,
Condition D.
SYMBOLS & DEFINITIONS
Definition
Minimum Breakdown Voltage: The minimum voltage the device will exhibit at a specified current.
Working Peak Reverse Voltage: The maximum peak voltage that can be applied over the operating
temperature range.
Maximum Forward Voltage: The maximum forward voltage the device will exhibit at a specified current.
Maximum Reverse Current: The maximum reverse (leakage) current that will flow at the specified voltage and
temperature.
Capacitance: The capacitance of the TVS as defined @ 0 volts at a frequency of 1 MHz and stated in
picofarads.
Reverse Recovery Time: The time interval between the instant the current passes through zero when
changing from the forward direction to the reverse direction and a specified recovery decay point after a peak
reverse current is reached.
Symbol
V
BR
V
RWM
V
F
I
R
C
t
rr

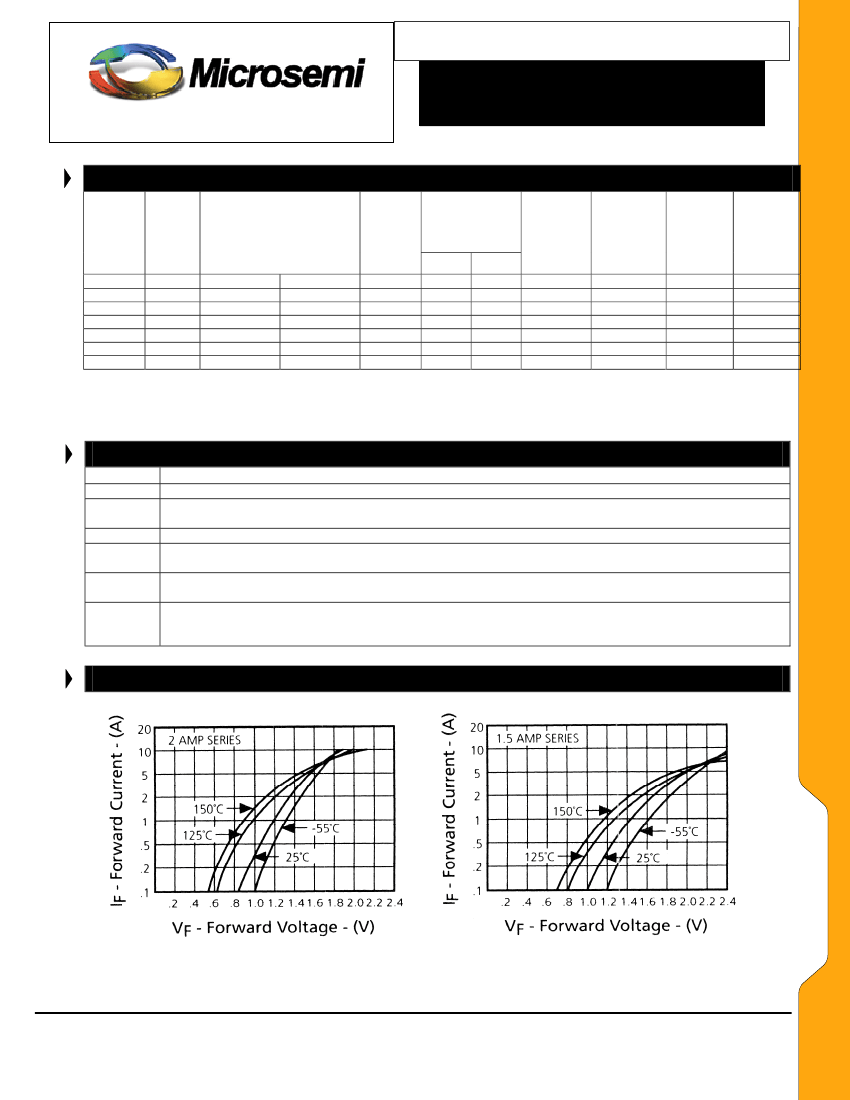

CHARTS AND GRAPHS
1N6620 thru 1N6625
FIGURE 1
Typical Forward Current
vs
Forward Voltage
Copyright
©
2009
10-06-2009 REV C; SA7-55.pdf
FIGURE 2
Typical Forward Current
vs
Forward Voltage
Microsemi
Page 2
Scottsdale Division
8700 E. Thomas Rd. PO Box 1390, Scottsdale, AZ 85252 USA, (480) 941-6300, Fax: (480) 947-1503
1N6620 thru 1N6625
VOIDLESS-HERMETICALLY SEALED
ULTRA FAST RECOVERY GLASS
RECTIFIERS
SCOTTSDALE DIVISION
WWW .
Microsemi
.C
OM

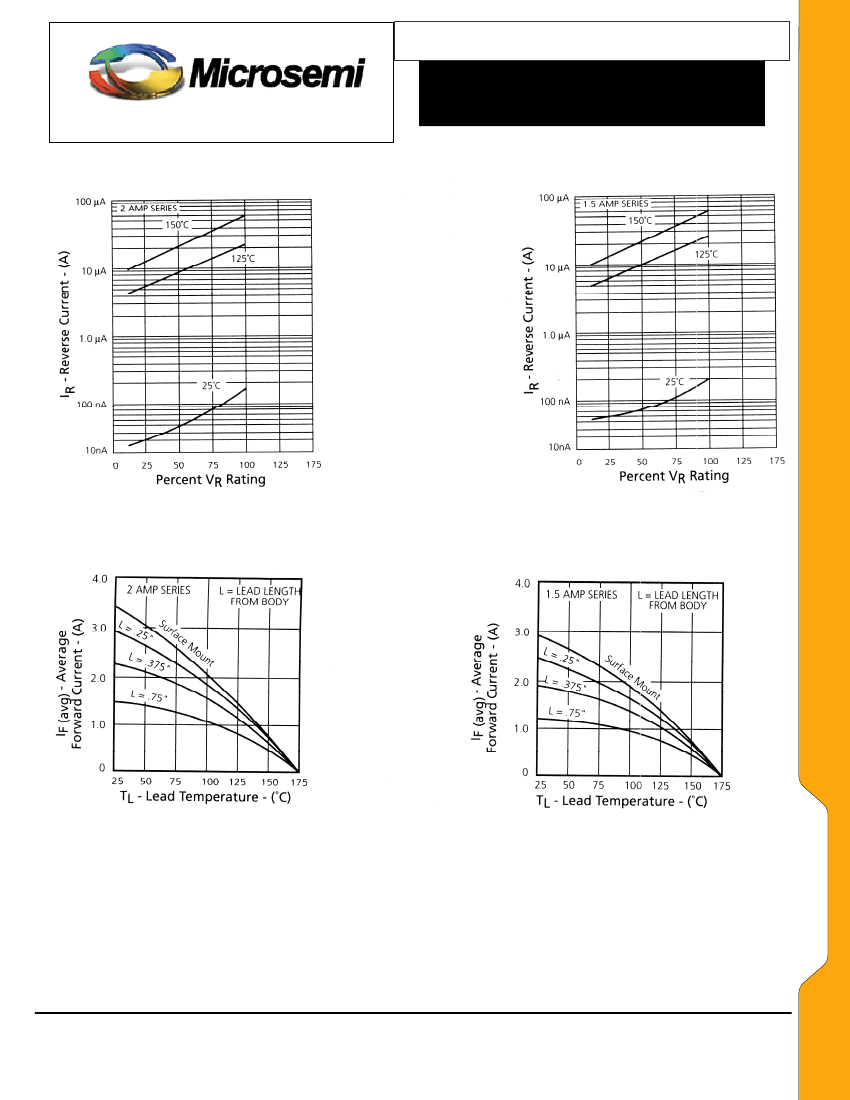

FIGURE 3
Typical Reverse Current vs.
Applied Reverse Voltage
FIGURE 4
Typical Reverse Current vs.
Applied Reverse Voltage
1N6620 thru 1N6625
FIGURE 5
Average Forward Current vs.
Lead Temperature (50% Duty Cycle, Square Wave)
FIGURE 6
Average Forward Current vs
Lead Temperature (50% Duty Cycle, Square Wave)
Copyright
©
2009
10-06-2009 REV C; SA7-55.pdf
Microsemi
Page 3
Scottsdale Division
8700 E. Thomas Rd. PO Box 1390, Scottsdale, AZ 85252 USA, (480) 941-6300, Fax: (480) 947-1503
