ZB4PD1-930W-S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ZB4PD1-930W-S

ZB4PD1-930W-S: DescriptionCombiner, 725MHz Min, 1025MHz Max, 0.8dB Insertion Loss-Max, CASE UU188; CategoryWireless rf/communication Radio frequency and microwave; File Size84KB，1 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com

Download Datasheet Parametric Compare View All

ZB4PD1-930W-S Overview

Combiner, 725MHz Min, 1025MHz Max, 0.8dB Insertion Loss-Max, CASE UU188

ZB4PD1-930W-S Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Mini-Circuits
Reach Compliance Code	unknow
Other features	SMA, ISOLATION-MIN (DB):15
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	40 dBm
Maximum insertion loss	0.8 dB
JESD-609 code	e0
Maximum operating frequency	1025 MHz
Minimum operating frequency	725 MHz
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	COMBINER
Terminal surface	Tin/Lead (Sn/Pb)
Maximum voltage standing wave ratio	1.3

Preview

Download Datasheet

View All

Coaxial

Power Splitter/Combiner

4 Way-0°

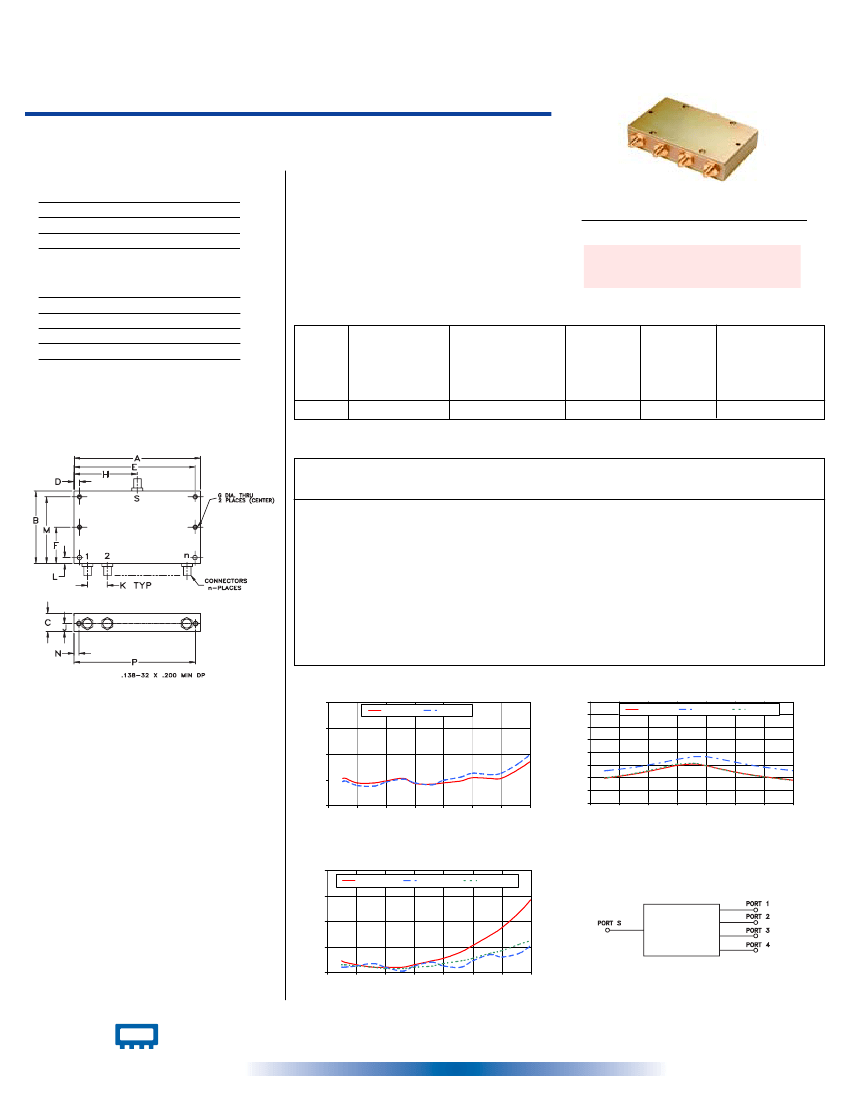

Maximum Ratings

Operating Temperature

Storage Temperature

Power Input (as a splitter)

Internal Dissipation

-55°C to 100°C

10W max.

0.375W max.

ZB4PD1-930W+

ZB4PD1-930W

50Ω

725 to 1050 MHz

Features

• excellent output VSWR, 1.1:1 typ.

• up to 10W power input as splitter

Connectors

SMA

N-TYPE

SMA version shown

CASE STYLE: UU188

Model

Price

ZB4PD1-930W-S

$94.95

ZB4PD1-930W-N

$94.95

Qty.

(1-9)

Applications

• cellular

• GSM

• receivers/transmitters

Coaxial Connections

SUM PORT

PORT 1

PORT 2

PORT 3

PORT 4

+ RoHS compliant in accordance

with EU Directive (2002/95/EC)

The +suffix identifies RoHS Compliance. See our web site

for RoHS Compliance methodologies and qualifications.

Splitter Electrical Specifications

FREQ.

RANGE

(MHz)

-f

725-1050

ISOLATION

(dB)

INSERTION LOSS (dB)

ABOVE 6 dB

PHASE

UNBALANCE

(Degrees)

Max.

AMPLITUDE

UNBALANCE

(dB)

Max.

0.4

VSWR

(:1)

OUT

Typ. Max. Typ. Max.

1.2

1.8

1.1

1.3

Typ.

Min.

Typ.

0.3

Max.

0.8

Outline Drawing

Freq.

(MHz)

725.00

730.00

750.00

780.00

800.00

830.00

850.00

880.00

900.00

930.00

950.00

980.00

1000.00

1030.00

1050.00

Typical Performance Data

Insertion Loss

(dB)

S-1 S-2 S-3 S-4

6.22

6.15

6.18

6.22

6.14

6.13

6.15

6.18

6.23

6.22

6.36

6.48

6.20

6.14

6.13

6.18

6.24

6.18

6.16

6.20

6.25

6.32

6.30

6.34

6.47

6.62

6.17

6.18

6.11

6.10

6.16

6.21

6.15

6.12

6.19

6.24

6.30

6.28

6.30

6.45

6.59

6.23

6.16

6.17

6.18

6.22

6.15

6.16

6.19

6.25

6.23

6.36

6.45

Amp.

Unbal.

(dB)

0.06

0.04

0.05

0.07

0.02

0.03

0.04

0.03

0.05

0.07

0.08

0.12

0.11

0.17

Isolation

(dB)

1-2

2-3 3-4

19.42

19.71

20.86

23.00

24.76

27.60

29.51

30.58

29.31

26.24

24.36

21.93

20.59

18.83

17.90

25.21

25.43

26.37

28.19

29.70

32.33

34.18

36.54

36.64

34.12

32.20

29.59

28.17

26.37

25.42

19.66

19.95

21.13

23.41

25.23

28.33

30.37

31.10

29.38

26.10

24.20

21.79

20.46

18.75

17.80

Phase

Unbal.

(deg.)

1.98

2.07

2.25

2.29

2.24

2.34

2.58

2.55

2.43

2.69

2.75

2.87

2.94

2.78

VSWR VSWR VSWR VSWR VSWR

1.09

1.08

1.06

1.04

1.06

1.09

1.11

1.16

1.21

1.29

1.35

1.47

1.57

1.04

1.05

1.07

1.04

1.01

1.05

1.08

1.05

1.04

1.09

1.14

1.12

1.15

1.21

1.06

1.05

1.04

1.03

1.02

1.04

1.05

1.06

1.09

1.12

1.15

1.17

1.21

1.25

1.06

1.05

1.04

1.03

1.04

1.05

1.07

1.09

1.11

1.15

1.17

1.22

1.25

1.06

1.07

1.08

1.06

1.03

1.06

1.09

1.06

1.10

1.14

1.12

1.16

1.20

ZB4PD1-930W

INSERTION LOSS

INSERTION LOSS (dB)

ZB4PD1-930W

ISOLATION

ISOLATION (dB)

700

1-2(dB)

2-3(dB)

3-4(dB)

Outline Dimensions (

inch

)

3.50

88.90

.125

3.18

2.13

54.10

1.75

44.45

.88

22.35

.44

11.18

.150

3.81

.89

22.61

3.350

85.09

1.06

26.92

grams

260

7.4

S-1(dB)

7.0

6.6

6.2

5.8

700

S-3(dB)

750

800

850

900

950

1000

1050

750

800

850

900

950

1000

1050

FREQUENCY (MHz)

ZB4PD1-930W

VSWR

1.80

FREQUENCY (MHz)

#S-VSWR

1.60

VSWR

#1-VSWR

#3-VSWR

electrical schematic

1.40

1.20

1.00

700

750

800

850

900

950

1000

1050

FREQUENCY (MHz)

Mini-Circuits

INTERNET

http://www.minicircuits.com

P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661

REV. C

M98898

ZB4PD1-930W

HY/TD/CP/AM

060301

Distribution Centers

NORTH AMERICA 800-654-7949 • 417-335-5935 • Fax 417-335-5945 • EUROPE 44-1252-832600 • Fax 44-1252-837010

Mini-Circuits

ISO 9001 & ISO 14001

Certified

ZB4PD1-930W-S Related Products

	ZB4PD1-930W-S	ZB4PD1-930W-N
Description	Combiner, 725MHz Min, 1025MHz Max, 0.8dB Insertion Loss-Max, CASE UU188	Combiner, 725MHz Min, 1025MHz Max, 0.8dB Insertion Loss-Max, CASE UU188
Is it Rohs certified?	incompatible	incompatible
Maker	Mini-Circuits	Mini-Circuits
Reach Compliance Code	unknow	not_compliant
Other features	SMA, ISOLATION-MIN (DB):15	N, ISOLATION-MIN (DB):15
Characteristic impedance	50 Ω	50 Ω
structure	COAXIAL	COAXIAL
Maximum input power (CW)	40 dBm	40 dBm
Maximum insertion loss	0.8 dB	0.8 dB
JESD-609 code	e0	e0
Maximum operating frequency	1025 MHz	1025 MHz
Minimum operating frequency	725 MHz	725 MHz
Maximum operating temperature	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C
RF/Microwave Device Types	COMBINER	COMBINER
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Maximum voltage standing wave ratio	1.3	1.3
