ZFM-3B-S+: DescriptionDouble Balanced Mixer, 0.04MHz Min, 400MHz Max, 8dB Conversion Loss-Max, ROHS COMPLIANT, CASE K18; CategoryWireless rf/communication Radio frequency and microwave; File Size145KB，2 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com; Environmental Compliance

Download Datasheet Parametric Compare View All

ZFM-3B-S+ Overview

Double Balanced Mixer, 0.04MHz Min, 400MHz Max, 8dB Conversion Loss-Max, ROHS COMPLIANT, CASE K18

ZFM-3B-S+ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mini-Circuits
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	SMA, HIGH ISOLATION
structure	COAXIAL
Maximum frequency conversion loss	8 dB
Maximum input power (CW)	17 dBm
Maximum operating frequency	400 MHz
Minimum operating frequency	0.04 MHz
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	DOUBLE BALANCED
Maximum voltage standing wave ratio	2.76

Preview

Download Datasheet

View All

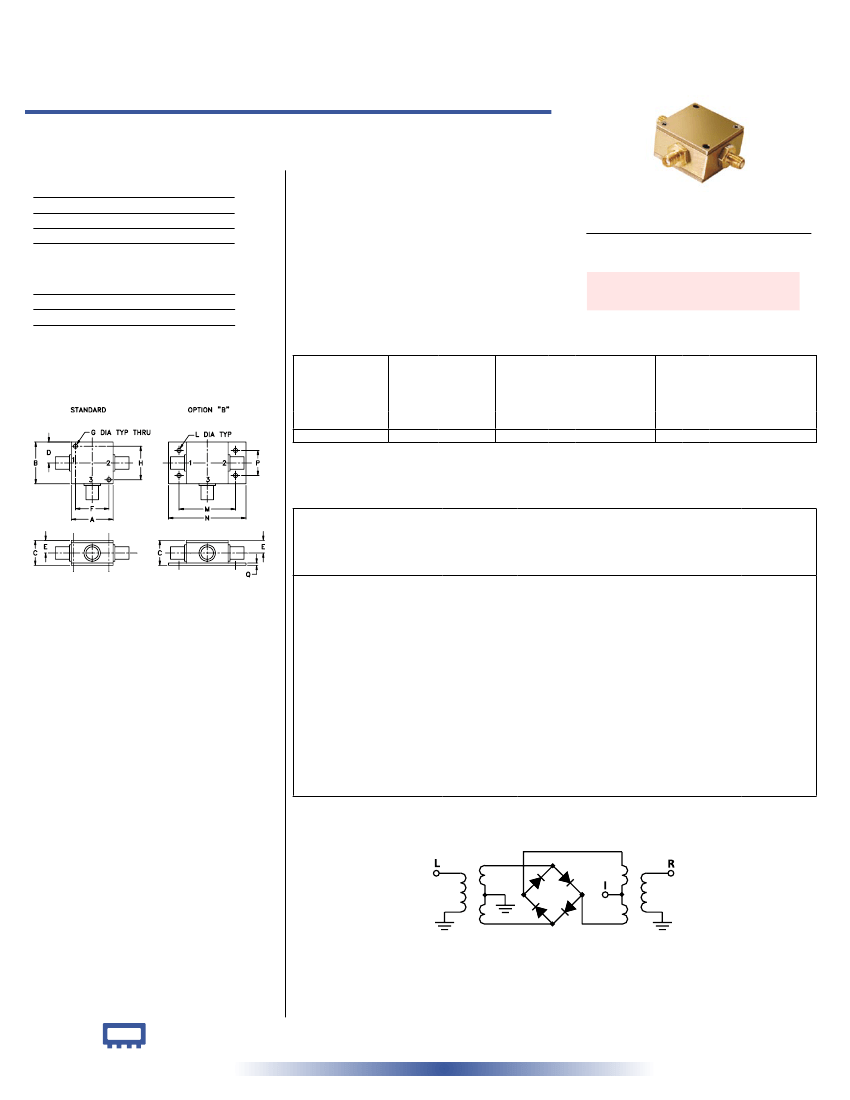

Coaxial

Frequency Mixer

Level 7 (LO Power +7 dBm) 0.04 to 400 MHz

Maximum Ratings

Operating Temperature

Storage Temperature

RF Power

IF Current

-55°C to 100°C

50mW

40mA

ZFM-3+

ZFM-3

Features

• low conversion loss, 4.78 dB typ.

• high L-R isolation, 50 dB typ, L-I, 45 dB typ.

• rugged shielded case

SMA version shown

CASE STYLE: K18

Connectors Model

BNC

ZFM-3 (+)

SMA

ZFM-3-S (+)

BRACKET (OPTION “B”)

Price

$61.95 ea.

$66.95 ea.

$2.50

Qty.

(1-9)

(1+)

Applications

• VHF

• FM radio

• defense & federal communications

• instrumentation

Coaxial Connections

LO

RF

IF

1

2

3

+ RoHS compliant in accordance

with EU Directive (2002/95/EC)

The +Sufﬁx identiﬁes RoHS Compliance. See our web site for

RoHS Compliance methodologies and qualiﬁcations.

Electrical Speciﬁcations

Outline Drawing

FREQUENCY

(MHz)

LO/RF

f

L

-f

U

0.04-400

DC-400

1 dB COMP.: +1 dBm typ.

IF

—

X

4.78

CONVERSION LOSS

(dB)

Mid-Band

m

σ

0.03

Total

Range

Max. Max.

7.0

8.0

L

Typ.

60

LO-RF ISOLATION

(dB)

M

Min.

50

Typ.

50

Min.

35

Typ.

35

U

Min.

25

Typ.

55

L

LO-IF ISOLATION

(dB)

M

Min.

40

Typ.

45

Min.

30

Typ.

35

U

Min.

25

L = low range [f

L

to 10 f

L

]

m= mid band [2f

L

to f

U

/2]

M = mid range [10 f

L

to f

U

/2]

U = upper range [f

U

/2 to f

U

]

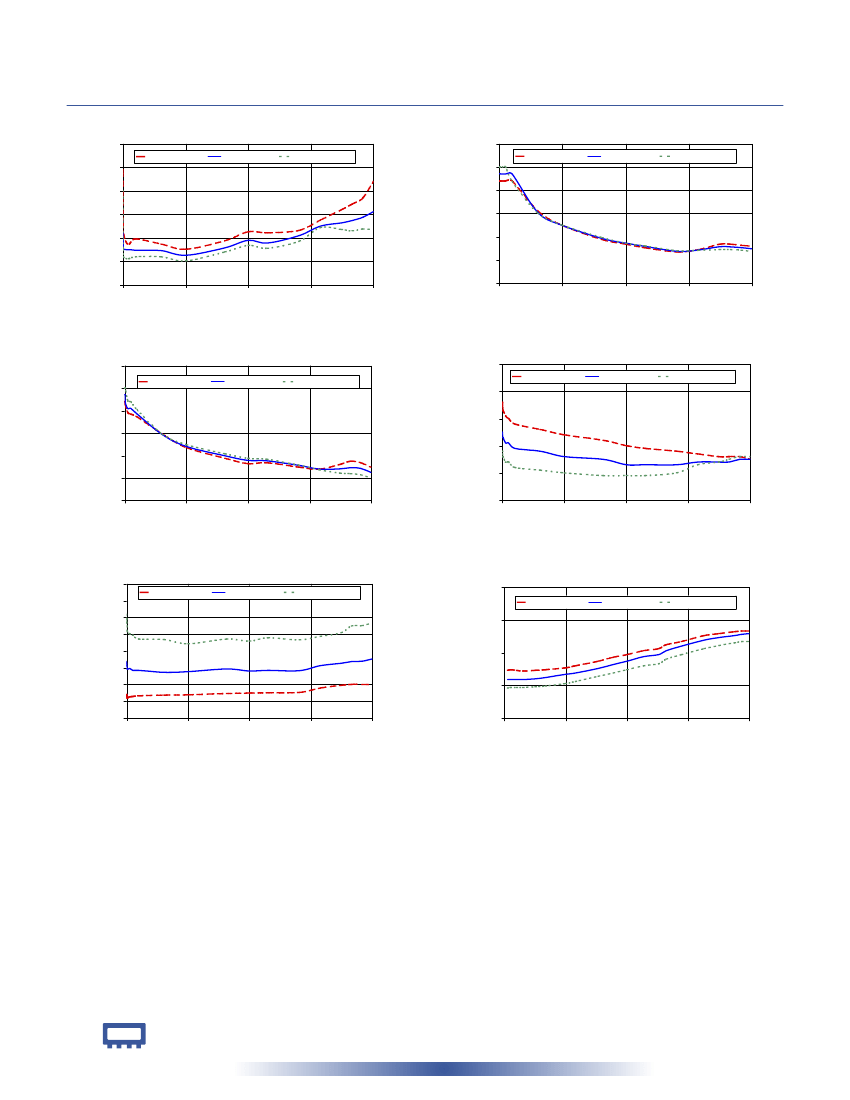

Typical Performance Data

Frequency

(MHz)

Conversion

Loss

(dB)

LO

30.04

30.05

30.07

30.10

30.50

31.00

35.00

40.00

50.00

90.87

70.00

132.61

170.00

200.44

251.31

285.23

319.14

336.10

353.05

370.00

Isolation

L-R

(dB)

LO

+7dBm

>67.00

50.40

44.80

39.22

37.18

35.78

33.68

34.22

35.64

35.56

35.25

34.72

Isolation

L-I

(dB)

LO

+7dBm

>67.00

63.53

60.91

60.97

58.52

49.37

44.05

39.87

37.86

37.67

35.71

33.98

34.07

34.58

34.26

32.46

VSWR RF

Port

(:1)

LO

+7dBm

1.24

1.25

1.24

1.23

1.21

1.19

1.18

1.16

1.15

1.13

1.14

1.15

VSWR LO

Port

(:1)

LO

+7dBm

2.69

2.55

2.67

2.63

2.55

2.45

2.48

2.42

2.36

2.38

2.46

2.40

2.42

2.41

2.56

2.63

2.68

2.69

2.76

RF

0.04

0.05

0.07

0.10

0.50

LO

+7dBm

6.15

5.52

5.12

4.92

4.77

4.76

4.75

4.74

4.73

4.63

4.79

4.95

4.89

5.05

5.25

5.32

5.37

5.44

5.56

Outline Dimensions (

inch

)

mm

A

1.25

31.75

J

--

B

1.25

31.75

K

--

C

.75

19.05

L

.125

3.18

D

.63

16.00

M

1.688

42.88

E

.38

9.65

N

2.18

55.37

F

1.00

25.40

P

.75

19.05

G

.125

3.18

H

1.000

25.40

1.00

5.00

10.00

20.00

60.87

100.00

162.61

200.00

230.44

281.31

315.23

349.14

366.10

383.05

400.00

Q

wt

.07 grams

1.78

70.0

Electrical Schematic

Distribution Centers

NORTH AMERICA 800-654-7949 • 417-335-5935 • Fax 417-335-5945 • EUROPE 44-1252-832600 • Fax 44-1252-837010

Mini-Circuits

®

INTERNET

http://www.minicircuits.com

P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661

Mini-Circuits

ISO 9001 & ISO 14001

Certified

REV. A

M98898

ZFM-3+

DJ/TD/CP

060626

Page 1 of 2

ZFM-3B-S+ Related Products

	ZFM-3B-S+	ZFM-3+	ZFM-3-S+	ZFM-3B+
Description	Double Balanced Mixer, 0.04MHz Min, 400MHz Max, 8dB Conversion Loss-Max, ROHS COMPLIANT, CASE K18	Double Balanced Mixer, 0.04MHz Min, 400MHz Max, 8dB Conversion Loss-Max, ROHS COMPLIANT, CASE K18	Double Balanced Mixer, 0.04MHz Min, 400MHz Max, 8dB Conversion Loss-Max, ROHS COMPLIANT, CASE K18	Double Balanced Mixer, 0.04MHz Min, 400MHz Max, 8dB Conversion Loss-Max, ROHS COMPLIANT, CASE K18
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	Mini-Circuits	Mini-Circuits	Mini-Circuits	Mini-Circuits
Reach Compliance Code	unknow	unknown	unknown	_compli
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	SMA, HIGH ISOLATION	BNC, HIGH ISOLATION	SMA, HIGH ISOLATION	BNC, HIGH ISOLATION
structure	COAXIAL	COAXIAL	COAXIAL	COAXIAL
Maximum frequency conversion loss	8 dB	8 dB	8 dB	8 dB
Maximum input power (CW)	17 dBm	17 dBm	17 dBm	17 dBm
Maximum operating frequency	400 MHz	400 MHz	400 MHz	400 MHz
Minimum operating frequency	0.04 MHz	0.04 MHz	0.04 MHz	0.04 MHz
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	DOUBLE BALANCED	DOUBLE BALANCED	DOUBLE BALANCED	DOUBLE BALANCED
Maximum voltage standing wave ratio	2.76	2.76	2.76	2.76
