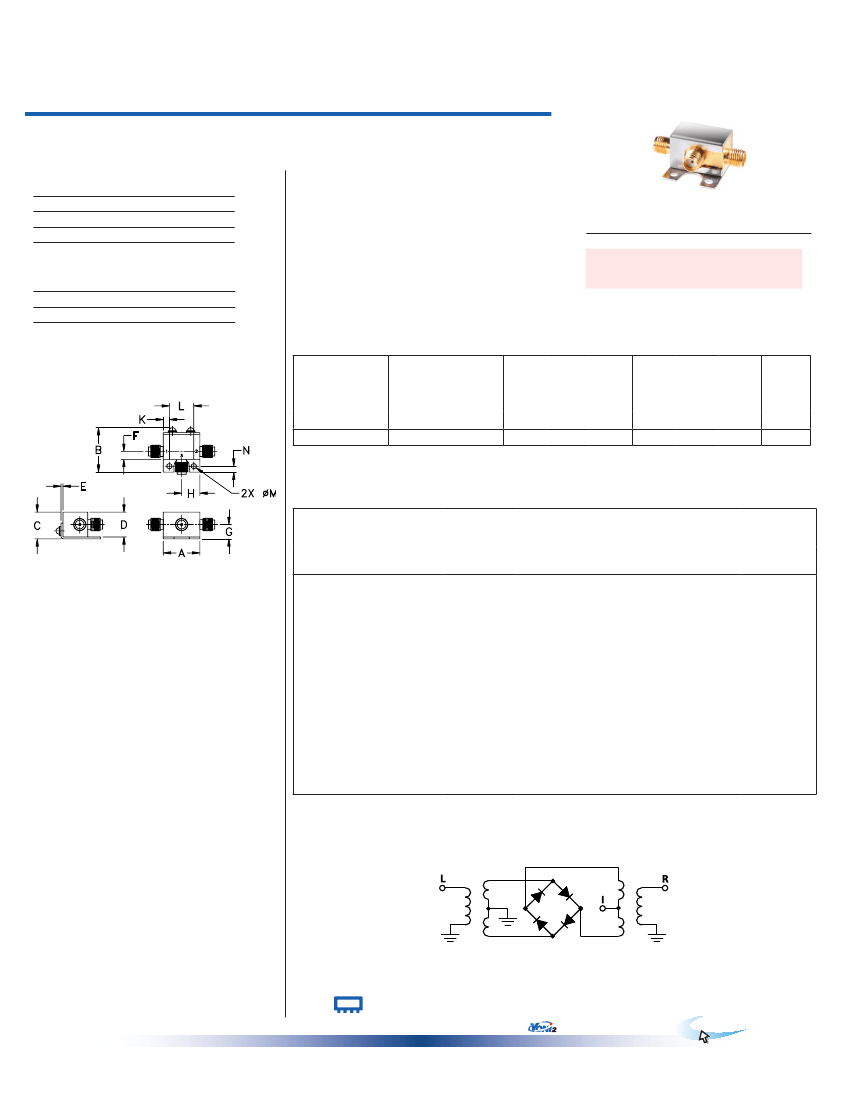

Coaxial
Frequency Mixer
Level 13 (LO Power +13 dBm)
Maximum Ratings
Operating Temperature
Storage Temperature
RF Power
IF Current
-40°C to 85°C
-55°C to 100°C
200mW
40mA
ZX05-C24MH+
300 to 2400 MHz
Features
Permanent damage may occur if any of these limits are exceeded.
• rugged construction
• small size
• low conversion loss
• high L-R isolation
• protected by US Patents 6,790,049 & 7,027,795
CASE STYLE: FL905
Connectors
SMA
Model
ZX05-C24MH-S+
Price
Qty.
$39.95 ea. (1-24)
Coaxial Connections
LO
RF
IF
Applications
1
2
3
• cellular
• PCS
• instrumentation
• satellite communication
+ RoHS compliant in accordance
with EU Directive (2002/95/EC)
The +Suffix has been added in order to identify RoHS
Compliance. See our web site for RoHS Compliance
methodologies and qualifications.
Electrical Specifications (T
AMB
=25°C)
Outline Drawing
FREQUENCY
(MHz)
LO/RF
f
L
-f
U
300-2400
DC-700
IF
—
X
6.1
CONVERSION LOSS
(dB)
Mid-Band
m
σ
0.1
Max.
8.6
LO-RF ISOLATION
(dB)
LO-IF ISOLATION
(dB)
IP3
at center
band
(dBm)
Typ.
13
Typ. Min.
40
20
Typ. Min.
25
14
1 dB COMP.: +9 dBm typ.
m= mid band [2f
L
to f
U
/2]
Typical Performance Data
Frequency
(MHz)
Conversion
Loss
(dB)
LO
330.10
437.79
545.49
593.18
700.87
808.56
970.10
1077.79
1185.49
1293.18
1400.87
1508.56
1670.10
1777.79
1885.49
1993.18
2100.87
2208.56
2316.25
2370.10
LO
+13dBm
5.72
5.29
5.99
6.04
5.66
6.11
6.19
6.07
6.08
6.00
5.21
5.33
5.15
5.51
5.79
6.28
7.15
6.78
6.76
6.75
Isolation
L-R
(dB)
LO
+13dBm
49.84
41.51
40.56
54.07
40.08
38.68
39.74
40.41
40.14
40.23
44.53
40.37
35.10
34.07
32.41
31.06
31.11
32.24
32.56
31.57
Isolation
L-I
(dB)
LO
+13dBm
21.77
22.91
25.38
28.08
26.63
29.99
23.66
26.29
29.33
30.52
29.34
26.94
28.24
26.14
25.33
26.23
30.92
28.04
26.59
27.31
VSWR
RF Port
(:1)
LO
+13dBm
9.50
10.50
5.31
4.54
5.89
5.11
5.51
6.06
5.32
6.52
9.09
12.11
12.93
10.06
8.85
6.18
5.13
5.43
6.09
6.66
VSWR
LO Port
(:1)
LO
+13dBm
19.41
3.41
1.86
1.61
2.12
2.85
3.17
3.77
4.06
4.23
3.66
2.04
2.18
2.20
2.69
3.00
3.00
3.18
3.84
4.15
RF
300.10
407.79
515.49
623.18
730.87
Outline Dimensions (
inch
)
mm
A
.74
18.80
H
.37
9.40
B
.90
22.86
J
--
--
C
.54
13.72
K
.122
3.10
D
.50
12.70
L
.496
12.60
E
.04
1.02
M
.106
2.69
F
.16
4.06
G
.29
7.37
838.56
1000.10
1107.79
1215.49
1323.18
1430.87
1538.56
1700.10
1807.79
1915.49
2023.18
2130.87
2238.56
2346.25
2400.10
N
wt
.122 grams
3.10
20.0
Electrical Schematic
ISO 9001 ISO 14001 AS 9100
CERTIFIED
P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661
The Design Engineers Search Engine
IF/RF MICROWAVE COMPONENTS
Mini-Circuits
®
For detailed performance specs
& shopping online see web site
®
Provides ACTUAL Data Instantly at
minicircuits.com
Notes: 1.
Performance and quality attributes and conditions not expressly stated in this specification sheet are intended to be excluded and do not form a part of this specification sheet.
2.
Electrical specifications
and performance data contained herein are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.
3.
The parts covered by this specification sheet are subject to
Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled to the rights and benefits contained therein. For a full statement of the Standard
Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp.
REV. D
M108294
ZX05-C24MH
RVN/TD/CP/AM
091007
Page 1 of 2

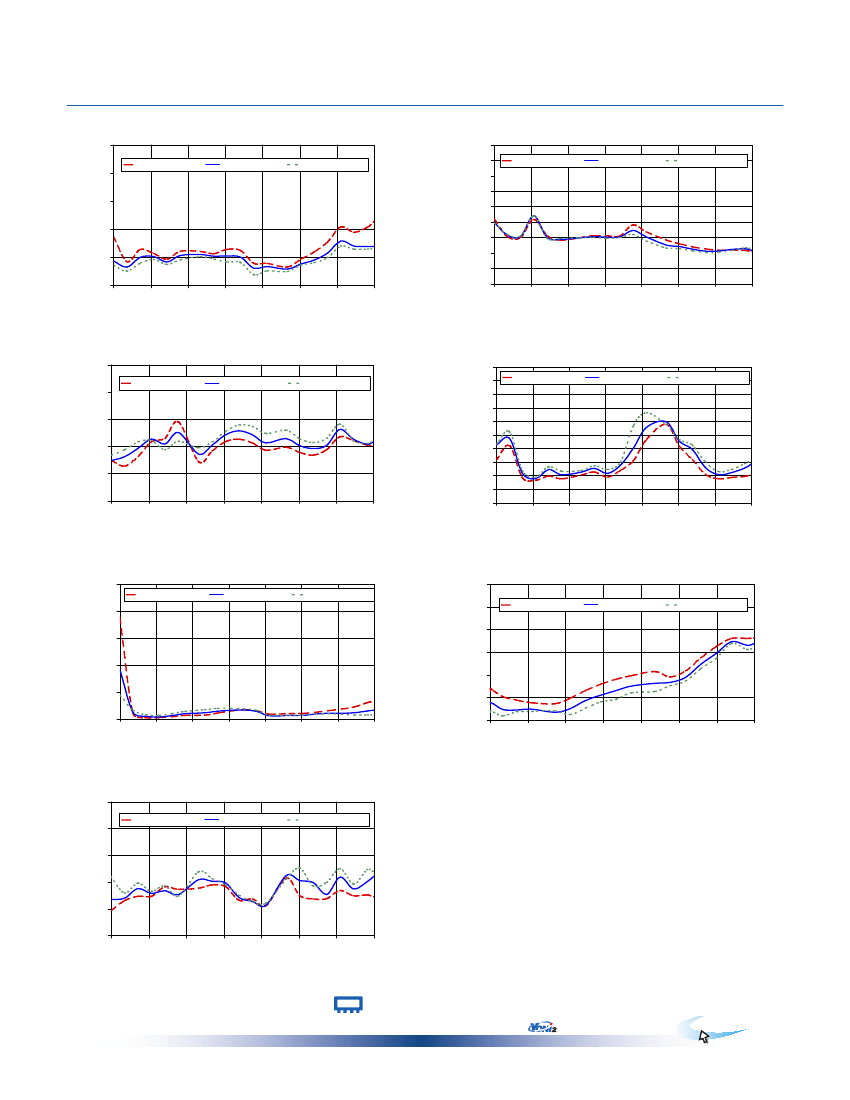

Performance Charts
14.0
at IF Freq of 30 MHz
ZX05-C24MH+
100
LO=+16 dBm
ZX05-C24MH+
CONVERSION LOSS
LO=+13 dBm
ZX05-C24MH+
L-R ISOLATION
LO=+10 dBm
LO=+13 dBm
LO=+16 dBm
CONVERSION LOSS (dB)
ISOLATION (dB)
12.0
10.0
8.0
6.0
4.0
300
LO=+10 dBm
90
80
70
60
50
40
30
20
10
300
600
900
1200 1500 1800
FREQUENCY (MHz)
2100
2400
600
900
1200 1500 1800
FREQUENCY (MHz)
2100
2400
50
42
34
26
18
10
300
ZX05-C24MH+
L-I ISOLATION
LO=+10 dBm
LO=+13 dBm
LO=+16 dBm
21.0
19.0
17.0
15.0
13.0
11.0
9.0
7.0
5.0
3.0
1.0
300
ZX05-C24MH+
RF VSWR
LO=+10 dBm
LO=+13 dBm
LO=+16 dBm
ISOLATION (dB)
600
900
1200 1500 1800
FREQUENCY (MHz)
ZX05-C24MH+
LO VSWR
2100
2400
VSWR
600
900
1200 1500 1800
FREQUENCY (MHz)
ZX05-C24MH+
IF VSWR
2100
2400
51.0
41.0
LO=+10 dBm
LO=+13 dBm
LO=+16 dBm
4.0
3.5
LO=+10 dBm
LO=+13 dBm
LO=+16 dBm
VSWR
VSWR
600
900
1200 1500 1800
FREQUENCY (MHz)
ZX05-C24MH+
IP3
2100
2400
31.0
21.0
11.0
1.0
300
3.0
2.5
2.0
1.5
1.0
0
100
200
300
400
500
FREQUENCY (MHz)
600
700
50
40
LO=+10 dBm
LO=+13 dBm
LO=+16 dBm
IP3 (dBm)
30
20
10
0
300
600
900
1200 1500 1800
FREQUENCY (MHz)
2100
2400
ISO 9001 ISO 14001 AS 9100
CERTIFIED
P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661
The Design Engineers Search Engine
IF/RF MICROWAVE COMPONENTS
Mini-Circuits
®
For detailed performance specs
& shopping online see web site
®
Provides ACTUAL Data Instantly at
minicircuits.com
Notes: 1.
Performance and quality attributes and conditions not expressly stated in this specification sheet are intended to be excluded and do not form a part of this specification sheet.
2.
Electrical specifications
and performance data contained herein are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.
3.
The parts covered by this specification sheet are subject to
Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled to the rights and benefits contained therein. For a full statement of the Standard
Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp.
Page 2 of 2
