ZX95-765-S datasheet, PDF - EEWORLD Datasheet

ZX95-765-S: DescriptionVoltage Controlled Oscillator, 485MHz Min, 765MHz Max, CASE GB956; CategoryPassive components oscillator; File Size112KB，2 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com

Download Datasheet Parametric View All

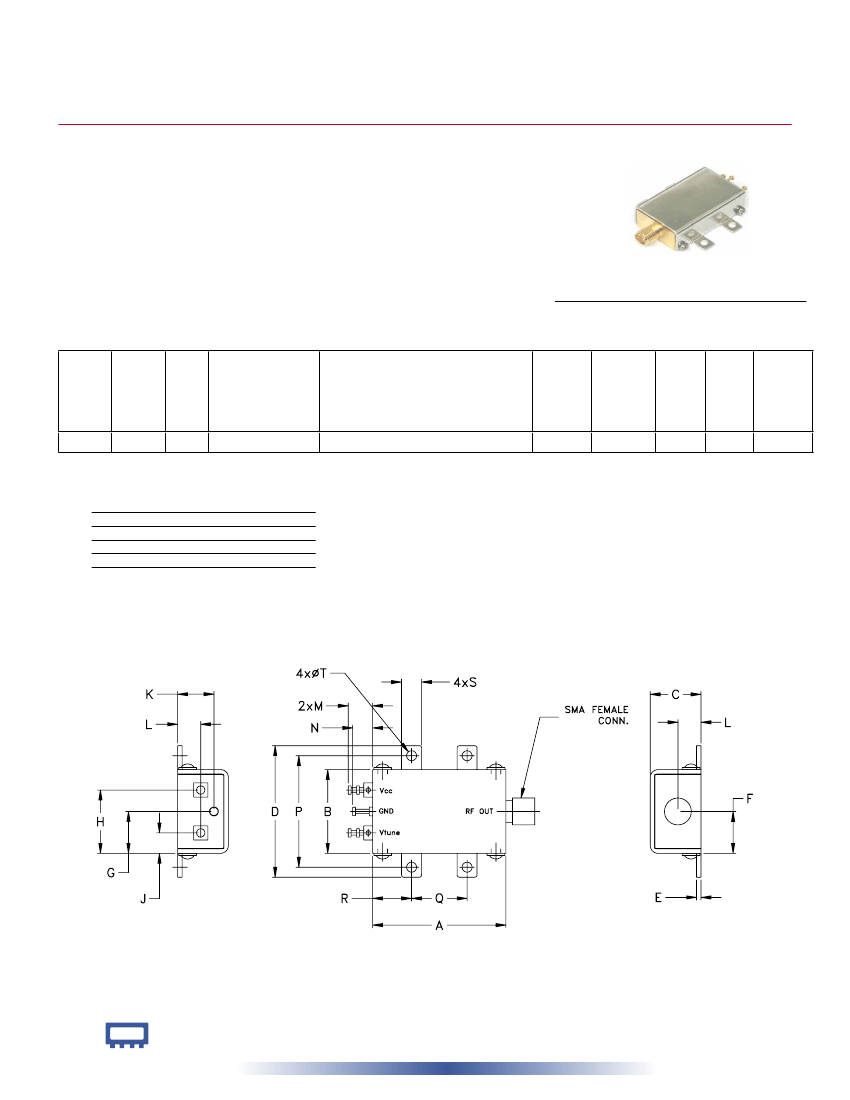

ZX95-765-S Overview

Voltage Controlled Oscillator, 485MHz Min, 765MHz Max, CASE GB956

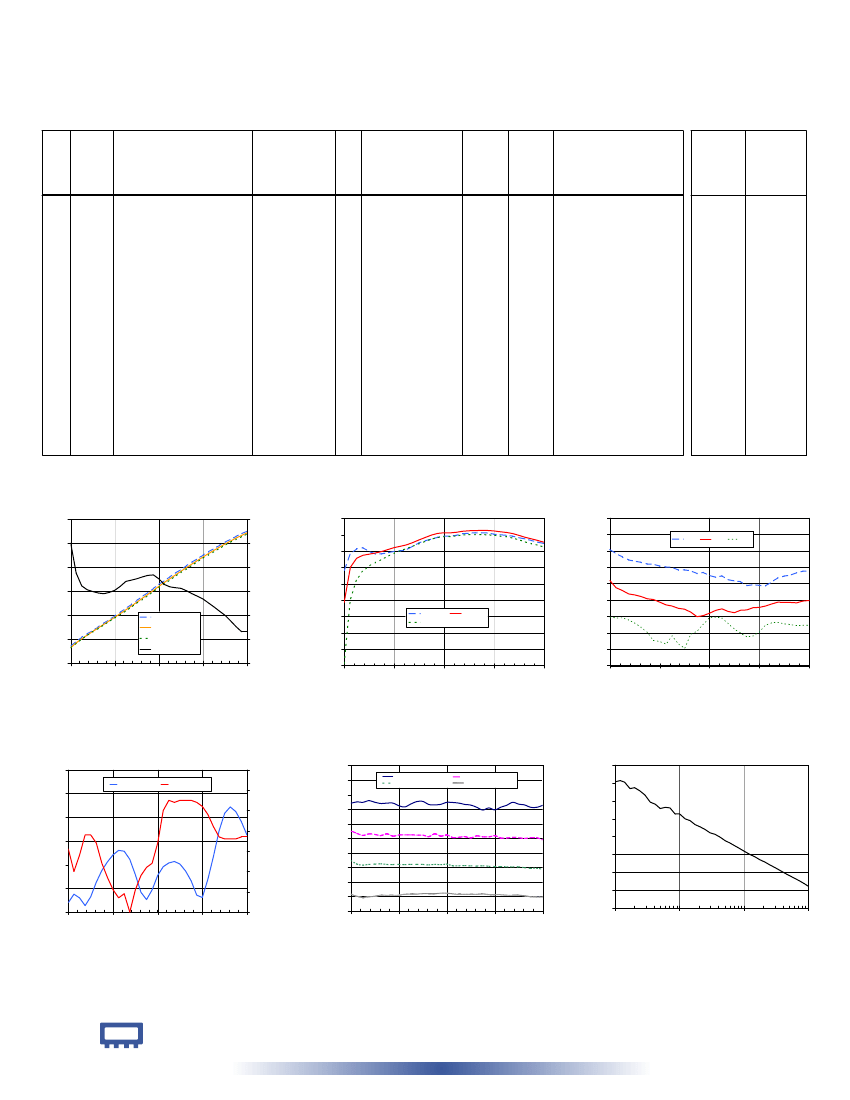

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mini-Circuits
package instruction	CASE GB956
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	SMA-F CONNECTOR
Maximum control voltage	16 V
Minimum control voltage	1 V
JESD-609 code	e0
Modulation sensitivity	33 MHz/V
Installation features	CHASSIS MOUNT
offset frequency	1 kHz
Maximum operating frequency	765 MHz
Minimum operating frequency	485 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Oscillator type	VOLTAGE CONTROLLED OSCILLATOR
Output Power	8 dBm
phase noise	-77 dBc/Hz
physical size	30.48mm x 19.05mm x 11.68mm
Maximum slew rate	22 mA
Nominal supply voltage	12 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
