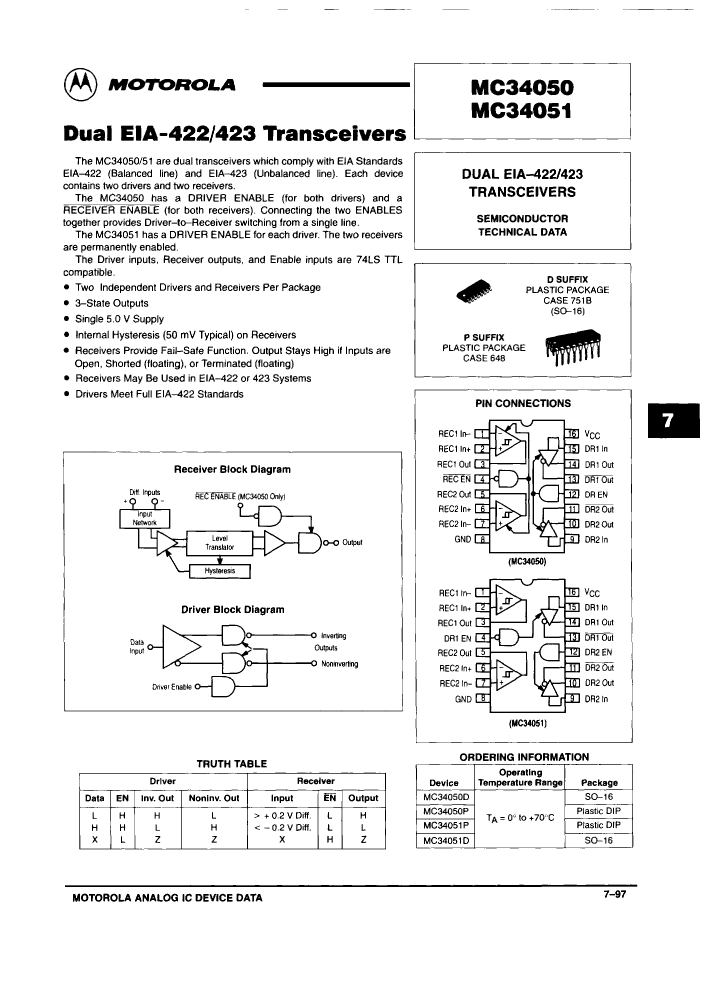

LINE TRANSCEIVER, PDSO16, PLASTIC, SO-16

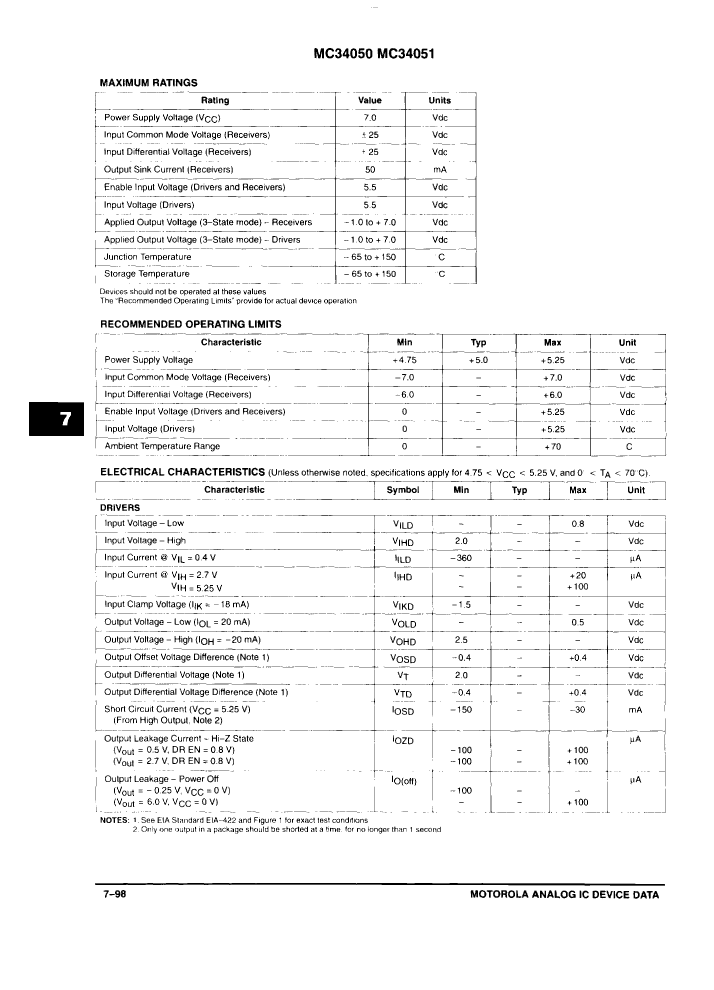

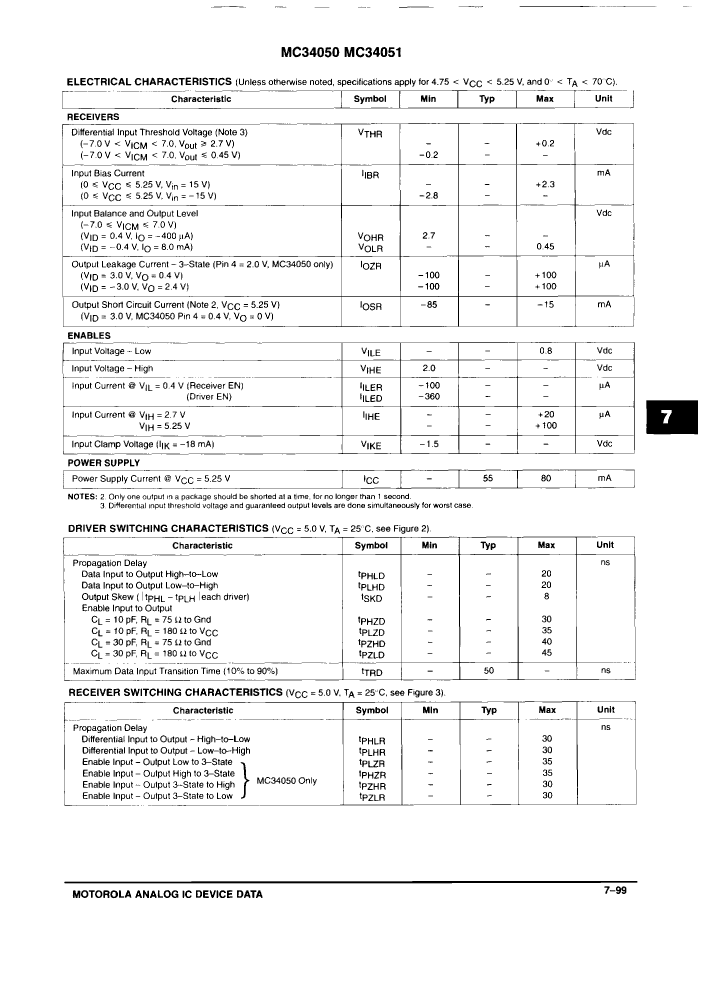

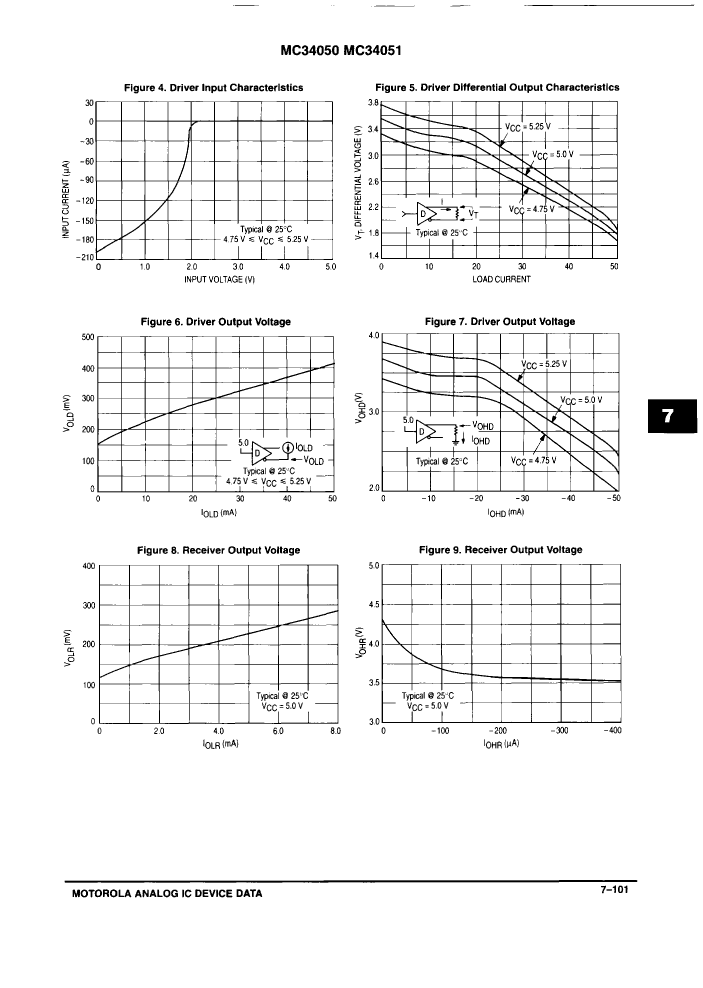

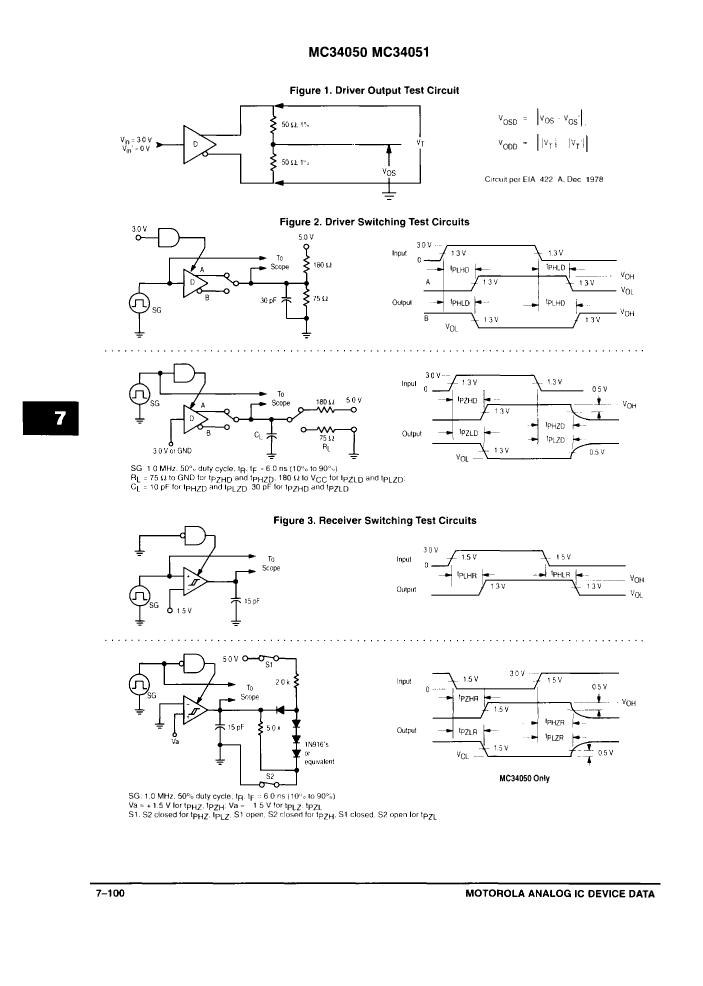

| Parameter Name | Attribute value |
| Maker | Motorola ( NXP ) |
| Parts packaging code | SOIC |
| package instruction | SOP, |
| Contacts | 16 |
| Reach Compliance Code | unknow |
| ECCN code | EAR99 |
| Other features | TRISTATABLE RECEIVERS |
| Differential output | YES |
| Number of drives | 2 |
| Input properties | DIFFERENTIAL SCHMITT TRIGGER |
| Interface integrated circuit type | LINE TRANSCEIVER |
| Interface standards | EIA-422; EIA-423 |
| JESD-30 code | R-PDSO-G16 |
| length | 9.9 mm |
| Number of functions | 1 |
| Number of terminals | 16 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Output characteristics | 3-STATE |
| Output polarity | COMPLEMENTARY |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SOP |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Certification status | Not Qualified |
| Maximum receive delay | 30 ns |
| Number of receiver bits | 2 |
| Maximum seat height | 1.75 mm |
| Maximum slew rate | 80 mA |
| Maximum supply voltage | 5.25 V |
| Minimum supply voltage | 4.75 V |
| Nominal supply voltage | 5 V |
| surface mount | YES |
| technology | BIPOLAR |
| Temperature level | COMMERCIAL |
| Terminal form | GULL WING |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| maximum transmission delay | 20 ns |
| width | 3.9 mm |
| MC34050DR2 | MC34051DR2 | MC34051P | |
|---|---|---|---|
| Description | LINE TRANSCEIVER, PDSO16, PLASTIC, SO-16 | Line Transceiver, 2 Func, 1 Driver, 1 Rcvr, BIPolar, PDSO16, PLASTIC, SO-16 | DUAL LINE TRANSCEIVER, PDIP16, PLASTIC, DIP-16 |
| Maker | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) |
| package instruction | SOP, | SOP, | DIP, DIP16,.3 |
| Reach Compliance Code | unknow | unknow | unknow |
| ECCN code | EAR99 | EAR99 | EAR99 |
| Differential output | YES | YES | YES |
| Number of drives | 2 | 1 | 1 |
| Input properties | DIFFERENTIAL SCHMITT TRIGGER | DIFFERENTIAL SCHMITT TRIGGER | DIFFERENTIAL SCHMITT TRIGGER |
| Interface integrated circuit type | LINE TRANSCEIVER | LINE TRANSCEIVER | LINE TRANSCEIVER |
| Interface standards | EIA-422; EIA-423 | EIA-422; EIA-423 | EIA-422; EIA-423 |
| JESD-30 code | R-PDSO-G16 | R-PDSO-G16 | R-PDIP-T16 |
| length | 9.9 mm | 9.9 mm | 19.175 mm |
| Number of functions | 1 | 2 | 2 |
| Number of terminals | 16 | 16 | 16 |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE |
| Output polarity | COMPLEMENTARY | COMPLEMENTARY | COMPLEMENTARY |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | SOP | SOP | DIP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE | IN-LINE |
| Certification status | Not Qualified | Not Qualified | Not Qualified |
| Maximum receive delay | 30 ns | 30 ns | 30 ns |
| Number of receiver bits | 2 | 1 | 1 |
| Maximum seat height | 1.75 mm | 1.75 mm | 4.44 mm |
| Maximum slew rate | 80 mA | 80 mA | 80 mA |
| Maximum supply voltage | 5.25 V | 5.25 V | 5.25 V |
| Minimum supply voltage | 4.75 V | 4.75 V | 4.75 V |
| Nominal supply voltage | 5 V | 5 V | 5 V |
| surface mount | YES | YES | NO |
| technology | BIPOLAR | BIPOLAR | BIPOLAR |
| Temperature level | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal form | GULL WING | GULL WING | THROUGH-HOLE |
| Terminal pitch | 1.27 mm | 1.27 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL |
| maximum transmission delay | 20 ns | 20 ns | 20 ns |
| width | 3.9 mm | 3.9 mm | 7.62 mm |
| Parts packaging code | SOIC | - | DIP |
| Contacts | 16 | - | 16 |
