M3V21V1CJ82.0000MHZ datasheet, PDF

M3V21V1CJ82.0000MHZ: DescriptionOscillator, 1.544MHz Min, 82MHz Max, 82MHz Nom; CategoryPassive components oscillator; File Size81KB，1 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com

Download Datasheet Parametric View All

M3V21V1CJ82.0000MHZ Overview

Oscillator, 1.544MHz Min, 82MHz Max, 82MHz Nom

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	MtronPTI
package instruction	SMDIP4/10,.38
Reach Compliance Code	unknow
Installation features	SURFACE MOUNT
Number of terminals	4
Maximum operating frequency	82 MHz
Minimum operating frequency	1.544 MHz
Nominal operating frequency	82 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	CERAMIC
Encapsulate equivalent code	SMDIP4/10,.38
power supply	3.3 V
Certification status	Not Qualified
Maximum slew rate	35 mA
Nominal supply voltage	3.3 V
surface mount	YES

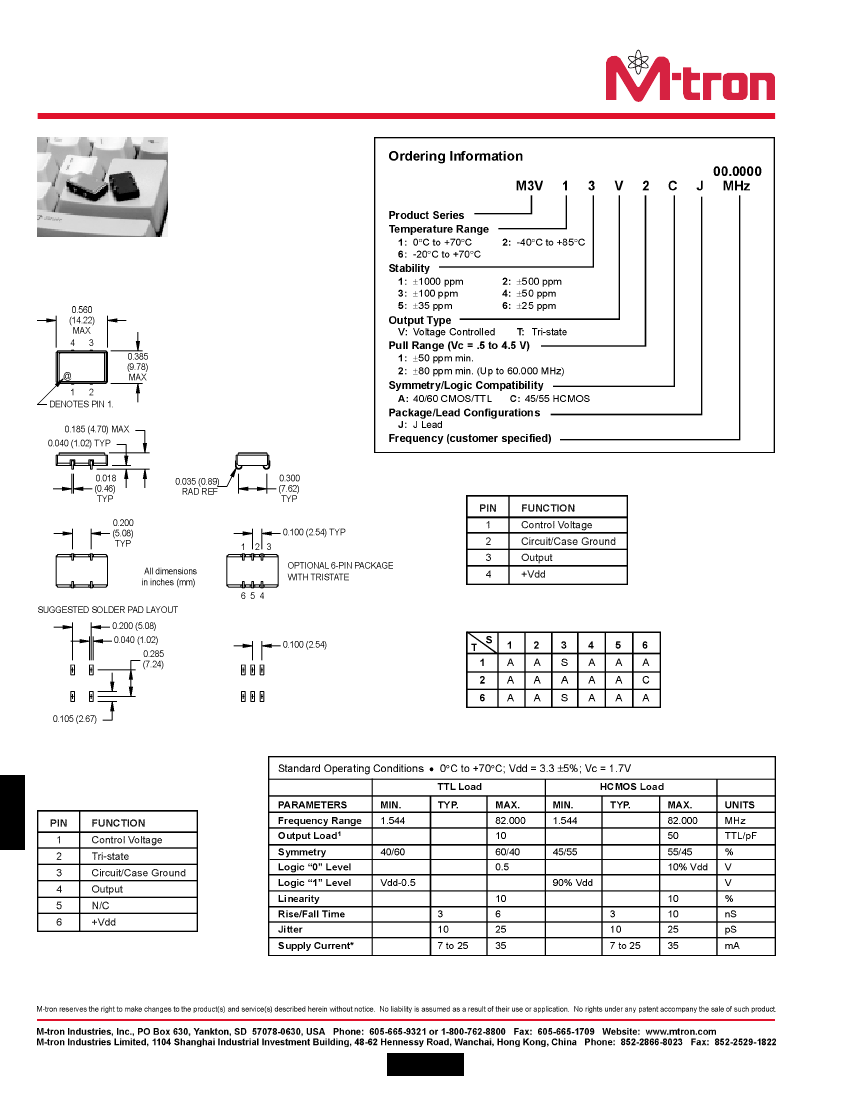

M3V Series Surface Mount Voltage

Controlled Crystal Oscillators (VCXO)

HCMOS/TTL Compatible, Ceramic,

Surface Mount Package

Pin Connections

Available Stabilities vs. Temperature

A = Available

S =Standard

C = Consult Factory

Electrical Specifications

Tri-State Option

Pin Connections

Tri-state Control Logic

Pin 2 high or floating: clock signal output.

Pin 2 low: output disabled to high impedance.

TTL load - See load circuit diagram #1 on page 137. HCMOS load - see load circuit diagram #2 on page 137.

Frequency dependent.

See page 123, Figure 2 for suggested solder profile.

100
