272216101222 datasheet, PDF - EEWORLD Datasheet

272216101222: DescriptionRF/Microwave Isolator/Circulator, 8500 MHz - 9600 MHz RF/MICROWAVE ISOLATOR; CategoryWireless rf/communication Radio frequency and microwave; File Size39KB，2 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

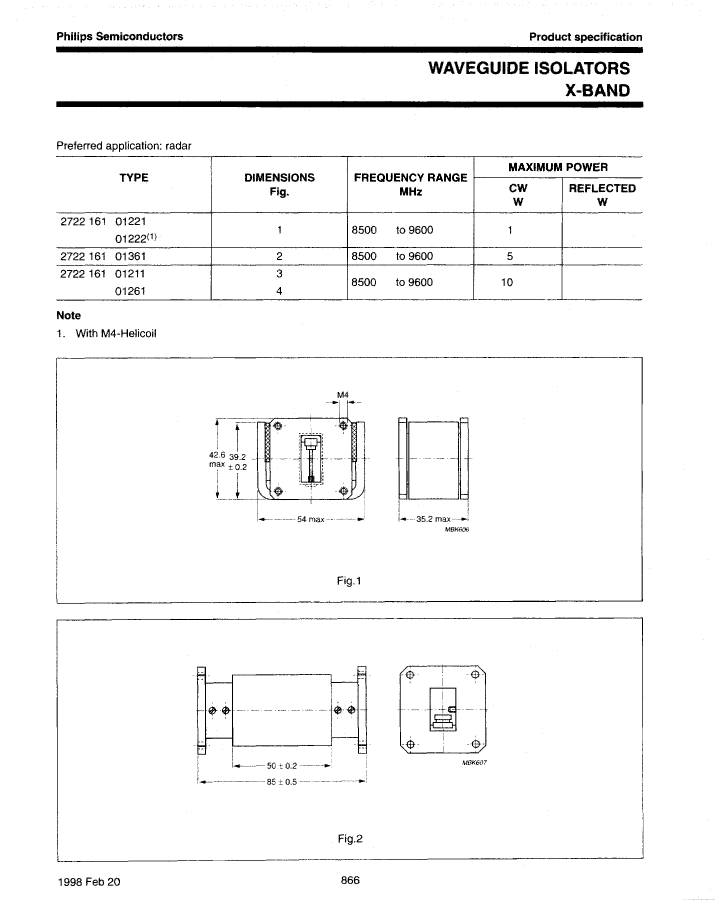

272216101222 Overview

RF/Microwave Isolator/Circulator, 8500 MHz - 9600 MHz RF/MICROWAVE ISOLATOR

Parameter Name	Attribute value
Reach Compliance Code	unknow
structure	WAVEGUIDE
Maximum input power (CW)	30 dBm
Maximum insertion loss	0.6 dB
Maximum operating frequency	9600 MHz
Minimum operating frequency	8500 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	10 °C
RF/Microwave Device Types	ISOLATOR
Maximum voltage standing wave ratio	1.15
Base Number Matches	1

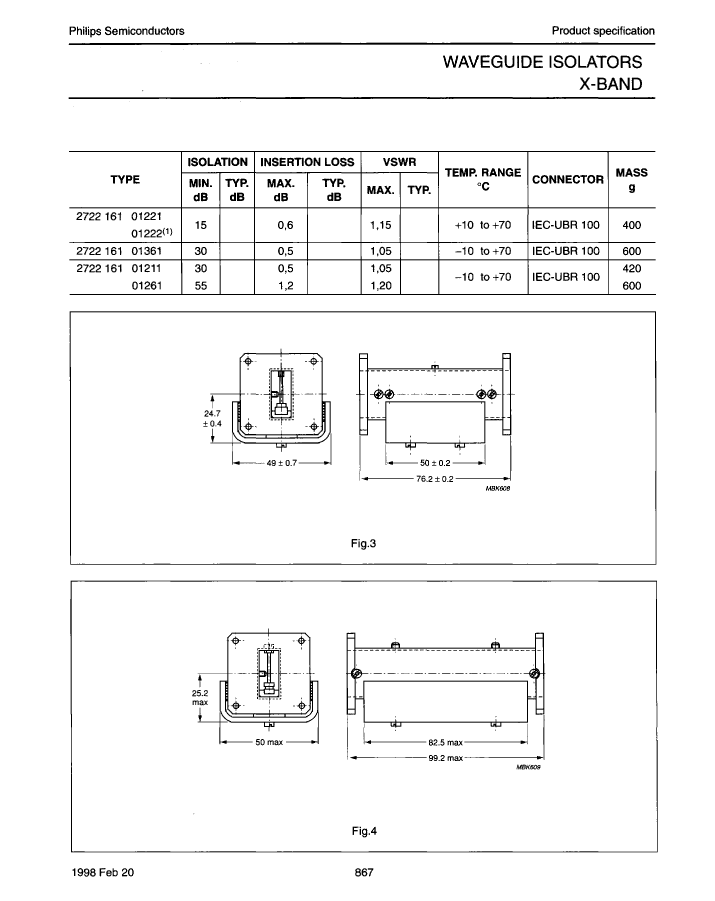

	272216101222	272216101361	272216101261	272216101221	272216101211
Description	RF/Microwave Isolator/Circulator, 8500 MHz - 9600 MHz RF/MICROWAVE ISOLATOR	RF/Microwave Isolator/Circulator, 8500 MHz - 9600 MHz RF/MICROWAVE ISOLATOR	RF/Microwave Isolator/Circulator, 8500 MHz - 9600 MHz RF/MICROWAVE ISOLATOR	RF/Microwave Isolator/Circulator, 8500 MHz - 9600 MHz RF/MICROWAVE ISOLATOR	RF/Microwave Isolator/Circulator, 8500 MHz - 9600 MHz RF/MICROWAVE ISOLATOR
Reach Compliance Code	unknow	unknow	unknow	unknown	unknow
structure	WAVEGUIDE	WAVEGUIDE	WAVEGUIDE	WAVEGUIDE	WAVEGUIDE
Maximum input power (CW)	30 dBm	36.99 dBm	40 dBm	30 dBm	40 dBm
Maximum insertion loss	0.6 dB	0.5 dB	1.2 dB	0.6 dB	0.5 dB
Maximum operating frequency	9600 MHz	9600 MHz	9600 MHz	9600 MHz	9600 MHz
Minimum operating frequency	8500 MHz	8500 MHz	8500 MHz	8500 MHz	8500 MHz
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	10 °C	-10 °C	-10 °C	10 °C	-10 °C
RF/Microwave Device Types	ISOLATOR	ISOLATOR	ISOLATOR	ISOLATOR	ISOLATOR
Maximum voltage standing wave ratio	1.15	1.05	1.2	1.15	1.05
Base Number Matches	1	1	1	1	-
