BT151S650RT/R datasheet, PDF - EEWORLD Datasheet

BT151S650RT/R: DescriptionSilicon Controlled Rectifier, 7500mA I(T), 650V V(DRM); CategoryAnalog mixed-signal IC Trigger device; File Size266KB，5 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

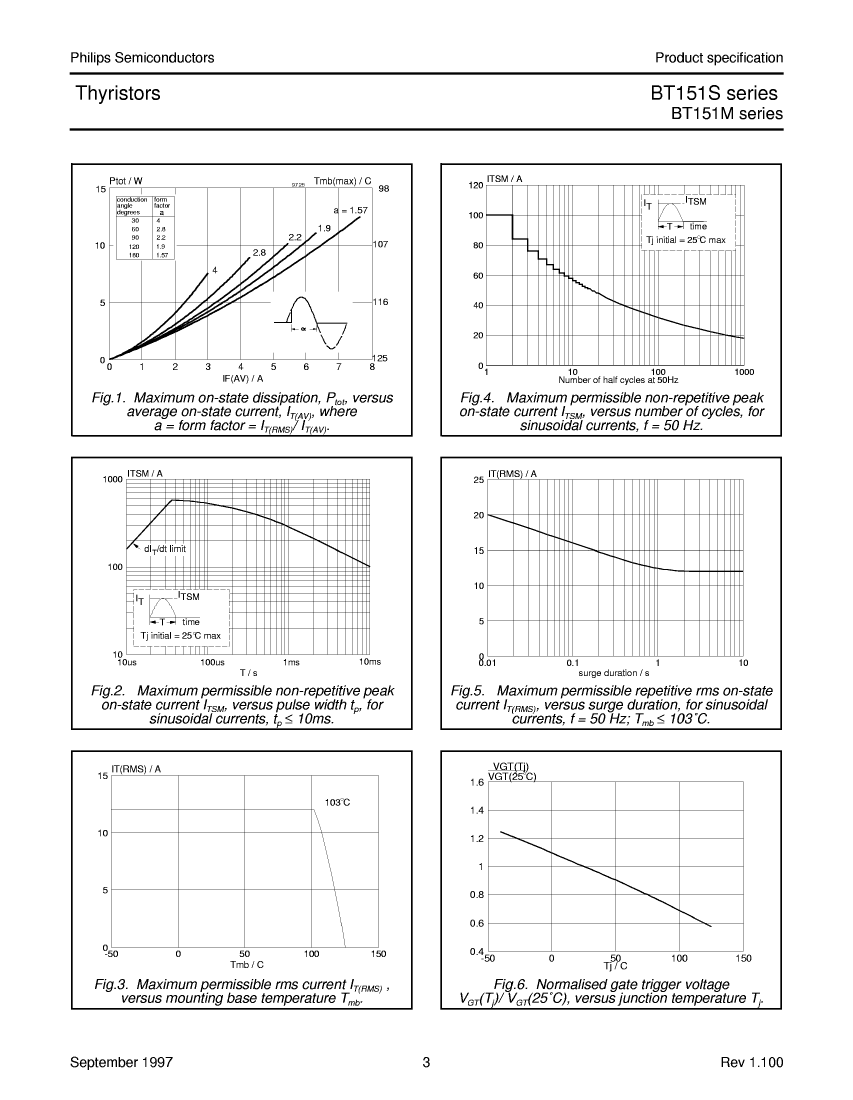

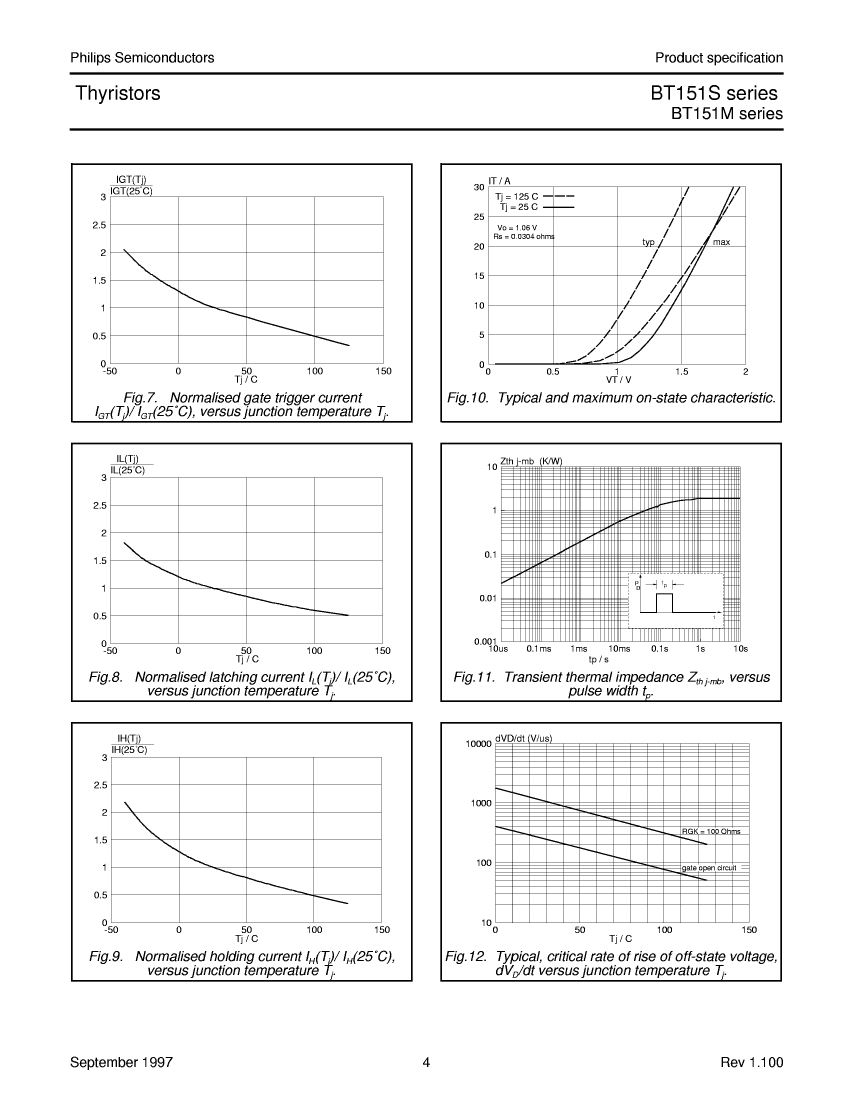

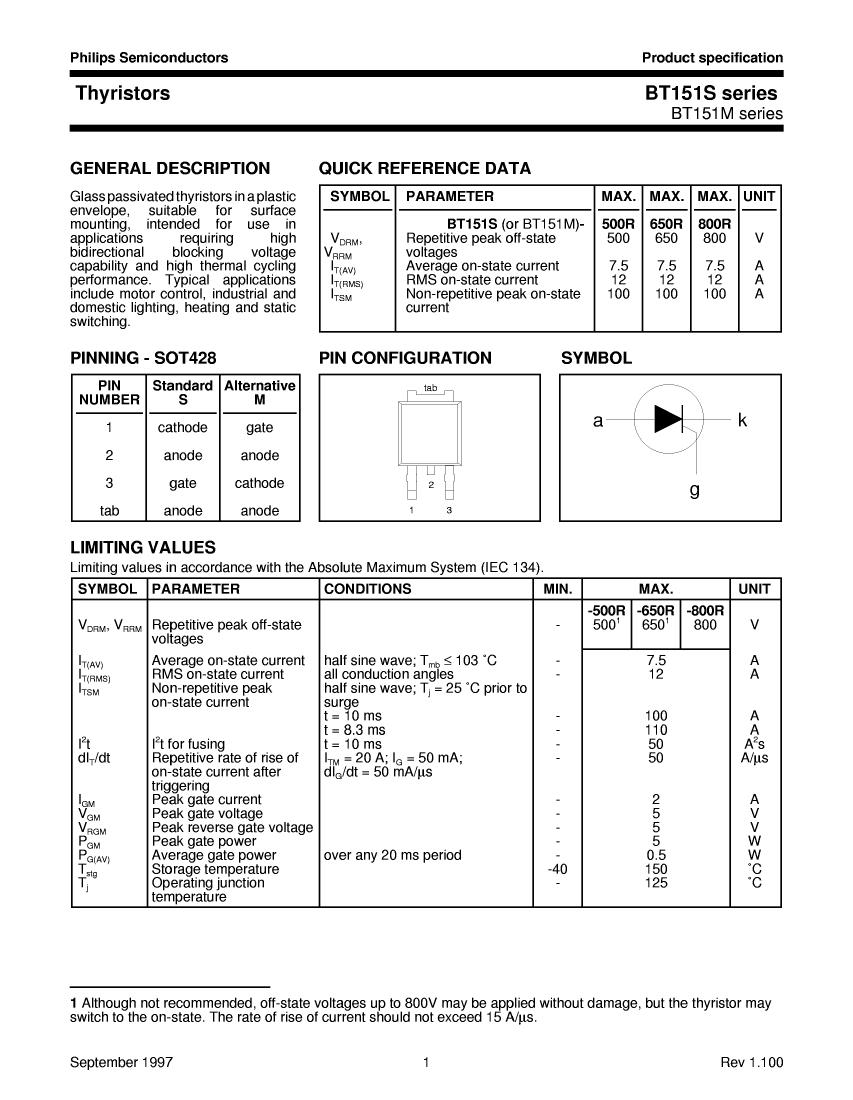

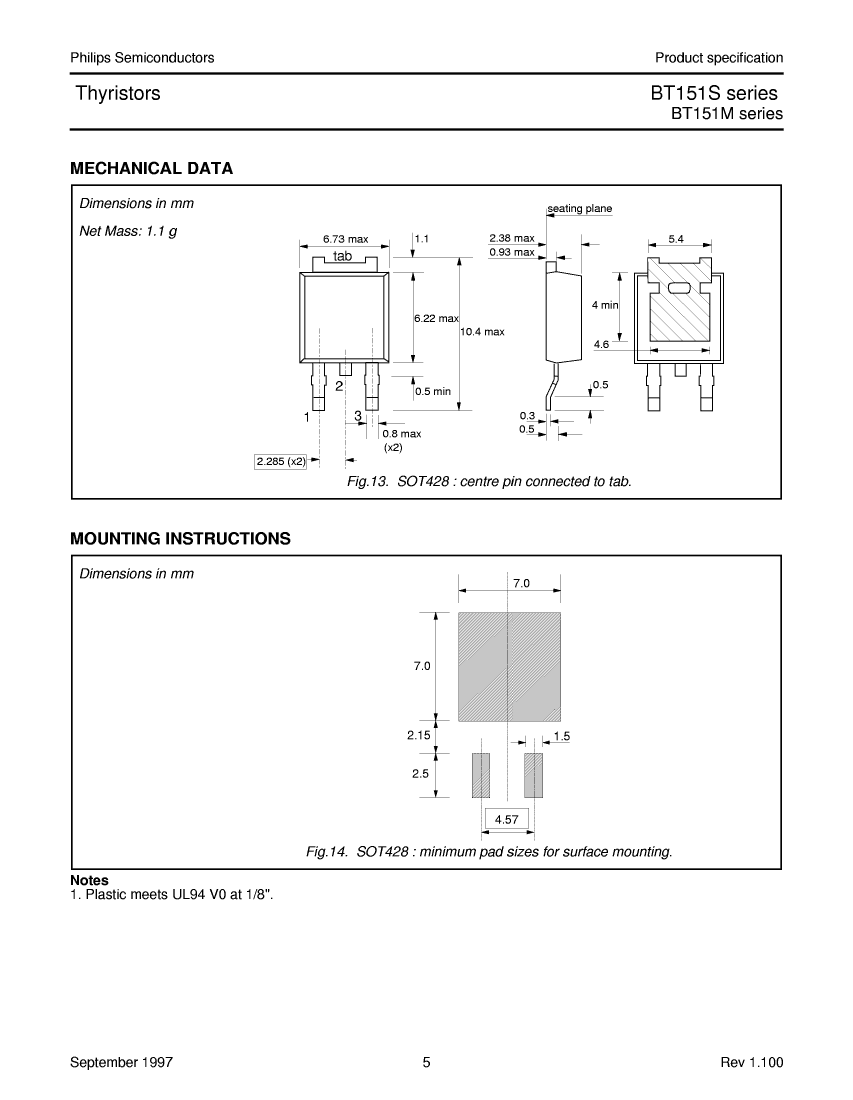

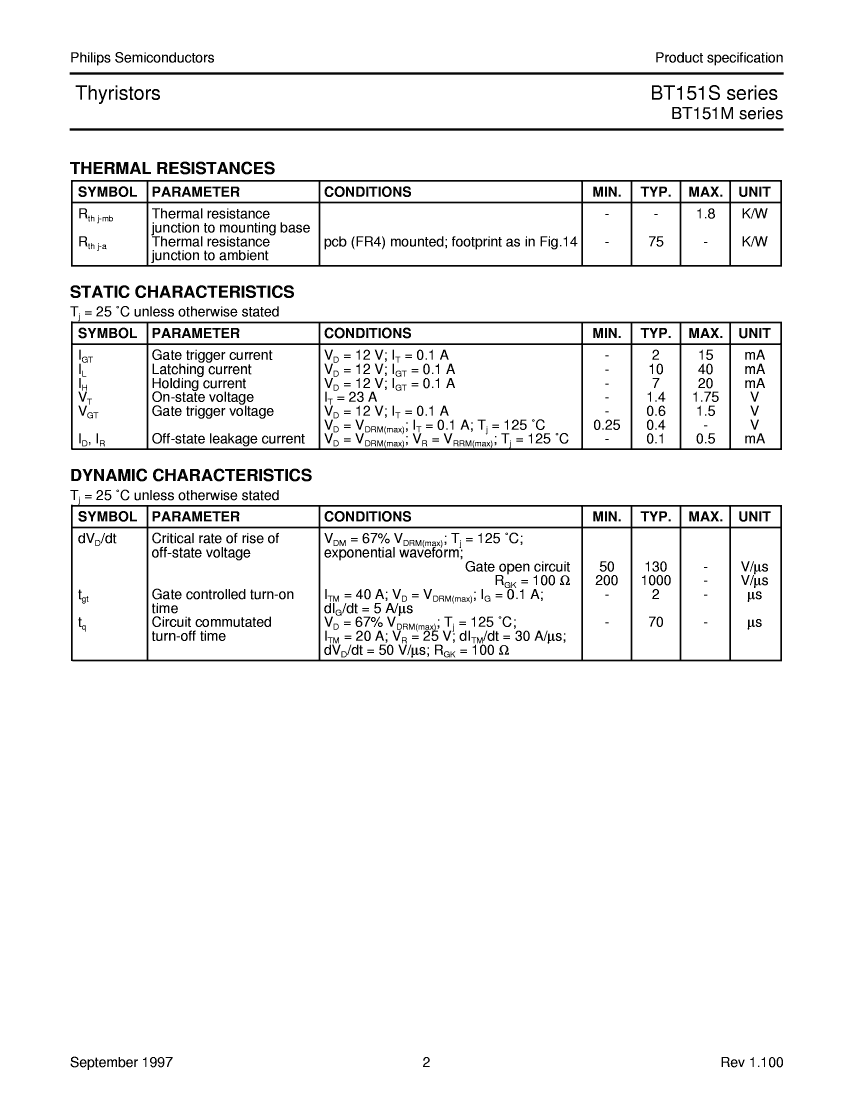

BT151S650RT/R Overview

Silicon Controlled Rectifier, 7500mA I(T), 650V V(DRM)

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	,
Reach Compliance Code	unknow
ECCN code	EAR99
Nominal circuit commutation break time	70 µs
Maximum DC gate trigger current	15 mA
Maximum DC gate trigger voltage	1.5 V
Maximum holding current	20 mA
Maximum leakage current	0.5 mA
On-state non-repetitive peak current	100 A
Maximum on-state voltage	1.75 V
Maximum on-state current	7500 A
Maximum operating temperature	125 °C
Off-state repetitive peak voltage	650 V
surface mount	YES
Trigger device type	SCR

	BT151S650RT/R	BT151M650R	BT151S500RT/R	BT151S800RT/R
Description	Silicon Controlled Rectifier, 7500mA I(T), 650V V(DRM)	Silicon Controlled Rectifier, 7500mA I(T), 650V V(DRM)	Silicon Controlled Rectifier, 7500mA I(T), 500V V(DRM)	Silicon Controlled Rectifier, 7500mA I(T), 800V V(DRM)
Is it Rohs certified?	conform to	incompatible	conform to	conform to
Maker	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)
Reach Compliance Code	unknow	unknown	unknown	unknow
Nominal circuit commutation break time	70 µs	70 µs	70 µs	70 µs
Maximum DC gate trigger current	15 mA	15 mA	15 mA	15 mA
Maximum DC gate trigger voltage	1.5 V	1.5 V	1.5 V	1.5 V
Maximum holding current	20 mA	20 mA	20 mA	20 mA
Maximum leakage current	0.5 mA	0.5 mA	0.5 mA	0.5 mA
On-state non-repetitive peak current	100 A	100 A	100 A	100 A
Maximum on-state voltage	1.75 V	1.75 V	1.75 V	1.75 V
Maximum on-state current	7500 A	7500 A	7500 A	7500 A
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Off-state repetitive peak voltage	650 V	650 V	500 V	800 V
surface mount	YES	YES	YES	YES
Trigger device type	SCR	SCR	SCR	SCR
