R125.654.591

Description
RF SMA Connector, Panel Mount, Solder Terminal
CategoryThe connector    The connector
File Size32KB,2 Pages
ManufacturerRadiall
Websitehttps://www.radiall.com/
Download Datasheet Parametric View All

R125.654.591 Overview

RF SMA Connector, Panel Mount, Solder Terminal

R125.654.591 Parametric

Parameter NameAttribute value
MakerRadiall
Reach Compliance Codeunknow
Characteristic impedance50 Ω
Connector typeRF SMA CONNECTOR
Contact to complete cooperationGOLD (51) OVER NICKEL (79)
Contact completed and terminatedGOLD (51) OVER NICKEL (79)
Coupling typeTHREADED
DIN complianceNO
Filter functionNO
IEC complianceNO
Insertion loss0.3 dB
insulator materialPOLYTETRAFLUORO ETHYLENE
JESD-609 codee4
MIL complianceNO
Manufacturer's serial numberSMA
Plug informationNO
Installation methodRIGHT ANGLE
Maximum operating frequency18 GHz
OptionsGENERAL PURPOSE
Panel mountingYES
Termination typeSOLDER
voltage standing wave ratio1.1

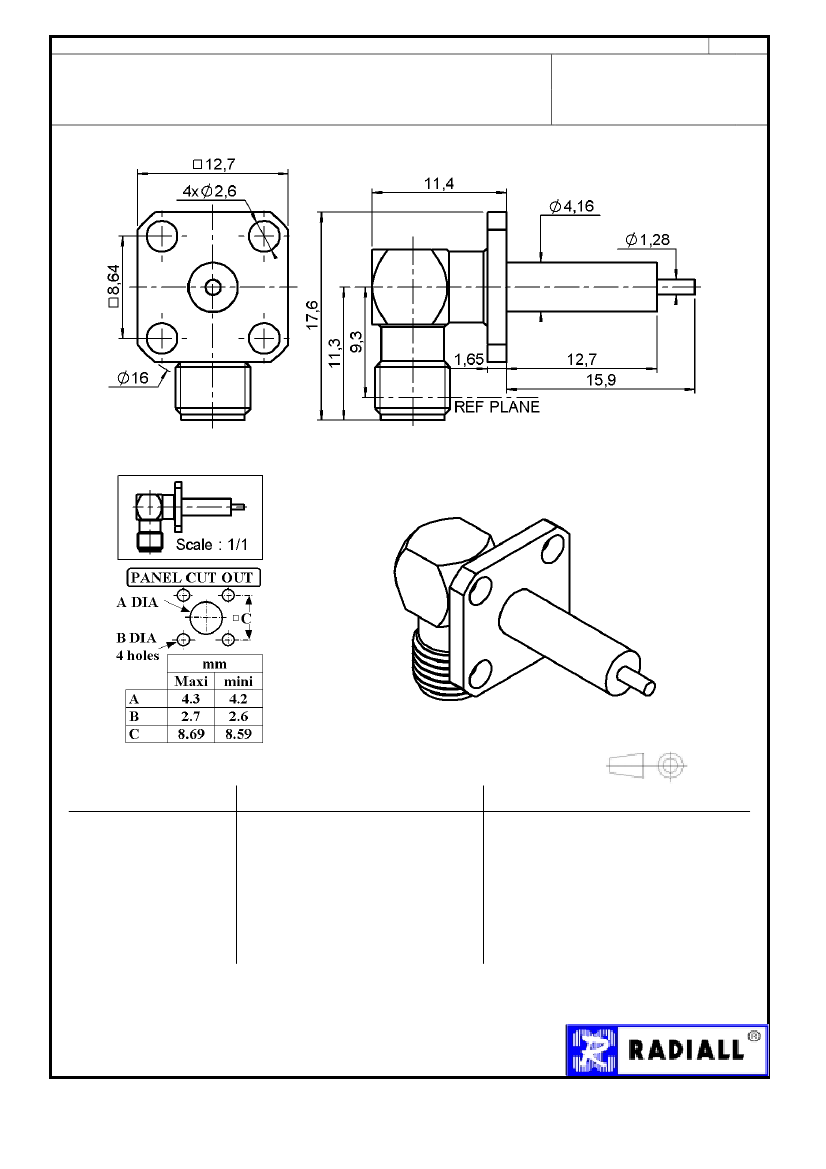

TECHNICAL DATA SHEET
1/2
RIGHT ANGLE SQUARE FLANGE
WITH CYLINDRICAL CONTACT
R125.654.591
Series :
SMA
All dimensions are in mm.
.
pn
.
ao
COMPONENTS
BODY
CENTER CONTACT
OUTER CONTACT
INSULATOR
GASKET
OTHERS PARTS
-
-
MATERIALS
STAINLESS STEEL
BERYLLIUM COPPER
-
PTFE
-
-
-
-
PLATINGS (
µm
)
PASSIVATED .
GOLD 1.3 OVER NICKEL 2
-
-
-
-
Issue :
0224 B
In the effort to improve our products, we reserve the right to make changes judged to be
necessary.
