BR6575 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> BR6575

BR6575: DescriptionWide Band Low Power Amplifier, 5MHz Min, 500MHz Max, H2, TO-8B; CategoryWireless rf/communication Radio frequency and microwave; File Size202KB，4 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

BR6575 Overview

Wide Band Low Power Amplifier, 5MHz Min, 500MHz Max, H2, TO-8B

BR6575 Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compli
Other features	SMA-F, I/P POWER-MAX (PEAK)=27DBM
structure	COAXIAL
Gain	19 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	500 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

Cross Reference Guide

BR6575 / SBR6575*

* Part number for additional environmental screening.

Performance Data

Frequency

Gain

Noise Figure

1dB

Order Intercept

VSWR

Reverse Isolation

Power Supply

Operating Temperature

5.0 - 500.0 MHz

21.0 dB Typical

19.0 dB Min

2.7 dB Typical

3.5 dB Max

9.5 dBm Typical

8.5 dBm Min

21.0 dBm Typical

28.0 dBm Typical

1.5/2.0 Input Typ/Max

1.2/2.0 Output Typ/Max

-23.0 dB Typical

-21.0 dB Min

15.0 Volts

23.0 mA

-55.0 - 85.0 °C

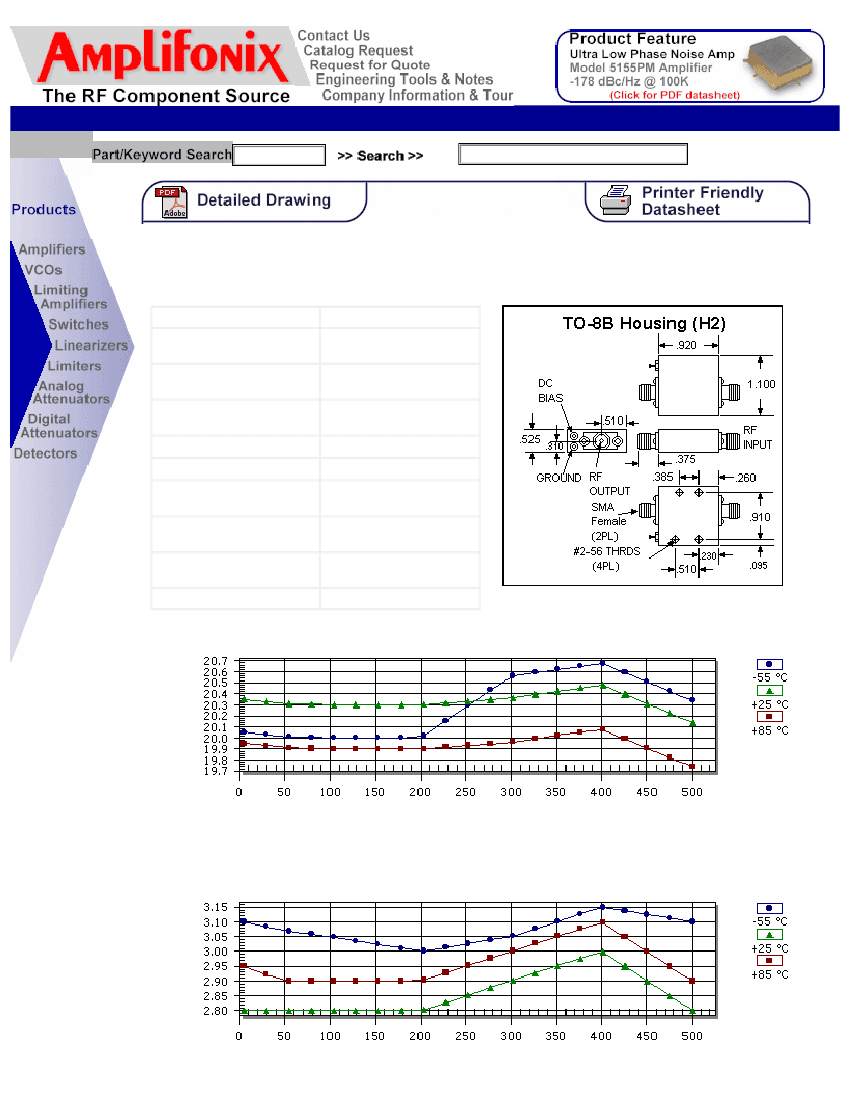

Package Drawing

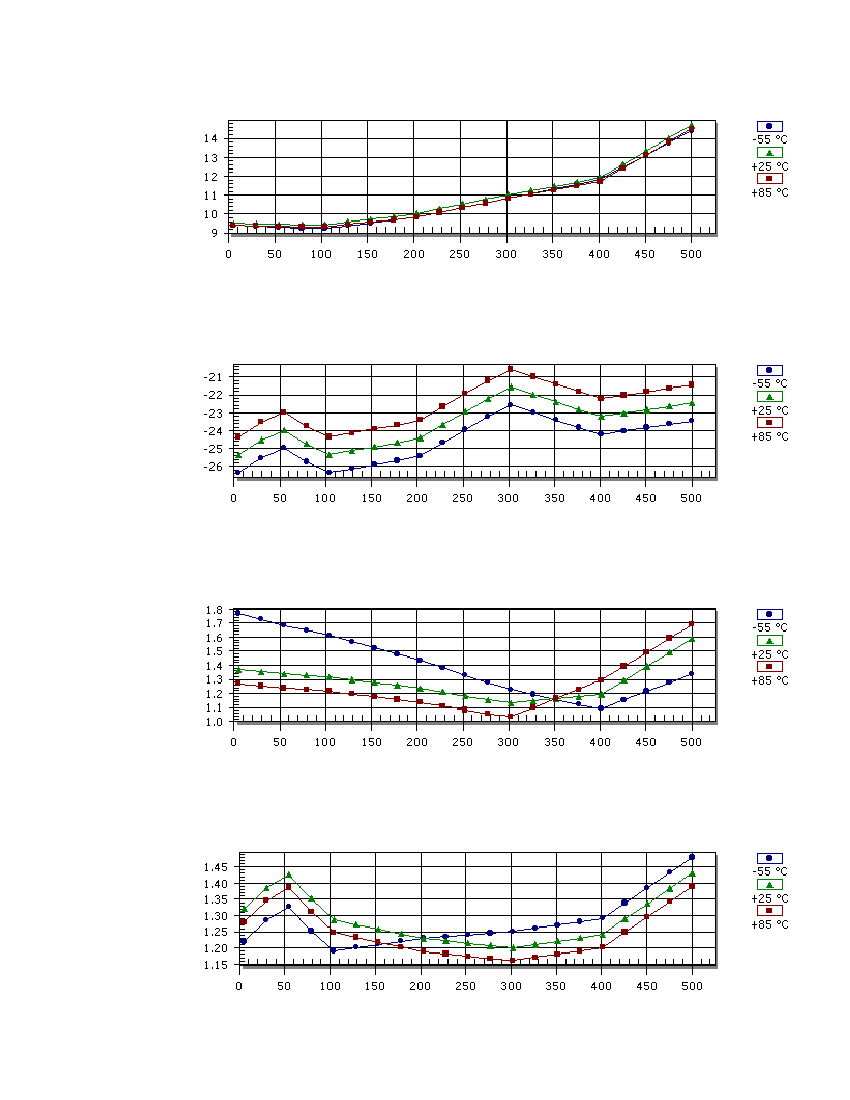

Gain

Frequency (MHz)

Noise Figure

BR6575 Related Products

	BR6575	SBR6575
Description	Wide Band Low Power Amplifier, 5MHz Min, 500MHz Max, H2, TO-8B	Wide Band Low Power Amplifier, 5MHz Min, 500MHz Max, H2, TO-8B
Maker	API Technologies	API Technologies
Reach Compliance Code	compli	compliant
Other features	SMA-F, I/P POWER-MAX (PEAK)=27DBM	SMA-F, I/P POWER-MAX (PEAK)=27DBM
structure	COAXIAL	COAXIAL
Gain	19 dB	19 dB
Maximum input power (CW)	13 dBm	13 dBm
Maximum operating frequency	500 MHz	500 MHz
Minimum operating frequency	5 MHz	5 MHz
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2
