RT8036F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> BuckConv> RT8036F

RT8036F: DescriptionOne Step Down DC/DC Converter and Four Linear Regulators with Individual On/Off Control, Active, 2.5V, 5.5V, 5, 1V, 3.3V, Fixed; CategoryPower/power management BuckConv; File Size329KB，17 Pages; ManufacturerRichtek Technology Corporation; Websitehttps://www.richtek.com/

Download Datasheet Parametric Compare View All

RT8036F Overview

One Step Down DC/DC Converter and Four Linear Regulators with Individual On/Off Control, Active, 2.5V, 5.5V, 5, 1V, 3.3V, Fixed

RT8036F Parametric

Parameter Name	Attribute value
Status	Active
Vin (min)(V)	2.5
Vin (max)(V)	5.5
Number of Outputs	5
Vout (min)(V)	1
Vout (max)(V)	3.3
Preset Vout(V)
Output Adj. Method	Fixed
Iout (max)(A)	0.6
Current Limit (typ)(A)	1.8
Freq (typ)(kHz)	1500
Freq (min)(kHz)
Freq (max)(kHz)
Ext Sync	No
Ron_HS (typ)(mOhm)	280
Ron_LS (typ)(mOhm)	250
Iq (typ)(mA)	0.04
Features	100% Duty Cycle;Current Mode Control;Enable Input;Internal Compensation;OCP;PSM;Stable with Ceramic Capacitor
Package Type	WQFN3x3-20
Datasheet	https://datasheet5.oss-cn-shanghai.aliyuncs.com/datasheets/richtek/DS8036-02.pdf

Preview

Download Datasheet

View All

RT8036

One Step Down DC/DC Converter and Four Linear

Regulators with Individual On/Off Control

General Description

The RT8036 is an integrated power management unit which

integrates one 600mA high efficiency step down DC/DC

converter and four low dropout voltage regulators with

300mA current capability for each regulator.

The RT8036 is optimized for sub block power requirement

solution. The individual on/off control for each device can

provide flexibility for different power on sequence. Four

linear regulators provide high PSRR output and are suitable

for both analog and digital power.

The RT8036 is available in the WQFN-20L 3x3 package

that is suitable for portable device.

Features

Four Low Noise LDOs for Up to 300mA

One High Efficiency Synchronous Buck Up to 600mA

Output

Individual On/Off Control for Each Output

Small 20-Lead WQFN Package

RoHS Compliant and Halogen Free

Applications

Smart Handheld device

Cellular phone

Pin Configurations

(TOP VIEW)

VOUTL2

VOUTL1

AGND

VINL2

20 19 18 17 16

Ordering Information

RT8036

Package Type

QW : WQFN-20L 3x3 (W-Type)

Lead Plating System

G : Green (Halogen Free and Pb Free)

Output Voltage :

A : Buck : 1V

LDO1/2/3/4 : 1V/2.6V/3V/3.3V

B : Buck : 1.2V

LDO1/2/3/4 : 1.8V/2.8V/2.8V/2.8V

C : Buck : 1.3V

LDO1/2/3/4 : 1.8V/2.8V/2.8V/2.8V

D : Buck : 1.3V

LDO1/2/3/4 : 1.8V/2.8V/2.8V/3.0V

E : Buck : 1.3V

LDO1/2/3/4 : 1.8V/2.8V/2.8V/3.3V

Note :

Richtek products are :

RoHS compliant and compatible with the current require-

ments of IPC/JEDEC J-STD-020.

Suitable for use in SnPb or Pb-free soldering processes.

VINL1

ENL1

ENL2

VINB

GND

9 10

VOUTL3

VOUTL4

AGND

ENL4

ENL3

WQFN-20L 3x3

Marking Information

For marking information, contact our sales representative

directly or through a Richtek distributor located in your

area.

DS8036-02 April 2011

PGND

ENB

PGND

VOUTB

PGND

www.richtek.com

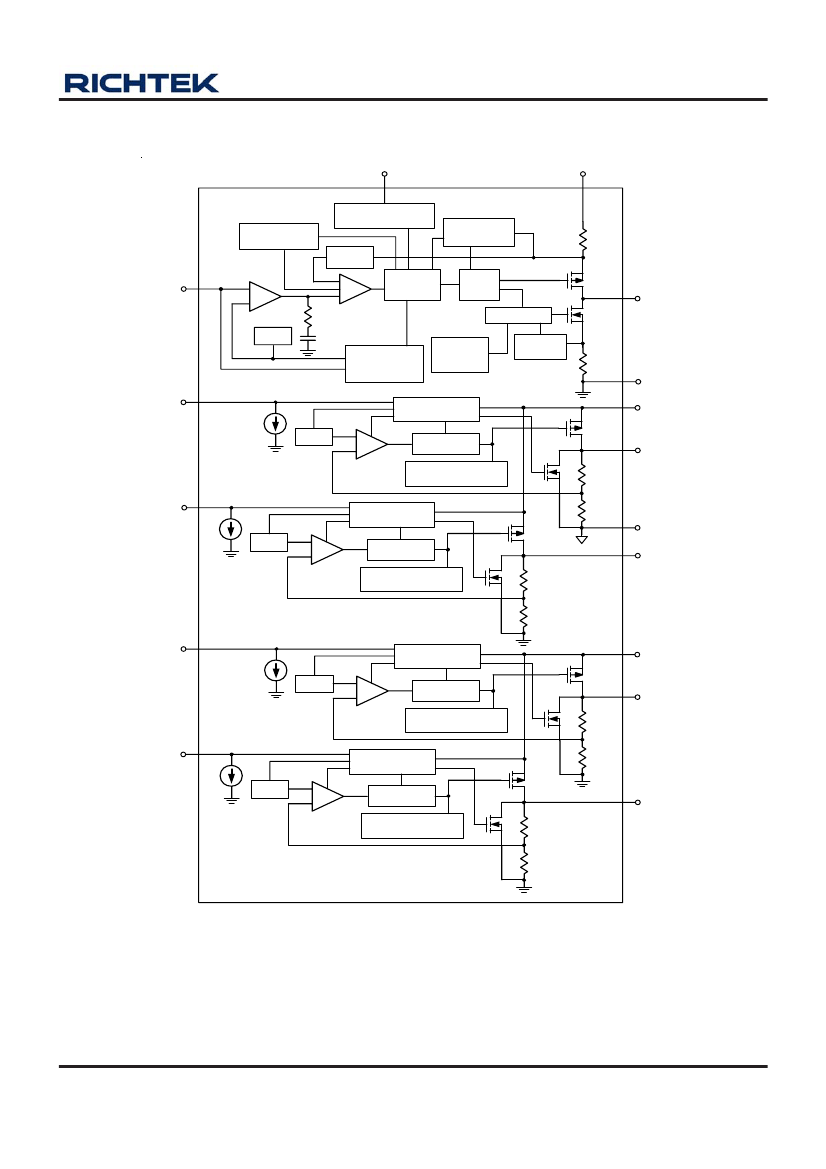

RT8036F Related Products

	RT8036F	RT8036B	RT8036C	RT8036D	RT8036A	RT8036E
Description	One Step Down DC/DC Converter and Four Linear Regulators with Individual On/Off Control, Active, 2.5V, 5.5V, 5, 1V, 3.3V, Fixed	One Step Down DC/DC Converter and Four Linear Regulators with Individual On/Off Control, Active, 2.5V, 5.5V, 5, 1V, 3.3V, Fixed	One Step Down DC/DC Converter and Four Linear Regulators with Individual On/Off Control, Active, 2.5V, 5.5V, 5, 1V, 3.3V, Fixed	One Step Down DC/DC Converter and Four Linear Regulators with Individual On/Off Control, Active, 2.5V, 5.5V, 5, 1V, 3.3V, Fixed	One Step Down DC/DC Converter and Four Linear Regulators with Individual On/Off Control, Active, 2.5V, 5.5V, 5, 1V, 3.3V, Fixed	One Step Down DC/DC Converter and Four Linear Regulators with Individual On/Off Control, Active, 2.5V, 5.5V, 5, 1V, 3.3V, Fixed
Status	Active	Active	Active	Active	Active	Active
Vin (min)(V)	2.5	2.5	2.5	2.5	2.5	2.5
Vin (max)(V)	5.5	5.5	5.5	5.5	5.5	5.5
Number of Outputs	5	5	5	5	5	5
Vout (min)(V)	1	1	1	1	1	1
Vout (max)(V)	3.3	3.3	3.3	3.3	3.3	3.3
Output Adj. Method	Fixed	Fixed	Fixed	Fixed	Fixed	Fixed
Iout (max)(A)	0.6	0.6	0.6	0.6	0.6	0.6
Current Limit (typ)(A)	1.8	1.8	1.8	1.8	1.8	1.8
Freq (typ)(kHz)	1500	1500	1500	1500	1500	1500
Ext Sync	No	No	No	No	N	No
Ron_HS (typ)(mOhm)	280	280	280	280	280	280
Ron_LS (typ)(mOhm)	250	250	250	250	250	250
Iq (typ)(mA)	0.04	0.04	0.04	0.04	0.04	0.04
Features	100% Duty Cycle;Current Mode Control;Enable Input;Internal Compensation;OCP;PSM;Stable with Ceramic Capacitor	100% Duty Cycle;Current Mode Control;Enable Input;Internal Compensation;OCP;PSM;Stable with Ceramic Capacitor	100% Duty Cycle;Current Mode Control;Enable Input;Internal Compensation;OCP;PSM;Stable with Ceramic Capacitor	100% Duty Cycle;Current Mode Control;Enable Input;Internal Compensation;OCP;PSM;Stable with Ceramic Capacitor	100% Duty Cycle;Current Mode Control;Enable Input;Internal Compensation;OCP;PSM;Stable with Ceramic Capaci	100% Duty Cycle;Current Mode Control;Enable Input;Internal Compensation;OCP;PSM;Stable with Ceramic Capacitor
Package Type	WQFN3x3-20	WQFN3x3-20	WQFN3x3-20	WQFN3x3-20	WQFN3x3-20	WQFN3x3-20
Datasheet	https://datasheet5.oss-cn-shanghai.aliyuncs.com/datasheets/richtek/DS8036-02.pdf	https://datasheet5.oss-cn-shanghai.aliyuncs.com/datasheets/richtek/DS8036-02.pdf	https://datasheet5.oss-cn-shanghai.aliyuncs.com/datasheets/richtek/DS8036-02.pdf	https://datasheet5.oss-cn-shanghai.aliyuncs.com/datasheets/richtek/DS8036-02.pdf	-	https://datasheet5.oss-cn-shanghai.aliyuncs.com/datasheets/richtek/DS8036-02.pdf
