DS36276M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> DS36276M

DS36276M: DescriptionLINE TRANSCEIVER, PDSO8, PLASTIC, SOIC-8; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size726KB，2 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric View All

DS36276M Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DS36276M	-	-	View	Buy Now

DS36276M Overview

LINE TRANSCEIVER, PDSO8, PLASTIC, SOIC-8

DS36276M Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Rochester Electronics
Parts packaging code	SOIC
package instruction	PLASTIC, SOIC-8
Contacts	8
Reach Compliance Code	unknown
Other features	COMMON I/O; 1 RECEIVER ACTIVE UNDER SHUTDOWN; TRISTATABLE RECEIVER
Differential output	YES
Number of drives	1
Input properties	DIFFERENTIAL SCHMITT TRIGGER
Interface integrated circuit type	LINE TRANSCEIVER
Interface standards	V.11; EIA-422-A; TIA-422-A; EIA-485; TIA-485
JESD-30 code	R-PDSO-G8
JESD-609 code	e0
length	4.9 mm
Humidity sensitivity level	1
Number of functions	1
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	235
Certification status	COMMERCIAL
Maximum receive delay	70 ns
Number of receiver bits	1
Maximum seat height	1.75 mm
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
maximum transmission delay	60 ns
width	3.9 mm

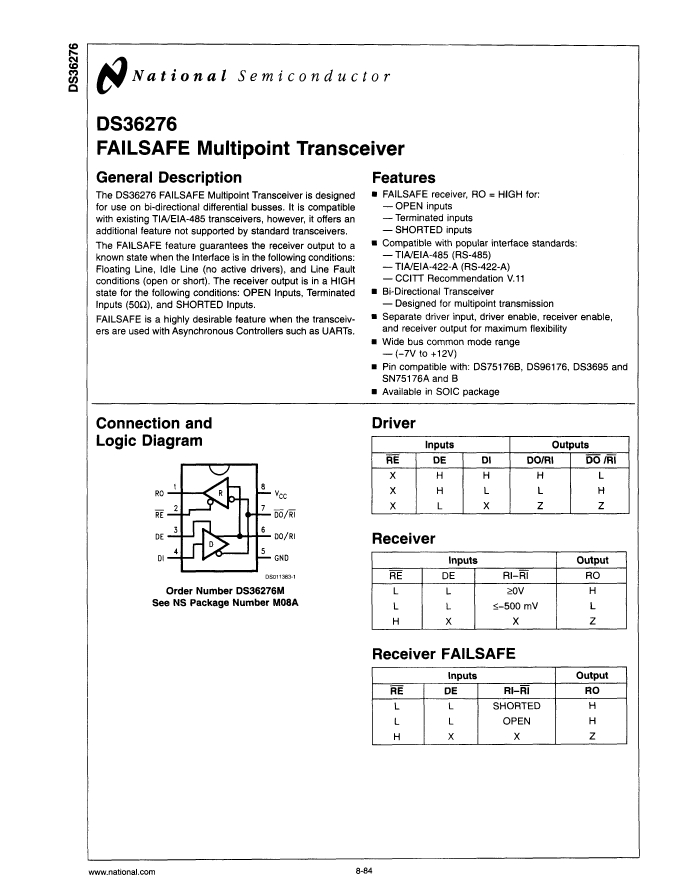

Preview
