RC3225J154CS: DescriptionFixed Resistor, Metal Glaze/thick Film, 0.33W, 150000ohm, 5% +/-Tol, 100ppm/Cel, Surface Mount, 1210, CHIP; CategoryPassive components The resistor; File Size175KB，6 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/; Environmental Compliance

Download Datasheet Parametric View All

RC3225J154CS Overview

Fixed Resistor, Metal Glaze/thick Film, 0.33W, 150000ohm, 5% +/-Tol, 100ppm/Cel, Surface Mount, 1210, CHIP

RC3225J154CS Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SAMSUNG
package instruction	CHIP
Reach Compliance Code	compli
ECCN code	EAR99
structure	Chi
JESD-609 code	e3
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	0.55 mm
Package length	3.2 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	2.55 mm
method of packing	TR, 7 INCH

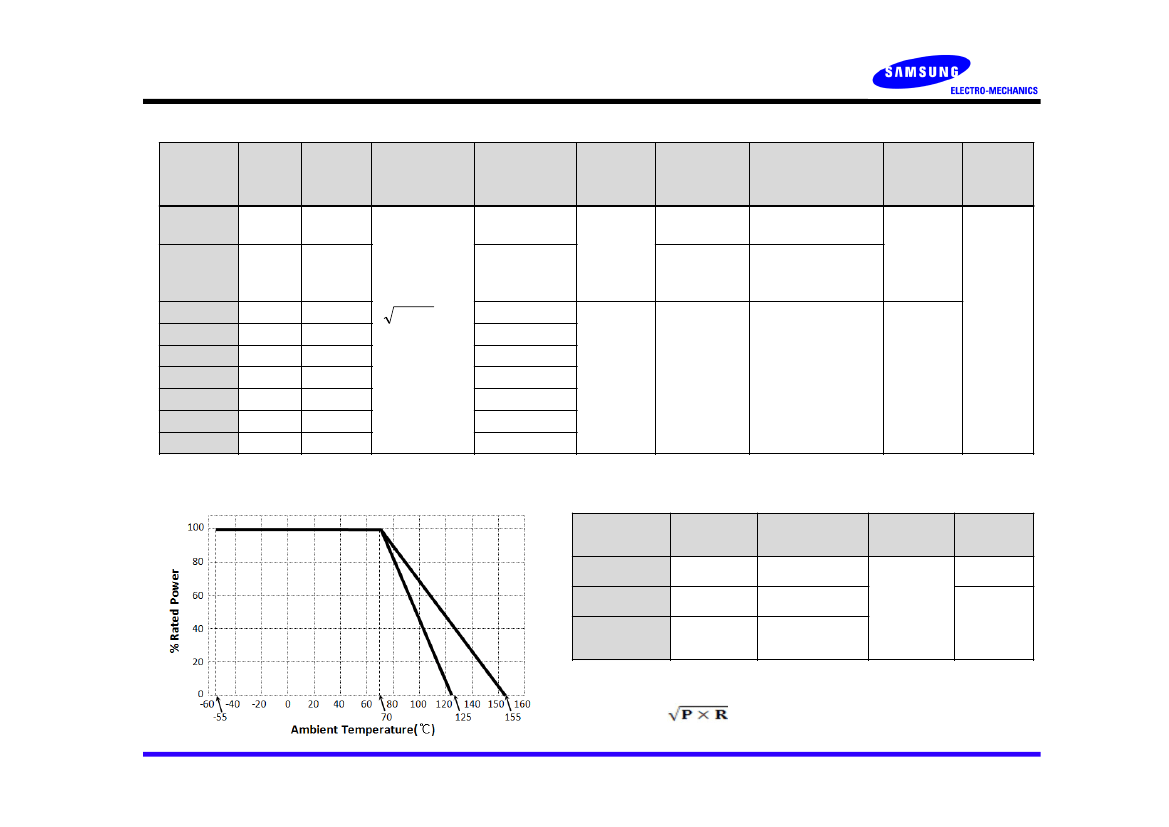

Rated power dissipation(P)	0.33 W
Rated temperature	70 °C
resistance	150000 Ω
Resistor type	FIXED RESISTOR
size code	1210
surface mount	YES
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	100 ppm/°C
Terminal surface	Tin (Sn) - with Nickel (Ni) barrie
Tolerance	5%
Operating Voltage	200 V

Preview

Download Datasheet

View All

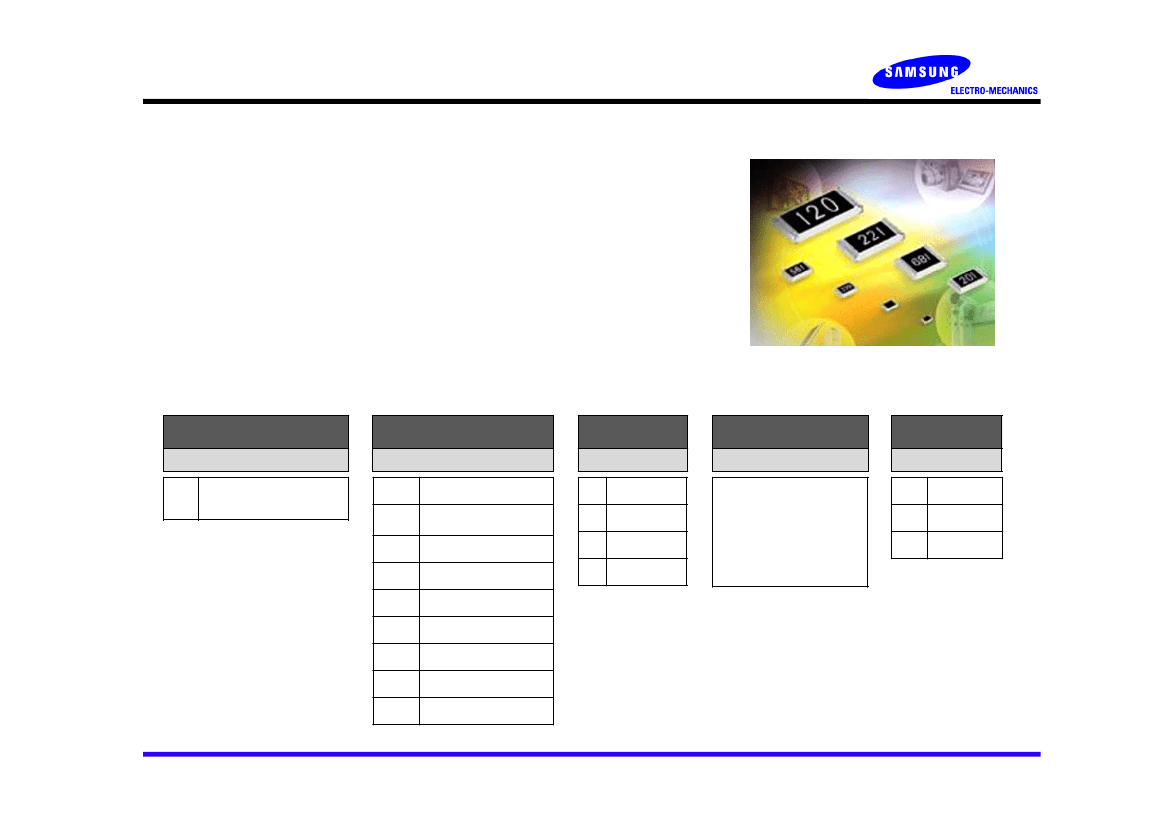

Thick Film Chip Resistors (RC General)

Thick Film General Chip Resistors

- 0402(01005), 0603(0201), 1005(0402), 1608(0603), 2012(0805), 3216(1206),

3225(1210), 5025(2010), 6432(2512)

■

Features

●

Small, thin and lightweight

High reliability

Applicable Both flow and reflow soldering.

Suitable size and package for surface mount assembly

RoHS Compliant.

■ Part Number System

Type (Series)

General purpose

chip resistor

0603

Size : mm (inch)

0402 0.4×0.2mm (01005)

0603

1005

1608

2012

3216

3225

5025

6432

0.6×0.3mm (0201)

1.0×0.5mm (0402)

1.6×0.8mm (0603)

2.0×1.2mm (0805)

3.2×1.6mm (1206)

3.2×2.5mm (1210)

5.0×2.5mm (2010)

6.4×3.2mm (2512)

Tolerance

±0.5%

±1.0%

±2.0%

±5.0%

2552

Resistance Value

- 3-digit code System

(E-24 series)

- 4-digit code System

(E-96 series)

- Jumper : ‘000’

- 2552 : 25.5KΩ

Packing Type

7” reel

10” reel

13” reel

* Jumper :

‘J’
