DF1B Series
sFeatures
1. New Insulation Displacement and Crimping Ideas
This connector is a new type to insert the ID contacts in the case. Using this
method, the following merits can be gained.
1
By using the ID contact and crimping contact together, different current
capacity cables can be mixed in one case.
2
After connection, the contact can be replaced in excellent maintainability.
3
Because the insulation displacement area is protected by the case, high
reliability can be assured.
4
Since the insulation displacement process can be performed only by
replacing the applicator of the existing crimping machine, no expensive
machine for insulation displacement is required.
Cables with different current capacities
can be mixed in one case
ID terminal (AWG24, 26, 28)
Crimping contact (AWG20 to 30)
Figure 1
Potting status
2. Potting Header Available
The high profile header is also available, corresponding to the board potting
process (sealed with resin) as waterproof measures.
3. Broad Variations
The single row and double row contacts are aligned for "Board to Cable" and
"In-line" series, respectively, while standard tin and gold plating products are
available.
(Refer to the applicable combination pattern on next page.)
sApplications
Business equipment, particularly including the copy machine and printer
Figure 2
B183
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the
Connection (Product Compliant with
www.hirose-connectors.com, or contact your Hirose sales representative.
DF1B Seriesq2.5mm Pitch Connector for Discrete Wire
products status on the Hirose website RoHS search at
UL/CSA Standard)
BApplicable
Combination
K
Single Row Type
Socket (Cable Side)
DF1B-*S-2.5R
Straight Through hole Type
Pin header
DF1B(Z)-*P-2.5DSA
Right angle Through hole Type
Pin header
DF1B(Z)-*P-2.5DS
Panel Mount Type
In-line plug (Cable side)
DF1BA-*EP-2.5RC
K
Double Row Type
Socket (Cable Side)
DF1B-*DS-2.5RC
Straight Through hole Type
Pin header
DF1B(Z)-*DP-2.5DSA
Right angle Through hole Type
Pin header
DF1B(Z)-*DP-2.5DS
Panel Mount Type
In-line plug (Cable side)
DF1BA-*DEP-2.5RC
In-line Connection Product (Cable to Cable Connection) : Full Lock Type
K
Single Row Type
Socket (Cable Side)
DF1B-*ES-2.5RC
In-line plug (Cable side)
DF1B-*EP-2.5RC
K
Double Row Type
Socket (Cable Side)
DF1B-*DES-2.5RC
In-line plug (Cable side)
DF1B-*DEP-2.5RC
B184
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please
Pitch Connector for Discrete Wire Connection (Product Compliant with
your Hirose sales representative.
DF1B Seriesq2.5mm
check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact
UL/CSA Standard)
sProduct
Specifications
AWG 20
to
24 : 3A
Rating
Current rating
(Note1)
Voltage rating
AWG 26
Cable Size
AWG 28
AWG 30
250V AC
: 2A
: 1A
: 0.5A
Storage Temperature Range
Storage Moisture Range
-10
to
+60ç
(Note3)
-40
to
70%
(Note3)
Operating Temperature Range
Operating Moisture Range
-35
to
+85ç
(Note2)
-40
to
80%
UL-CSA Safety Standard Standardized Value
Current rating
Rating
(Note1)
Voltage rating
Item
1. Insulation Resistance
2. Withstanding voltage
3. Contact Resistance
4. Insertor/Extraction Force
5. Vibration
1000M
ohms
Min
No flashover or insulation breakdown.
30m
ohms
Max
MIN0.44N (45gf), MAX4.4N(450gf)
No electrical discontinuity of 1µs or more
AWG 20
to
22: 3A
Cable Size
AWG 24
to
28: 1A
AWG 30
30V AC
Specification
500V DC
: 0.5A
sUL
CSA Safety File No.
UL
: E52653
CSA : LR95109
Condition
650V AC/1 minute
100mA
Measure at the square steel pin of 0.635±0.002mm
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.
(-55ç: 30 minutes
➝
5
to
35ç: 10 minutes
(-85ç:
30 minutes
➝
5
to
35ç: 10 minutes) 5 cycles
Tin plating
: 30 cycles
Gold plating : 50 cycles
Flow: 250ç for 10 seconds
Manual soldering: 300ç for 3 seconds
6.
Humidity (Steady state)
Contact resistance: 30m
ohms
max.Insulation resistance: 1000M
ohms
min.
96 hours at temperature of 40±2ç and humidity of 90% to 95%
7. Temperature Cycle
8. Operating Life
9. Resistance to Soldering heat
Contact resistance: 30m
ohms
max:Insulation resistance: 1000M
ohms
min.
Contact resistance: 30m
ohms
max.
No deformation of components affecting performance.
Note 1: Current rating of header is 3A.
Note 2: Includes temperature rise caused by current flow.
Note 3: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and
Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation.
Note 4: Information contained in this catalog represents general requirements for this Series. Contact us for the drawings and specifications for a
specific part number shown.
sMaterial
Product
Socket
ID Contact for Socket
Crimping Contact for Socket
Pin Header
In-line Plug
ID Contact for In-line Plug
Crimping Contact for In-line Plug
Part
Insulator
Contact
Contact
Insulator
Contact
Insulator
Contact
Contact
Material
Polyamide
Phosphor copper
Phosphor copper
Polyamide
Brass
Polyamide
Phosphor copper
Phosphor copper
White
Tin plated or gold plated
Tin plated or gold plated
White
Tin plated or gold plated
White
Tin plated or gold plated
Tin plated or gold plated
Finish
Remarks
UL94V-0
––––––
––––––
UL94V-0
––––––
UL94V-0
––––––
––––––
B185
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the
Connection (Product Compliant with
www.hirose-connectors.com, or contact your Hirose sales representative.
DF1B Seriesq2.5mm Pitch Connector for Discrete Wire
products status on the Hirose website RoHS search at
UL/CSA Standard)
sOrdering
Information
K
Connector
DF1B
q
: DF 1B
S
DS
P
DP
ES
DES
EP
DEP
-
*
S 2.5 RC
w
e
r
t
r
Contact Pitch: 2.5mm
t
Contact Type
RC
DS
: ID/crimping socket (Note)
: Right angle through hole
DSA : Straight through hole
Note: The single row socket DF1B-*S-2.5R
only adds "R" to the tail, which has
the same meaning as "RC".
q
Series Name
e
Connector Type
: Single row socket
: Double row socket
: Single row pin header
: Double row pin header
: Single row in-line socket
: Double row in-line socket
: Single row in-line plug
: Double row in-line plug
w
Number of Contacts
Single Row : 2
to
16, 18, 20
Double Row : 4
to
30, 34, 40
K
Socket ID Contact
DF1B - R 24 F A
q
q
1. Connection Type
R
: ID
w
Applicable Cable Size
24 : AWG24
26 : AWG26
28 : AWG28
w
e
r
e
Packaging Type
Blank : Bag
F
: Reel
r
Plating Type
Blank : Tin plated
A
: Gold plated
K
Plug ID Contact
DF1B - 24 P R F
q
q
Applicable Cable Size
24 : AWG24
26 : AWG26
28 : AWG28
w
Connector Type
P
: Plug
w
e
r
e
Connection Type
R
: ID
r
Packaging Type
Blank : Bag
F
: Reel
K
Crimping Contact
DF1B - 2428 SCF A
q
q
Applicable Cable Size
2022 : AWG20
to
22
2428 : AWG24
to
28
28
: AWG30
w
Packaging Type
SCF : Socket Contact/Reel
SC
PC
: Socket Contact/Bag
: Plug Contact/Bag
PCF : Plug Contact/Reel
w
e
Plating Type
Blank : Tin plating
A
B
: Gold plated
: Gold plated (Note)
"A" is attached to the tail of
the product name. In case of
the plug contact, "B" is
attached thereto.
e
Note: In case of the socket contact,
B186
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please
Pitch Connector for Discrete Wire Connection (Product Compliant with
your Hirose sales representative.
DF1B Seriesq2.5mm
check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact
UL/CSA Standard)

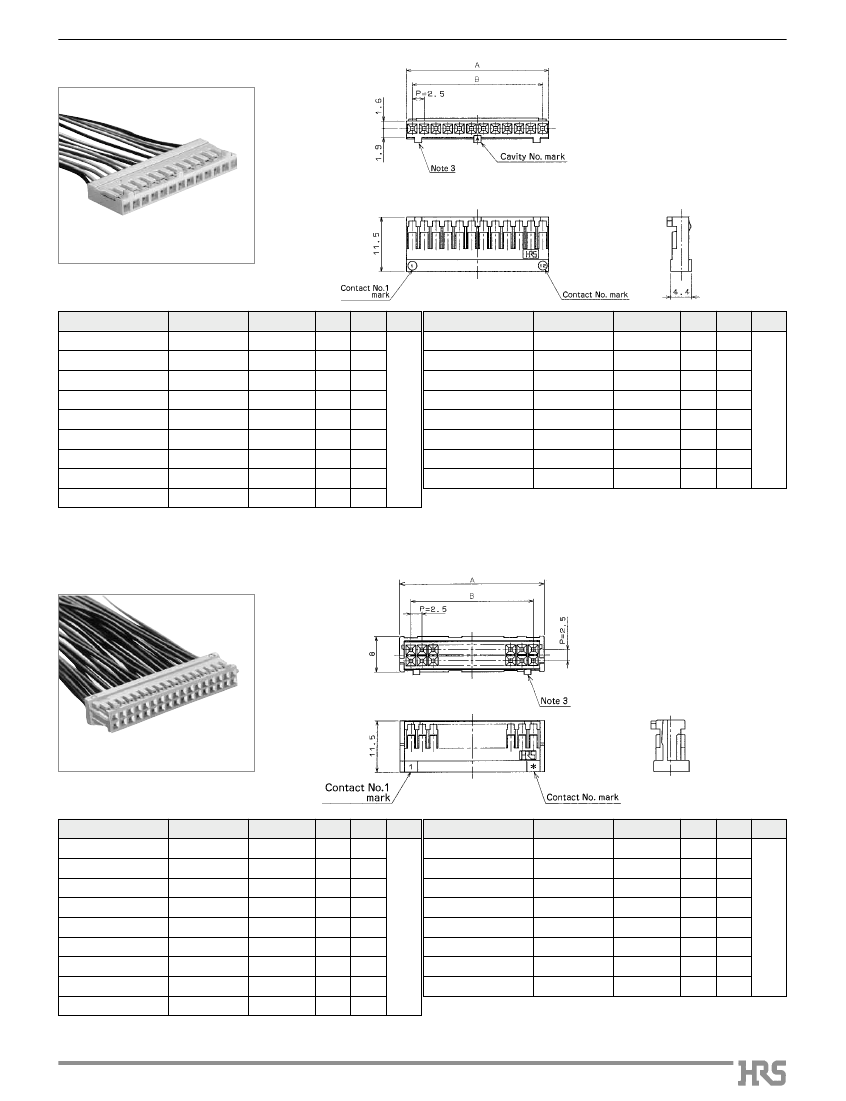

sSingle
Row Socket
Photo: Contact Inserted
Unit: mm
Part Number
DF1B- 2S-2.5R
DF1B- 3S-2.5R
DF1B- 4S-2.5R
DF1B- 5S-2.5R
DF1B- 6S-2.5R
DF1B- 7S-2.5R
DF1B- 8S-2.5R
DF1B- 9S-2.5R
DF1B-10S-2.5R
CL No.
541-0200-6
541-0201-9
541-0202-1
541-0203-4
541-0204-7
541-0205-0
541-0206-2
541-0207-5
541-0208-8
Number of Contacts
2
3
4
5
6
7
8
9
10
A
5
7.5
10
12.5
15
17.5
20
22.5
25
B
2.5
5
7.5
10
12.5
15
17.5
20
22.5
Yes
RoHS
Part Number
DF1B-11S-2.5R
DF1B-12S-2.5R
DF1B-13S-2.5R
DF1B-14S-2.5R
DF1B-15S-2.5R
DF1B-16S-2.5R
DF1B-18S-2.5R
DF1B-20S-2.5R
CL No.
541-0209-0
541-0210-0
541-0211-2
541-0212-5
541-0213-8
541-0214-0
541-0215-3
541-0216-6
Number of Contacts
11
12
13
14
15
16
18
20
A
27.5
30
32.5
35
37.5
40
45
50
B
25
27.5
30
32.5
35
37.5
42.5
47.5
Yes
RoHS
Note1: The quantity at the specific No."None" is delivered by the bag unit (100 pcs.). If needed, please order the product per bag.
Note2: The 2 contact connector contains the convex portion to prevent mis-insertion in the center at one point, which is different from
the above figure. The 3 to 7 contacts connectors have the area at both ends.
sDouble
Row Socket
Photo: Contact Inserted.
Unit: mm
Part Number
DF1B- 4DS-2.5RC
DF1B- 6DS-2.5RC
DF1B- 8DS-2.5RC
DF1B-10DS-2.5RC
DF1B-12DS-2.5RC
DF1B-14DS-2.5RC
DF1B-16DS-2.5RC
DF1B-18DS-2.5RC
DF1B-20DS-2.5RC
CL No.
541-0648-0
541-0649-3
541-0650-2
541-0600-4
541-0601-7
541-0602-0
541-0603-2
541-0604-5
541-0605-8
Number of Contacts
4
6
8
10
12
14
16
18
20
A
7.5
10
12.5
15
20
25
B
2.5
5
7.5
10
Yes
15
20
RoHS
Part Number
DF1B-22DS-2.5RC
DF1B-24DS-2.5RC
DF1B-26DS-2.5RC
DF1B-28DS-2.5RC
DF1B-30DS-2.5RC
DF1B-34DS-2.5RC
DF1B-36DS-2.5RC
DF1B-40DS-2.5RC
CL No.
541-0606-0
541-0607-3
541-0608-6
541-0609-9
541-0610-8
541-0612-3
541-0613-6
541-0615-1
Number of Contacts
22
24
26
28
30
34
36
40
A
30
32.5
35
37.5
40
45
47.5
52.5
B
25
27.5
30
32.5
35
40
42.5
47.5
Yes
RoHS
17.5 12.5
22.5 17.5
27.5 22.5
Note1: The quantity at the specific No. "None" is delivered by the bag unit (100 pcs.) If needed, please order the product per bag.
Note2: The 4 contact connector contains the convex portion to prevent miss-insertion in the center at one point, which is different from
[size=4] Following [url=https://bbs.eeworld.com.cn/%E5%88%9D%E8%AF%86NXP%20Rapid%20IOT]https://bbs.eeworld.com.cn/forum.php?mod=viewthread&tid=1065192&extra=[/url] and [url=https://bbs.eeworld.com.cn/...
I came across this word by chance today, and I checked it on Baidu. It's really scary. Cancer is bred by acidic body fluids! And purified water is acidic water! It's terrible. I bring a bottle every t...
Hello everyone, I am Kevin, a headhunter. I am now urgently hiring 2 wince and windows platform driver developers, based in Hangzhou, 3~4 years of undergraduate, monthly salary 8~10K, focus on large e...
By Brian King and Dave Parks, Application Engineers, Texas Instruments Automotive audio amplifiers typically use a boost converter to generate the 18 V to 28 V (or higher) battery output voltage. In t...
1. Connect the emulator to the DSP in debug mode. In debug mode, turn the DIP switch to 11111 and connect the emulator to the JTAG interface.In CCS, click View and then click Target Configurations.Rig...
Hello everyone: I have something to ask for your advice. Recently, I have been developing a program on WinCE6.0, which involves bus access, that is, reading and writing a fixed physical address. Do I ...
According to foreign media reports, Ford Motor has applied to the U.S. Patent and Social Security Administration (USPTO) for a patent for a remote vehicle control system that may be used in future ...[Details]
If the ultimate form of a car is a silicon-based life form, then in
the field of
intelligent driving
, it has gradually taken on the appearance of a "veteran driver." In
the field of
the ...[Details]
With the rapid development of technology, automotive intelligence is increasing at an unprecedented rate. This not only enhances vehicle functionality and comfort, but also places higher deman...[Details]
As AI accelerates across industries, the demand for data center infrastructure is also growing rapidly.
Keysight Technologies, in collaboration with Heavy Reading, released the "Beyo...[Details]
Keysight Technologies is combining its electromagnetic simulator with Synopsys' AI-driven RF design migration flow to create an integrated design flow for migrating from TSMC's N6RF+ process techno...[Details]
In the electronics manufacturing industry, surface mount technology (SMT) placement machines are core equipment for production lines. However, with many different models available on the market, ch...[Details]
Plessey Semiconductors has been acquired by Haylo Labs, which was established in March last year with a $100 million, five-year loan from Chinese technology company Goertek.
Haylo Labs w...[Details]
Compared to cloud databases, minicomputers are purpose-built for decentralized, rugged computing at the edge of the network. By moving applications, analytics, and processing services closer to the...[Details]
For new energy vehicles, the importance of batteries is unquestionable. Not only does it determine the performance of the vehicle, but the battery density also has a great relationship with the veh...[Details]
Renesas Electronics' new ultra-low-power RA4C1 MCU features advanced security and a dedicated peripheral set, making it ideal for metering and other applications.
The new product mee...[Details]
Introduction: In digital circuit calculations, there is no concept of decimal points. You know where the decimal is, but the circuit does not know where the decimal point is. Therefore, you need to...[Details]
When American cartoonist Chester Gould sketched the watch on Dick Tracy's wrist, he had no idea that science fiction would become reality 70 years later. As a comic strip artist, Gould imagined fut...[Details]
1. Introduction
In 2015, Apple's new MacBook and Apple Watch both featured force-sensing technology, which Apple calls Force Touch. Each time a user presses the touchpad, the device not only p...[Details]
On August 20, Huawei Device announced that the all-new M7 is the first to feature an in-cabin laser vision solution. This solution offers enhanced active safety capabilities compared to primary vis...[Details]
As the power density of modern electronic systems continues to increase, effective thermal management has become critical to ensuring system performance, reliability, and longevity—especially in hi...[Details]
RF/Wirelessly
京公网安备 11010802033920号
EEWORLD
