8D721S20AE datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 8D721S20AE

8D721S20AE: DescriptionMIL Series Connector,; CategoryThe connector The connector; File Size357KB，2 Pages; ManufacturerSOURIAU

Download Datasheet Parametric Compare View All

8D721S20AE Overview

MIL Series Connector,

8D721S20AE Parametric

Parameter Name	Attribute value
Maker	SOURIAU
Reach Compliance Code	unknow
ECCN code	EAR99

Preview

Download Datasheet

View All

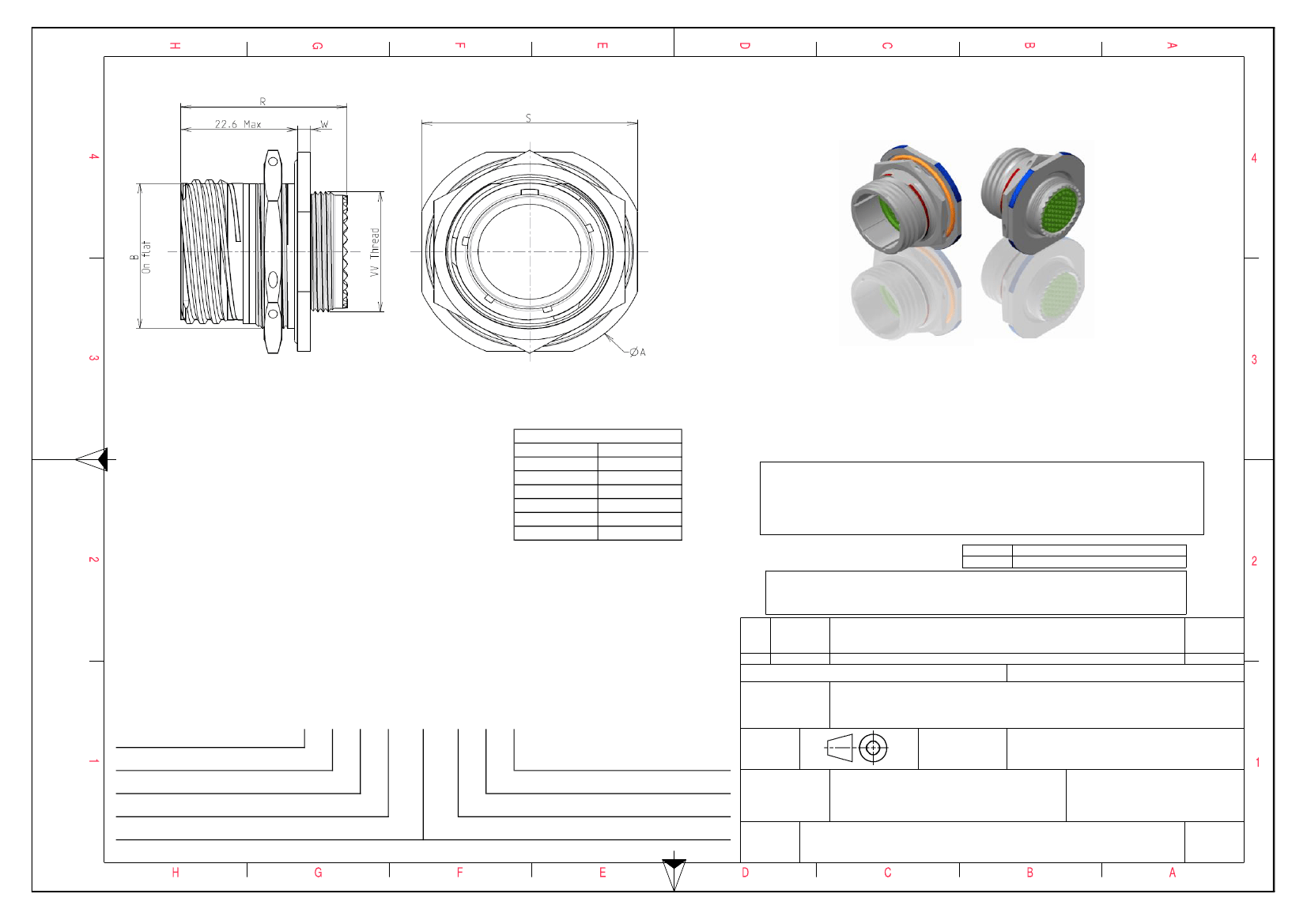

LAYOUT SHOWN AS EXAMPLE

Keying Shown as example

CHARACTERISTICS

-Standard : Based on MIL-DTL-38999 Series III

-Shell Material

-Shell Plating

-Insulator

-Contacts

-Seals & Grommet

-Contact Plating

-Durability

: Stainless Steel

: Nickel

: Thermoplastic

: Copper Alloy

: Silicon Elastomer

: Gold over copper Alloy 0.8µm minimum

: 500 Mating cycles

Connector dimension

Dim

Nominal

52.4±0.3

36.5+0.1/-0.15

32.5Max

49.2±0.4

3+0.9/-0.1

VV THREAD

M31x1-6g

SOURIAU shall not be liable for any non-conformity or damage

due to a use of the Products which does not comply with

the Specifications issued by either of the Parties or by a third party

(professional recommendation, technical notice.)

Country

Jurisdiction & Control List

Not Listed

-Delivered with Souriau contacts and Accessories

-Temperature Range

-Salt Spray

: -65°C to +200°C

: 500 hours

PN: 8D721S20AE

ISS

08-11-2016 First Release

DATE

Latest modification - by

Date:

MOD N°

CUSTOMER DRAWING

TITLE

BASIC SERIES:

SHELL TYPE : Jam nut Receptacle

CONTACT TYPE

SHELL SIZE : 21

PLATING

S =

Nickel

: Standard Crimp Contact

ORIENTATION : E

CONTACT TYPE : PIN(500 Matings)

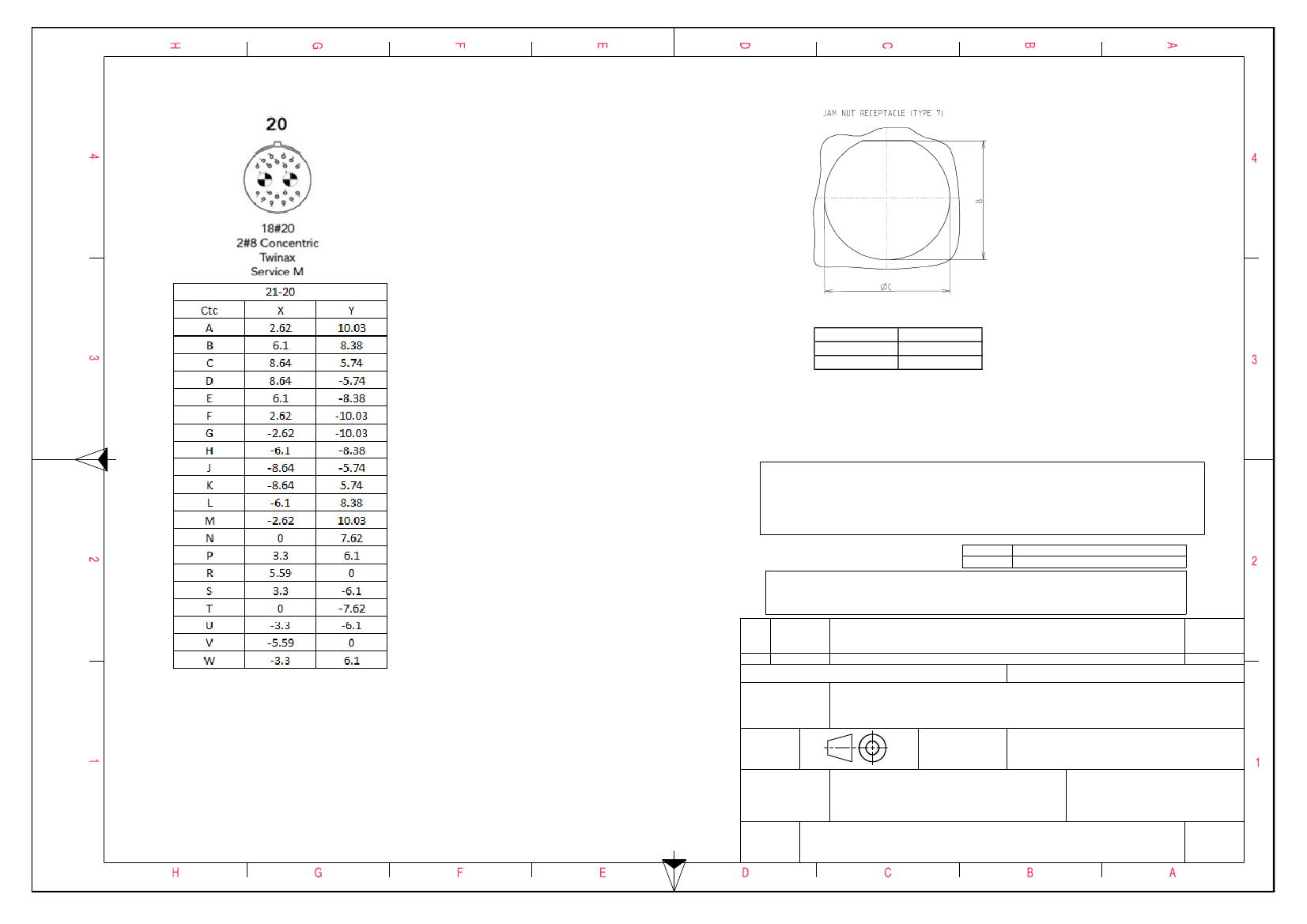

CONTACT LAYOUT : 21-20

FORMAT

Stainless Steel Receptacle 8D series

General linear

Tolerances:

±--

SCALE

NPRDS / PROJECT

859

This document is the property of

SOURIAU

it must not be reproduced or

communicated without permission

SOURIAU

WWW.SOURIAU.COM

SOURIAU DRG N°

8D721S20AE-C

SHEET

1/2

8D721S20AE Related Products

	8D721S20AE
Description	MIL Series Connector,
Maker	SOURIAU
Reach Compliance Code	unknow
ECCN code	EAR99
