SFT210DETXV: DescriptionSmall Signal Field-Effect Transistor, TO-72, TO-72, 4 PIN; CategoryDiscrete semiconductor The transistor; File Size110KB，2 Pages; ManufacturerSSDI; Websitehttp://www.ssdi-power.com/

Download Datasheet Parametric Compare View All

SFT210DETXV Overview

Small Signal Field-Effect Transistor, TO-72, TO-72, 4 PIN

SFT210DETXV Parametric

Parameter Name	Attribute value
Maker	SSDI
Parts packaging code	TO-72
package instruction	CYLINDRICAL, O-MBCY-W4
Contacts	4
Reach Compliance Code	compli
ECCN code	EAR99
Shell connection	SUBSTRATE
Configuration	SINGLE
Minimum drain-source breakdown voltage	30 V
Maximum drain current (ID)	0.05 A
Maximum drain-source on-resistance	70 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
Maximum feedback capacitance (Crss)	0.5 pF
JEDEC-95 code	TO-72
JESD-30 code	O-MBCY-W4
Number of components	1
Number of terminals	4
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	METAL
Package shape	ROUND
Package form	CYLINDRICAL
Polarity/channel type	N-CHANNEL
Maximum power consumption environment	0.3 W
Maximum power dissipation(Abs)	1.2 W
Certification status	Not Qualified
Guideline	MIL-19500
surface mount	NO
Terminal form	WIRE
Terminal location	BOTTOM
transistor applications	SWITCHING
Transistor component materials	SILICON

Preview

Download Datasheet

View All

Solid State Devices, Inc.

14701 Firestone Blvd * La Mirada, Ca 90638

Phone: (562) 404-4474 * Fax: (562) 404-1773

ssdi@ssdi-power.com * www.ssdi-power.com

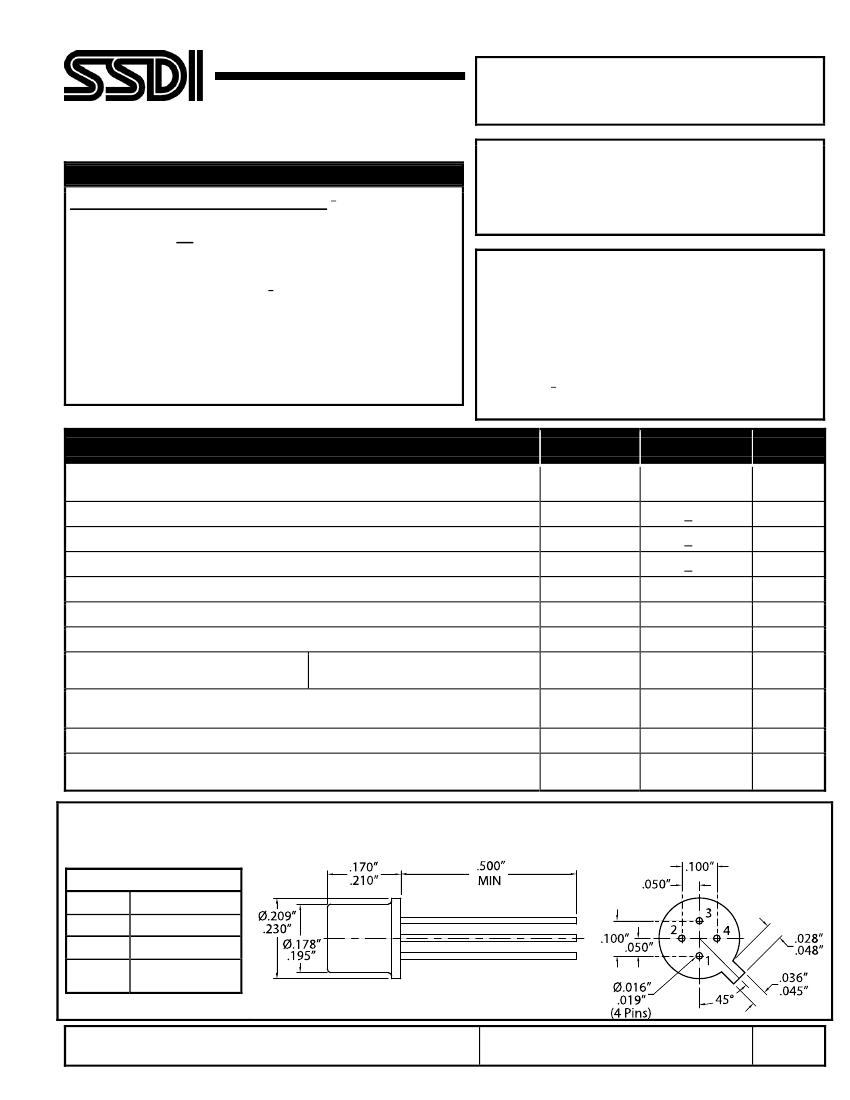

SFT210DE

50 mA, 30 Volt, 1 nsec

High Speed Analog

N-Channel DMOSFET switch

•

DESIGNER’S DATA SHEET

Part Number / Ordering Information

1/

SFT210 DE __

│ │

2/

│ └

Screening __

= Not Screened

│

TX = TX Level

│

TXV = TXV Level

│

S = S Level

└

Package

DE = TO-72

Features:

Ultra-High Speed Switching – t

ON

= 1 ns

Ultra-Low Reverse Capacitance: 0.2pF

Low Guaranteed r

DS

@ 5V

Low Turn-On Threshold Voltage

N-Channel Enhancement Mode

Replacement for SD210DE

TX, TXV, and S-Level Screening Available. Consult

2/

Factory.

Maximum Ratings

Drain – Source Breakdown Voltage

Source – Drain Voltage

Gate - Drain Voltage

Gate - Source Voltage

Gate – Body (substrate) Voltage

Drain – Body (substrate) Voltage

Source – Body (substrate) Voltage

Drain Current

Power Dissipation

Maximum Thermal Resistance

Lead Temperature

T

A

= 25

o

C

T

C

= 25

o

C

Junction to Ambient

Junction to Case

Symbol

V

DS

V

SD

V

GD

V

GS

V

Gb

V

Db

V

Sb

I

D

P

D

R

ΘJA

R

ΘJC

T

L

T

OP

T

STG

Max

30

10

+40

+30

30

15

50

300

1.2

335

85

300

-55 to +125

-65 to +150

Units

Volts

mA

mWatts

Watts

ºC/W

ºC

(1/16” from case for 10 seconds)

Operating & Storage Temperature

PACKAGE OUTLINE: TO-72

PIN ASSIGNMENT

PIN 1

PIN 2

PIN 3

PIN 4

Source

Drain

Gate

Body

(Substrate)

NOTE:

All specifications are subject to change without notification.

SCD's for these devices should be reviewed by SSDI prior to release.

DATA SHEET #: FT0035A

DOC
