ZUY88WT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> ZUY88WT

ZUY88WT: DescriptionSingle Color LED, Yellow, Water Clear, 2mm, ROHS COMPLIANT, SMD, 3 PIN; CategoryLED optoelectronic/LED photoelectric; File Size223KB，4 Pages; ManufacturerSUNLED; Websitehttp://www.sunled.com/

Download Datasheet Parametric View All

ZUY88WT Overview

Single Color LED, Yellow, Water Clear, 2mm, ROHS COMPLIANT, SMD, 3 PIN

ZUY88WT Parametric

Parameter Name	Attribute value
Maker	SUNLED
package instruction	ROHS COMPLIANT, SMD, 3 PIN
Reach Compliance Code	compli
color	YELLOW
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	WATER CLEAR
Nominal luminous intensity	7.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	3
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	1 mm
method of packing	TAPE AND REEL 7\"
peak wavelength	590 nm
shape	RECTANGULAR
size	2 mm
surface mount	YES
perspective	120 deg

Preview

Download Datasheet

View All

Part Number: ZUY88WT

3.2x1.0mm RIGHT ANGLE SMD CHIP LED

LAMP

www.SunLED.com

Features

●

Ideal for indication light on hand held products

●

Long life and robust package

●

Variety of lens types and color choices available

●

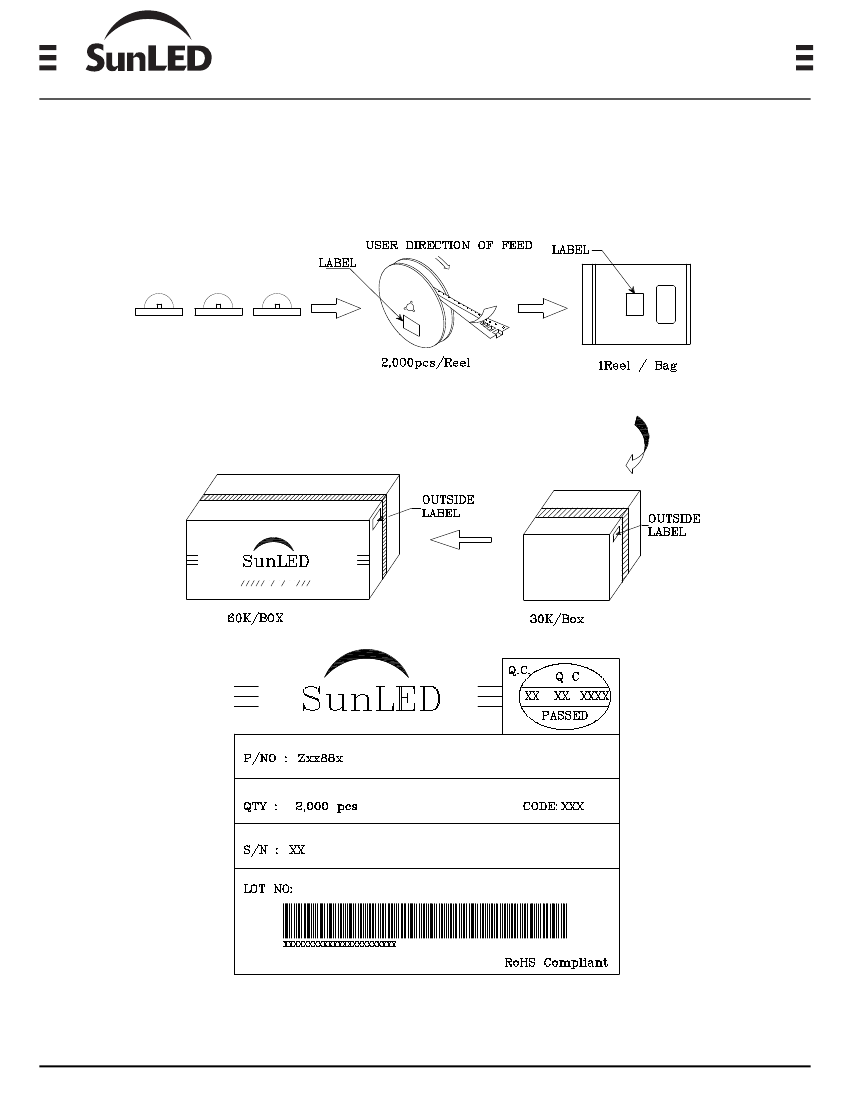

Package : 2000pcs / reel

●

Moisture sensitivity level : level 3

●

RoHS compliant

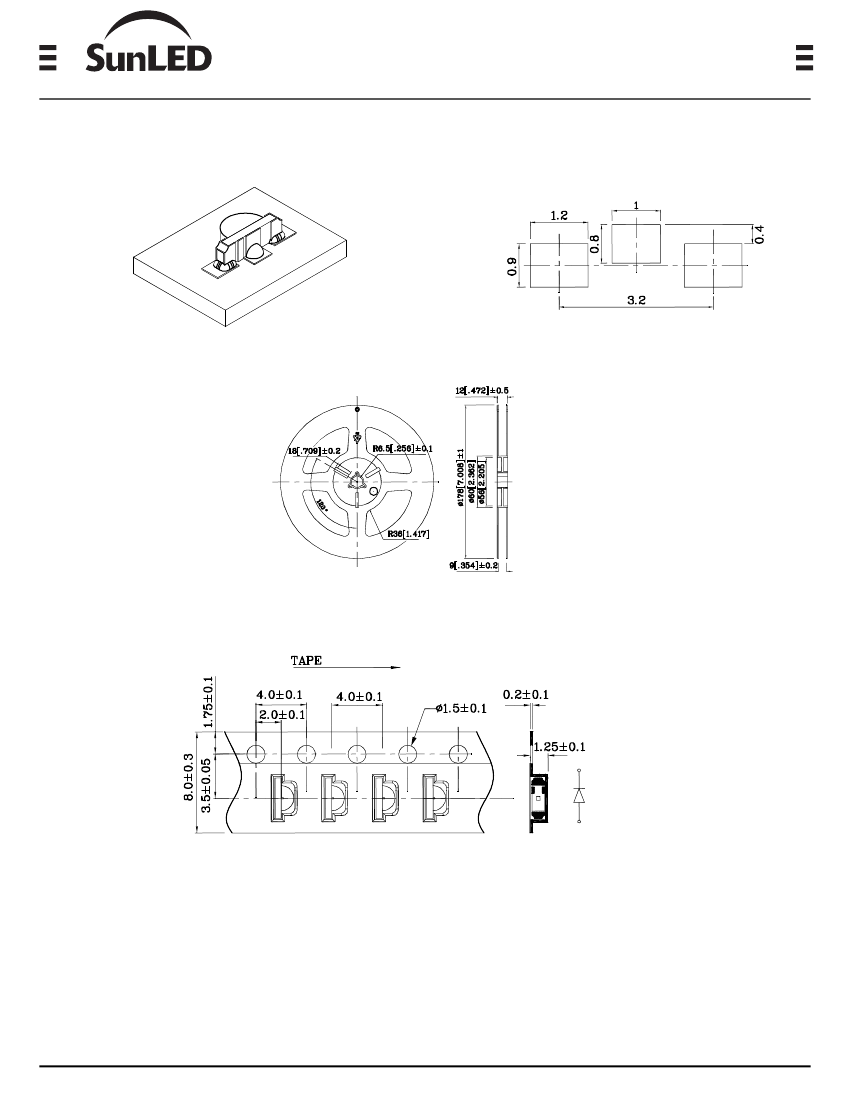

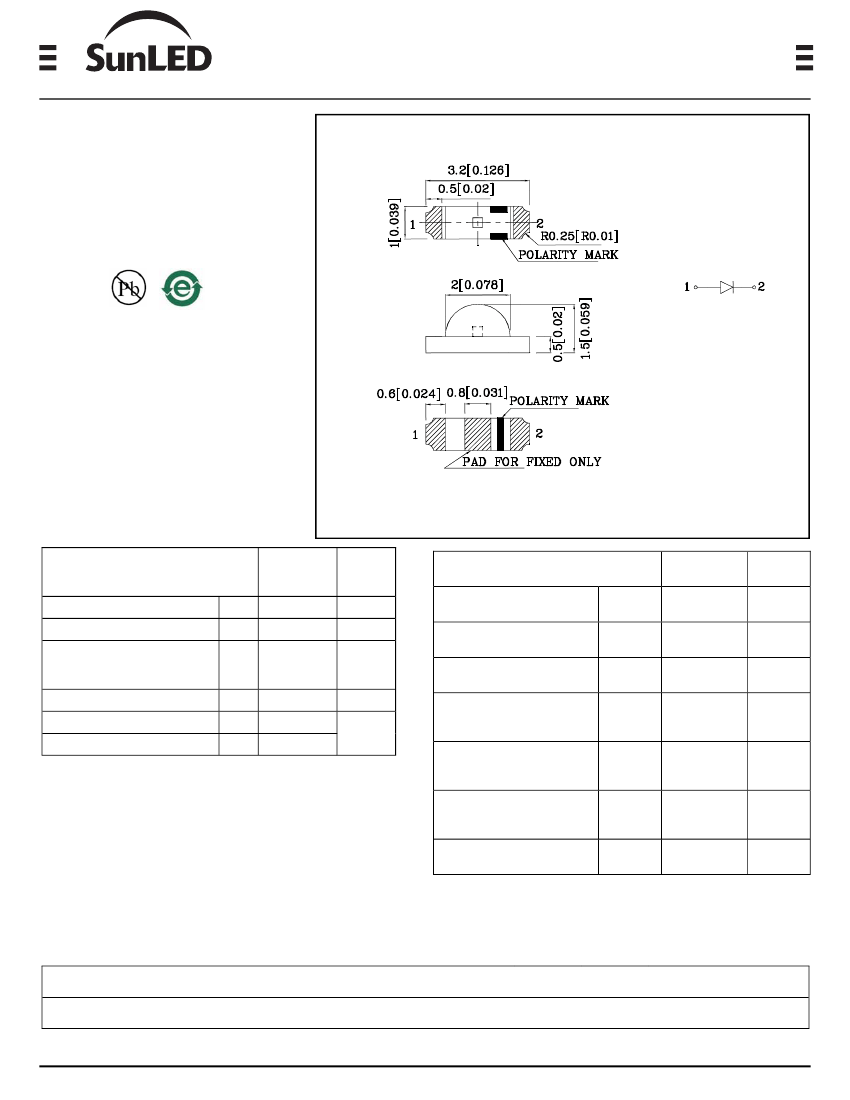

Package Schematics

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is ±0.1(0.004") unless otherwise noted.

3. Specifications are subject to change without notice.

(GaAsP/

GaP)

Tstg

140

-40 ~ +85

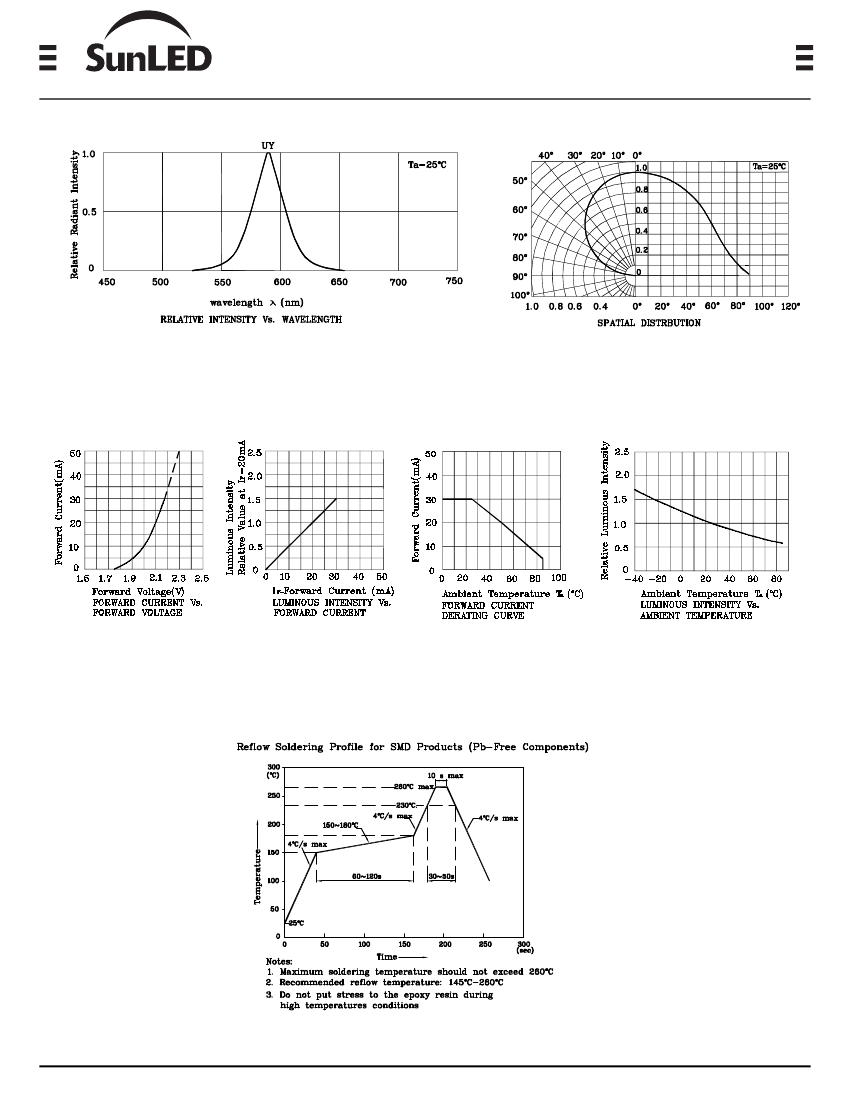

Operating Characteristics

=25°C)

Forward Voltage (Typ.)

=20mA)

Forward Voltage (Max.)

=20mA)

Reverse Current (Max.)

=5V)

Wavelength of Peak

Emission (Typ.)

=20mA)

Wavelength of Dominant

Emission (Typ.)

=20mA)

Spectral Line Full Width

At Half-Maximum (Typ.)

=20mA)

Capacitance (Typ.)

=0V, f=1MHz)

(GaAsP/GaP)

2.1

2.5

Absolute Maximum Ratings

=25°C)

Reverse Voltage

Forward Current

Forward Current (Peak)

1/10 Duty Cycle

0.1ms Pulse Width

Power Dissipation

Operating Temperature

Storage Temperature

Unit

°C

Unit

λP

590

λD

588

△λ

Part

Number

Emitting

Color

Emitting

Material

Lens-color

Luminous

Intensity

=20mA)

mcd

min.

typ.

SDSA8117

Wavelength

λP

Viewing

Angle

2θ 1/2

ZUY88WT

Mar 31,2011

Yellow

GaAsP/GaP

Water Clear

590

120°

Layout: Maggie L.

P. 1/4
