Document 303-1

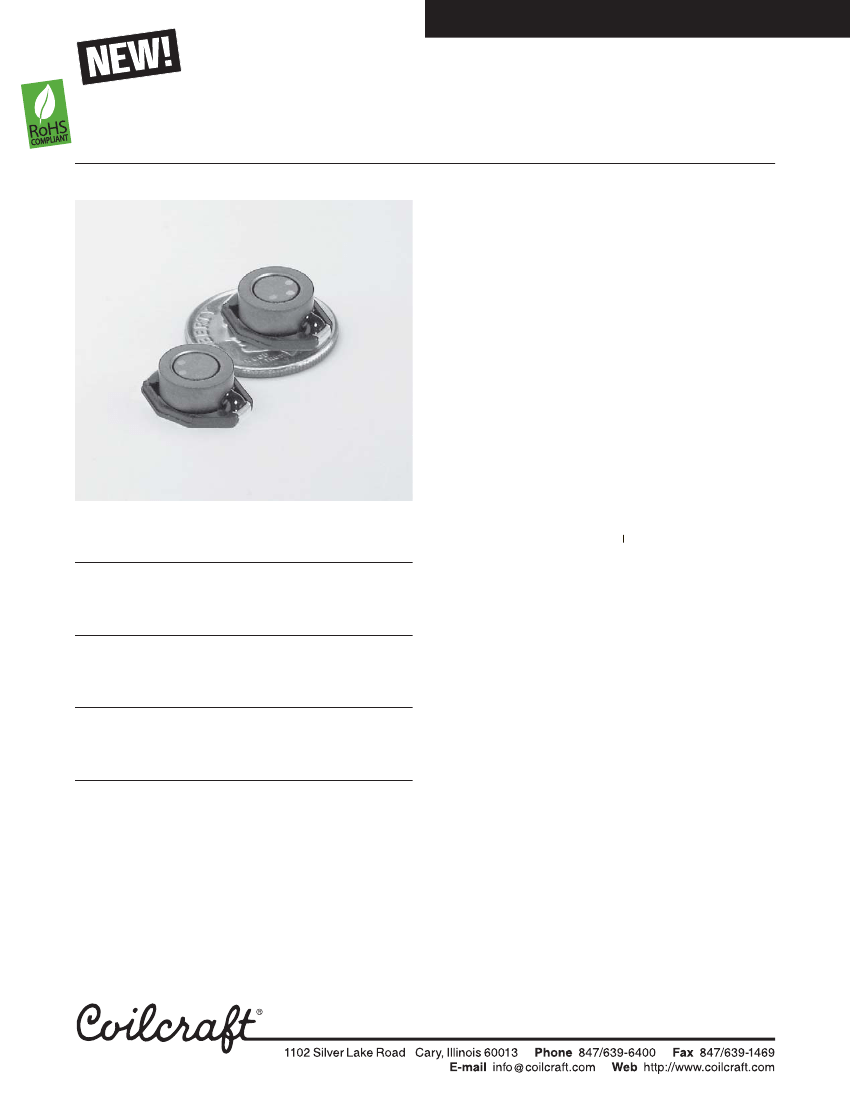

SMT Power Inductors - DH3316 Series
These power inductors feature a small footprint, magnetic
shielding and very high efficiency, making them ideal for
high performance DC-DC converter applications.
Like all Coilcraft surface mount power inductors, they are
designed with a flat top for reliable pick and place operations.
The terminations wrap around the end of the base, ensuring
a sound solder fillet and simplifying inspection.
Saturation current ratings up to 10 A and rms current ratings
as high as 6 A are available. Very low DC resistance keeps
power losses to a minimum.
In addition to the standard values shown here, DH3316
inductors in custom values are also available. For free
evaluation samples or to order, contact Coilcraft or visit
www.coilcraft.com.
Part number
1
DH3316P-102ML_
DH3316P-222ML_
DH3316P-332ML_
DH3316P-472ML_
DH3316P-682ML_
DH3316P-103ML_
DH3316P-153ML_
DH3316P-223ML_
DH3316P-333ML_
DH3316P-473ML_
DH3316P-683ML_
DH3316P-104ML_
DH3316P-154ML_
DH3316P-224ML_
DH3316P-334ML_
DH3316P-684ML_
DH3316P-105ML_
L
±20%
1
(µH)
1.0
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
150
220
330
680
1000
DCR
SRF
max
typ
2
Isat
3
(Ohms) (MHz) (A)
0.016
290
10.0
0.020
150
6.7
0.025
75
5.7
0.030
55
4.6
0.048
42
3.6
0.065
37
3.2
0.084
27
2.6
0.126
24
2.2
0.198
17
1.7
0.295
12
1.5
0.415
11
1.1
0.620
9
1.0
0.970
7
0.8
1.270
6
0.65
1.850
5
0.50
4.400
3
0.35
5.850
2.5 0.27
1. When ordering, please specify
packaging
code:
Irms
4
(A)
6.0
4.1
3.7
3.2
2.6
2.2
1.8
1.6
1.2
1.0
0.90
0.60
0.51
0.44
0.38
0.23
0.22
DH3316P-105MLD
Packaging: D
= 13″ machine ready reel. EIA-481 embossed plastic
tape (1000 parts per full reel).
B
= Less than full reel. In tape, but not machine ready.
To have a leader and trailer added ($25 charge),
use code letter D instead.
2. Inductance tested at 0.1 Vrms, 100 kHz, 0 Adc.
3. SRF measured using Agilent/HP 8753D network analyzer.
4. DC current at which the inductance drops 10% (typ) from its value
without current.
5. Average current for a 40°C rise above 25°C ambient.
6. Operating temperature range
−40°C
to +85°C
7. Electrical specifications at 25°C
See Qualification Standards section for environmental and test data.
See Color Coding section for part marking data.
Specifications subject to change without notice.
Please check our website for latest information. Document 303-1
Revised 02/13/06
© Coilcraft, Inc. 2006

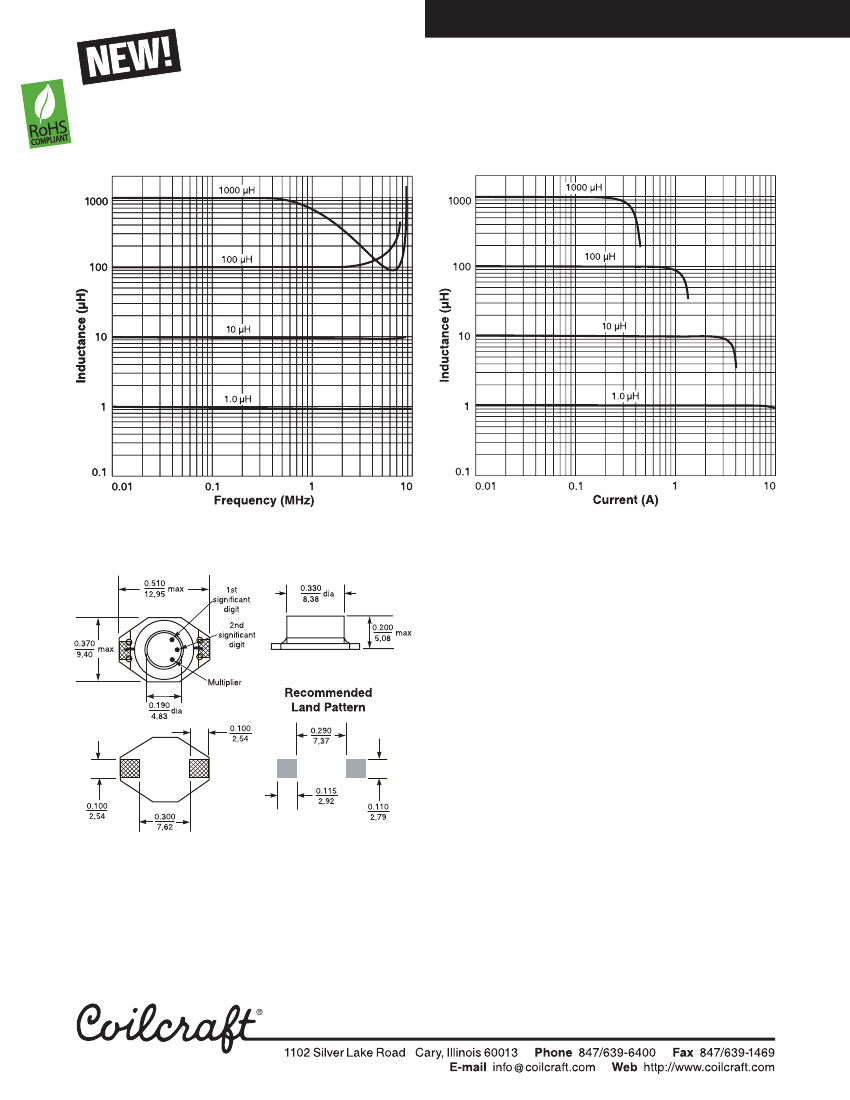

Document 303-2
SMT Power Inductors - DH3316 Series
Typical L vs Frequency
Typical L vs Current
Weight:
860 – 980 mg
Terminations:
Nickel/gold over phos bronze
Tape and reel:
1000/13″ reel 24 mm tape width
For packaging data see Tape and Reel Specifications section.
Specifications subject to change without notice.
Please check our website for latest information. Document 303-2
Revised 01/27/05
© Coilcraft, Inc. 2006
