SF6282-2SG-520 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> SF6282-2SG-520

SF6282-2SG-520: DescriptionCircular Connector, 2 Contact(s), Copper Alloy, Female, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size145KB，2 Pages; ManufacturerSwitchcraft; Environmental Compliance

Download Datasheet Parametric View All

SF6282-2SG-520 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SF6282-2SG-520	-	-	View	Buy Now

SF6282-2SG-520 Overview

Circular Connector, 2 Contact(s), Copper Alloy, Female, Solder Terminal, ROHS COMPLIANT

SF6282-2SG-520 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Switchcraft
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
Other features	SHIELDED
Back shell type	SOLID
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Environmental characteristics	ENVIRONMENT/MOISTURE RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE AND PANEL
Options	GENERAL PURPOSE
Shell surface	NICKEL PLATED
Shell material	COPPER ALLOY
Termination type	SOLDER
Total number of contacts	2

Preview

Download Datasheet

View All

Switchcraft

co.

Made in USA

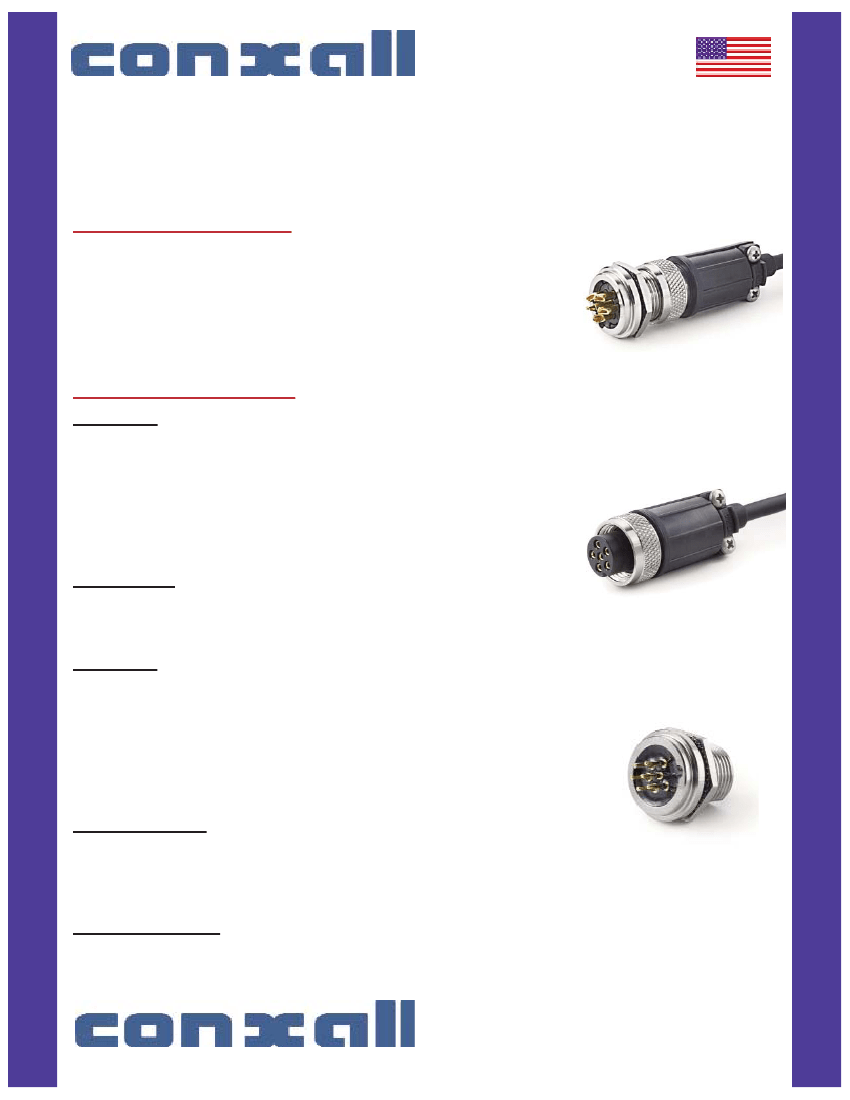

INTRODUCING THE SHIELDED MINI-CON-X

CONNECTOR

Features and Benefits

●

Complete replacement for MINI-CON-X

Panels are factory assembled and sealed

Scoop-proof connector design

Anti-slip machined nut standard on panel connectors

Precision machined housings

Two shell sizes & multiple keying arrangements

Mated Cable End

and Panel Mount

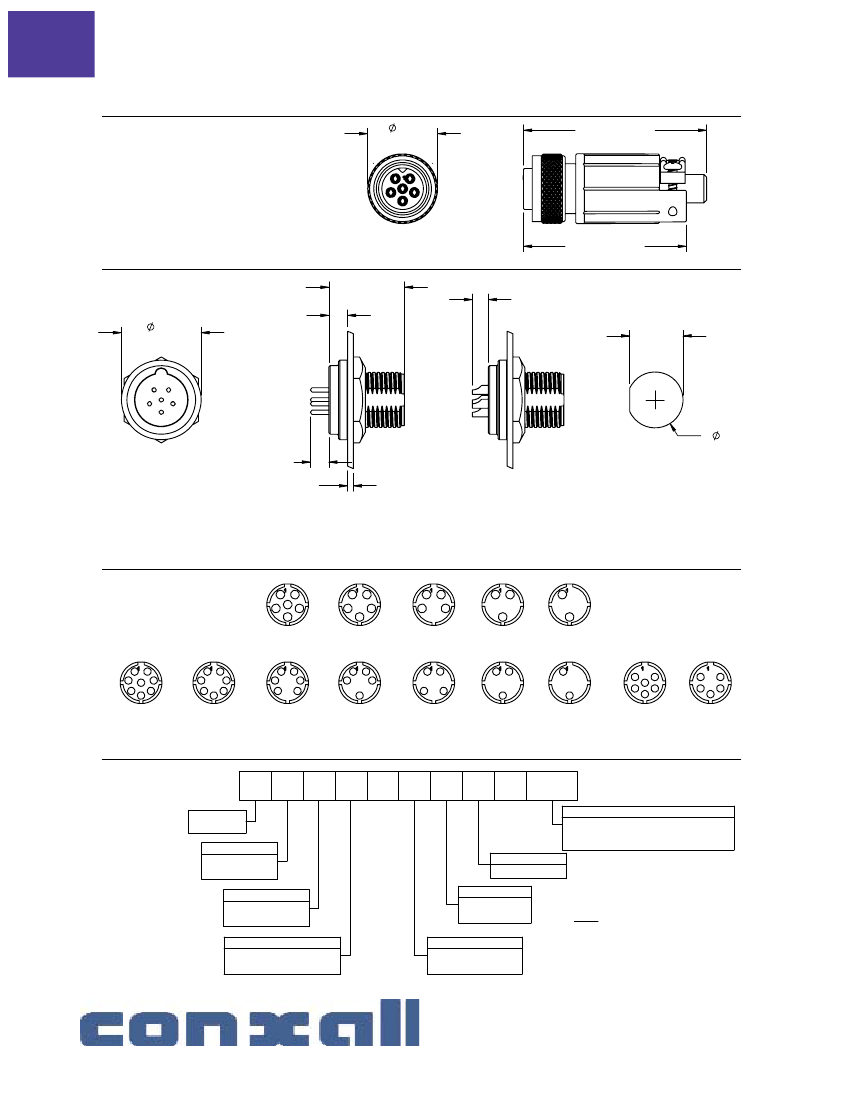

Product Specifications

Materials

Panel Shell, Cable Housing & Coupling Nuts:

Nickel plated copper alloy

All Connector Inserts:

Engineered Polyester Resin

Contacts:

Gold plated copper alloy with nickel underplate

Backshell & Strap:

G.F. Nylon

O-Rings:

Neoprene

Screws:

Stainless Steel

Mechanical

Shock:

Method 213, Mil-Std 202

Vibration:

Method 201, Mil-Std 202

Life:

400 insertion/withdrawl cycles

Electrical

Voltage Rating:

Tested at 600 VRMS

Insulation Resistance:

Method 302, Mil-Std 202

Contact Resistance:

Method 307, Mil-Std 202

Current Ratings:

13A: 4 maximum #16 contact with 16 AWG

7.5A: 3 maximum #20 contacts with 20 AWG

5.6A: 12 maximum #20 contacts with 20 AWG

Environmental

Temperature Rating:

-40°C (-40°F) to +120°C (+248°F)

Temperature Rise:

UL 1054

Thermal Shock:

Method 107, Mil-Std 202

Moisture/Salt Spray:

Method 106F / 101 Mil-Std 202

Product Ratings

IP66 / IP68 (when mated)

RoHS Compliant

Cable End

Epoxy Sealed

Panel Mount

www.conxall.com

601 E. Wildwood Avenue - Villa Park, IL 60181

Phone (630) 834-7504 / Fax (630) 834-8540

Product Bulletin

C703
