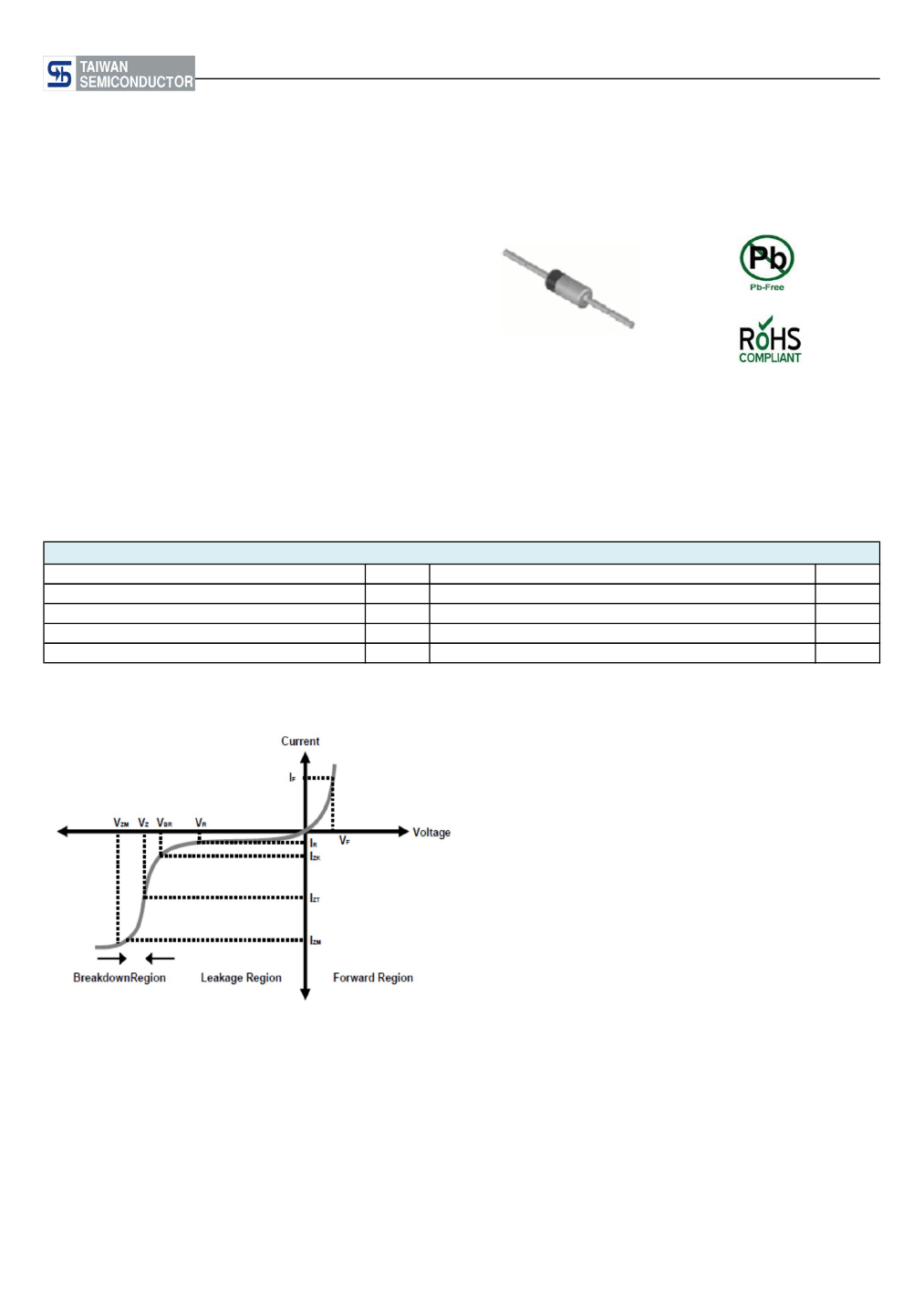

BZX79C2V0 thru BZX79C75
Taiwan Semiconductor
Small Signal Product
5% Tolerance Zener Diode
FEATURES
- Wide zener voltage range selection: 2.0V to 75V
- VZ Tolerance selection of ±5%
- Designed for through-hole device type mounting
- Hermetically sealed glasss
- Pb free and RoHS compliant
- High reliability glass passivation insuring parameter
stability and protection against junction contamination
DO-35
Hermetically Sealed Glass
MECHANICAL DATA
- Case: DO-35
- High temperature soldering guaranteed: 260
o
C/10s
- Polarity: Cathode indicated by polarity band
- Weight : 109 ±4 mg (approximately)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25℃ unless otherwise noted)
PARAMETER
Power Dissipation
Forward Voltage
I
F
= 100 mA
(Note 1)
Thermal Resistance (Junction to Ambient)
Junction and Storage Temperature Range
SYMBO
P
D
V
F
R
θJA
T
J
, T
STG
VALUE
500
1.5
300
- 65 to +175
o
UNIT
mW
V
C/W
o
C
Note 1: Valid provided that electrodes are kept at ambient temerature .
Zener I vs. V Characteristics
V
BR
I
ZK
Z
ZK
I
ZT
V
Z
Z
ZT
I
ZM
V
ZM
: Voltage at I
ZK
: Test current for voltage V
BR
: Dynamic impedance at I
ZK
: Test current for voltage V
Z
: Voltage at current I
ZT
: Dynamic impedance at I
ZT
: Maximum steady state current
: Voltage at I
ZM
Document Number: DS_S1408013
Version: E14
BZX79C2V0 thru BZX79C75
Taiwan Semiconductor
Small Signal Product
ELECTRICAL CHARACTERISTICS
( T
A
= 25
o
C unless otherwise noted )
V
Z
Min
1.88
2.08
2.28
2.51
2.8
3.1
3.4
3.7
4.0
4.4
4.8
5.2
5.8
6.4
7.0
7.7
8.5
9.4
10.4
11.4
12.4
13.8
15.3
16.8
18.8
20.8
22.8
25.1
28.0
31.0
34.0
37.0
40.0
44.0
48.0
52.0
58.0
64.0
70.0
@ I
ZT
Nom
2.0
2.2
2.4
2.7
3.0
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
11
12
13
15
16
18
20
22
24
27
30
33
36
39
43
47
51
56
62
68
75
(Volt)
Max
2.12
2.33
2.56
2.89
3.2
3.5
3.8
4.1
4.6
5.0
5.4
6.0
6.6
7.2
7.9
8.7
9.6
10.6
11.6
12.7
14.1
15.6
17.1
19.1
21.2
23.3
25.6
28.9
32.0
35.0
38.0
41.0
46.0
50.0
54.0
60.0
66.0
72.0
80.0
I
ZT
(mA)
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
2
2
2
2
2
2
2
2
2
2.5
2.5
2.5
Z
ZT
@ I
ZT
(Ω)
Max
100
100
100
100
95
95
90
90
90
80
60
40
10
15
15
15
15
20
20
25
30
30
40
45
55
55
70
80
80
80
90
130
150
170
180
200
215
240
255
I
ZK
(mA)
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
Z
ZK
@ I
ZK
(Ω)
Max
600
600
600
600
600
600
600
600
600
500
480
400
150
80
80
80
100
150
150
150
170
200
200
225
225
250
250
300
300
325
350
350
375
375
400
425
1000
1000
1000
I
R
@ V
R
(μA)
Max
150
150
100
75
50
25
15
10
5
3
2
1
3
2
1
0.7
0.5
0.2
0.1
0.1
0.1
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
V
R
(V)
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
2.0
2.0
2.0
4.0
4.0
5.0
5.0
6.0
7.0
8.0
8.0
8
10.5
11.2
12.6
14.0
15.4
16.8
18.9
21.0
23.1
25.2
27.3
30.1
32.9
35.7
39.2
43.4
47.6
52.5
Part Number
BZX79C2V0
BZX79C2V2
BZX79C2V4
BZX79C2V7
BZX79C3V0
BZX79C3V3
BZX79C3V6
BZX79C3V9
BZX79C4V3
BZX79C4V7
BZX79C5V1
BZX79C5V6
BZX79C6V2
BZX79C6V8
BZX79C7V5
BZX79C8V2
BZX79C9V1
BZX79C10
BZX79C11
BZX79C12
BZX79C13
BZX79C15
BZX79C16
BZX79C18
BZX79C20
BZX79C22
BZX79C24
BZX79C27
BZX79C30
BZX79C33
BZX79C36
BZX79C39
BZX79C43
BZX79C47
BZX79C51
BZX79C56
BZX79C62
BZX79C68
BZX79C75
Marking code
BZX79C2V0
BZX79C2V2
BZX79C2V4
BZX79C2V7
BZX79C3V0
BZX79C3V3
BZX79C3V6
BZX79C3V9
BZX79C4V3
BZX79C4V7
BZX79C5V1
BZX79C5V6
BZX79C6V2
BZX79C6V8
BZX79C7V5
BZX79C8V2
BZX79C9V1
BZX79C10
BZX79C11
BZX79C12
BZX79C13
BZX79C15
BZX79C16
BZX79C18
BZX79C20
BZX79C22
BZX79C24
BZX79C27
BZX79C30
BZX79C33
BZX79C36
BZX79C39
BZX79C43
BZX79C47
BZX79C51
BZX79C56
BZX79C62
BZX79C68
BZX79C75
Notes： 1. The Zener Voltage (V
Z
) is tested under pulse condition of 10ms.
2. The device numbers listed have a standard tolerance on the nomial zener voltage of ±5%.
3. For detailed information on price, availability and delivery of nominal zener voltages between the voltages
shown and tighter voltage tolerances, contact your nearest Taiwan Semiconductor representative.
4. The Zener impedance is derived from the 60-cycle ac voltage, which results when an ac current having an
RMS value equal to 10% of the dc zener current(I
ZT
or I
ZK
) is superimposed to I
ZT
or I
ZK
.
Document Number: DS_S1408013
Version: E14
BZX79C2V0 thru BZX79C75
Taiwan Semiconductor
Small Signal Product

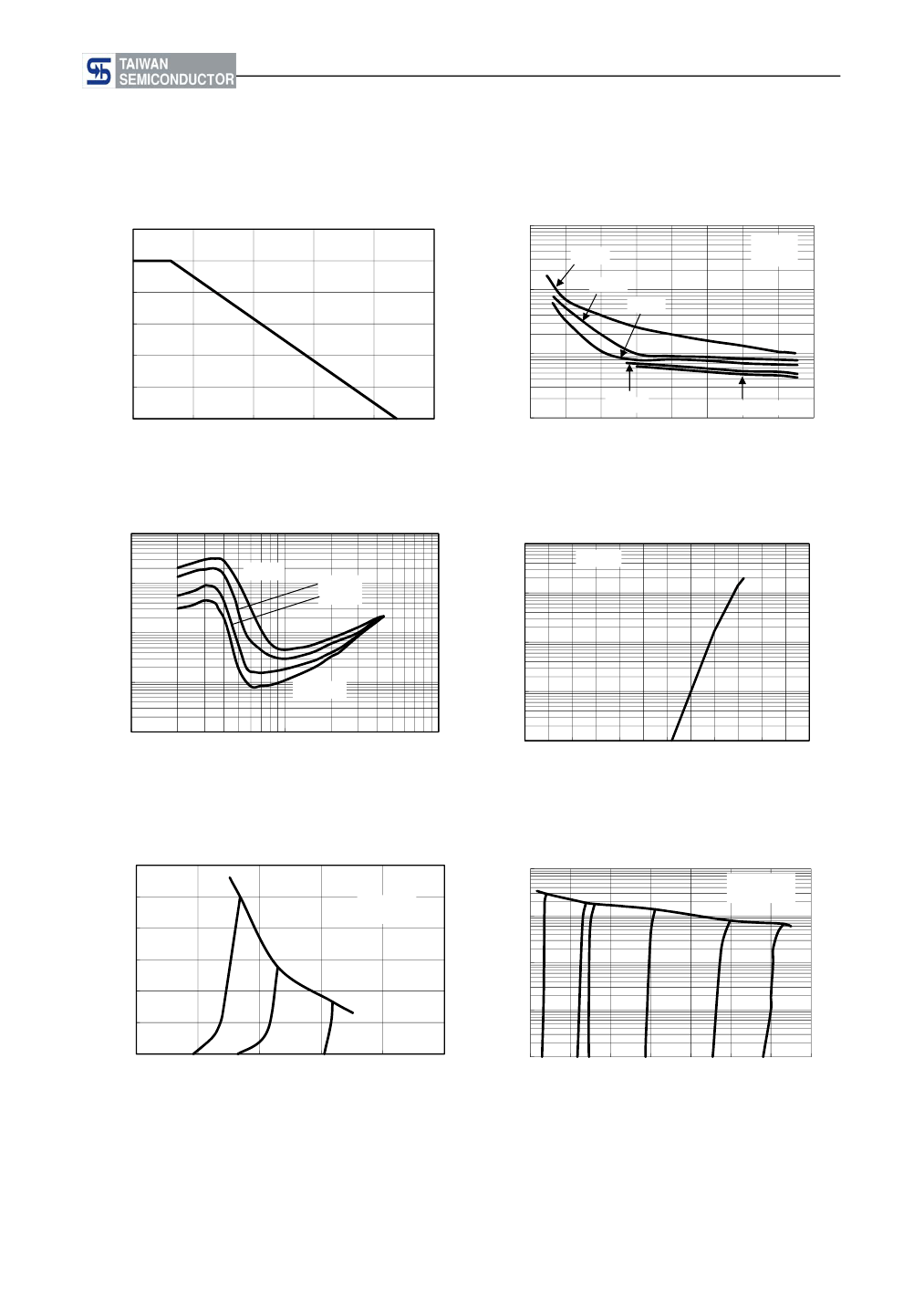

RATINGS AND CHARACTERISTICS CURVES
(TA=25℃ unless otherwise noted)
Fig. 1 Power Dissipation VS. Ambient Temperature
600
500
Total Capacitance (pF)
400
300
200
100
0
0
40
80
120
160
200
Temperature (
o
C)
Valid provided leads at a distance of 0.8mm
from case are kept at ambient temperature
1
0
20
V
R
=20V
40
V
Z
- Reverse Voltage (V)
V
R
=30V
60
80
100
1000
V
R
=0V
V
R
=2V
V
R
=5V
f=1MHz
T
A
=25
o
C
Fig. 2 Total Capacitance
PD - Power Passipation (mW)
10
Fig. 3 Differential Impedance VS. Zener Voltage
1000
Differential Zener Impedance(Ohm)
I
Z
=1mA
1000
Fig. 4 Forward Current VS. Forward Voltage
T
A
=25
o
C
100
10
Forward Current (mA)
100
I
Z
=2mA
I
Z
=5mA
100
10
1
I
Z
=10mA
1
0
1
10
V
Z
- Reverse Voltage (V)
0.1
0.0
0.2
0.4
0.6
0.8
1.0
1.2
V
F
- Forward Voltage (mV)
Fig. 5 Reverse Current VS. Reverse Voltage
300
250
Reverse Current (mA)
200
150
100
50
0
0
2
4
6
8
10
V
Z
- Reverse Voltage (V)
100
P
D
=500mW
T
A
=25
o
C
Fig. 6 Reverse Current VS. Reverse Voltage
P
D
=500mW
T
A
=25
o
C
Reverse Current (mA)
10
1
0.1
0.01
15
25
35
45
55
65
75
85
V
Z
- Reverse Voltage (V)
Document Number: DS_S1408013
Version: E14
BZX79C2V0 thru BZX79C75
Taiwan Semiconductor
Small Signal Product
ORDERING INFORMATION
PART NO.
BZX79Cxxx
(Note1)
MANUFACTURE
CODE
(Note 2)
PACKING CODE
R0
A0
GREEN COMPOUND
CODE
G
PACKAGE
DO-35
PACKING
10K / 14" Reel
5K / Box (Ammo)
Note 1: "xxx" defines voltage from 2.0V (BZX79C2V0) to 75V (BZX79C75)
Note 2: Manufacture special control, if empty means no special control requirement.
EXAMPLE
PREFERRED P/N
BZX79C75 R0G
BZX79C75-L0 R0G
PART NO.
BZX79C75
BZX79C75
L0
MANUFACTURE
CODE
PACKING CODE
R0
R0
GREEN COMPOUND
CODE
G
G
DESCRIPTION
Green compound
Green compound
PACKAGE OUTLINE DIMENSION
Unit (mm)
Min
0.34
2.90
25.40
1.30
Max
0.60
5.08
38.10
2.28
Unit (inch)
Min
0.013
0.114
1.000
0.051
Max
0.024
0.200
1.500
0.090
DIM.
A
B
C
D
Document Number: DS_S1408013
Version: E14
BZX79C2V0 thru BZX79C75
Taiwan Semiconductor
Small Signal Product
Notice
Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf,
assumes no responsibility or liability for any errors inaccuracies.
Information contained herein is intended to provide a product description only. No license, express or implied,to
any intellectual property rights is granted by this document. Except as provided in TSC's terms and conditions of
sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty,
relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose,
merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or seling these products for use in such applications do so at their own risk and agree to fully
indemnify TSC for any damages resulting from such improper use or sale.
Document Number: DS_S1408013
Version: E14
